MVS / N. Slyk

Condition: good (used), functionality: fully functional, Year of construction: 2025, machine/vehicle number: 0100-0149-2024, overall weight: 700 kg, total length: 3,500 mm, total width: 1,100 mm, total height: 1,500 mm, TECHNICAL DATA & EQUIPMENT: Suitable for flat material Working length: approx. 2500 mm Gedpfxoxm Syms Afpsbu PICK-UP NOTES: Collection must take place strictly between December 10th and 12th FCA Winterlingen, loaded onto truck

Condition: good (used), Year of construction: 1994, control type: CNC control, controller manufacturer: Siemens, controller model: 840 D, pipe diameter (max.): 168 mm, bending angle (max.): 190 °, bending radius (min.): 80 mm, bending radius (max.): 700 mm, overall weight: 32,000 kg, total width: 2,700 mm, total height: 2,450 mm, Tube diameter: 168.3 x 11 mm Tube insertion length: 6000 mm Max. bending radius: 700 mm Control system: Siemens 840 D Min. bending radius: 80 mm Max. bending angle +/-: 190° Dimensions (L/W/H): 11.9 x 2.7 x 2.45 m Machine weight approx.: 33 t - CNC control: CNC MMI Multicontrol 2000 - Control system: NCU - PLC: Siemens Simatic S7 - Electrical connection: 400V / 50 Hz / 85 A Gbjdpfxoxgqh No Afpou The machine is fully automatic and equipped with a tool changer. The following tools are available: Tube Ø 48.3 mm; radius 105 mm Tube Ø 60.3 mm; radius 120 mm Tube Ø 63.5 mm; radius 150 mm Tube Ø 76.1 mm; radius 190 mm Tube Ø 88.9 mm; radius 222 mm Tube Ø 114.3 mm; radius 285 mm Tube Ø 139.7 mm; radius 350 mm Tube Ø 141.3 mm; radius 700 mm Tube Ø 168.3 mm; radius 420 mm There were a few mandrels with direct engravings indicating their specifications: 88.9 x 8 mm; 88.9 x 4.5 mm; 114.3 x 8.8 mm; 139.7 x 8.8 mm; 168.3 x 12.5 mm; 168.3 x 8.8 mm The following mandrel outer diameters were measured: 23.2 mm; 32.3 mm; 37.1 mm; 41.5 mm; 59.3 mm; 70.3 mm; 77.7 mm; 80.9 mm; 88.7 mm; 93.2 mm; 94.7 mm; 103.0 mm; 112.8 mm; 118.8 mm; 128.9 mm; 138.5 mm; 147.2 mm; 153.6 mm The accessory package has an estimated value of approx. €150,000.

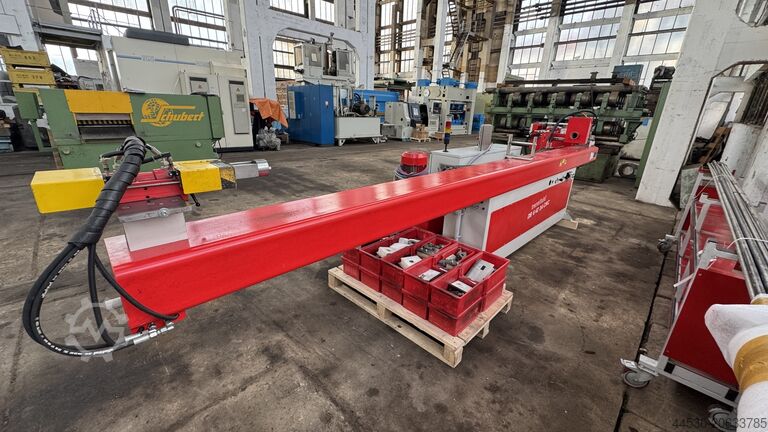

Condition: used, functionality: fully functional, Year of construction: 1998, machine/vehicle number: 7385, degree of automation: semi-automatic, actuation type: electric, controller manufacturer: Transfluid, controller model: IPU 20, pipe diameter (max.): 648 mm, pipe length (max.): 6,000 mm, tube wall thickness (max.): 3 mm, bending angle (max.): 180 °, bending radius (min.): 50 mm, bending radius (max.): 125 mm, working width: 6,000 mm, mandrel length: 5,500 mm, number of axes: 3, working height: 1,300 mm, table length: 7,000 mm, table width: 900 mm, table height: 1,300 mm, overall weight: 1,000 kg, total length: 7,000 mm, total width: 900 mm, total height: 1,300 mm, power: 5 kW (6.80 HP), input voltage: 400 V, input current: 25 A, input frequency: 50 Hz, type of input current: three-phase, operating pressure: 200 bar, oil tank capacity: 1,320 l, Equipment: documentation/manual, emergency stop, Bending software requires a new update. Bending mandrels are available, bending tools are not included. Gbedpfx Aoxcxupsfpju

Condition: new, Year of construction: 2025, tube diameter 48,3 mm wall strength 3,25 mm bending radius min. max. 180 mm Bending speed 20 °/sec total power requirement 2,4 kW weight of the machine ca. 700 t dimensions of the machine ca. 3880 x 800 x 1250 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Gbedpfexcuiiox Afpsu Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted

Condition: new, Year of construction: 2025, tube diameter 48,3 mm Gjdpfxoxcuice Afpobu wall strength 3,25 mm bending radius min. max. 180 mm Bending speed 20 °/sec total power requirement 2,4 kW weight of the machine ca. 700 t dimensions of the machine ca. 3880 x 800 x 1250 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted

Condition: like new (used), Year of construction: 2019, tube diameter 28 mm wall strength 2 mm bending radius min. 90 mm control 3D TubeSoft Slim total power requirement 3,5 kW Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Gbodpfxoxcuhrs Afpju Mandrel is no longer available, can be retrofitted

Condition: like new (used), Year of construction: 2019, tube diameter 28 mm wall strength 2 mm bending radius min. 90 mm control 3D TubeSoft Slim total power requirement 3,5 kW Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Gsdpfx Afoxcuhlopsbu Mandrel is no longer available, can be retrofitted

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1990, machine/vehicle number: 260900101013, pipe diameter (max.): 42 mm, pipe length (max.): 3,000 mm, tube wall thickness (max.): 25 mm, bending radius (max.): 170 mm, No minimum price – guaranteed sale to the highest bidder! Application: Processing of formable tubes, rectangular tubes, round rods, and square tubes. TECHNICAL DETAILS Tube diameter: 42 mm Wall thickness: 25 mm Max. round steel diameter: 20 mm Gsdpsw T Sqgefx Afpjbu Square tube: 25 x 25 mm Max. internal bending radius: 20 mm Max. external bending radius: 170 mm Bending direction: left Tube feed length: 3,000 mm Control: RC 7000 software Programming: manual Operation: via control panel MACHINE DETAILS Machine weight: 2.8 t Control cabinet dimensions: 800 x 700 x 2,000 mm Machine dimensions approx. (L x W x H): 5.1 x 0.7 x 2.0 m EQUIPMENT - Various bending tools for 25 mm tube - 12 assorted collets - Various auxiliary and clamping devices

Condition: used, Year of construction: 2005, operating hours: 75,600 h, pipe diameter (max.): 25 mm, pipe length (max.): 2,000 mm, bending radius (max.): 125 mm, Tube bending machine, CNC bending machine, tube bender, tube bending system, tube processing, tube technology, 3D tube bending, servo-electric, multi-axis bending machine, mandrel bending machine Capacity: - Round tubing mild steel 25 x 2,5 mm Ø - Round tubing stainless steel 25 x 2,0 mm Ø - Bending speed 125°/sec (forward feed) - Feed speed 1,800 mm/sec - Rotational positioning speed 300°/sec - Repeatability bending axis ±0.1° - Repeatability length ±0.1 mm - Repeatability rotation ±0.1° - Tube insertion length / usable length for mandrel bending 2000 mm - Maximum radius range 125 mm - Bending height 1,050 mm Machine equipment / basic equipment: - Free-standing bending head, 850 mm long - The compact free-standing bending head allows tube processing with a clear spacing of 300 mm between two bends - Bending axis drive: servo-electric - Bending direction: clockwise - With hollow shaft to achieve small radii - Following pressure die with retraction via pneumatic cylinder and ball circulation guides, 350 mm following, with a constant tube support of 100 mm - Pneumatic retraction is fixed and can be released if needed (e.g., for aluminum) - Pressure die can open widely so that the rotation unit with the long-neck chuck can move right up to the bending tool - With floor scanning of the safety area using a laser scanner - Safety area can be adapted to spatial conditions via software - Additionally, the machine is built according to the latest safety standards and complies with CE regulations - The front area of the enclosure is open and secured by the machine’s own laser scanner - With automatic mandrel lubrication - Standardized hydraulic components - Machine stationary - Color: RAL 7037 dust grey, RAL 3000 red Machine data: - Nominal pressure 250 bar, operating pressure 200 bar - Operating voltage 400 Volt – 50 Hz – 3-phase - Control voltage 24 Volt DC - Length 3800 mm - Width ,400 mm - Height 1300 mm Control description: - 3-axis control for bending angle, length feed, and rotational positioning for multi-level bending -The control system operates with three individual axes: bending, rotational positioning, and length positioning. Tolerance checks are performed automatically, and further movements are released Gsdewzan Ropfx Afpobu accordingly - Built-in computer – IBM compatible, min. Celeron 600 CD-ROM, 3.5" drive 1.44 MB - 2 serial and 1 parallel interface - Installed in a 19" rack enclosure - With 15" monitor and keyboard - During processing, a continuous target/actual value comparison is shown on the monitor - User interface: Windows CNC control standard equipment: - Programming of up to 20 different positions on one tube - 1 GB storage capacity for approx. 100.000 tubes, each with 20 different axis positions - Tube data can be saved after entry - Archiving of drawing numbers according to Windows standard - Errors and operator faults detected by the control are displayed in plain text

Condition: used, functionality: fully functional, Year of construction: 2005, operating hours: 142,500 h, pipe diameter (max.): 50 mm, pipe length (max.): 2,000 mm, bending radius (max.): 150 mm, tube bending machine, SPS bending machine, tube bender, tube bending system, tube processing, tube technology, electro-hydraulic, mandrel bending machine Capacity: - Round tubing mild steel Ø 50 x 3,0 mm - Round tubing stainless steel Ø 50 x 2,0 mm - Max. moment of resistance 5,0 cm³ - bending angle up to 180° + 10° overbend Machine equipment-/basic accessories: - Tube insertion length/usable length 2000 mm - Max. bending radius 150 mm - Bending height 1050 mm - Free-standing bending head, length 850 mm - The free-standing bending head is so compact that tubes can be processed with a clear spacing of 400 mm between two bends - Electrohydraulic drive - With automatic cycle; one of the following modes can be selected via key switch - Function activiation via hand switch - In manual operation mode, all functions can be operated via push button in jog mode - In semi-automatic mode, the tube is clamped after the first activation, bent after the second activation, and then the machine returns to its initial position - Counter bearing opens wide, so that with the corresponding equipment (VWE A-642) the rotation unit can move up to just behind the bending tool - Bending direction counter-clockwise - With hollow shaft to achieve small radii - For radii from 1x tube diameter - Manual tool reset - Automatic tool locking - All functions hydraulic - Operation via push button - Standardized hydraulic components - Stationary machine - Color: RAL 7037 dust grey, RAL 3000 red Machine data: - Nominal pressure: 250 bar, operating pressure: 200 bar - Operating voltage: 400 Volt – 50 Hz – 3 phase – 7.5 kW - Length: 3200 mm - Width: 1400 mm - Height: 1300 mm Gbsdpfowzammjx Afpsu - Weight: approx. 1470 kg

Condition: new, functionality: fully functional, Year of construction: 2025, Tube bending machine, CNC bending machine, tube bender, tube bending system, tube processing, tube technology, right-left bending, 3D tube bending, servo-electric, multi-axis bending machine, mandrel bending machine Capacity: -Round tubing mild steel S235 22 x 2,0 mm Ø -Round tubing stainless steel 1.4571 22 x 1,5 mm Ø -Max. moment of resitance 0,5 cm³ (S235) -Bending angle up to 180° + 10° spring back -Speed of bending axis max. 300°/sec. -Speed of front feed axis max. 1800 mm/sec. -Speed of rotation axis max. 600°/sec. -Repetition tolerance bending +/- 0,05° -Repetition tolerance length +/- 0,05 mm -Repetition tolerance rotation +/- 0,05° Gedpfx Aewvqgtsfpebu -Radius max. 66 mm -Bending height 1150 mm -Boosting force length positioning 2,5 kN -Power bending axis servo-electric -Automatic positioning rotation/ length servo-electric -All other axes servo-electric (e.g. clamping, mandrel forwards/ backwards, etc.) -Positioning of the bending heads servo-electric -Positioning of the pressure die (radial) servo-electric -Pressure die movement (axial) servo-electric -Material clamping (chuck) pneumatic Machine equipment-/basic accessories: -Bending head for bending right-hand and left-hand with one off set bend device -Bending head can be positioned horizontal and vertical, including rotation axis for change of bending direction (right- or left-hand) -Positioning of bending head via combined diagonal and rotation axis, this allows bending right- and left-hand in one operation -Bending direction free programmable, changing right-/left-hand for one tube geometry -Each bending head can be equipped with minimum two tool sets, e.g. with different bending radii or form-clamps, max. changing height for standard machine is 50 mm -Max. difference of bending radii for each bending level 1,5xD -With hollow shaft for using tooling for small radii -Minimum clamping length on the tube end, because of wide opening pressure die which allows the off set bend device to move directly behind the bending tool -Chuck for use of segment collets Depending on the contour of the clamping segments, already formed tube ends can be clamped -Material clamping in the VWE pneumatic -Footswitch to open or close the collet in the offset bend device, for easy loading and unloading -Following pressure die for bends up to 180° (for radii up to max. 2xD, for lager bending radii the pressure die can be repositioned to ensure a constant contact up to 180° bending angle) -For a correct positioning of the mandrel the machine is equipped with a mandrel support -Automatic, programmable mandrel withdrawal -Minimum quantity lubrication for automatic mandrel lubrication, adjustable lubricant quantity, can be used from inner tube Ø 13.5 mm -Central lubrication for automaticall lubrication of all moving parts in the necessary cycle -Air conditioning for the electrical carbinet -Starting of operation via manual switch on the control panel -In manual mode, all functions can be operated by keyboard and mouse The machine is built according to the latest safety regulations -In order to comply with the CE guidelines, a safety barrier is required in addition (DB-SA...) -Colour RAL 7047 grey, RAL 3020 red Control description: -Control via Simatic PC IPC BX-32A, Xeon W-11155MLE

Condition: good (used), Year of construction: 2003, Offer 24365 Technical data: - Bending performance tube at 45 kg/mm² up to Ø 60 X 4 mm - Solid material up to 45 mm - Bending angle 0 - 180° - Largest median bending radius Rm 171 mm - Smallest inner bending radius Ri 10 mm - Drive 400 V / 4 kW - Space requirement approx. W 400 x H 950 x D 600 mm - Weight approx. 100 kg - with preselection of bending angle Gbjdpfx Afjwq I Epspeu - Digital bending angle display + fine adjustment of bending angle - Manual pipe twisting device - Bending tools 22 R 67 mm, 25 R 82 mm, 35 R 110 mm - Flat steel bending attachment

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2006, operating hours: 83,700 h, machine/vehicle number: 0126427-027, Equipment: type plate available, LVD STRIPPIT GLOBAL 30 1225 Turret Press Machine in very good technical condition, used at Alsanit. Regularly serviced only by the manufacturer's service. Service parts used in the service - only new and original. The turret press is in continuous production use. If you are interested, we encourage you to make an appointment to confirm the technical condition and technological capabilities of the offered machine. It is possible to provide a video presenting the operation of the turret press, please send an inquiry with a request for sharing. General data: Location: Alsanit Sp. z o.o., ul. Wieleńska2, 64-980 Trzcianka, Poland Province: Wielkopolskie Year of production of the turret press: 2006 Date of purchase and installation of the machine: June 2019 Machine mileage: 83700rh Maximum pressing force: 300 kN (30 tons) Maximum sheet thickness: 6.4 mm Turret system type: Thick Turret Control unit: CNC :GE FANUC 180 IP Maximum travel in the X axis: 2,576 mm Maximum travel in the Y axis: 1,337 mm Maximum table load (even): 145.6 kg Simultaneous speeds: 110 m/min Number of strokes per min (die fi 25 mm); ±2% 400 min-1 Number of strokes per min ("nibbling" function - 2 mm): 1000 min-1 Number of strokes per min (marking/0.5 mm): 1700 min-1 Gjdpfewptdujx Afpobu Maximum feed rate (speed) in the X axis: 83 m/min Maximum feed rate (speed) in the Y axis: 73 m/min Number of tool sockets (stations) in the turret: 30 pcs. Station A – max. diameter 12.7 mm: 8 pcs. Station B – max. diameter 31.7 mm: 16 pcs. Station C – max. diameter 50.8 mm: 2 pcs. Station D – max. diameter 88.9 mm: 4 pcs. Number of indexed (rotary) stations in the revolver: 4 pcs. (D stations) Note: A multitool can be placed in each D station (1 multitool has 3 to 8 tools), which increases the number of tools from 12 to 32 pcs. Machine height: 2,325 mm Machine length: 5,584 mm Machine width: 5,160 mm Machine weight: 13,750 kg Working sheet size: 1,250 x 2,500 mm Number of sheet metal clamps (individually programmable): 3 pcs. Tilting work chute for cut parts: 450 x 500 mm Electric power supply 380/415 Volt, 35.5 kVA, 63 A, cable cross-section (3+1)x16 mm2 Additional equipment: Waste conveyor; Brush table The LVD Strippit Global 30 punching machine has 4 programmable rotary stations (size D). Each station can be equipped with a multitool head with automatic rotation. Using a servo drive, as well as CNC control - both the rotary stations and the entire turret have the possibility of bidirectional rotation with an accuracy of 0.01 degrees. The Auto Index rotary stations of the LVD Strippit Global 30 punching machine operate on the principle of direct drives, which are located directly above the station, constituting part of the turret mechanism. In the rotary stations with a diameter of 88.9 mm, a multitool tool holder can be mounted, thus increasing the machine's capabilities and the number of tools. The multitool holders allow for the installation of 3 or 8 punches and dies with a diameter of 12.7 mm or 31.7 mm, respectively. We issue a VAT invoice The price given is a net price!

Condition: used, Mandrel Tube Bending Machine 42 Siegfried Volz Machine Tools Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel Gbedpfxewnrt So Afpju

Condition: used, Year of construction: 1991, tube diameter 6 - 18 mm Godpfx Afov T Nq Hopjbu 180 ° 1500 mm weight of the machine ca. 0,55 t dimensions of the machine ca. 1,6 x 0,8 x 1,2 m

Condition: like new (used), functionality: fully functional, Year of construction: 2024, Manual length and angle positioner for 6000 mm pipe length Gbjdpfx Afov Tz S Ajpeu The bending capacity can be found in the attached technical documentation in PDF format.

Condition: used, Year of construction: 1999, Hydraulic mandrel bending machine Max. usable length: 4500 mm For pipe diameters 6-50 mm With automatic control No tools available, control is causing problems Gedpfjvxt I Tjx Afpebu Weight: approx. 1200 kg

Condition: good (used), Year of construction: 1996, tube diameter 6 - 28 mm wall strength 2 mm bending radius min. 2 x D Control IPU 20 bending radius max. 5,0 x D mm bending angle max. 190 ° arbor length 3000 mm operating pressure 180 bar Gsdpevtgn Nofx Afpobu hydraulic motor 4 kW weight of the machine ca. 900 kg dimensions of the machine ca. 3,8 x 1,1 x 1,3 m Semi-automatic electro-hydr. mandrel tube bending machine with PLC control for 20 angles and display in the control panel for bending angle specification, angle detection and angle measurement via absolute value encoder, autom. tool plate reset, Turning device with digital display, hydr. quick chuck, aut. Mandrel lubrication, adjustable length stops. Operating modes: MANUAL and semi-automatic. Control buttons: hydraulics on / off, operating mode selection, clamp to / on, clamp forward / backward, mandrel forward / backward, bending forward / backward /, locking forward / backward, mandrel lubrication, turning device forward / backward, plate reset, length stop forward, emergency stop. The machine comes from a prototype construction and was only used a little until 2000. After that, the machines of this department were sold. However, the purchaser did not use the pipe bending machine and therefore it has only stood in the warehouse and has not worked since then ((original paint). Please notice that the price of a new machine today is over € 60.000,--. Machine dealer with own stock of 1600 m².

Condition: used, Year of construction: 1993, Technical details: tube diameter: 80 mm tube diameter min.: 6 mm control for program: Gelma MM-1 tube pipe draw up length: 1800 mm weight of the machine ca.: 0,232 t dimension machine xH: 1,9 x 0,7 x 1,3 m Semi-automatic PIPE BENDING MACHINE Operating modes are manual but also semi-automatic Application: for multiple bending of pipes The swivel unit with bending preselection for 3 different bending angles in single and automatic mode. The machine is currently equipped with a stop bar for tube size Ø 10mm for 6 angle settings. The bending machine is movable/adjustable. Equipment/accessories: 6 cam rods/stop rods 6 control disks Gbodpfxju Ibyye Afpeu Bending tool for Ø 12mm *

Condition: new, "Properties: Bending radii: R10 to R200 (min. R= 1.8xD) (depending on the wall thickness, the material and the pipe diameter) Max. Bending speed: 2 rpm and 3.2 rpm without inverter Gbodpfeuudrkex Afpsu Operation: NC soft-touch control panel in 8 different languages and foot pedal Number of programs: 30 per 9 bends Control: NC1 Bending direction: counterclockwise Effective length (available in different lengths as required): 1,5 / 3 / 4 / 6 m Dimensions (W x H x D): 1000 x 1500 x 3600 mm (length for 3 m version) Weight: approx. 600 kg (with 3m mandrel) NOTE: The price quoted refers to a length of 1.5 m. Other lengths available on request! Premature mandrel retraction Positioning and rotation with mechanical stops and precise digital display Pneumatic four-jaw chuck Performance: Hard copper and aluminum : 60 x 4 mm Steel tube : 60 x 3 mm Stainless steel : 60 x 2 mm Scope of delivery: Machine Standard accessories (e.g. foot switch, operating instructions, 2 hex, 4 sets of chuck jaws, bending grease, 25 mm mandrel bar) Delivery without hydraulic oil"

Condition: new, "Properties: Bending radii: R36 to R190 (min. R= 2xD) Max. Bending speed: 2.8 rpm Control: digital Number of programs: 1 Dimensions (W x H x D): 245 x 300 x 320 mm Weight: 23 kg Portable Gjdpfxouudi As Afpsbu Power: Hard copper and aluminum : 42 x 1.5 mm Steel tube : 38 x 1.5 mm Stainless steel : 35 x 1.5 mm Solid material : 20 mm Scope of delivery MD070M Standard accessories (e.g. foot switch, operating instructions)"

Condition: new, "Bend speed: programmable for every bending anglevariably up to 1 rpm Gsdpsuudg Ijfx Afpobu Control: 7“ and 4,3” touch-screen with oicons Number of programs: unlimited by USB interface LAN or W-LAN connection (optional) Right/left bending (with special tool) possible Depending on machine type: Dimensions, weight, bending radius and bending capacity"

Condition: used, Year of construction: 1997, tube diameter 60 mm wall strength 6 mm bending radius min. 180 mm total power requirement 5,5 kW weight of the machine ca. 1300 t dimensions of the machine ca. 3500 x 1250 x 1300 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Gbjdpfx Aet I D Uxjfpju Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Gbjdpfxottah Ro Afpeu Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: refurbished (used), functionality: limited functionality, Year of construction: 2003, operating hours: 24,000 h, pipe diameter (max.): 100 mm, pipe length (max.): 4,100 mm, bending angle (max.): 183 °, bending radius (max.): 300 mm, wall thickness: 8 mm, Transfluid DB 2090 DB CNC Mandrel Tube Bending Machine. Excellent High Quality Germany Machine, with fully refurbished main hydraulic pumps and main head fully reconditioned. Only requires new encoder to be fitted and this machine is ready to go. Features include. 100mm x 1.6mm Tube Maximum Capacity at 1.5D Anticipated Mandrel Withdrawal Fully automatic setup of clamps and follower Boosted Follower for tight radius thin wall tube bending. Long bed with 4000mm over mandrel. Comes with huge amount of tooling worth over AU$150k. Tooling Included: 101.6mm 152mm CLR 101.6mm 200mm CLR 76.2mm 114mm CLR 76.2mm 200mm CLR Gsdpfxetrd T Te Afpjbu 76.2mm 238mm CLR 63.5mm 96mm CLR 57.2mm 86mm CLR 50.8mm 76mm CLR 44.5mm 67mm CLR 40 x 40 120mm CLR 50 x 50 150mm CLR 60.3mm 150mm CLR 48.3mm 120mm CLR
