Condition: used, Year of construction: 2011, Offer: High-Precision and Versatile Punching/Nibbling Machine Boschert Compact 500 CNC Z (Year 2011) – Ideal for Flexible Sheet Metal Processing! We are selling a powerful and reliable punching/nibbling machine from the renowned manufacturer Boschert, which impresses with its advanced features and precision. This machine is the ideal solution for a wide range of punching and nibbling tasks, from one-off pieces to large-scale production. Key Features: • Manufacturer: Boschert • Model: Compact 500 500 x 1000 CNC Z • Year of manufacture: 2011 • Intuitive CNC Control: Multi-axis Ladob controller with graphical user interface for easy programming and visualization of machining processes. • Extended work area for greater flexibility: o X-axis: 0–2000 mm (enables processing of long workpieces) o Y-axis: 0–750 mm (offers ample space for wide sheet metal) • Ultra-fast tool change: Trumpf quick-change tool system ensures minimal downtime and maximum productivity. • Universal tool compatibility: Compatible with the full range of Trumpf tools – reduce your tooling costs and expand your capabilities. • Secure and precise material handling: o Collet clamping: Ensures a firm grip of the workpiece during processing. o Non-contact repositioning up to 9999 mm: High-precision repositioning device with 2 sheet holders for efficient processing of even very long sheets without loss of position. Gsdsx Uxtfspfx Aa Ijtt • Dynamics and precision at their best: o Maximum positioning speed: 60 m/min for fast processing cycles. o Infinitely variable feed rates: Optimal adjustment of processing speed to the material and task. o Highest positioning accuracy: ± 0.05 mm for precise results on every workpiece. • Robust and durable construction: o Y-axis drive: Two ball screw-driven carriages located left and right beside the machine table ensure maximum stability and torsional stiffness. o X-axis drive: Ball screw and four recirculating ball guides guarantee precise and smooth movement. • Specialized equipment for small parts: Stop plate (L-bracket) for secure processing of small parts that can no longer be safely held by the collets – for maximum flexibility and minimal scrap. Condition: The machine is in very good, well-maintained condition and has been serviced regularly. It is immediately ready for operation and offers excellent performance for your sheet metal processing needs.

Condition: ready for operation (used), Year of construction: 1997, Working area: 2500 x 1280 mm Punching force: 220 kN For sheet thickness up to: 8 mm Weight approx.: 11 t Gtodex Tr S Sopfx Aa Iot

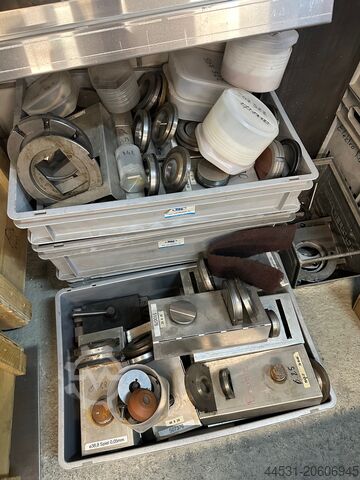

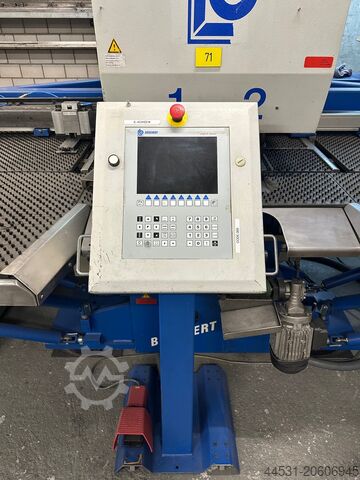

Condition: ready for operation (used), Year of construction: 2004, Immediately available from Swiss operation: CNC Punch – Nibbling Machine Boschert Type TWIN 750 CNC/Z Year of manufacture: 2004 Working area: 810 x 1500 mm Sheet length with repositioning up to 9999 mm Table: 750 x 3500 mm Revotol 6 Gsdpfx Aaex Tq D Tj Iott Hydraulic punching force: 28 tons Max. workpiece weight: 200 kg Strokes/min: 250 Strokes/min with fast cycling: 800 X-axis speed: 60 m/min Y-axis speed: 30 m/min Simultaneous X & Y-axis speed: 67 m/min Trumpf tooling Accuracy: plus/minus 0.05 mm Connection: 4.8 / 11 kW Complete tooling included Weight: 11.5 tons Price: EUR 9,000.– plus VAT ex location

Condition: excellent (used), Year of construction: 2006, punching force: 28 t, sheet thickness (max.): 10 mm, sheet thickness steel (max.): 6 mm, punching diameter: 105 mm, throat depth: 1,500 mm, Boschert TWIN 1500x3000 Rota-Index Quick-change tool system TRUMPF Station 1: Rotating with indexing option for Boschert Multitool Max. punching diameter 105 mm, infinitely rotatable tool Station 2: Max. punching diameter 105 mm, with option for Boschert Multitool Revotool adapter incl. 8-position tool holder Punching force: 280 kN (28 tons) Travel range: x-axis 2050 mm (repositioning up to 9999 mm) y-axis 1580 mm Throat depth: 1750 mm Tool system: Trumpf Gr1-3 (105 mm) and Boschert Revotool Labod 32060 graphic control / workshop programmable Max. sheet thickness: 6 mm (clamp opening) Max. stroke height: 90 mm, infinitely programmable upwards and downwards Table width left + right: 2250 mm each Table depth: 3250 mm Table height: 900 mm Overall width: 4900 mm Overall depth: 4800 mm Overall height: 2080 mm Drive power: 20 kVA Machine weight: 15,000 kg Hydraulic oil capacity: 160 l Color: Blue RAL5017 / Light Grey RAL7035 Year of manufacture: 2006 Ball transfer table Slug extraction system Fast hydraulic system Very well maintained condition Gtsdpfx Aox Tp Rfoa Iot Comes with accessories

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Amada CNC-controlled turret punching machine, type VIPROS 368 KING. The machine is equipped with a loading system type PR 300 and an unloading system type MP 300. Gtsdpfx Aaox Sq Ips Ist

Condition: used, Year of construction: 2022, controller manufacturer: Sonstige, controller model: AMNC-3i, _____ Description: Control : Sonstige AMNC-3i Movement X/Y/Z : 3000/1500 mm Gtedpfx Aasx I T Dxo Iet Technical data Punching machine:EMK-3612MII (58) Punching force:300 kN Positioning accuracy:± 0.1 mm Number of tool stations:58 Machine frame:Bridge frame Machine table type:Brush table Punching drive:Servo-electric dual drive Travel range (X x Y):1525 x 3050 mm Control:AMNC-3i (21.5" screen size) Features :Punch & forming function :Good parts flap :scrap conveyor system Dimensions Length:5436 mm Width:6212 mm Height:2342 mm Weight:21500 kg

Condition: ready for operation (used), functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,270 mm, workpiece weight (max.): 150 kg, Punching and nibbling machine with TRUMALIFT Sheetmaster! TECHNICAL DETAILS Press force: 220 kN Max. sheet thickness: 6.4 mm Travel path X-axis: 2,500 mm Travel path Y-axis: 1,270 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed simulation: 108 m/min Positioning speed rotary axis: 360°/sec Punching diameter: 76.2 mm Minimum programmable increment: 0.01 mm or 0.01° Workpiece weight: 150 kg Tool stations: 15 pcs Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 6,400 x 5,800 x 2,100 mm Machine weight: approx. 11,050 kg Gtedpfx Aaox I Hh Rs Iet EQUIPMENT Multitool control "Softpunch" function Pneumatic follow-up cylinders Small parts sensor for programmable part chute Parts box for finished parts Chip conveyor with container Scratch-reduced processing Air-cushioned mounting Additional clamping bridge Prepared for TRUMALIFT SheetMaster TRUMALIFT Sheetmaster for workpieces up to 2,500 x 1,250 mm Alignment system for loading stack with spreader magnets Manually movable scrap grid system

Condition: ready for operation (used), Year of construction: 2001, operating hours: 62,769 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, TECHNICAL DETAILS Sheet thickness: 8 mm Punching force: 220 kN Gtedpjx I E Ezjfx Aa Iet Travel X-axis: 3,000 mm Travel Y-axis: 1,500 mm MACHINE DETAILS Control: Siemens Machine weight: approx. 17,500 kg Operating hours: 62,769 h EQUIPMENT Scraper position change monitoring Thread forming Marking – quick beading Slitting Multishear Multibend Backgauge repositioning Roller tools Setup cassettes Ball transfer table

Condition: good (used), Year of construction: 2023, operating hours: 5,001 h, functionality: fully functional, X working area max.: 3000 mm Y working area max.: 1500 mm Control: TRUMPF Control based on Rexroth IndraMotion MTX Machine: - Closed machine frame - Hybrid axis system - Linear magazine with 24 slots for clamps and tools - Hydraulic clamps (3 pieces) - Drives with maintenance-free three-phase motors - Repositioning with programmable hold-down device - Foot pedal for clamp closing - Parts chute on the right Punching Head: - Delta Drive - Rotatable mono-tool holder - Programmable hold-down position - Tool length compensation - Punch lubrication spray system - Punch slug extraction - Forming function - Stroke counter for punches Control: - TRUMPF Control based on Rexroth IndraMotion MTX - Touch panel with 19" TFT color display - Touchpoint - Programmable cutting gas pressure - Automatic shut-off - Remote support interface - Program management - Production planning Data Transmission: - USB interface - RJ-45 network interface - Central Link - Online Update Manager Safety: - CE marking and EC Machinery Directive - Dual-beam safety light curtain Extended Standard Equipment: - 1st positioning pin (inside right) + Brush tables + MultiTool + Thread forming with thread counter + Thread-former breakage monitoring + Lubricant level monitoring + Marking/rapid beading + Deburring and rolling technology + Adaptive stroke calibration + Die lubrication spray system + Smart Punch Monitoring + Parts flap on the left + Parts conveyor belt for parts flap left + Collection tray for parts conveyor left + Sensor for parts chute + Parts conveyor for parts chute right + Additional clamp + 4x individually openable clamps Gedpfxexxbwxe Aa Iett + 4x height-adjustable clamps + Automatic clamp closing loading sensor system + Optical loading sensor + Automatic repositioning movement to compensate for loading tolerance + Repositioning device for DeltaDrive + Vibration-dampened installation + Chip conveyor with tilting bin + Machine status light + Warpage detection + Wireless Operation Point SheetMaster Compact 3000 x 1500 (AK05): - Loading station with spreading magnet for sheet separation - Suction frame - Vacuum sensors - Double sheet detection - Unloading cart for residual grids and microjoint sheets - Second operator station for loading and unloading + Compact setup for light grid and reference point system + Peeling system SortMaster Compact: - Machine-integrated automated small part removal - Suction frame for unloading good parts up to 600 x 400 mm (X x Y) - 2 suction bars (each suction cup individually controllable) - Unloading area 600 x 800 mm - Vacuum sensors for the suction circuits + X-axis extension - Extension of the unloading area to 1200 x 800 mm

Condition: good (used), Year of construction: 1999, operating hours: 52,324 h, functionality: fully functional, X working area max.: 1270 mm Y working area max.: 1270 mm Control: Bosch Type 3 Basic Standard equipment: - Robust C-frame - Safety light barriers - Coordinate guide with integrated linear magazine - 2 clamping claws - Automatic tool changer Gtsdoxxbdlspfx Aa Iot - Automatic repositioning - Tool length compensation - Forming capability - Mono tool holder with 360° rotation for all tools - Programmable hold-down device - Multitool drive - Punch slug extraction - Brush tables - Part chute 200 x 200 mm, sorting of parts into 2 containers - NC-controlled, digital, maintenance-free three-phase drives - Network interface RJ34 - 3.5" floppy disk drive - TOPS 2000 graphical programming - Online diagnostics via modem - Operating manual + Vibration-damped installation + Multitool + Thread forming + Start post

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, CNC punching machine with only approx. 11,600 operating hours, immediately available Manufacturer: TRUMPF Model: TruPunch 3000 - 1600(S11) Year of manufacture: 11/2013 Operating hours, approx.: only 11,600 h Sheet format: Large format TECHNICAL DATA: Working area: 3,000 x 1,500 mm, with repositioning Max. workpiece weight: 160 kg Punching and hold-down force: 180 kN and 20 kN Max. stroke rate: Punching: 800 1/min, Marking: 2,500 1/min Dimensions (L x W x H): 6,500 x 6,203 x 2,252 mm SPECIAL EQUIPMENT: - MultiTool function - MultiShear function - Marking / Fast embossing function - Deburring and roller technology - Adaptive stroke calibration Gjdpfx Aaexn Tywe Iott - Punch slug breakage monitoring - Lowerable die - Spray degreasing for dies with fill level monitoring - Additional clamp - Sheet collision detection - Stop pin, outer side, left position outside STANDARD EQUIPMENT: Machine: - Working area 3,000 x 1,500 mm (with repositioning) - Rigid C-frame for easy access - Coordinate guidance for high-precision machining - Linear magazine with 17 tool stations and 3 clamps - Drives with maintenance-free 3-phase servo motors - Repositioning device with programmable hold-down - Ball tables - Parts chute - Programmable support table - Good parts container - Scrap container - Automatic shut-off mechanism - Transport and installation device - Stop pin (right side, inside) - Foot switch for closing the clamps Punching head: - Servo-electric punching head - Rotatable single-tool adapter - Programmable hold-down - Tool length compensation - Spray degreasing for punch - Punch slug extraction - Forming - Manually adjustable pressing force - Stroke counter for punch - Monitoring of fill level for thread-cutting and tool lubrication Control: - Control system based on Bosch MTX CMP 70 - Operating panel with 17" touchscreen - NC program management - Integrated technology data - Teleservice via Internet - Integrated e-shop - Production planning - Programming - Advanced workshop programming - Data transmission - USB interface Safety: CE marking (ex works) Dual-beam light barriers

Condition: ready for operation (used), Year of construction: 1998, operating hours: 30,430 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Pressing force: 220 kN Maximum sheet thickness: 6.4 mm Gtjdpfxjxhfu Hj Aa Ist Punching diameter: 76.2 mm X-axis travel: 2,500 mm Y-axis travel: 1,250 mm Positioning speed X-axis: 90 m/min Positioning speed Y-axis: 60 m/min Positioning speed (simulation): 108 m/min Positioning speed rotary axis: 360 °/sec Workpiece weight: 150 kg Smallest programmable increment: 0.01 mm or 0.01° Tool stations: 15 units Tool change time: 1.5 - 6.5 sec MACHINE DETAILS Dimensions & Weight Dimensions: 6,400 x 5,800 x 2,100 mm Approx. machine weight: 11,050 kg Operating hours: 30,430 h

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,500 mm, TECHNICAL DETAILS Working area: 3,000 x 1,500 mm Max. punching force: 220 kN Max. sheet thickness: 6 mm MACHINE DETAILS Dimensions & Weight Gtodpfsxhfnajx Aa Ist Dimensions: 7,500 x 7,500 x 2,500 mm Approx. machine weight: 17,500 kg

Condition: used, Year of construction: 2004, functionality: fully functional, machine/vehicle number: 11.22-LP6122804, The Finn-Power LP6 SWT is a combined laser and punching CNC machine designed for high-efficiency sheet metal processing. Manufactured in 2004, this model integrates hydraulic punching and CO₂ laser cutting technologies, making it suitable for complex and versatile manufacturing tasks. Godexcnipjpfx Aa Iott

Condition: ready for operation (used), Year of construction: 2000, operating hours: 20,000 h, functionality: fully functional, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,500 mm, TECHNICAL DETAILS Sheet size: 1,500 x 3,000 mm Gedpfx Aow Swdioa Iett MACHINE DETAILS Operating hours: 20,000 h EQUIPMENT Material handling Tools Grinding machine

Condition: good (used), Year of construction: 1999, functionality: fully functional, Product Description FINN POWER TP 250 CNC Gjdpfx Aewxw Uija Iott Travel distances: X: 1020 mm Y: 1020 mm Control System: Sinumerik 3N Punching force: 250 kN Max. punching diameter: 85 mm Max. sheet thickness: 8 mm Machine dimensions: 3500 x 2300 x 2300 mm Machine weight: 5800 kg

Condition: refurbished (used), Year of construction: 2014, operating hours: 35,418 h, functionality: fully functional, punching force: 18 t, sheet thickness (max.): 6 mm, feed length X-axis: 2,500 mm, feed length Y-axis: 1,250 mm, HIGHLIGHTS - Last maintenance in February - Punch head: stripper holder and seals replaced - Lower clamping piston replaced - C1K encoder and needle bearing renewed - All wear parts and maintenance items serviced TECHNICAL DETAILS Max. punching force: 180 kN Working area: 2,500 x 1,250 mm Max. sheet thickness: 6.4 mm Control: Bosch MTX CMP70 Tool system: 18 tool stations, with 2 clamps Part chute: 500 x 500 mm Hydraulic single tool holder: 360° rotation Programmable hold-down device: active / passive / re-track MACHINE DETAILS Operating hours: 35,418 h (28.02.2025) Space requirements: 6,500 x 6,000 x 2,230 mm Machine weight: 9,800 kg Total connected load: 18 kVA EQUIPMENT - Rigid, easily accessible C-frame - Linear magazine for tool stations - Foot switch for clamp closing - Servo-electric punching head - Punch lubricator (spray lubrication) - Punch slug extraction - Adjustable hold-down force - 17" touch screen - Teleservice via Internet - Automatic shutdown - USB interface - CE marking - Multi-beam safety light barriers - Hydraulic quick shut-off - Multitool function - Deburring and roller technology function - Thread forming function - Engraving tool function - Marking/fast bead forming function - Sensor for part chute - Vibration-dampened installation Gjdpfxewu Evys Aa Ijtt

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, punching force: 28 t, travel distance X-axis: 1,500 mm, travel distance Y-axis: 3,000 mm, punching diameter: 105 mm, TECHNICAL DETAILS Gedpswurylofx Aa Istt Punching force: 280 kN Working area: 1500 x 3000 mm Sheet thickness: 6.4 mm Workpiece weight: 200 kg Punching diameter: 105 mm X-axis: 60 m/min Y-axis: 30 m/min MACHINE DETAILS Machine weight: approx. 16,000 kg EQUIPMENT No further information available.

Condition: good (used), Year of construction: 2009, operating hours: 44,287 h, functionality: fully functional, X Working area max.: 2500 mm Y Working area max.: 1250 mm Operating hours: 44,287 hours Control system: Bosch PNC-P Standard equipment: Machine - Stable, easily accessible C-frame - Coordinate guide for high-precision machining - Linear magazine with 18 tool positions including 2 clamps - Drives with maintenance-free three-phase motors - Reloading device with programmable hold-down device - Ball tables - Part chute 180 x 150 mm - Automatic shut-off Punching head - Hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down device - Tool length compensation - Punch spray lubrication - Punch slug extraction - Forming Control system - Open control system based on Bosch PNC-P - Control panel with 15" TFT color screen - Program management - Integrated Technology Data - Teleservice Data Transfer - USB Interface and Network Connection Safety Gtedpfx Aaswlifmo Ijt - CE Marking - Multi-Beam Light Barriers - Hydraulic Quick Shutdown + Multitool Function + MultiShear Function + MultiBend Function + Thread Forming Function + Marking/Fast Beading Function + Deburring and Rolling Technology Function + Soft Punch Function + Movable Support Table + Part Slide Sensor + Vibration-Dampened Installation + 2nd Stop Pin + Bow Detection

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 5820387, punching force: 30 t, sheet thickness steel (max.): 8 mm, working range: 3,000 mm, travel distance X-axis: 2,500 mm, CNC punching machine with fully automatic loading system TECHNICAL DETAILS Control: CNC AMADAN 04 P-C Automation & Safety Loading system: LKI L III 250 automatic loader Unloading system: PR III automatic unloader Sorting: Automatic part sorting on pallets possible Noise protection: Noise protection hood Safety equipment: SICK photoelectric sensors, original safety fences Processing capacity Punching force: 30 t Max. material thickness (steel): 8 mm Working area: 3,000 mm X-axis travel: 2,500 mm Table system Table type: Brush table for quiet operation and scratch-free processing Repositioning: Automatic sheet repositioning Tool lubrication: Air Blow automatic lubrication Punching Pneumatic punches: 2 pieces MACHINE DETAILS Power supply: Three-phase Overall length: 15,000 mm Total width: 5,000 mm Total height: 2,000 mm Punching machine weight: 16 t Loader weight: 2.3 t EQUIPMENT - Automatic loader LKI L III 250, built in 2011 - Automatic unloader PR III - Noise protection hood - SICK photoelectric sensors - Original safety fences - Brush table - Automatic sheet repositioning - Air blow lubrication - Two pneumatic punches Further technical details according to the manufacturer - without guarantee Gtedpfxswc S R Hs Aa Iot Ram stroke: 31.9 mm Max. hole diameter: 114.3 mm Punching frequency (X/Y direction) Stroke length: 8.0 mm – Pitch: 25.4 mm – Stroke frequency: 300 / 375 strokes/min Stroke length: 4.5 mm – Pitch: 25.4 mm – Stroke rate: 375 / 375 strokes/min Stroke length: 4.5 mm – Pitch: 2.0 mm – Stroke rate: 600 / 600 strokes/min Tool turret Tool type: Amada Thick Turret Turret speed: 25 rpm Turret capacity: 58 stations (4 of which are auto-indexable) Accuracies Punching accuracy: ± 0.10 mm Positioning accuracy: ± 0.025 mm Repeat accuracy: ± 0.025 mm

Condition: ready for operation (used), Year of construction: 2001, operating hours: 62,433 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 2,585 mm, travel distance Y-axis: 1,250 mm, workpiece weight (max.): 200 kg, TECHNICAL DETAILS Control: Siemens Sinumerik 840 D Punching force: 220 kN Max. sheet thickness: 8 mm Max. Sheet thickness for stainless steel: 8 mm Max. Punching diameter: 76.2 mm Working area and workpiece Working area: 2,585 x 1,250 mm Max. Workpiece weight: 200 kg Speed and precision Max. Speeds: 100 / 60 / 116 m/min Accuracy: 0.1 mm MACHINE DETAILS Operating hours: 62,433 h Length: 6,100 mm Width: 6,760 mm Gsdpfxjwcqf Ns Aa Iott Height: 2,500 mm Weight: 13,000 kg

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 3,085 mm, travel distance Y-axis: 1,650 mm, workpiece weight (max.): 230 kg, TECHNICAL DETAILS Cutting force: 220 kN Working area: 3,085 x 1,650 mm Max. sheet thickness: 8 mm Max. workpiece weight: 230 kg Control Control: Bosch Trumagraph CC 220 MACHINE DETAILS Machine weight: 13,800 kg Space required: approx. 7,900 x 6,300 x 2,200 mm Electrical specifications Mains connection: 400 V, 50 Hz Connection power: 19 kVA Supply voltage: 400 V Control voltage: 24 V Required fuse: 3 x 35 A Compressed air Gtodpfx Aowcqfpea Iet Compressed air connection: 6 bar

Condition: used, Year of construction: 2019, functionality: fully functional, total height: 2,100 mm, total width: 9,000 mm, sheet thickness (max.): 6 mm, punching diameter: 105 mm, overall weight: 17,500 kg, table height: 900 mm, color: blue, power of feed motor: 20,000 W, Punching machine equipped with two independent tool stations with electrohydraulic heads and HiFocus 160i plasma unit from Kjellberg. The machine is characterized by: - automatic adjustment of the plasma torch height, - TRUMF quick tool change system - short changeover time; - X-axis movement range from 0 to 3000 mm, - Y-axis movement range 0d 0 to 1500 mm, - stepless adjustment of feed speeds, - possibility of nibbling, punching and embossing, - stepless adjustment of stroke height up to 90 mm, - tool punching up to 6 mm thick, - plasma torch cutting up to 12 mm thick, - easy programming. Gtodpfowayilsx Aa Iot Available functions: - single hole, - row of holes, - circle of holes, - circle nibbling, - rectangular chipping, - matrix, - nibbling of cuts, - object rescaling, - contour program (in combination with Rotation station), - subroutines, - object repetition, - trimming, - hole-free zone, - ellipse, - V-belt, - mirror image, - waste removal. High-quality plasma cutting unit for structural steel, high-alloy steel and aluminum. Reduces the use of additional processing due to the appropriate cutting surface. Water-cooled PerCut 210 plasma torch with high heat dissipation efficiency and long nozzle durability thanks to the use of swirl gas technology.

Condition: good (used), Year of construction: 2008, operating hours: 59,000 h, functionality: fully functional, punching force: 18 t, punching diameter: 76 mm, workpiece weight (max.): 150 kg, controller model: Bosch Typ 3, TECHNICAL DETAILS Working area: 2540 x 1270 mm Punching force: 18 t Max. sheet thickness: 6.4 mm Max. workpiece weight: 150 kg Max. punching diameter: 76.2 mm Control: Bosch Type 3 Positioning accuracy: 0.1 mm Gedpjv E N S Usfx Aa Ijtt Speeds X-axis: 90 m/min Y-axis: 60 m/min Simultaneous movement (X/Y): 108 m/min MACHINE DETAILS Machine dimensions (LxWxH): 5500 x 5900 x 2200 mm Machine weight: 11,400 kg EQUIPMENT - stable, easily accessible C-frame - coordinate guide for high-precision machining - linear magazine with 19 tool positions, 2 clamping claws - drives with maintenance-free Three-phase servo motors - Follow-up device with programmable hold-down - Ball tables - Part slide 180 x 200 mm - 2 good parts containers - Chip container - Automatic shutdown

Condition: ready for operation (used), Year of construction: 2010, operating hours: 57,504 h, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 8 mm, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, AUTOMATION - SheetMaster - loading and unloading in parallel with main time - Toolmaster 70 - setting up in parallel with main time - GripMaster with scissor lift table - Good part conveyor TECHNICAL DETAILS Travel paths X / Y: 2500 / 1250 mm Sheet thickness: 8 mm Punching force: 220 kN Active hold-down clamps: 4.5 - 20 kN Workpiece weight: 200 kg Control: Siemens Sinumerik 840D  Part flap: 500 x 500 mm Speed X / Y / simultaneous: 100 / 60 / 116 m/min C-axis: 500 rpm Gtjdpfx Asvxi Suea Ijt Stroke sequence punching / marking: 1600 / 3000 1/min Position deviation Pa: ±0.1 mm Position spread Ps: ±0.03 mm Linear magazine: 21 tools with 3 clamps Tool change time for single tool / multi-tool: 3 / 0.3 s MACHINE DETAILS Space requirement: 6,760 x 6,100 mm Average power consumption: 9.5 kW Operating hours: 57,504 h EQUIPMENT - Stable, easily accessible C-frame - Moving ball roller tables - Linear magazine for tool stations and clamping clamps - Foot switch for clamp closing - Good parts container - Hydraulic single tool holder, 360° rotation - Manually adjustable holding down force - Programmable holding down device - active/passive/repositioning - Spray lubrication of punch - Punch slug extraction - Level monitoring for thread forming and tool lubrication - CE marking - Multi-beam light barriers - Quick shutdown of hydraulics - Bulge detection ADDITIONAL EQUIPMENT - Function MultiTool - MultiBend function - Thread forming function - Roller technology function - Marking - Multishear - Adaptive stroke calibration - Active die - Repositioning cylinder - Spray lubrication of die with level monitoring - Repositioning cylinder - Sensor for parts chute - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts
