Punching machine - under 12T/h

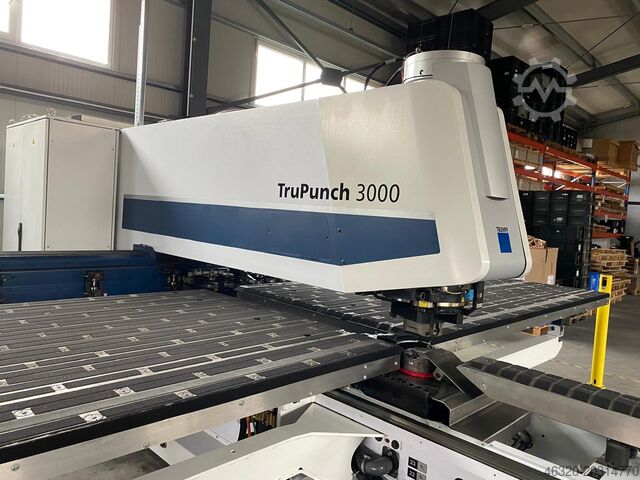

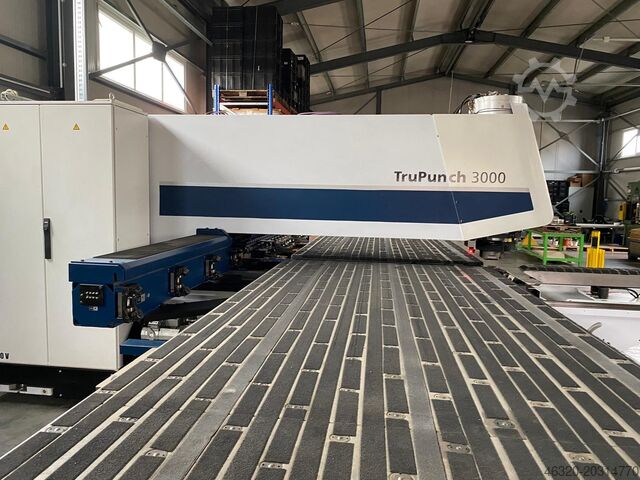

TRUMPF TruPunch 3000 (S11)

Name: TRUMPF TruPunch 3000 (S11)
Brand: TRUMPF
Availability: InStock

Year of construction

2014

Condition

Used

Location

Timișoara

Punching machine - under 12T/h TRUMPF TruPunch 3000 (S11)

Show map

Machine data

Machine type:: Punching machine - under 12T/h

Manufacturer:: TRUMPF

Model:: TruPunch 3000 (S11)

Year of construction:: 2014

Condition:: excellent (used)

Functionality:: fully functional

Price & Location

Location:: Timișoara, Rumänien

Call

Details about the offer

Listing ID:: A203-14770

Update:: 03.02.2026

Description

CNC punching machine with only approx. 11,600 operating hours, immediately available

Manufacturer: TRUMPF
Model: TruPunch 3000 - 1600(S11)
Year of manufacture: 11/2013
Operating hours, approx.: only 11,600 h
Sheet format: Large format

TECHNICAL DATA:
Working area: 3,000 x 1,500 mm, with repositioning
Max. workpiece weight: 160 kg
Punching and hold-down force: 180 kN and 20 kN
Max. stroke rate: Punching: 800 1/min, Marking: 2,500 1/min
Dimensions (L x W x H): 6,500 x 6,203 x 2,252 mm

SPECIAL EQUIPMENT:
- MultiTool function
- MultiShear function
- Marking / Fast embossing function
- Deburring and roller technology
- Adaptive stroke calibration
- Punch slug breakage monitoring
- Lowerable die
- Spray degreasing for dies with fill level monitoring
- Additional clamp
- Sheet collision detection
- Stop pin, outer side, left position outside

STANDARD EQUIPMENT:
Machine:
- Working area 3,000 x 1,500 mm (with repositioning)
- Rigid C-frame for easy access
- Coordinate guidance for high-precision machining
- Linear magazine with 17 tool stations and 3 clamps
- Drives with maintenance-free 3-phase servo motors
- Repositioning device with programmable hold-down
- Ball tables
- Parts chute
- Programmable support table
- Good parts container
- Scrap container
- Automatic shut-off mechanism
- Transport and installation device
- Stop pin (right side, inside)
- Foot switch for closing the clamps

Punching head:
- Servo-electric punching head
- Rotatable single-tool adapter
- Programmable hold-down
- Tool length compensation
- Spray degreasing for punch
- Punch slug extraction
- Forming
- Manually adjustable pressing force
- Stroke counter for punch
- Monitoring of fill level for thread-cutting and tool lubrication

Control:
- Control system based on Bosch MTX CMP 70
- Operating panel with 17" touchscreen
- NC program management
- Integrated technology data
- Teleservice via Internet
Bledoxn Tywepfx Ah Iod
- Integrated e-shop
- Production planning
- Programming
- Advanced workshop programming
- Data transmission
- USB interface

Safety:
CE marking (ex works)
Dual-beam light barriers

The listing was translated automatically. Translation errors are possible.
