Baumgartner

Condition: used, punching force max. 50 t throat 510 mm Dcedpfsyrhyusx Ah Ijd stroke 32 mm stroke - stepless adjustable 10 - 32 mm no. of strokes 35 bei 10 mm Hub/min Working height 1070 mm daylight 350 mm table width 255 mm dimensions ca. 1080 x 650 x 1680 mm material layer 630 X 535 weight ca. 1400 kg Scraper, height-adjustable and removable, with interchangeable plate Hydraulic low-pressure finder for foot switch operation Two-stage foot switch and electrical controls Integrated hydraulic unit With punching saddle for dies no. 3 and 4, up to Ø 39.5 mm Quick-change device for punches 3 and 6 up to Ø 39.5 mm Peddinghaus blue series with material support table no. 513, dimensions 630 x 535 mm

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien Dodpsynm Nyefx Ah Iocd 7570 € 146.1 € 50 to 130 mm 13/27 mm 23 1/min 3 kW 1100 mm 900 mm 1550 mm 355 kg portable, hydraulic punching machine table with gauge foot pedal user manual in German or English

Condition: good (used), functionality: fully functional, Peddinghaus profile and punching machine with automatic stop Very well maintained Punching force 45 t Incl. various punching dies Dodpfx Asyg D Nneh Iscd

Condition: used, Year of construction: 2003, Technical details: Dedsybbz Rjpfx Ah Ijcd round bar steel: 45 mm square edge steel: 45 mm L-beam: 130x130x13 90 mm flat steel: 450x15 mm hole punching press: 80 ton throat: 300 mm stroke: 70 mm work height max.: 1195 mm total power requirement: 11 kW dimensions of the machine ca.: 2000x1800x2100 mm weight of the machine ca.: 2700 kg

Condition: good (used), Year of construction: 2005, machine/vehicle number: 4222559205002, Offer 25437 Technical Data: - Pressing force: 500 kN - Stroke infinitely adjustable: 10 - 32 mm - Strokes per minute: 22 - 27 1/min - Throat depth: 510 mm - Installation height: 350 mm - Drive: 400 V / 4 kW - Punching, for example: up to 27 mm Ø in steel: 14 mm Dcedpsx S Ehwefx Ah Ied - With special punching saddle, e.g.: up to 39 mm Ø in steel: 9.5 mm - e.g. up to 90 mm Ø in steel: 4 mm - Dimensions (approx.): W 700 x H 1700 x D 1200 mm - Weight (approx.): 1150 kg - Equipped with: - Hydraulic low-pressure centre punch locator - Extended punch holder for punching in section steel - Roller conveyor with gripper feed, control PEHU 101 - Roller conveyor approx. 6000 mm - Foot switch - Emergency stop button

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2025, Punching force 500 kN Max. Punching capacity Ø 27 in 13 mm Djdex Hzr Ijpfx Ah Iecd throat depth 130 mm Motor power 3.0 kW Stroke rate with 20 mm stroke 25/min Maximum stroke 30 mm Weight 295 kg

Condition: used, functionality: fully functional, Year of construction: 1990, machine/vehicle number: 0166890274834, control type: manual, degree of automation: manual, actuation type: hydraulic, punching force: 50 t, punching diameter: 100 mm, stroke length: 60 mm, throat depth: 650 mm, sheet thickness steel (max.): 15 mm, overall weight: 1,700 kg, total length: 1,500 mm, total width: 650 mm, total height: 1,700 mm, power: 7.5 kW (10.20 HP), input voltage: 220 V, input current: 26 A, input frequency: 50 Hz, type of input current: three-phase, year of last overhaul: 2023, Equipment: foot remote control, Muhr & Bender (Mubea) Punching Machine KLH 500/610 – incl. punching tools Used punching machine from Muhr & Bender (Mubea), model KLH 500/610, Made in West Germany. Condition: The machine has been professionally inspected by a machinery technician and is in very good, fully operational condition. All functions have been tested. Technical data (all information without guarantee): – Punching force: approx. 500 kN / 50 t – Max. punching diameter: up to approx. Ø 100 mm (e.g. Ø 30 mm in 15 mm steel) – Max. sheet thickness (steel): approx. 15 mm – Throat depth: approx. 610 mm Djdpfex Dtp Rox Ah Iecd – Stroke: approx. 60 mm – Drive: hydraulic, manual/conventional control with foot switch – Connection: 220/380 V, 3~, 50 Hz – Power: approx. 7.5 kW – Rated current: 26.3 A / 15.2 A Scope of delivery: – Muhr & Bender (Mubea) KLH 500/610 punching machine – including corresponding punching tools (scope as per photos) Important notes: – The stated price applies to self-collection only. – Dismantling, loading, and transport are the exclusive responsibility and at the expense of the buyer. – Sale is from used stock, without guarantee or warranty. Inspection possible by appointment. I am happy to answer further questions.

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2024, punching force: 55 t, throat depth: 500 mm, sheet thickness steel (max.): 20 mm, working height: 1,000 mm, overall weight: 1,200 kg, total length: 1,300 mm, total width: 800 mm, total height: 1,800 mm, power: 5.5 kW (7.48 HP), mount diameter: 40 mm, Punching force 550 kN Max. Punching capacity Ø 40 in 10 mm throat depth 500/750 mm Motor power 5 kW Dcjdpfoxyy Aisx Ah Isd Stroke rate with 20 mm stroke 38 /min Maximum stroke 60 mm Machine weight with throat depth 500: 1150 kg

Condition: like new (used), functionality: fully functional, Year of construction: 2025, Introducing the Automatic 40 Ton Servo Punch Press Machine. Built for precision and flexibility, it boasts six tool stations, dual-servo control for dynamic X Y punching, and a powerful 22 kW hydraulic punch drive. With speeds up to 90 cycles per minute and an auto scrap conveyor, this servo punch press delivers seamless performance—quietly, efficiently, and intelligently. Watch how it adapts, executes, and excels. Notable Features: • Robust Punching Power With 40 metric tons of punching force, this machine delivers consistent performance and handles a wide range of sheet materials with ease. • Multi Tool Versatility Equipped with 6 tool slots, it supports simultaneous loading of multiple punch tools, enabling fast tool changes and maximizing uptime. • Precision X Y Servo Control Dual servo motors govern the Y axis with high sensitivity and coordinate with servo feeder systems to punch at any X & Y coordinate—ideal for complex part layouts. • Efficient Hydraulic Drive A dedicated 22 kW hydraulic pump powers the punching mechanism, combining servo responsiveness with hydraulic force for reliable output. • High-Speed Punching Capable of up to 90 punches per minute, it delivers both speed and agility to meet demanding production schedules. • Integrated Scrap Management Dcodpfx Aow I N H Ujh Iod Outfitted with an automatic scrap conveyor, it ensures continuous operation by efficiently removing punched material waste. _____ Why Servo Punch Press Technology Stands Out Our machine leverages the cutting-edge advantages of servo press systems, which far surpass traditional mechanical or hydraulic presses: • Exceptional Precision & Programmability: Servo-driven systems offer tight control over force, speed, and position, ensuring consistent results and the flexibility to fine-tune stroke profiles. • Energy Efficiency & Sustainability: Power is used only during punching operations—resulting in substantial energy savings and reduced operational costs. • Quiet, Controlled Operation & Lower Maintenance: Compared to conventional systems, servo presses run with less noise and fewer mechanical wear parts, boosting workplace comfort and reducing downtime. • Enhanced Safety & Monitoring: Advanced feedback controls and real-time monitoring help detect anomalies early, minimizing risk and improving overall process reliability. • Ultimate Flexibility with Programmable Motion: Custom stroke profiles, dwell times, and speed modulation empower operators to adapt instantly to varied parts and production requirements.

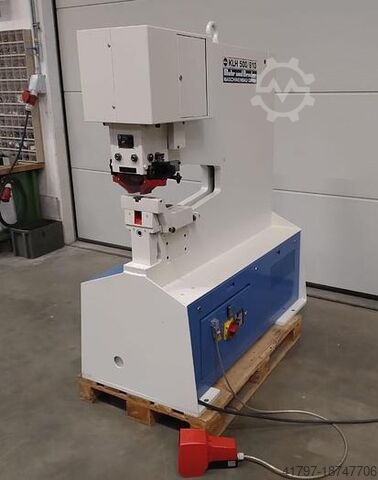

Condition: good (used), Year of construction: 1995, 1 used hydraulic punching machine Manufacturer: Mubea Type: KLH 500 / 610 Year of manufacture: 1995 - Punching force: 50 tons - Stroke: 60 mm - Punches up to Ø 30 mm in 15 mm, Ø 50 mm in 9 mm, Ø 100 mm in 4.5 mm - Throat depth: 610 mm - with support table Dedpfx Aswxy Dgeh Iecd

Condition: new, Year of construction: 2022, pressure 55 t stroke 37 Min./20 mm throat 500 mm stroke max. 60 mm Dcedpjwp Tcqjfx Ah Iod work height max. 1060 mm total power requirement 5 kW

Condition: like new (used), Year of construction: 2017, HYDRAULIC PUNCHING MACHINE FICEP MOD. SP 40 Good used in excellent conditions cCE. Power exerted: Ton 40 Maximum punching diameter on thickness: mm 32 x 10. Recess: mm 510 Working height: mm 955 Stroke length (punch) from 0 up to mm 40 Net weight: kg 860 Dimensions: mm 1365 x 665 x 1700 (h) Motor power kw 4. Large hole device up to diameter 46mm included in the supply. Dcodjwm Emvspfx Ah Ied

Condition: new, Year of construction: 2025, neu 2025 090185 prompt, Zwischenverkauf v Polen 7950 € 153.44 € 1 Dcedpswirmbjfx Ah Ijd 47 to 110 mm 27 mm 25x18 mm 8 s 16 mm 700 bar 479 mm 135 mm 388 mm 117 kg MOBILE HYDRAULICS-POWERSTATION Double action - fully automated process of punching and return Wide range of hole diameters up to 27mm Intelligent control system with inching and automatic load detection Mode indicator light Protection against accidental start-up OPTIONAL: Gantry punching station for increased productivity and operation comfort € 710,-

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 15600 € Dedpfxjwirfwe Ah Iocd 299.52 € 55 to 750 mm 40x10 mm 37 1/min 5 kW 1930 mm 1200 mm 1800 mm 1885 kg hydr. drive Support table with stop Operating instructions in GERMAN and ENGLISH CNC options on request We have an extensive stock of punches and dies at your immediate disposal. WE HAVE MORE THAN 700 REFERENCES!

Condition: new, neu ca. 8 Wochen ab Auftragse Spanien 11500 € 220.8 € 1 Dedpfxewirabs Ah Ijcd 55 to 500 mm 40 x 10 mm 37 1/min 5 kW 1550 mm 1200 mm 1950 mm 1150 kg hydraulic drive table with gauge user manual in GERMAN and ENGLISH CNC options on request We have a big stock of punches and dies for immediate dispatch WE HAVE MORE THAN 700 REFERENCES!

Condition: new, Year of construction: 2024, punching force: 55 t, PLACE OF PRODUCTION : TURKEY WARRANTY PERIOD : 12 MONTHS DELIVERY DATE : YOUR QUESTION DELIVERY METHOD : EXW BURSA/TURKEY STANDARD FEATURES : - 12 separate hydraulic pistons and 2 separate foot controls for two people to work at the same time - 2Adjustable piston stroke distance for faster work - 3Central lubrication system - 4Backrest with electric switch Cy7Od27J0W - 5Working lamp - 65 separate workstations on the same body: 6.1 - Ø22 mm punch and matrix and standard drilling tools 6.2 - Full round and full square material cutting knife set 6.3 - Angle cutting knife set 6.4 - Blade and sheet metal cutting knives 6.5 - U-notching knife set HOLE PUNCH HKM 55 Diameter Ø Ø 20 x 20 mm at maximum thickness Diameter x thickness (xt) Ø 40 x 10 mm Thickness at maximum diameter Ø 100 x 3 mm Work course 60 mm Number of courses x 25 Groove depth 255 mm Working height 1030 mm FULL MATERIAL SHEAR HKM 55 Round / quadrangular Ø 40- 40 mm ANGLE IRON HKM 55 CUTTING SCISSOR Upright angle (90°) 120 x 120 x 12 mm Angle bracket (45°) 70 x 10 mm Working height 1130 mm SHEET METAL SHEARS (BLADE CUTTING) HKM 55 Flat sheet 200 x 20 mm Flat sheet 300 x 15 mm Blade length 317 mm Angle cut 80 x 15 mm Working height 900 mm NOTCHING HKM 55 Material thickness 10 mm Width 45 mm Depth 90 mm Working height 900 mm SPECIAL MOLDS HKM 55 U-I profile knives (UPN - IPN cut 120 x 58 mm T profile blades 80 x 9 mm Special notch set 100 x 100 x 10 mm V crimping 250 x 12 mm Maximum llama crimping V crimping 500x3 mm Sheet metal bending maximum Punch at notch 125 mm Jaw depth Punch Ø 38 x8 mm in the notch section Dcodpsvg D Nkjfx Ah Iod Sheet metal bending maximum TECHNICAL SPECIFICATIONS HKM 55 Engine power 5. 5 kW Weight 1520 kg Machine dimensions (LxWxH) 1500x950x1880 mm Pressure 55 tons

Condition: used, Year of construction: 1984, Punch power 400 kN table surface area ca. 1250 x 700 mm throat 500 mm hole punching press: capacity (dia. x thick.) 100 x 3 mm hole punching press: capacity (dia. x thick.) 75 x 4 mm hole punching press: capacity (dia. x thick.) 30 x 10 mm x-travel 700 mm y-travel 470 mm total power requirement 4 kVA Djdpevb I Imjfx Ah Iecd weight of the machine ca. 2 t dimensions of machine L x W x H 1,50 x 1,72 x 2,00 m Accessories: tool cabinet with various punches and dies

Condition: used, Max. punching force: 500 kN Dcedpfeu T Nv Dsx Ah Ijd Throat: 610 mm Including assortment of punches and dies Weight: 1700 kg

Condition: used, Year of construction: 2004, Punching force: 500 kN For example, punch a 20 mm hole in 18 mm steel Stroke triggering via foot switch Assortment of tools is included in the price Weight: 1400 kg Dcodpfxsu Hza Ds Ah Ijd

Condition: used, Punching force: 500 kN Dedpjranq Hefx Ah Iecd Punches e.g. a 20 mm hole in 18 mm steel Stroke triggering via foot switch Assortment of tools is included in the price

Condition: reconditioned (used), Year of construction: 1982, Mubea / Muhr and Bender BFL 350: - Combined Profile-/bar steel shears with hole punch and notcher - Punching force 35 tons - punches up to Ø 28/23 mm in 10/12 mm sheet thickness - cuts up to Ø 30 mm / ■ 28 mm /∟ 90 mm x 8 mm / 150 mm x 13 mm / 80 mm x 16 mm Special tools and devices on request. Trade-in of used machines. Dcedpfx Aoium Stoh Isd Europe-wide delivery possible.

Year of construction: 1970, condition: good (used), machine/vehicle number: FF 16, Offer 22226 Technical data: Dcodpeit T Hyjfx Ah Ijd - Pressure capacity 50 T - throat approx. 360 mm - installation height approx. 240 mm - drive 400 V / 7,5 kW - perforates in ST 40 e.g. up to 25 mm Ø in 16 mm - up to 20 mm Ø in 19 mm - space requirement approx. W 1000 x H 1900 x D 1000 mm - weight approx. 1800 kg

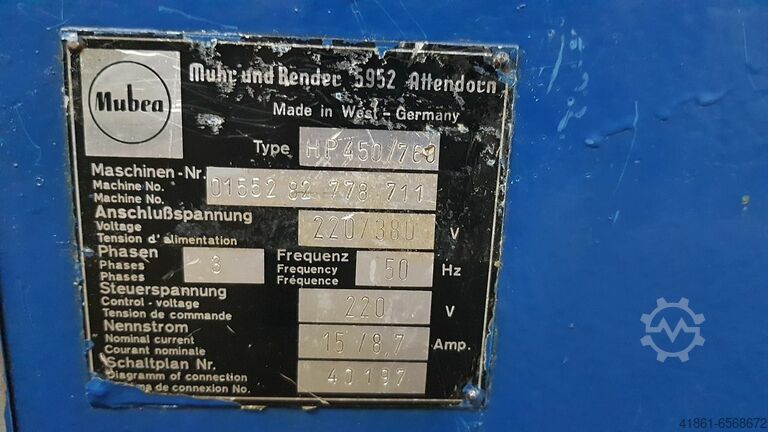

Year of construction: 1982, condition: good (used), machine/vehicle number: 0155282778711, OFFER 21455 Technical data: - Pressure capacity 450 KN - punches e.g. up to 25 mm Ø in steel 15 mm - stroke infinitely variable 0 to 60 mm Dcedpfx Ajhkr Daeh Isd - stroke rate approx. 16 to 47 1/min - throat 760 mm - Installation height 215 mm - working height 1150 mm - Drive 400 V / 7,5 kW - Space requirement approx. W 850 x H 1850 x D 1650 mm - Weight approx. 1350 kg - with: - E. foot switch - 20 pieces div. hole punches + dies

Condition: new, New in Ready for delivery except for the sold. Combined hydraulic shear with 5 working stations, punching station with mechanical stop and adjustable piston stroke, notching, shearing of plates, bars and profiles with adjustable stop with automatic cutting control, foot pedal, centralized lubrication system, working light. Machine supplied with safety guards according to EC regulations, EC declaration of conformity, user manual. Power : Ton 45. Engine power : 4 Kw. Dimensions : mm 1.450 x 900 x 1.450 mm ( L x W x H ). Weight : 1.215 Kg PUNCHING : Punching capacity : mm Ø 22 x Thickness 15 mm. Recess depth: mm 175. Punching stroke : mm 50. Working height : mm 935. SHEARING : Dcedpfegygfvjx Ah Isd Plates : mm 200 x 15. mm 300 x 12. Length of blades : mm 316. Round bars : mm Ø 30. Square bars : mm 45. 90° corner profiles : 100 x 100 x 10 mm. 45° corner profiles mm 70 x 70 x 6 SKIRTING : Max thickness : mm 8. Width : mm 35. Depth : mm 75. Working height : mm 935.

Condition: good (used), machine/vehicle number: 550C08, A used punching PEDDINGHAUS with large throat and large plate with attacks Cutting capacity 45 tonnes Stroke rate 40 strokes/min Dcedpfxsd Hxrte Ah Isd Projection 762mm Arbeitshöte 1110mm
