Condition: excellent (used), Year of construction: 2012, functionality: fully functional, For sale at MONTRASIO GMBH: 2 machines from the Swiss world market leader in bevel gear grinding technology, KLINGELBERG AG. Fgedexlzhdepfx Afpoh Series / Model: G 27 Year of manufacture: 2011 + 2012 Type: Bevel gear grinding machine Condition: Excellent / Grade 1 Application areas: Spiral bevel gears, hypoid gears, planetary gearsets Industries: Gear manufacturing, automotive transmissions, commercial vehicle and agricultural gear units, forklift transmissions, special gear units, helicopter drives, and many more. Technical data: Max. gear diameter: 300 mm Max. module: 8 Min. module: 0.7 Control: SIEMENS SINUMERIK 840 D solution line (latest software options!) Min./max. bevel angle: -90° / +90° Workpiece spindle bore: 127 mm Grinding wheel diameter: 50 – 230 mm Spindle speed (stepless): up to 7,500 rpm Workpiece spindle speed: 700 rpm Total connected load: 146 kW Machine weight: approx. 21 t Machine dimensions: approx. 9.5 × 3.6 × 3.1 m Measuring probe (integrated on grinding head) External grinding spindle cooling system ELBARON integrated oil mist extraction HOFFMANN coolant filtration system per machine As the machines are immediately available, we are seeking a prompt agreement. Photos attached. Inspection reports attached. On-site inspection is possible at any time.

Condition: good (used), Year of construction: 2013, operating hours: 63,000 h, functionality: fully functional, We are offering 1 × KLINGELBERG used bevel gear grinding machine. Manufacturer: KLINGELNBERG AG Brand: KLINGELNBERG OERLIKON Model / Series: G 27 Year of manufacture: 2013 Type: Bevel Gear Grinding Machine Condition: Excellent / precise tolerances Applications: Spiral bevel gears, hypoid gears, planetary gear sets Industries: Transmission manufacturing, passenger car gearboxes, commercial vehicle and agricultural machinery gear units, forklift transmissions, special gearboxes, helicopter drives, etc. Fjdpsxg Ib Tsfx Afpogh Technical specifications: - Max. gear diameter: 300 mm - Maximum module: 8 - Minimum module: 0.7 - CNC control: SIEMENS SINUMERIK 840 D solution line (latest software options!) - Min./max. pitch cone angle: −90 / +90° - Workpiece spindle bore: 127 mm - Grinding wheel diameter: 50 – 230 mm - Continuously variable spindle speed: 7,500 rpm - Workpiece spindle speed: 700 rpm - Total connected load: 146 kW - Machine weight: approx. 21 t - Machine dimensions: approx. 9.5 × 3.6 × 3.1 m - Integrated probe in grinding head - External spindle cooling - ELBARON integrated oil mist extraction system - HOFFMANN coolant filtration system for each machine The machine achieves outstanding tolerances and is ready for dismantling 14 days after conclusion of contract. Currently under power and available for demonstration. KLINGELNBERG inspection reports, demonstrating perfect results (and exact geometry), are available digitally and can be sent upon request. Please inquire for further details.

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 200 mm gear width: 250 mm max. module: 3 min. module: 0,5 total power requirement: 45 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: 4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation Fgodpfx Afew T Tngopeh *

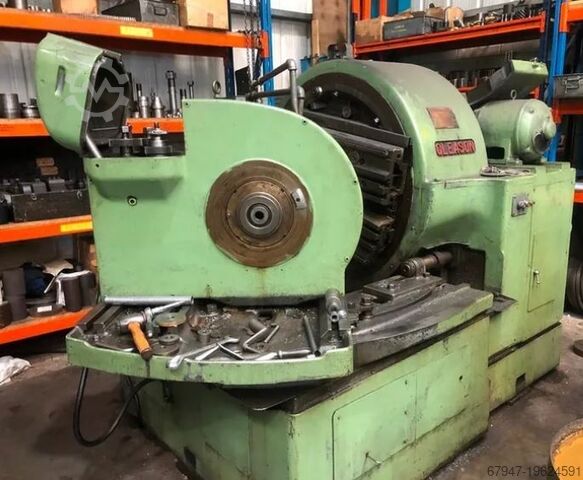

Condition: used, Gleason No 24A Complete with change gears. "CONIFLEX" STRAIGHT BEVEL GEAR GENERATING MACHINE COMBINATION ROUGHER/FINISHER, SUITABLE FOR "GENERAL JOBBING" PRODUCTION OF STRAIGHT BEVEL (CONIFLEX/CROWN) GEARS UP TO 35.5 (901MM) PITCH DIAMETER, (AT 10:1 RATIO), 6" (125MM) FACE-WIDTH, WITH CUTTING CAPABILITY UP TO 1.25 DP (20.4 MODULE) Specifications Manufacturer GLEASON Model 24A Condition Used Fgedpfxsw A Rytj Afpoh Serial Number 637001.0 Stock Number 28603 Longest cone distance (1 3/4" stroke) 18" (457MM) Shortest cone distance 0" 10 to 1 ratio 35.5" (901MM) 2 to 1 ratio 31.75" (805MM) 1 to 1 ratio 25" (635MM) Minimum pitch angle 5.42 DEGREES Extreme ratio 10 TO 1 Maximum pitch 1.25 DP (20.4 MODULE) Maximum pitch angle (shafts at 90 degrees) 84.18 DEGREES Maximum face length 6" (152MM) Diameter (large end of taper) 6" (152MM) Taper per foot .75" (18MM) Depth of taper 6" (152MM) Diameter of thru bore 5” (127MM) Spindle nose to machine center 5”-26” (127-660MM) Cutter speeds (strokes per minute) 22 TO 170 Feeds (seconds per tooth) (22 feeds) 23 TO 645 Floor space required 74" X 105" (1880X2660MM) Machine net weight 24,400 LBS. (11,295 KGS)

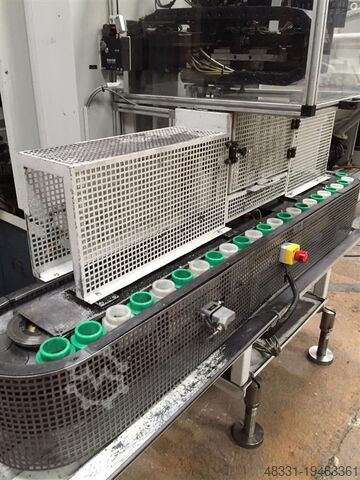

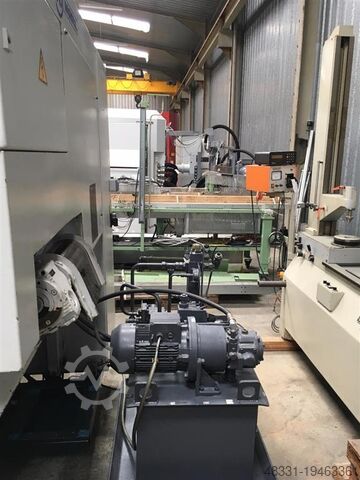

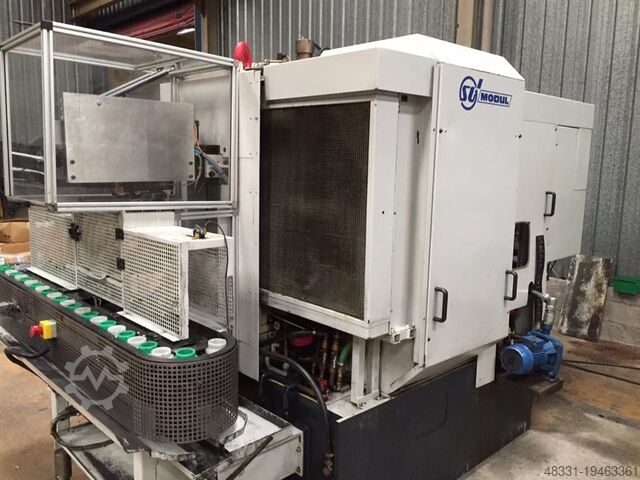

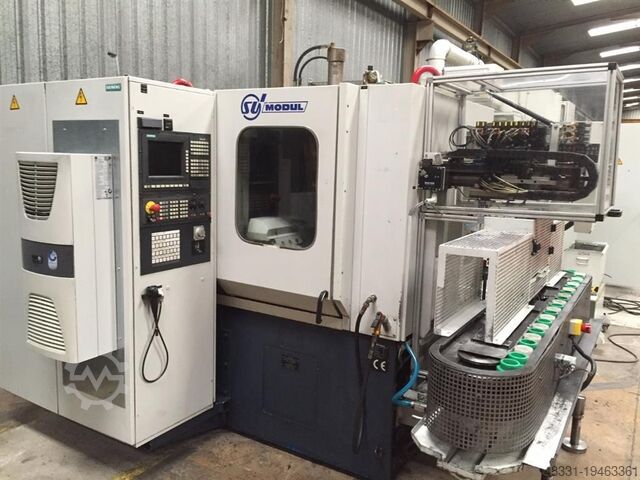

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 130 mm max. module: 3 total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Fsdpfjwv Uhbox Afpjgh Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm * 2500 mm * 2170mm Accessories : Hydraulical workpiece clamping Automatic loading system Magnetic chip conveyor *

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 130 mm Fsdpfx Afewdyx Ujpsgh gear width: 170 mm max. module: 3 min. module: 0,5 total power requirement: 48 kVA weight of the machine ca.: 9 t dimensions of the machine ca.: 7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed *

Condition: good (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 986003, grinding wheel speed: 6,000 rpm, tool diameter: 230 mm, travel distance X-axis: 325 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 470 mm, TECHNICAL DETAILS max. gear ratio: 10:1 Fodev Rcn Hopfx Afpsgh Number of teeth: 3 - 200 Tooth height: 20 mm Tooth width max.: 58 mm Control: SIN 840 D SIEMENS Axes X-axis: 325 mm Y-axis: 350 mm Z-axis: 470 mm B-axis: +90.1° / -1° Spindle Grinding spindle speeds: continuously variable up to 6,000 rpm Workpiece spindle speed: 1,200 rpm Tool Max. tool diameter: 230 mm Min. tool diameter: 69.85 mm Table diameter: 212.71 mm MACHINE DETAILS Total power requirement: 75 kW Machine weight: approx. 10,000 kg Space requirement: approx. 6.10 m x 4.40 m x 3.30 m Transport dimensions machine: 4 x 2.5 x 2.85 m / 11 t Transport dimensions water tank: 3.55 x 2.41 x 2.5 m / 1.8 t Transport dimensions cooler: 1.5 x 0.8 x 1.1 m / 0.2 t Transport dimensions sheet metal: 2.5 x 1.1 x 0.8 m/ 0.25 t EQUIPMENT - Coolant filter system Hoffmann HSF 100 V

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 275 mm gear width: 55 mm max. module: 6,5 min. module: 1,5 Face Hobbing-Continious Process Continuous process: The workpiece and tool (usually Spiron) rotate at the same time, and all teeth are created in one operation at the same time. Knife head has several knife groups (not arranged in a circle) Parallel tooth Conical tooth tip surface Single Item procedure: The workpiece is stationary and the tool (usually Arcon) rotates and cuts a tooth by immersing the tool. Once a tooth is cut, the tool moves out of the tooth again, the workpiece divides by one tooth width and the next tooth is cut until all teeth are finished. Knife head has arranged all knives in a circular path. Conical tooth height Parallel tooth head surface Fedpfov N Hilsx Afpegh C28 can do both, wheel + pinion. However, a C28 must be “prepared” for the individual part procedure. I.e. direct measuring system + part gear brake, workpiece axis + license file for the production of individual parts. *

Condition: used, Year of construction: 2007, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm diameter of tools min 69,85 mm diameter of tools max. 230 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm work piece table - Ø 212,71 mm b-axis + 90,1 / - 1 ° Fgodovxwnqjpfx Afpsh Control 160 i - MB FANUC total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m WAGURI With EWAB robot cell (KUKA robot) without coolant filter system Fire extinguishing system without CO2 bottles Cooling oil return with various pumps / collecting basins Threading device A1/B2 axes with measuring probe Clamping device for a pinion shaft External spindle oil cooler Extraction system "pinion shaft"

Condition: used, Year of construction: 2005, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm diameter of tools min 69,85 mm tooth width max. 58 mm diameter of tools max. 230 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm work piece table - Ø 212,71 mm b-axis + 90,1 / - 1 ° Control SIN 840 D SIEMENS total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m WAGURI with EWAB load cell built in 2012 (Linear loader) no coolant filter system available Fgjdpfsvxwgmjx Afpoh

Condition: good (used), Year of construction: 2001, functionality: fully functional, Gear grinding machine Gleason Pfauter G320 CNC + Promot Automation - Gear grinding machine Manufacturer: Gleason Pfauter G320 + with Promot Automation handling unit Type: G 320 Control unit: Siemens 840 Incl. control panel Year of construction: 10/2001 Module: 0.5-7.0 Min. workpiece diameter: 10 mm Max. workpiece diameter: 380 mm Number of teeth: 10-600 Vertical slide stroke “Z“: 200 mm Horizontal slide stroke “X“: 230 mm Tangential slide stroke (SHIFTING) “Y“: 135 mm Swivel angle of clamping head “A“: +-45° Stroke – tailstock center [ ]: 125mm Tangential slide stroke – dressing [ ]: “V“ 180mm Radial slide stroke – dressing [ ]: “U“ 110mm Rotation speed – grinding wheel in processing [ ]: 3000rpm max - infinitely variable Edge speed – linear axes [ ]: 10000 mm/min Max. table rotation speed [ ]: 240 RPM Table resolution [ ]: 0.001° Processing feeds [ ]: infinitely variable Working feeds [ ]: infinitely variable Grinding wheel dimensions Min/Max. diameter [ ]: 270/350mm Width [ ]: 104mm/max. Bore [ ]: 160mm System weight [weight]: 11,500kg Accessories [accessories]: as per photos +Promot-Automation +Conveyor belt +Cooling belt system +Hydraulic unit Space requirement for machine [needed space ]approx. (W x D x H): 3.7m x 2.4m x 2.75m Space requirement for Promot Automation [needed space ]approx. (W x D x H): 4.5m x 1.6m x 4.0m Complete documentation is available. Functionality and machine features: Cylinder grinding machine with 8 numerically controlled axes for machining gears with straight and helical gears that can be produced by rolling, including a dressable worm profile disk. Linear and rotary main axes are designed to be hydrostatic. High-performance machine for finishing cylindrical gears with straight or helical involute teeth. Inspection under power can be arranged at short notice. If you have any further questions, please do not hesitate to contact us. Price, ex warehouse here plus VAT Fedpfx Aou Sqgqofpsgh Condition: good - ready for demonstration Delivery: ex warehouse - as viewed Payment: net - after receipt of invoice Subject to prior sale, errors excepted. We ask for your order. Other machines and systems available from stock - please enquire. We look forward to hearing from you.

Condition: ready for operation (used), Gear Grinding Machine STANKO 5A851 Module 2-10 Gear diameter 35- 320 mm Number of teeth 10- 120 Gear width 220 mm Maximum angle of the ground teeth 45 degrees Spindle speed 2650 rpm Distance between centers 300-360 mm Fjdeuc T Ivjpfx Afpogh Dimensions 3170x1820x1820x202020mm Machine weight aprox 7 to

Condition: used, Year of construction: 1997, max. wheel diameter 215 mm gear width 40,65 mm max. module total power requirement 20 kW weight of the machine ca. 10 t Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features Fgjdpet Hwxhsfx Afpeh * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. * Extensive coolant equipment with filter system, band filter, etc. * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing. * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times. Condition : Very good - machine can be inspected here under power Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: used, Year of construction: 1980, max. wheel diameter 1010 mm gear width 0 mm max. module min. module total power requirement 15 kW weight of the machine ca. 9,5 t dimensions of the machine ca. m Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * Automatic roughing and finishing process via pre-settable counter and built-in feed cam. * Counter for number of teeth. * Counter for number of dressing cycles. * 2 built-on dressing units with three dressing diamonds for radius dressing, side dressing and wheel end dressing. * Built-on index plate for 48 teeth. * Separate coolant device with band filter. * Separate hydraulic unit. * Separate TRION oil mist exhaust. Fjdpfxot Hwnie Afpogh * Various small parts.

Condition: used, Year of construction: 2002, Technical details: Fgjdpfx Ajtvhwhjfpeh max. wheel diameter: 200 mm gear width: 250 mm max. module: 3 min. module: 0,5 total power requirement: 45 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation *

Condition: good (used), Model No. WNC 80 KLINGELNBERG “CNC” spiral bevel gear grinding machine suitable for the hard finishing of spiral bevel and hypoid bevel gears and pinions which are pre-machined with cutter heads in either face-milling or face-hobbing processes up to 31.49” (800mm) pitch diameter, DP 25 TO 1.4 (module 1 to 18) and 5.12” (130mm) maximum face-width, utilizing non-dressable plated CBN wheels, or dressable wheels such as conventional aluminum oxide, SG, and/or vitrified type, employing the on-board dressing device with diamond dressing roll The machine corresponds to the attached copy of factory literature, featuring the following: FEATURES / EQUIPMENT: • Machine with double-spindle wheelhead design allowing the convex and concave tooth flank to be ground and finished in one single operation • Double-spindle wheelhead also provides possibility of rough and finish grinding separartely, with two grinding spindles equipped with one roughing and one finishing wheel. • Stationary dressing unit at the back of the machine base, with dressing spindle which can be swiveled via hydraulic cylinder into the work range of the machine for dressing of the grinding wheels • Swivellable stock dividing device for centering dressed grinding wheels • Full machine enclosure, with sliding door and safety-glass window, and integrated electrostatic oil-mist suction device • IBH “CNC” control with color CRT and spiral bevel gear grinding software with user-friendly conversational dialogue programming, with data interface directly from a central computer. o DNC- Software as basic program for the different Software options o Grinding of spiral bevel gears according the Wiener " 2 Spur process ". o Grinding of the concave and convex flank with two different wheels and with different machine set-up parameters. o Generating & plunge grinding cycles (Formate gears, face couplings). o Software for grinding Gleason gears and pinions. o Servomotors and drives from Bosch/Rexrroth   Fsdpfx Afjpxnlzopogh • Machine and IBH controller in “optional” 6-Axis execution with the following motorized movements CNC-controlled: A-Axis (Machine distance adjustment axis) X-Axis (Tooth depth adjustment and plunge advance axis) Y-Axis (Rotation axis) Z-Axis (Workpiece rotation axis) V-Axis (Mounting distance adjustment axis) W-Axis (Axial offset adjustment axis) • Central lubrication system and hydraulic aggregate incorporated within machine’s full enclosure with easy-access panels for maintenance • Full complement of electrics (motors/controls), air-conditioned electric switch-gear cabinet, buss-ducting, conduit, arranged for 480 Volt, 60 Cycle operation • Complete coolant plant (HOFFMANN ERK-75V) with cooler-chiller, and paper-band filtration unit with delivery capacity of 120 l/min. at a pressure of 10 bar • Two (2) grinding wheel flanges • One (1) diamond dressing wheel • Full machine documentation (operator’s manual for the machine and controller, electrical and hydraulic diagrams, parts list, etc.)

Condition: used, Year of construction: 2005, Technical details: weight of the machine ca.: 8 t dimensions of the machine ca.: 2,95 x 1,6 x 2,36 m chucking diameter: 250 mm swing diameter: 265 mm x-travel: 170 mm z-travel: 200 mm Fedeizlh Hepfx Afpogh spindle turning speed range: 1.500 U/min spindle bearing diameter: 100 mm Pick-up machine *
