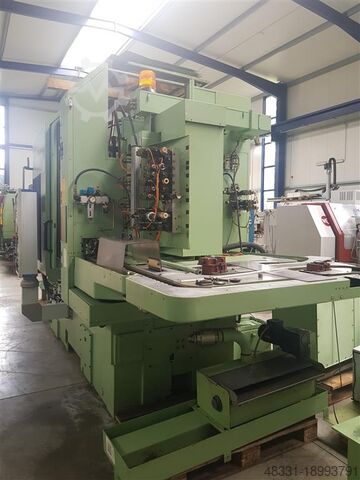

Gear Hobbing Machine - Vertical

Gleason-Pfauter GP 130

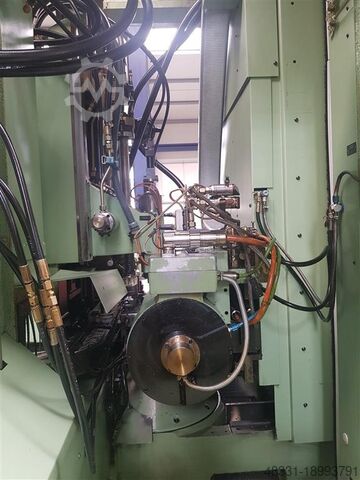

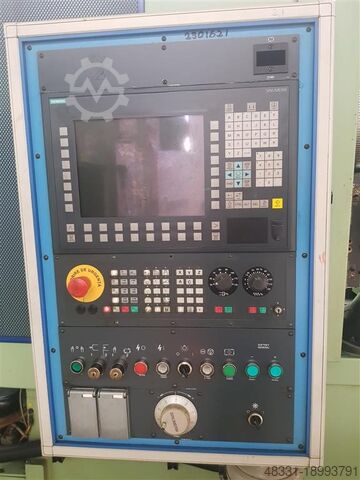

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 13230, wheel width: 25 mm, wheel diameter: 130 mm, controller model: Siemens 840D, spindle diameter: 85 mm, stroke rate (max.): 2,500 1/min, TECHNICAL DETAILS Wheel diameter max.: 130 mm Wheel width: 25 mm Module max.: 3 Ljdszb Dtcepfx Akyern Module min.: 0.5 Spindle bore diameter: 85 mm Stroke rate: 500 - 2,500 strokes/min (continuously variable) Stroke: 30 mm MACHINE DETAILS Control model: Siemens 840D Total power requirement: 48 kVA Dimensions & Weight Footprint (L x W x H): 4,700 x 3,000 x 3,300 m Machine weight approx.: 11.5 t EQUIPMENT Tailstock with point Chip conveyor Hydraulically actuated tailstock arm and linear guides

Condition: used, Year of construction: 2007, max. wheel diameter 380 mm gear width 540 mm max. module 7 Control SINUMERIK 840 D Axial travel 600 mm table diameter 317 mm table speeds 100 U/min milling head -swivable + / - 35 Grad milling spindle drive 27,00 kW milling spindle speeds (infinitely variable) 1500 U/min diameter of hob 160 mm cutter length max. 330 mm cutter speeds max. 3000 1/min hob dia. - max. 160 mm swarf cutter lenght - max. 330 mm tangential travel max. 300 mm 10.000 mm/min tangential speed max. 3000 mm/min 7.500 mm/min oil volume 100 l Ljdpoyt Rvhofx Akyern coolant capacity 780 l Counterholder movement 540 mm total power requirement 50,00 kW weight of the machine ca. 16,00 t dimensions of the machine ca. 6,00 x 4,50 x H3,50 m for the following processes: axial hobbing, individual part milling, Worm wheel milling, roofing, deburring; NC tailstock

Condition: excellent (used), Year of construction: 2002, max. wheel diameter 130 / 80 mm gear width 180 mm max. module 4 min. module 0,5 spindle turning speed - stepless 300 - 3000 U/min Lsdpfx Aexlug Hekysrn control Siemens 840 D x-travel 200 mm y-travel 170 mm z-travel 250 mm milling head -swivable +/- 45 ° table diameter 168 mm table hole 65 mm clamping length max. 245 mm table turning speeds 0 - 1000 U/min total power requirement 51 kW weight of the machine ca. 9,2 t dimensions of the machine ca. 4,5 x 4,0 x 3,2 m

Condition: used, Year of construction: 1981, National 2-3 Hot Former induction heater, feeder, straightener Ledpjwl Iw Usfx Akysrn

Year of construction: 1984, condition: ready for operation (used), A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible. Lredowkih Ejpfx Akyen

Condition: used, Year of construction: 1996, core drilling diameter max. 25 mm bore depth 1000 mm swing diameter mm total power requirement 25 kW weight of the machine ca. 12,5 t dimensions of the machine ca. m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling " Centre " Model BWP 250 Year 1996, but reconditioned mechanically and electrically in 2006 _____ Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed motors 27 Nm / 1.000 daN Spindle drive steplessly adjustable 7 kW Total electrical load, approx. 30 kW - 400 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features: Lrjdpfx Aot Hw Ayskyon " Ideal machine for the complete processing of large workpieces like tool a. dies (cooling holes) mould- and dieplates, hydraulicparts etc. by means of deep hole drilling up to 25 x 1.000 mm, face milling up to Ø 60 mm, spiral twist drilling, counterboring and threading up to M 24 x 3 mm. " SIEMENS Continuous Path Control in 4 axes Model 840 D, with process monitoring for coolant pressure, operation data control function, toollife, feed force,Error diagnostics and easy dialogueprogramming directly on the panel, etc. " High Frequency Spindle Make GAMFIOR with stepless speeds " Hydraulically movable drill bush carrier, swivels 90° for holding gun drills (ELB) or picking up regular tools from the tool changer like twist drills, milling tools, taps, etc. " With automatic tool changer made by MIKSCH, Model CTM 40, using a 12-position tool changer, which is mounted on the r.h.side of machine housing, in fixed position, only moving forward and backward for tool changing operation. " Built-on indexing table as B-Axis made by FIBRO Model RTN 400 = 420 x 420 mm, " Extra Rotary Table made by FIBRO with Ø 1.000mm, for indexing 3-144 positions " Built-in coolant device with chip conveyor and various filters. " 2 steady rests. " Completely covered working area with access at the front and at the side. Condition : Very good condition. This is a rare and valuable machine. Under Power Delivery : immediately ex our Stock Payment : Net, after conclusion of contract.

Condition: used, Year of construction: 1997, Technical details: max. wheel diameter: 300 mm gear width: 110 mm max. module: 6 weight of the machine ca.: 10,5 t Lredpfexz Aw Eox Akyon *

Condition: ready for operation (used), Year of construction: 1984, Romanian Hot Former AMP 20, AMP 30, AMP 50 lines Press Capacity: 220 tons, 230 and 400 Forming stations: 3, 3 and 4 Forming load: 900 kN, 2500 kN and 8000 kN Lodpfx Aetaui Uokyern Bar Diameter: 14 to 28 mm, 18-40, 28-55 mm Max. part outer diameter: 35 mm Cut-off length: 15 to 40, 20-72, 50-150 mm Ram stroke: 110 mm Ejector stroke: 55 mm Die center distance: 110 mm Production per minute: 12 to 180 Weight: approx. 11, 36 and 90 tonnes Technical documentation: yes Video under power available

Condition: used, Year of construction: 1995, functionality: fully functional, machine/vehicle number: M08I/8958, Offer Number: M08I/8958 Machinetype: 5 die - 5 blow transfer header Lrsdpfx Akswm Rufsysn Info: bushing cut-off , PKO , Forma packs Make: NATIONAL FORMAX Type: FX35CF Constr. year: 1995 diameter range: 11,8 mm number of dies: 5 number of stations: 6 cutting length: 3 - 45 mm shaft length under head: 50 mm output - pieces/min: 85 - 255 press power: 50 to Location: Germany

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: M08L/8030, Offer Number: M08L/8030 Machinetype: 5 die - 5 blow transfer header Info: bushing cut-off , PKO , IFO , Slug feeding possible Make: SAKAMURA Type: BPF560S Constr. year: 1986/08/20 diameter range: 16-34 mm number of dies: 5 number of stations: 6 cutting length: 210 mm shaft length under head: 180 mm Lodpfx Akowi Uclsysrn output - pieces/min: 55-80 press power: 450 t Location: In our warehouse
