Used Dalex 3328-6 for sale (94)

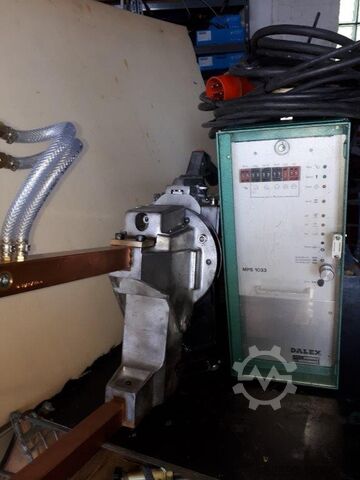

Condition: excellent (used), compressed air-operated, water-cooled spot welding gun Brand DALEX Type 3328-6 Rated power at 50% duty cycle: 25 kVA Sec. short-circuit current: 22.5 kA Electrode force: 600 daN in special version with arm spacing 248 mm with double stroke cylinder - long stroke 51 mm - pre-stroke 33 mm - working stroke 0-18 mm with stroke adjustment with cardan suspension and suspension bracket Connection cable 10 m long Polhovurw Eoccqnjgk Arm projection: 350 mm Synchronous welding control MPS 1536

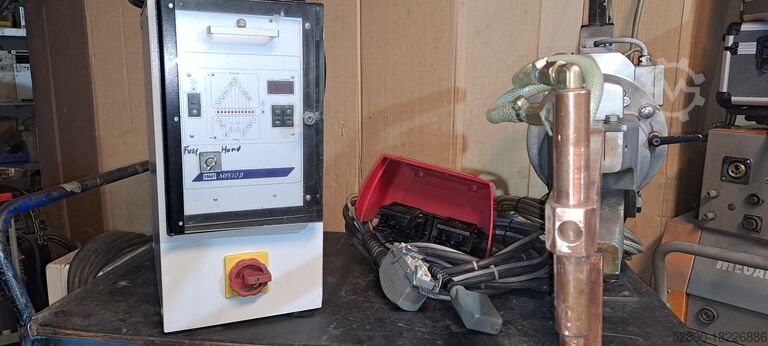

Condition: excellent (used), compressed air-operated, water-cooled spot welding gun Brand DALEX Type 3328-6 Rated power at 50% duty cycle: 25 kVA Sec. short-circuit current: 22.5 kA Electrode force: 600 daN Arm distance: 118 mm Arm projection: 500 mm with double stroke cylinder - long stroke 51 mm - forward stroke 33 mm - working stroke with stroke adjustment 0-18 mm with cardan suspension and suspension bracket 10 m connection cable with control cable and plug connection in special version: start via double foot switch or start on the handle The changeover switch is installed on the auxiliary control Additional control B 200 with main switch and welding control MPS 10 8 welding programs, current increase and pulse function with 3 m mains connection cable Pjlhjvpi Ahoccqnogk

Condition: refurbished (used), Power rating at 50%: 25kVA Short-circuit current: 22,5kA Electrode force: 600daN Pgjlhccqepbbx Tsnok weight: 51,5kg --- with Electrode arm 170mm --- option welding contro B200/MPS1036 --- warranty: 6 months

Condition: refurbished (used), air-operated, water-cooled DALEX spot welding gun in C-design with C-design with 5/2 - way solenoid valve rated power at 50 % %ED: 22 kVA Sec. short circuit current: 17 kA Electrode force: 360 daN arm distance: 100 mm with single stroke cylinder and additional stroke 5-45 mm complete with synchronous welding control, Pgslhedykhusccqnek standard electrode arms C 34/2/95 S and AE 2/96 G as well as cardan suspension with suspension bracket

Condition: excellent (used), Year of construction: 2020, Functionality: fully functional, throat depth: 1,050 mm, nominal power at 50% duty cycle: 96 kVA, input voltage: 400 V, type of cooling: water, overall weight: 775 kg, welding power (max.): 138 kVA, For sale a used Dalex PMS11-6 G3. Long arm reach 1050mm. The machine is in very good condition, technically flawless. It was purchased new by us in 2020 and little used. Incl. water cooling and some electrodes. As well as all accessories from the Dalex factory. Pgjlheuin Htjccqnok Please write if you are interested.

Condition: new, longitudinal and transversal seam welding machine --- Power at 50%: 80kVA Highest welding-current: 35,9kA Pgelhccqjh Tyf Senok Electrode force: 100-600daN / double stroke Throat depth: 550mm --- Weld control: Filius classic 128 program --- Extra Equipment: - foot pedal - flow monitor - main switch --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Condition: new, SPRING BALANCE with safety equipment in accordance with DIN 15112 Brand DALEX Type D 6/130 Tar load 115-130 kg Cable extension 3 m Suspension safety hook, rotatable and pivotable Load capacity continuously adjustable via adjustment screw Spring break protection Weight: 44 kg unused / as good as new / minor signs of storage Pjlhccevr Elqjqnegk

Condition: used, Rated power ( 50% ED ) : 50 kVA Continuous power : 35.4 kVA Maximum short circuit power : 163 kVA Pslhccovuz N Rjqnsgk High welding power : 130 kVA Arm distance min. / max. : 60 / 230 mm Electrode arm Ø : 45 mm Electrode holder Ø : 25 mm Outreach : 610 mm Machine weight: approx. 285 kg Dimensions : 1200 x 700 x 1450 mm incl. foot switch

Condition: excellent (used), Water chiller with refrigeration compressor Brand (DALEX ETSCHEID Type IK-V5) Pjlewfdyrshccqnegk Cooling capacity 6.95 kW at 20°C ambient temperature Suitable for resistance welding machines up to 160 kVA rated power

Condition: new, Year of construction: 2025, Power at 50%: 63kVA Short circuit-current: 31,5kA Electrode force: 100-600daN / single stroke Throat depth: 250-550mm --- Weld control: MPS 10 (5-times, 8-program) --- Extra Equipment: - doppel foot pedal "currentless contact" - forearm support --- Warranty: 12 months Pgjlhcod R Izxecqnsk --- Spotwelding electrodes + spare parts at stock

Condition: excellent (used), Year of construction: 1991, Functionality: fully functional, type of input current: three-phase, input voltage: 400 V, overall weight: 390 kg, cooling capacity: 9.5 kW (12.92 HP), Coolling water recooler cooling capacity: 11,5 kW weight: 390 Kg. Pgelhccqewdvfqjnjk

Condition: used, Dalex Works Pms 10-2 380V 50Hz rated power at 50 duty cycle: 63 kVA secondary short circuit current: 45 kA rated primary voltage 380 V - 50 Hz open circuit voltage of 5,6 V electrode force: 65-390 daN Pslhccog Rcpxsqnjgk Machine weight 341 kg

Condition: used, Rated power ( 50% ED ) : 25 kVA maximum short-circuit current: 22.4 kVA Maximum welding power : 107 kVA Cooling water quantity : 4 l/min Electrode arm Ø : 45 mm Electrode holder Ø : 25 mm Projection : 460 mm Pelhccsvuz Iyeqnsgk Electrode force : 17 to 278 daN Machine weight : 240 kg Dimensions : 1100 x 750 x 1250 mm incl. foot switch

Condition: excellent (used), Parallel-guided, water-cooled spot welding machine Brand DALEX Type PL 40 Rated power at 50% duty cycle: 40 kVA Pslewd I Anjhccqnsgk Secondary short-circuit current: 21.5 kA Secondary open-circuit voltage: 5.5 V Single-stroke cylinder - electrode stroke 65 mm Electrode force: 65-390 daN Arm reach: 450-750 mm adjustable Arm spacing: 150 or 310 mm Equipped with an add-on control cabinet in accordance with VDE 0110 Main switch Synchronous welding control system MPS 1036 Straight tubular arm with 750 mm reach Photos show loading condition (electrode arms were removed due to pallet dimensions)

Condition: refurbished (used), Power at 50%: 100kVA Short circuit-current: 41,5kA Electrode force: 100-600daN / single stroke Throat depth: 350-650mm --- Weld control: MPS 200 (5-times, 4-program) --- Extra Equipment: Pgelhccqjuqlu Sonsk - doppel foot pedal "currentless contact" - --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Year of construction: 1970, Condition: used, Spot welding machine Make Dalex type SF 16 Continuous power 16 KVA at 50 % ED Polhccqsk Tt Hfenjgk

Condition: excellent (used), Water chiller with refrigeration compressor Manufactured by HYFRA (DALEX) Type chilly 15 Cooling capacity 1050 W Weight: 44 kg With power cable and 230 V mains plug Pgelhewb H A Ioccqnjk

Condition: new, Year of construction: 2025, Power at 50%: 30kVA Short-circuit current: 20kA Electrode force: 420daN Throat depth: 380-700mm --- Weld control: RS 17 (5-times, 2-program) --- Extra Equipment: - double foot pedal "currentless contact" --- Warranty: 12 months --- Polhjwfxxcsccqnsgk Spotwelding electrodes + spare parts at stock

Condition: excellent (used), Spot welding machine with DHZ cylinder Brand DALEX Type PMS 12-5 Rated power at 50% duty cycle: 100 kVA Secondary short-circuit current: 46 kA Secondary open-circuit voltage: 8.33 V Pgjlewarqnehccqnok Electrode force: 120-720 daN Weight: 715 kg With separate central control cabinet for connecting five PMS 12-5 spot welding machines with PLC, five power levels and one MPS 200 synchronous welding controller with eight welding programs

Condition: new, Year of construction: 2025, Power at 50%: 100kVA Polhcowfxxvscqnsgk Short circuit-current: 41,5kA Electrode force: 100-600daN / double stroke Throat depth: 350-650mm --- Weld control: MPS 10beta (5-times, 8-program) --- Warranty: 12 months --- Spotwelding electrodes + spare parts at stock

Condition: excellent (used), overall weight: 955 kg, projection welding machine execution B/DHZF projection 350 mm Make DALEX Type PMS 34-4 rated power at 50 % ED: 160 kVA Sec. short-circuit current: 99 kA Pslhccqep H T Adenogk Sec. open-circuit voltage: 5.8 - 9.74 V electrode force: 140-2,040 daN with 4-step switch add-on control cabinet according to VDE 0100 with main switch Synchron-100 program control MPS 8043/1

Condition: new, Year of construction: 2025, Power at 50%: 20kVA Short-circuit current: 15kA Electrode force: 420daN Throat depth: 130-500mm --- Weld control: RS 17 (5-times, 2-program) --- Extra Equipment: - double foot pedal "currentless contact" Pgslswfxw Eehccqnsk --- Warranty: 12 months --- Spotwelding electrodes + spare parts at stock

Condition: excellent (used), Welding control unit for DALEX spot, projection and seam welding machines Make Harms+Wende type RATIA 43a Slide-in unit for 19 " housing Key programming with LCD display 128 programs Polhccsr Ei Dleqnjgk Operating modes: single spot - series spot, seam welding Dimensions W/D/H in mm: 450 130 280 function-tested - ready for immediate use

Condition: new, Year of construction: 2025, Power at 50%: 80kVA Short circuit-current: 35kA Electrode force: 100-600daN / single stroke Throat depth: 350-650mm --- Weld control: MPS 10beta (5-times, 8-program) --- Warranty: 12 months --- Spotwelding electrodes + spare parts at stock Pslhccqswfxxisnjgk

Condition: refurbished (used), Power at 50%: 30kVA Short-circuit current: 20kA Electrode force: 360daN Throat depth: 130-500mm --- Weld control: RS 15 (2-times, 1-program) Pjljwfxv Uehccqnsgk --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock
