Used Dalex Sf 16 for sale (95)

Year of construction: 1970, Condition: used, Spot welding machine Make Dalex type SF 16 Continuous power 16 KVA at 50 % ED Ppjlhsk Tt Hfjcdwxor

Condition: used, Spot welding machine, spot welding machine, spot welding system, spot welding gun -Manufacturer: Dalex, spot welding machine type SF 16-1 -Rated power: 16 kVA -Cooling: water cooled -Operation: by foot lever -Transport dimensions: 980/580/H1200 mm Ppolhcot Nayyjdwxor -Weight: 230kg

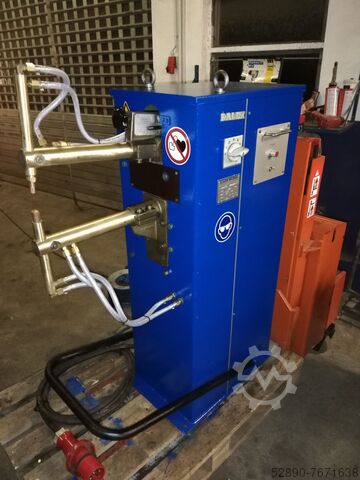

Condition: excellent (used), foot operated, water cooled swing lever spot welding machine make DALEX type SF 16/71 rated power at 50 % ED: 16 kVA Sec. short circuit current: 17 kA electrode force: 278 daN arm throat: 180-500 mm arm distance: 140 or 300 mm with 8-step switch Ppolhcdsimd I Aewxer Asychron 1-time welding control Example photo Machine is in refurbishment Current time 3-100 Per

Condition: refurbished (used), Power at 50%: 30kVA Short-circuit current: 20kA Electrode force: 360daN Throat depth: 130-500mm --- Weld control: RS 15 (2-times, 1-program) Pelhcjwfxv Usdwxepr --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Condition: excellent (used), water-cooled, foot-operated swing lever spot welding machine make DALEX type SF 8/71 rated power at 50 % ED: 8 kVA sec. short circuit current: 8,8 kA Sec. open-circuit voltage: 2.0 - 3.2 V Electrode force: 52-235 daN Pjlhcdjp H T Awjwxepr arm distance: 140 mm arm reach: 80-300 mm adjustable with 4-step switch 1-time asynchronous welding control current time 2-100 Per

Condition: used, Year of construction: 1971, operating hours: 9,999 h, Functionality: fully functional, machine/vehicle number: Dalex SF 8, type of input current: three-phase, throat depth: 400 mm, type of cooling: water, overall weight: 50 kg, total width: 40 mm, total height: 100 mm, Spot welder from wire production for lampshades. The device works perfectly even without water cooling. The water cooling system was no longer in use. The timer is still functional. Ppslhcjv T Ddnsdwxsr

Condition: good (used), Spot welding machine Water-cooled, Connection 16 KVA Ppelhcdevkw Dijwxor

Condition: used, Spot welding machine DALEX type SF 204 Machine. No. AZA/N-32865 Year of construction 2010 Power at 50% duty cycle 30 kVA Continuous power 21.2 kVA Maximum short-circuit power 108 kVA Maximum welding power 86.4 kVA Projection 500 mm Arm distance 350 - 500 mm Electrode force 65 - 360 kp (short throat depth) Electrode force 25 - 140 kp (long projection) Electrode arm Ø 45 mm Electrode holder Ø 25 mm Electrode stroke 20 mm Welding capacity: Sheet steel 5 + 5 mm / max. 6 + 6 mm Brass sheet 2 + 2 mm / max. 3 +3 mm Aluminum sheet 1 + 1 mm / max. 1.2 + 1.2 mm Pslhjit Rq Hjcdwxspr CrNi 1 + 1 mm Round steel 12 + 12 mm / 16 + 16 mm Open circuit voltage 5.2 Volt Connected load 55.2 kVA Mains connection 400 Volt, 50 Hz - Multifunctional welding control unit with Dalex RS 15 microprocessor - Lower electrode arm with swivel fitting for height adjustment and lateral swiveling - Foot lever operation - Water-cooled (cooling water volume requirement 4 liters/min.) Space requirement L x W x H 1250 x 415 x 1200 mm (height = 1310 mm with substructure) Weight 196 kg Very good condition Identical spot welding machine under stock number 60858.

Condition: refurbished (used), DALEX roller seam welding machine, cross seam version Projection: 350 mm Nominal power: 160 kVA Sec. short circuit current: 38.5 kA Sec. no-load voltage: 4.8-9.6 V Electrode force: 140-2,040 daN with 2-step switch and auxiliary control with thyristor power stage and Synchronous welding control MPS 100 multi SPECIAL NOTE - PLEASE NOTE The above performance data are taken from the machine's rating plate. When the machine was inspected, it was found that a 200 kVA welding transformer was installed by the previous owner. This changes the performance data. . Pelhcodx Suhjdwxopr

Condition: excellent (used), Air-operated, water-cooled rocker-arm spot welding machine Brand DALEX Type SL 16/S Ppolhcdev Sql Njwxsr Rated power at 50% duty cycle: 16 kVA Secondary short-circuit current: 13.5 kA Secondary open-circuit voltage: 1.8 - 3.5 V Electrode force: 278 daN Arm reach: 180-500 mm adjustable Arm spacing: 140 or 300 mm With 8-position switch for power preselection Additional control unit 1036

Condition: excellent (used), Swing lever spot welding machine Brand DALEX Type SL 16-1 Ppelhcov Im D Hedwxor Connection: 400 V 50 Hz compressed air operated, water cooled Rated output at 50% duty cycle 16 kVA Secondary short circuit current: 13.5 kA Electrode force: 278 daN Arm projection: 180-500 adjustable Arm spacing: 180 or 300 mm with attached control cabinet in accordance with VDE 0113 Main switch Synchronous welding control MPS 1033

Condition: good (used), Projection welding machine Make DALEX Type PMS 16-1 Projection: 350 mm Rated power at 50 % ED: 250 kVA Sec. short-circuit current: 110 kA Sec. open circuit voltage: 12.5 V Electrode force: 340-2,040 daN with double stroke cylinder and feed stroke with synchronous welding control 5/36 TT Weight: 988 kg Ppelhcdwsubdatjxsr function-tested Machine is still being refurbished

Condition: excellent (used), foot operated, water cooled swing lever spot welding machine make DALEX type SF 25-1 SWA2 rated power at 50 % ED: 25 kVA sec. short-circuit current: 22,4 kA Sec. open-circuit voltage: 5.2 V electrode force: 278 daN equipped with: Swivel armature for arm distance up to 550 mm projection: 700 mm Pelhcdwjhx Ulhsxspr add-on switch cabinet according to VDE 0100 main switch synchronous welding control 1/01 TT

Condition: good (used), High-performance spot welding machine in 3-phase DC version DALEX, type PMS 14-4 G3 arm throat: 550 mm Rated power at 50 % ED: 240 kVA Sec. short-circuit current: 89,5 kA Sec. open-circuit voltage: 4.69 - 9.38 V Ppolhsgqxg Ajcdwxjr Electrode force: 80-1200 daN with double stroke cylinder and additional stroke forearm support weight: 1.660 kg Add-on switch cabinet according to VDE 0100 Main switch 4-step switch Synchronous 2-circuit welding control 8036 S3 Machine is still being refurbished

Condition: good (used), nominal power at 50% duty cycle: 8 kVA, - Capacity 8 kVA - Timer Ppeljvbr Dlohcdwxjr - 380V

Condition: new, longitudinal and transversal seam welding machine --- Power at 50%: 80kVA Highest welding-current: 35,9kA Electrode force: 100-600daN / double stroke Throat depth: 550mm --- Weld control: Filius classic 128 program --- Extra Equipment: - foot pedal - flow monitor - main switch --- Warranty: 6 months --- Ppsleh Tyf Sshcdwxsr Spotwelding electrodes + spare parts at stock

Condition: excellent (used), Year of construction: 2020, Functionality: fully functional, throat depth: 1,050 mm, nominal power at 50% duty cycle: 96 kVA, input voltage: 400 V, type of cooling: water, overall weight: 775 kg, welding power (max.): 138 kVA, For sale a used Dalex PMS11-6 G3. Long arm reach 1050mm. The machine is in very good condition, technically flawless. It was purchased new by us in 2020 and little used. Incl. water cooling and some electrodes. As well as all accessories from the Dalex factory. Please write if you are interested. Pelhcdweuin Htoxopr

Condition: excellent (used), Functionality: fully functional, throat depth: 160 mm, type of cooling: water, Equipment: documentation/manual, Hand-operated, water-cooled spot-welding gun Make DALEX type 3116 Connection 400 V 50 Hz Rated power at 50 % duty cycle: 6.35 kVA Ppeljr Iynfshcdwxor Sec. short-circuit current: 8.3 kA Electrode force: 180 daN Arm spacing: 120 mm with 5 m connection cable with control cable with asynchronous welding control RA (RB 11) 8 step switches for power control Current time: 2-100 per little used from school operation

Condition: excellent (used), machine/vehicle number: 4220.515, range of control: 20 - 180 A welding circuit at 100% ED: 135 A electrical connection: 380 V Ppolhed Hn Ufocdwxsr space needed: 650 x 550 x 850 mm weight: 118 kg

Condition: good (used), machine/vehicle number: 421272, range of control: 20 - 180 A welding circuit at 100% ED: 135 A Ppjljc Ich Iohcdwxer electrical connection: 380 V, 5,5/8,5 kVA V space needed: 520 x 480 x 800 mm weight: 118 kg

Condition: used, Rated power ( 50% ED ) : 50 kVA Continuous power : 35.4 kVA Ppslevuz N Rjhcdwxsr Maximum short circuit power : 163 kVA High welding power : 130 kVA Arm distance min. / max. : 60 / 230 mm Electrode arm Ø : 45 mm Electrode holder Ø : 25 mm Outreach : 610 mm Machine weight: approx. 285 kg Dimensions : 1200 x 700 x 1450 mm incl. foot switch

Condition: excellent (used), throat depth: 1,100 mm, nominal power at 50% duty cycle: 96 kVA, short-circuit current: 31,500 A, input voltage: 400 V, type of cooling: water, overall weight: 830 kg, Equipment: type plate available, Spot welding machine type PMS 11-4 G3 in 3-phase direct current design - Specially designed for welding aluminum sheets - Barely used, fully checked and cleaned - Everything works, ready for demonstration - Rated voltage 400V/50Hz - Rated power 96kVA - Welding current 23kA - Connection cable cross-section 10mm²/phase - Fuse 63A - Throat 1050mm (!!) - Electrode arm diameter 60mm - Electrode holder diameter 30mm - Electrode force 600daN - Stroke 65+25mm Polhceh N Sc Eedwxspr - Electrode cone MK2 - MPS 8043/1 control system from Harms & Wende with current ramp and pulses - With operating instructions - 2-stage foot switch in accordance with accident prevention regulations - Machine main switch - Pneumatic Maintenance unit - Weight approx. 830 kg - Complete documentation including circuit diagram, compressed air diagram, and cooling water circuit is included - VAT deductible On-site commissioning is subject to a fee and billed based on time and effort. The system is located in Dresden, near the A17 motorway, and can be inspected and demonstrated by appointment.

Condition: excellent (used), Water chiller with refrigeration compressor Brand (DALEX ETSCHEID Type IK-V5) Cooling capacity 6.95 kW at 20°C ambient temperature Suitable for resistance welding machines up to 160 kVA rated power Pelewfdyrshcdwxspr

Condition: refurbished (used), Power rating at 50%: 25kVA Short-circuit current: 22,5kA Ppolhcdwspbbx Texer Electrode force: 600daN weight: 51,5kg --- with Electrode arm 170mm --- option welding contro B200/MPS1036 --- warranty: 6 months

Condition: used, Rated power ( 50% ED ) : 25 kVA maximum short-circuit current: 22.4 kVA Maximum welding power : 107 kVA Cooling water quantity : 4 l/min Polhcdovuz Iyswxepr Electrode arm Ø : 45 mm Electrode holder Ø : 25 mm Projection : 460 mm Electrode force : 17 to 278 daN Machine weight : 240 kg Dimensions : 1100 x 750 x 1250 mm incl. foot switch
