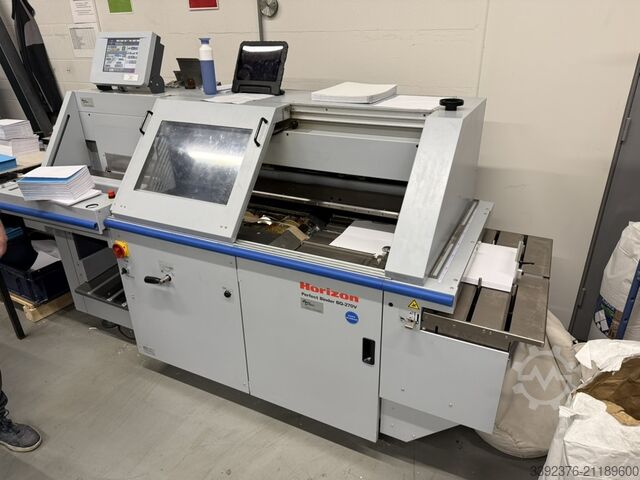

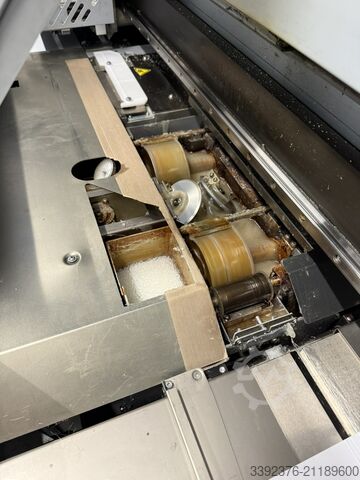

Used Horizon Bq-270V for sale (171)

Condition: excellent (used), Year of construction: 2003, HORIZON BQ460 year 2003 counter: approx 4 mio Number of clamps: 4 Touch screen for setting and controlling the machine Pslhov Tllajccqnegk Twin rollers to apply glue separately to lubricate the spine, separately to lubricate the sides of the book Pneumatic feeding of the cover with creasing by means of rollers Hotmelt gluing system Technical date: Max book block size: 320 x 320 mm Min book block size: 75 x 75 mm Max cover size: 320 x 650 mm Min cover size: 145 x 230 mm Max book block thickness: 55 mm Min book block thickness: 1 mm Max cover stack: 200 mm Productivity: 1350 books/h Power: 5.5 kW

Condition: good (used), Year of construction: 2008, Built in: 2008 Size: max 320 x 320 mm; min 150 x 145 mm Cover size: max 660 x 320 mm; min 225 x 135 mm Book block thickness: max 65 mm Weight: 2,100 kg Cover thickness: 80-300 g/qm Pile height: max. 150 mm Speed: max 1,350 c/h Pgelhou R Hxgeccqnjk Type of current: 400/50 V/Hz Overall dimensions: w x h x l 3.610 x 2.910 x 1.80 mm Equipment perfect binder: - 4 clamps - milling station with pressing roller - hotmelt spine gluing unit - hot melt side gluing unit - PUR gluing unit - Premelter for PUR gluing unit .

Condition: used, Year of construction: 2018, Functionality: fully functional, year of last overhaul: 2024, ∎ Binding Modes : - Binding with milling, Binding without milling and Pad binding ∎ Number of Carriage Clamps : - 4 ∎ Book Block Size (Top-Bottom x Fore-edge) - Max. Top-bottom 320 x fore-edge 320 mm or 12.59" x 12.59" Pgslhccov T Iw Soqnok - Min. Top-bottom 145 x fore-edge 105 mm mm or 5.71" x 4.14" mm ∎ Book Thickness - 1.0 to 65 mm or 0.040" to 2.560" (The book thickness can be limited depending on the sheet weight, book size and milling depth.) ∎ Cover Size : - Max. 320 x 660 mm or 12.59" x 25.98" mm (up to 352 mm or 13.85" forwards from the clamp face)(up to 312 mm or 12.28" backwards from the clamp face) - Min. 135 x 225 mm or 5.32"x 8.86" mm (up to 114 mm or 4.49" forwards from the clamp face)(up to 109 mm or 4.30" backwards from the clamp face) ∎ Cover Weight Range : - Bond Paper 81.4 to 302.4 gsm Coated Paper 104.7 to 348.9 gsm ∎ Cover Stack Height : - Max. 150 mm or 5.9" ∎ Warm-Up Time : - 60 min ∎ Glue Temperature : - Spine Glue Tank : EVA 150 to 200°C or 302 to 392°F (Recommended Set Temperature: 180°C or 356°F) - Side Glue Tank: EVA 150 to 200°C or 302 to 392°F (Recommended Set Temperature: 170°C or 338°F ) - Spine Glue Tank : PUR 90 to 140°C or 194 to 284°F (Recommended Set Temperature: 120 to 130°C or 248 to 266 °F ∎ Maximum Milling Depth : - 4 mm or 0.157" ∎ cycle speed : - Max. 1,350 cycles per hour (EVA) Max. 1,000 cycles per hour (PUR) *The cycle speed changes depending on the operator's working time and the book thickness. ∎ Voltage/Frequency : - 3-Phase 220 V, 50 or 60 Hz - 3-Phase 400 V, 50 or 60 HZ An external transformer is necessary for 220V / 400V ∎ Rated Current - 3-Phase 200 V, 50 or 60 Hz, 12.0A ∎ Heat Output : -13,030 kJ or 3,120 kcal ∎ Motors : - 3.7 kWx1,750W x 1,850W + 1,400W x1,200W x 3,100W x 1,40W x 1,25W x 2 - Delivery Stacker: 40W x 1, 60W x 1 ∎ Heaters - 650W x 1, EVA: 2.2kW x 1, PUR: 900Wx 1,80W x 1 ∎ Machine Dimensions With delivery stacker (short type) and milling blower duct: 3,620(W) x 1,570(D) x 2,000(H) mm or 142.6" x 61.9 "x 78.8“ Pgeicqbbov T Iuqjhji With delivery stacker (long type) and milling blower duct : 3,620(W) x 2,240(D) x 2,000(H) mm or 142.6" x 88.2 "x 78.8“ Without delivery stacker and milling blower duct: 3,220(W) X 1,090(D) x2,000(H) mm or 126.8" x 43.0 "x 78.8“ ∎ Machine Weight Main Part of Machine : 1,970 kg or 4,343 lb Delivery Slacker AC-470L: 99 kg or219 lb, Transformer : 106 kg or 233 ib ∎ Noise Level - LAeq78.1 dB ∎ Temperature and Humidity Temperature 0 to + 40 °C or 32 to 104° F Humidity 20% to 75%RH ∎ Language - English

Condition: good (used), Year of construction: 2014, Horizon BQ 270 single clamp perfect binder year of construction 11/2014 Heavy duty fully automated single clamp binder for short run book production equipped with:  1 clamp  Milling station  hotmelt spine and side gluing  cover feeder with scoring rollers Pgslhccevz Au Usqnek  LCD touch screen panel for quick and easy set up plus 20 job memory. technical details:  Maximum book size: 320mm x 320mm  Minimum book size: 135mm x 105mm  Book thickness: 1mm to 50mm  Maximum speed without milling: 600 bks/hour, with milling: 300 bks/hour

Condition: used, Year of construction: 1996, 4 Zangen Klebebinder - 4-Clamp Perfect Binder Horizon BQ 440Year 1996 - Serial-No. Buchrückenbeleimung / Spine Gluing Hotmelt Seitenbeleimung / Sight Gluing Hotmelt Fräswerk mit Absaugung / milling section with extraction Frästiefe einstellbar / milling depth adjustable Automatic scoring and automatic feeding of the coversTechnische Daten / Technical Details: Pgslel Dqdzshccqnjk Papierformat / Sheet Size min. 75 x 75mm - 320 x 320mm Umschlagstärke / Cover thickness: 80 - 300 gsm Buchstärke / book thickness min. 1 - 40 mms (10 up to 400 pages) Paper thickness: 52 - 157gsm Leistung / speed max. 150 - 1.100 Cycles/h Online-Video-Inspection by Skype-Video We would be very pleased with your visit - more machines on Stock Available Immediately - Can be inspect On Stock Emskirchen / Nürnberg - Can be test

Condition: used, Year of construction: 2012, Fully Automated 4-Clamp PUR Perfect Binder from HORIZON Our offer includes: - Horizon BQ-470 - Horizon Blast-Pipe-System D, PUR hotmelt system including 2 kg pre-melter This versatile perfect binder is excellently suited for medium and small print runs as well as single-copy productions. Ideal for the production of photo books, softcover, or hardcover books. Key Features: Pgjlju Srr Uohccqnjk - Strong and Flexible Bindings: PUR hotmelt provides especially strong and flexible bindings, ideal for digital prints and coated papers. - Q-Jet nozzle application system for PUR hotmelt spine gluing - Consistent Adhesive Supply: The integrated pre-melter ensures a consistent supply and temperature of the adhesive. - Separate Side Gluing: Separate side gluing unit for EVA hotmelt. - Precise Scoring: 4-line positive/negative scoring and 2-line scoring with variable gauze feed for better binding quality. - User-Friendly Touchscreen: Easy-to-use 10.4-inch color touchscreen allows even less experienced operators to create high-quality bindings. - Advanced Feeding System: Advanced rotating suction feeding system speeds up production by handling various cover materials without marking them. Specifications: Performance and Capacity: - Maximum Speed: 800 cycles/hour - Binding Capacity with 2kg PUR (A4 size): Approx. 6,500 books with 2mm spine thickness and 0.5mm adhesive layer Approx. 650 books with 20mm spine thickness and 0.5mm adhesive layer Material Handling: - Book Block Size: Max. 320 x 320 mm, Min. 145 x 105 mm - Book Thickness: 1 to 65 mm - Cover Size: Max. 320 x 660 mm, Min. 135 x 225 mm - Paper Weight (Content): 60-135g/m² - Paper Weight (Cover): 80-300g/m² (normal paper), 104.7-348.9g/m² (coated paper) - Cover Stack Height: Max. 150mm Gluing: - PUR Hotmelt: 2kg cartridge (foil bag, Ø 126mm) for spine gluing - EVA Hotmelt: For side gluing - Temperature: PUR up to 130°C; EVA 120-200°C - Heating Time: Approx. 50 min Technical Requirements: - Compressed Air: 6 bar dry air (max. 8 bar); connection G1/8" - Power Supply: 400V three-phase 16A, 6.5kW for binder and 400V three-phase 16A, 6.0kW for melter Total Weight: 2,196kg 3 MONTHS WARRANTY We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems. All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Year of construction: 2006, Functionality: fully functional, overall weight: 900 kg, Horizon BQ-270 single-sided adhesive binder for EVA adhesive. (Planamelt) Year of manufacture: 2006, meter reading: 2.431.043 Machine should be cleaned inside (see photos), otherwise in good working order. Realistic speed 220 pcs/hour. Is under power and can be tested. Pgelhccetp N Izeqnsk

Condition: excellent (used), Year of construction: 2006, Horizon BQ 270 (2006) 1 carriage, Pjlhcceuql Sqjqnsgk book binding machine, automatic cover feeder with cutter, spine and side glue very good machine!

Condition: ready for operation (used), Year of construction: 2006, Functionality: fully functional, product width (max.): 350 mm, product height (min.): 210 mm, product height (max.): 500 mm, product width (min.): 148 mm, paper weight (min.): 60 g/m², paper weight (max.): 350 g/m², No reserve price - guaranteed sale at the highest bid! OVERVIEW - VAC-60a Gathering Tower - VAC-60c Gathering Tower - HOF-30 Stacker Drop Table Stitchliner 5500 Saddle Stitcher - ACF-30 Gathering and Folding Unit - SPF-30 Saddle Stitcher - HTS-30 Three-Side Trimmer TECHNICAL DETAILS Gathering Towers Model: VAC-60a / VAC-60c Technology: Touch & Work Type: Vacuum and Air Blower Gathering Tower Number of Stations: 6 Error Prevention: Misfeed, Double Feed, and Jam Detection Job Memory: 9 Memory Locations for Repeat Jobs Programs: Double Cycle (Non-Stop Operation), Interposer (1- and 2-Up), Booklet Program, Block Program, Selective Gathering Expandability: Up to 6 towers (36 stations) Format Range: Max. 148 - 500 × 120 - 350 mm Paper weight: 40 - 350 g/m² Loading capacity per station: 130 mm Production speed: up to 9,500 sets/h Power supply: 230 V; 50/60 Hz – 1.86 kW Dimensions (W × D × H): 842 × 652 × 1,961 mm Collating Towers Model: Horizon VAC-60Hc Function: Double-sided collating Use: Towers can be used separately Weight per tower: 310 kg Stack lowering table Pgolhcjwcf D Hscqnok Model: Horizon HOF-30 Function: Non-stop operation despite misfeed and double feed detection Gathering system Model: Horizon Stitchliner 5500 Components: ACF-30 + SPF-30 + HTS-30 (Collating & Folding + Saddle Stitcher + Three-Side Trimmer) Format setting: Fully automatic Format templates: DIN formats and standard fold types Job memory: 200 memory locations for repeat jobs Stitching system Stitching options: Saddle stitch, block stitch, Corner stitching Stapling heads: 2 (optionally expandable to 4) Ring eyelet stitching: possible with ring eyelet stitching heads Staple spacing: 60 - 150 mm Stapling thickness: max. 5 mm (3 mm with ring eyelet) Processing Infeed format: 210 - 500 × 148 - 350 mm Paper weight: 60 - 350 g/m² Processing thickness: 8 - 200 pages Speed: max. 5,500 cycles/h Trimming Untrimmed format: 140 - 350 × 103 - 250 mm Trimmed format: 120 - 312 × 95 - 230 mm Space requirements and weight Installation area: min. 5,709 × 3,240 mm Stitchliner weight: 2,120 kg Power supply: 400 V / 50 Hz Part of the video shows a Horizon ST40, which was replaced with a HOF 30.

Condition: excellent (used), Year of construction: 2006, Booklet production: Horizon VAC 100A, SPF 20A, FC20A, LC 200, PJ 77 Counter reading on the VAC 100A tower: 1.88 million The machine is in perfect working order and is in very good condition. Infeed formats: Max. 500 mm x 350 mm, Min. 180 mm x 120 mm Finished formats: Max. 250 mm x 350 mm, Min. 85 mm x 120 mm (cut) Type thickness: Max. 4 mm Staple spacing: 73 mm - 160 mm 2 Hohner 48/5 stitching heads Wire gauge: 24 - 28 Machine dimensions: Length 470 cm x Width 110 cm x Height 196 cm (without PJ 77) Weight: 990 kg Power supply: 2 x 230 V with Schuko plug Pslhccsrt T Aheqnegk

Condition: used, Year of construction: 2015, Horizon AFC-566 AKT with LCV-54 shingle delivery 1st folding unit: 6 buckle plates 2nd folding unit: folding knife plus 2 buckle plates Pgslhcev D I Sqecqnsk Paper weights : 40 - 250 g/sqm Stack height feeder: 740 mm Format (max.): 558 x 850 mm (1,100 mm*) Format (min.): 128 x 148 mm (105 x 148 mm*) Weight: 1,200 kg Machine dimensions: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH) Delivery dimensions: 1,320 mm x 550 mm (LxW), variable height Power connection: 400 V 5.6 A, 3.1 kW Top condition - little used available from April 25

Condition: excellent (used), Format: A5 to A3 Equipment / Additional information: 1x Horizon tower MC-80a (8 stations) M.No . 040043 1xHorizon MC-80 Air Pump Pgjlhcsh Nyb Docqnjk M.No .: 040043 -Optional STACKING LOWER TABLE HORIZON ST-20 (Ref. No. 32022.22) S.No.: 033001 // Age: 2001

Condition: used, Year of construction: 2016, The Horizon AFC 566 FKT + PST-40 folding machine, manufactured in 2016, is a high-performance solution for efficient and precise folding operations. Currently in production and located in Germany, this machine is designed to handle a wide range of sheet sizes, from a minimum of 60 x 64 mm to a maximum of 558 x 850 mm, with a maximum mechanical speed of 240 m/min (30,000 cycles/h). Equipped with a flat pile feeder capable of handling a maximum pile height of 740 mm, it ensures continuous and efficient paper feeding. The primary folding unit is an AFC-566 FKT with 6 combi folding plates, offering manual pocket and roller configuration. It features a used condition roller and a cross fold unit with 1 knife, providing versatile folding options with a maximum working width of 558 mm and a maximum fold length of 850 mm. The machine also includes a noise protection hood and touch screen control for ease of operation. The delivery mode is a PST-40 press delivery, manufactured in 2010 with the serial number 360003. It has a maximum working width of 440 mm and a pressing force of 20,000 N, ensuring efficient and organized output handling. This machine is well-suited for businesses seeking to enhance their folding capabilities with a reliable and high-performance solution. Format: 440 x 310 mm Equipment: Feeder Feeder Mode: Flat pile feeder Max. pile height: 740 mm Folding Units Polhcswcqw Secqnsgk 1st unit Type: AFC-566 FKT Pockets: 6 Pocket Type: Combi folding plates Pocket Configuration: manual Rollers Configuration: manual Roller condition: used condition Working width max: 558 mm Fold length max: 850 mm Cross fold unit with 1x knife Noise Protection Hood Touch Screen Control Delivery Delivery mode: PST-40 Type: Press delivery Year: 2010 Serial number: 360003 Working width max: 440 mm Technical Details Sheet size max: 440 x 310 mm Sheet size min: 60 x 64 mm Infeed height min: 280 mm Mechanical speed max: 240 m/min Pressing force: 20,000 N Built-in controller Technical details: Sheet size max: 558 x 850 mm Sheet size min: 128 x 148 mm Max. mechanical speed: 240 m/min Max. mechanical speed (cycles): 30,000 cycles/h

Condition: as good as new (ex-display), Functionality: fully functional, Very nice paper folding machine for sale. 2 buckle and cross folding 16 page high pile table. This machine look like new and working 100%. Of course you are welcome to test this machine with us. We can arrange the transport/packaging for you and load it into a truck or container. Ask for a price including transport (location the Netherlands). Regards Henk Hoos. Pjlhcowbr Ntocqnjgk

Condition: good (used), Horizon Digital Printing Booklet Line The machine consists of the following modules: HOF-400 + CF-400 + CR-400 + AC-400+ SPF-200L + FC-200L The machine is in perfect condition, ready for production. Mileage of only 0.5 million booklets. This is one of the latest models of Horizon machines. Psljwdpf Dohccqnegk Setting the entire machine from the desktop. Production Japan. The ideal machine for efficient production of booklets in a digital printing house. The line consists of: – Horizon HOF-400 sheet feeder – Horizon CF-400 cover feeder – Horizon CR-400 creasing machine with top/bottom trimmer – Horizon AC-400 accumulation module – Horizon SPF-200L sewing and folding unit – Horizon FC-200L front trimmer – LC-200L delivery Horizon HOF-400 – Speed: Up to 45,000 sheets per hour – Maximum stack height: Sheet feeder: 620 mm; Cover feeder: 200 mm – Minimum sheet dimensions: 203 x 203 mm Horizon SPF-200L Touchscreen, colour display with a diagonal of 10.4” Non-stop work thanks to the function of ejecting incorrectly collected sets Max format: max. 356 x 610 mm; Min format. 120 x 180 mm Max speed 4500 booklets/h Weight 500 kg wire sewing folding two Hohner 43/6 s heads (max.4) Ability to save up to 200 jobs to the machine’s memory. The machine has a block sewing module. Horizon FC-200L Cutting thickness 4-5 mm power supply 230 V Weight 244 kg Touchscreen panel for quick change of formats. With one click we retool the machine to other format. The machine comes with: LC-200 delivery, tools, spare parts, documentation.

Condition: excellent (used), Year of construction: 2010, Functionality: fully functional, machine/vehicle number: 410002, STC-Ref:G-671-2385 Horizon HT-70 ,Year: 2010 equipped: - min. format untrimmed 148 x 105 mm - max. format trimmed: 300 x 300 mm - machine weight 1.530 kg - min. format trimmed: 142 x 100 mm - Book trim thickness 2 - 50 mm - Output max.1000 strokes/hr. - dimensions:2260 x 1160 x 1600 mm - max. format untrimmed: 330 x 330 mm Pslhccjwa Dwmsqnsgk --> available: 05/2025

Condition: used, Year of construction: 1995, Gathering machine Horizon HAC15 Tower a/b/m 4x15 stations 1 gathering tower HAC 15a 1 gathering tower HAC 15b 2 gathering towers HAC 15m 15 stations each friction feeder with 40mm loading height each delivery / stacking table Stielow ST-20 Technical data: Paper size max. 31,8 x 7mm paper size min. 14,8 x 21mm missing/double sheet control Pjlhccentdw Toqnegk paper weights 40 - 200 g/sqm Output approx. 4800 cycles/h

Year of construction: 2001, Condition: excellent (used), machine/vehicle number: 033001, Format: max. 450x310mm; at least 185x128mm; Stack height: max. 320mm Equipment / additional information: Stacking options: smooth or offset to the side - compatible with: Pjleiq Nfpjhccqnegk Horizon MC-80a Horizon VAC-100a Horizon VAC-60Ha Horizon VAC-1000 Horizon VAC-600

Condition: as good as new (ex-display), Year of construction: 2023, Functionality: fully functional, Showroom equipment. Pgslhccqewff Rrjnsk Basically new, in mint condition.

Condition: like new (used), Very nice booklet maker for sale. Brand Horizon type SPF-7 folding and stitching or only folding and top stitching. 900 booklets per hour 2000 staples in a cartridge including counter . Pgolhcowakyhjcqnjk Single phase 220 volts. Of course you are welcome to test this machine with us. We can arrange the transport/packaging for you and load it into a truck or container. Ask for a price including transport (location the Netherlands). Regards Henk Hoos.

Condition: good (used), Horizon VAC-100a + VAC-1000c + SPF-200a + FC-200a booklet line The machine is fully operational, ready for production. Very low mileage. This is one of the newest models of Horizon machines. Setting the entire machine from the desktop. Production Japan. The line consists of: – Horizon VAC-100A / VAC-1000C Max format: 350x500mm Min format: 120x148mm Vacuum collection 10 shelves stack height 55mm weight 40-270g power supply 230V weight 310kg/pcs The towers are the latest generation with new compressors Control from a touch screen Sensor for jam, double feed, no feed Ability to save 9 permanent jobs to the machine’s memory Horizon SPF-200A Touch screen, color display with a diagonal of 10.4” Non-stop work thanks to the function of ejecting poorly collected sets Max format: max. 508x356mm; Min format 180x120mm Max speed 4500 booklets/h Weight 500kg wire sewing folding two Hohner 43/6 s heads (max.4) Ability to save up to 200 jobs to the machine’s memory. The machine has additional options such as wire control on feeding, block sewing module. Pjlhowdpfwoccqnjgk Horizon FC-200A cutting thickness 4-5mm power supply 230V Weight 244 kg New design trimmer, stable operation on servo motors, additional booklet guidance. Touch panel for quick format change. With one click, we can retool the machine for another format. The machine comes with: SC-200 delivery, PJ-77R jogging machine, operating tools, spare parts, documentation.

Year of construction: 1999, Condition: good (used), machine/vehicle number: 027012 , Flatpile Feeder 4 Pockets 1 Knife Polhjf Swnloccqnogk 1 Side Pocket

Condition: used, Year of construction: 2007, Format: max. 540x1000mm; min. 100x148mm Paper weight: 40-250g/sqm Loading capacity: 55mm Output: max. 45,000 cycles/h compatible with: Pgslhccqeup Ut Ujnok Horizon AFC-544AKT, Horizon AFC-546AKT Horizon AFC-564AKT, Horizon AFC-566AKT Horizon AFC-566F, Horizon AFC-566FKT Weight: 518kg good working condition available at short notice

Condition: good (used), Year of construction: 2007, working width: 566 mm, Horizon AFC-566FKT with 6 buckle +1 knife crossfolder + 2 buckel folder under the knife The machien was checked by our Horizon service department The machine is used, every function working well. Pjlhcjtxzr Rjcqnegk Optionally we can renew the folding rollers.

Condition: used, - air suction collator VAC-100a Horizon VAC-100a air-suction collators - technology: touch & work - model: air-suction collator - bins: 10 each collator - error avoidance: misfeed-,doublefeed- and jamming control - saveable jobs: 9 memories for repeat orders - extensibility: up to 6 collators (60 bins) programs: - doublecycle (nonstop-work) - inject (simply and doubly) - booklet making program - block program - selective collating - sheet size: max. 500x350mm; min. 148x120mm - paper weight: 40-250g/qm - loading height: 55mm/ bin - production speed: max. 9.500 cycles/h Bwjbklicou Sr Amjkrek Pelsv Haaljhccqnjgk - power: 230V/50Hz - 1,86kW - dimensions: 842x652x1.961mm - weight: 310kg includes Stacker Format: 500 x 350 mm Equipment: Delivery air suction collator VAC-100a Technology: touch & work model: air-suction collator bins: 10 each collator error avoidance: misfeed-,doublefeed- and jamming control saveable jobs: 9 memories for repeat orders extensibility: up to 6 collators (60 bins)
