Used Kögel Cargo for sale (2)

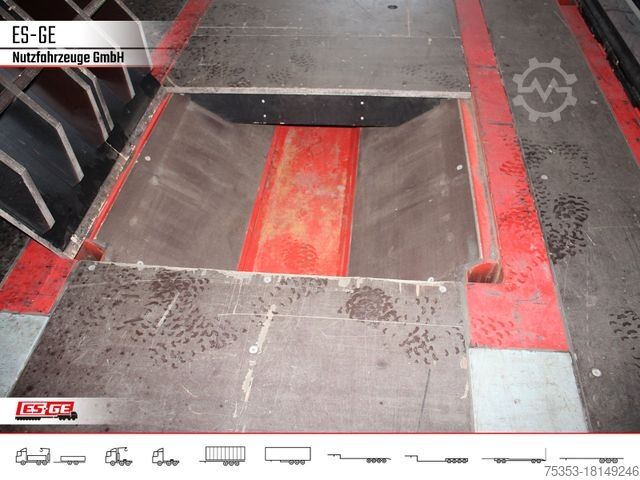

Condition: used, maximum load weight: 34,200 kg, overall weight: 42,000 kg, axle configuration: 3 axles, first registration: 05/2023, next inspection (TÜV): 06/2025, loading space length: 13,620 mm, loading space width: 2,480 mm, total width: 2,550 mm, Equipment: ABS, You can find our complete stock of vehicles, including those available for immediate or short-term delivery, on our website. Extract from the list of features. Full specification available on request. Chassis * Standard ladder frame in lightweight steel construction with through cross members * Maximum distributed load of 30 t spread evenly over approx. 1.5 m at payload center of gravity * Coupling plate approx. 8 mm thick, with a 2" kingpin according to DIN 74080 / ISO 337 * Coil well approx. 9,000 mm internal length (in accordance with VDI Guideline 2700) suitable for coils with diameters from min. 900 mm to max. 2,100 mm Undercarriage * Axle lift mechanism on axle 1 * Automatic, load-dependent axle lift control Fpedovl N N Tepfx Ah Ior Starting Aid * Activation by pressing the brake 3 times, 30% overload up to a speed of 25 km/h * Operation via switch on chassis * Additional operation possible from the cab (requires cab switch – PIN 12) SAF INTRADISC Three-Axle Unit * With disc brakes approx. Ø 430 mm, ET 120 * Air suspension with approx. 180 mm stroke Vehicle Tyres * 6 x 385/65 R 22.5, 160J * 6 steel rims 22.5 x 11.75, offset approx. 120 mm (ET 120) Chassis Attachments * Mechanical landing gear with compensating foot, 24 t lift capacity, single-sided operation on the right in direction of travel * Spray suppression system according to Regulation (EU) No. 109/2011 for three-axle units with 385/65 R22.5 tyres, comprising 1 pair of quarter-circle mudguards in front of the axles, 1 pair of straight mudguards with mudflaps between axles 1 and 2, and 1 pair of quarter-circle mudguards with mudflaps behind the axles * Side underrun protection according to ECE-R73 * Storage for 8 square tube stanchions, internal dimensions approx. 340 x 220 x 2,150 mm, fitted behind axle unit * 2 waterproof plastic toolboxes, internal dimensions approx. 545 x 400 x 400 mm. Installed 1x left and 1x right at the rear Brake / Air Suspension System * EBS system 2S/2M with stability program (includes ABS/ALB function) * Air suspension system including 1 raise/lower valve, mounted to the left behind the axle unit in the direction of travel * Driving position adjusts automatically Floor * Mounted design on both sides * Steel pallet stops with VarioFix hole pattern (bolted), installed left and right in direction of travel, for an internal width of approx. 2,468 mm (internal loading height under outer rail reduced by approx. 20 mm) * Floor panels approx. 30 mm thick, multi-bonded plywood, recessed in the coil well area * Coil well side walls lined with approx. 18 mm thick plywood panels * Perimeter-sealed coil well cover completely made of wood, with floor panels approx. 27 mm thick * Pockets for square tube stanchions approx. 80 x 80 mm, positions as per drawing A2, 2 pairs on longitudinal member in 1st and 2nd positions, 8 pairs on the outer frame * 8 pairs of sockets in the coil well for accepting square tube stanchions approx. 80 x 80 mm, arrangement: 1st pair at the front of the well, 2nd–7th pairs as per standard drawing, 8th pair at the end of the well Body * Quick-release system at front for side curtain with tension tubes and deflection lever * Quick-release system at rear for side curtain with tension tubes and ratchet * Meets body strength requirements according to EN 12642 XL (VDI 2700), certified for a payload of approx. 27,000 kg Rear Wall * Double-wing rear portal doors made from aluminum, approx. 2,630 mm internal height * 4 integrated locking rods (2 left, 2 righ

Condition: used, maximum load weight: 34,190 kg, overall weight: 42,000 kg, axle configuration: 3 axles, first registration: 02/2023, next inspection (TÜV): 04/2026, Equipment: ABS, You will find our complete range of vehicles, including immediately and short-term available units, on our website. Excerpt of equipment. Full equipment details available on request. Chassis * Coil trough (approx. internal length 9,000 mm, designed according to VDI guideline 2700) for accomodating coils with a diameter from min. 900 mm to max. 2,100 mm Running Gear * Axle lift mechanism on axle 1 * Three-axle SAF INTRADISC unit with disc brakes, approx. Ø 430 mm, ET 120 * Air suspension with approx. 180 mm lift * Tyres – 6x 385/65 R 22.5, 160J – brand at our choice * 6 steel rims 22.5 x 11.75, offset approx. 120 mm (ET 120) * Brake / air suspension system * EBS system 2S/2M with stability program (includes ABS/ALB function) * EBS connection ISO 7638 (without wiring) * Parking brake as spring-actuated brake, external pneumatic connections as well as external EBS diagnostic connection via ISO 7638 plug * WABCO EBS system * Air suspension system incl. 1 lifting and lowering valve, installed left side in direction of travel, behind axle unit * Ride height automatically adjusts Floor * Both sides installed version * Steel pallet stop bars with VarioFix hole pattern (bolted), left and right in the direction of travel, for internal width approx. 2,468 mm (loading height under external beam is reduced by approx. 20 mm) * Floor panels approx. 30 mm thick, multi-bonded plywood, recessed in coil trough area * Coil trough side walls lined with approx. 18 mm thick plywood panels * Continuous joint sealing around the floor * Coil trough cover entirely made of wood, with panel flooring approx. 27 mm thick * Pocket holes for square tube stanchions approx. 80 x 80 mm * Arrangement per drawing A2: * 2 pairs on longitudinal beam at 1st and 2nd positions * 8 pairs on external frame * 8 pairs of pocket holes in coil trough to accommodate square tube stanchions approx. 80x80 mm * Arrangement: 1st pair at front of trough, 2nd – 7th pair as per series drawing, 8th pair at rear of trough Body * Meets body strength requirement EN 12642 XL (VDI 2700) * Certified for payload approx. 27,000 kg Fpedpfxoxvgqle Ah Ijr * Front wall at body height with aluminium volume corner stanchions * Riveted with aluminium hollow profiles, bolted/riveted to frame * 1 pair of lashing rings per EN 12640 * Front wall interior reinforced with approx. 12 mm plywood with anti-slip film surface, approx. 1,250 mm height * Double-leaf rear portal door made of aluminium, approx. 2,630 mm internal clearance * 4 integrated locking rods (2 left, 2 right) * Rear portal corner stanchions bolted, made of steel at portal height with additional impact guard up to first door hinge * Corner stanchions on both sides extendable sideways by approx. 500 mm for loading/unloading * To operate, sliding roof must be pushed forward and rear doors opened * 5 pairs of slots for load securing at rear corner stanchions, side wall * 3 pairs KÖGEL sliding stanchions with receptacle approx. 600 mm high for 5 insertable slats stacked above floor edge. Fixed to outer frame * 5 rows of slat holders consisting of plug-in slat pockets on sliding stanchions and variable supports in the corner stanchions * Variable supports as spacers for insertable slats (16 pcs.), fitted in the storage compartment of sliding and corner stanchions (height approx. 100 mm above flooring) * 4 rows of V-shaped aluminium slats at the sides * VarioFix steel hole outer frame with 3 pairs of stanchion brackets * 2 additional pairs of stanchion brackets on the ou
