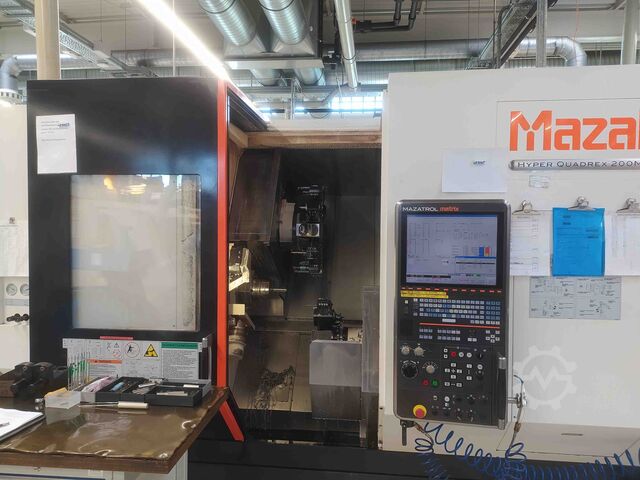

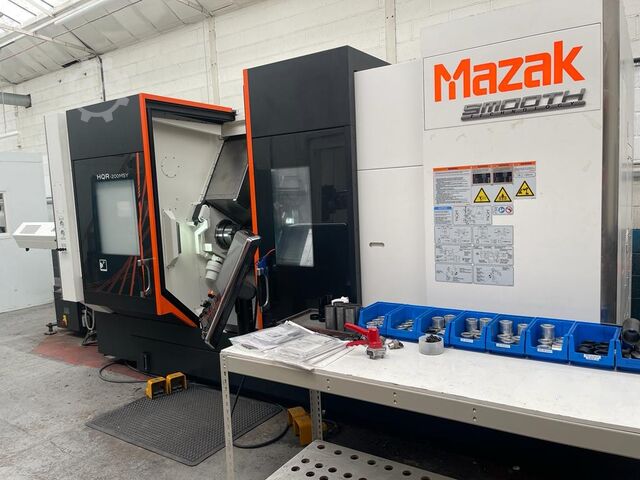

Used Mazak Hqr-200Msy for sale (4)

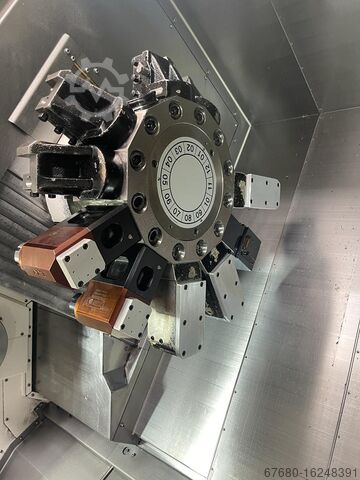

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Mazatrol Smooth G movements: X1/X2-axis: 207 /141 mm Y1/Y2-axis: 100/70 mm Z1/Z2-axis: 1.225/1.280 mm Max. Swing diamter (upper turret): 370 mm Max. Swing diamter (lower turret): 320 mm Max. turning diamter (upper turret): 344 mm Max. turning diamter (lower turret): 210 mm Main spindle 22/15 kW, A2-6 spindle nose Main spindle max. speed: 5.000 rpm Main spindle C-axis: 0.0001° Sub spindle 22/15 kW, A2-6 spindle nose Sub spindle max. speed: 5.000 rpm Sub spindle C-axis: 0.0001° 2 x 12-station turret – 2 x 12 driven tool stations Max. speed driven tools: 6.000 rpm Cylinder- (G07) + Polar coordinate- (G12) input EIA/ISO Interface for barfeeder Barfeeder magazine, Hydrafeed Multifeed MX-1B Nedpfx Aomkiz Sjfxslh 8“ 3-jawchuck, Kitagaea BB08 for main spindle Collet Hainbuch 52 mm, axfix for sub spindle

Condition: excellent (used), Year of construction: 2017, Mazatrol Smooth G Control, Bar capacity 65mm, maximum machining diameter 344mm, 2 off 12 Station Turrets, 1325mm between spindles, C axis to both Spindles (0.0001 degree) Y Axis on both Turrets, Spindle Speed 5000rpm, Spindle Motors 22kW, Nedpfott Nwiex Afxelh Milling 6000rpm on both Turrets, Swarf conveyor, Tool Setter, Hydrafeed Magazine Barfeed

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, turning diameter: 344 mm, travel distance X-axis: 207 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 760 mm, bar passage: 65 mm, controller model: Mazatrol Matrix, Machine with counter spindle and two turrets, each with three axes! TECHNICAL DETAILS Swing diameter – max.: 370 mm / 320 mm Machining diameter – max.: 344 mm / 210 mm Bar capacity – max.: 65 mm Travel paths Nledpfxjwburke Afxjh X1 / X2 axis travel: 207 mm / 141 mm Y1 / Y2 axis travel: 100 mm / 70 mm Z1 / Z2 axis travel: 760 mm / 815 mm Main spindle Speed range: 5,000 rpm Drive power (40% / 100%): 22 kW / 15 kW Spindle bore: 76 mm C-axis: 0.0001° Counter spindle Speed range: 5,000 rpm Drive power (25%): 22 kW / 15 kW C-axis: 0.0001° Tool turret Number of positions: 2 × 12 Tool shank height: 25 mm Boring bar diameter: 40 mm Driven tools Speed: 6,000 rpm Drive power: 5.5 kW MACHINE DETAILS Machine weight: 12,500 kg Machine dimensions (L × W × H): 3,510 × 2,810 × 2,480 mm EQUIPMENT - Interface bar feeder - LNS Sprint 565 bar feeder - Additional coolant nozzles on main and counter spindle - Hainbuch Spanntop Nova Axfix SK 65 (main spindle) - Kitagawa B-208 (counter spindle) - Workpiece unloading device with conveyor belt - C-axis Counter spindle 0.0001° - High-pressure coolant 70 bar - Mayfran Consep 2000 II chip conveyor, right-hand ejection - Signal light (yellow)

Condition: excellent (used), Year of construction: 2011, Machine description: Technical Data: max. swing-ø mm 370 / 320 max. working-ø mm 344 / 210 Nledsmv Ep Tspfx Afxoh max. bar capacity mm 65 travel X1 – X2 axis mm 207 / 141 travel Y1 – Y2 axis mm 100 / 70 travel Z1 – Z2 axis mm 760 / 815 Main spindle speed min-1 5.000 motor (40 ED / 100%) kW 22 / 15 spindle bore mm 76 C-axis degree 0,0001 Sub spindle speed min-1 5.000 motor (25 ED%) kW 22 / 15 travel mm 1330 C-axis degree 0,0001 Turret with driven tools Number of tools 2 x 12 Max. tool shank height mm 25 Max. boring bar diameter mm 40 Driven tools speed min-1 6.000 motor kW 5,5 Machine weight kg 12.500 Dimensions (L x W x H): cm 351 x 281 x 248 Option: Hainbuch Spanntop Nova Axfix SK 65 (main spindle) 3-jaw chuck Kitagawa B-208 (sub spindle) Parts catcher with transport belt Interface for barfeeder barfeeder LNS Sprint 565 signal lamp (yellow) C-axis subspindle 0,0001° High pressure coolant 70 bar Chip conveyor
