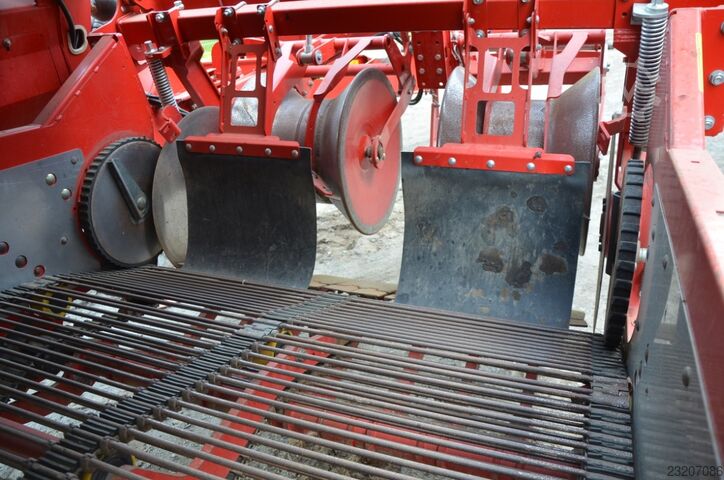

Grimme SE 260 UB

Grimme SE 260 UB

Condition: used, Year of construction: 2020, Tow hitch ball coupling, Ø 80 mm / Cardan shaft with 6 splines / Drive with PTO speed of 540 rpm / 3-stage gearbox / Row spacing 75 cm / Pick-up width: 600 mm / Clod drums: Ø 390 mm / Stone protection for coulter blade / Mechanical digging depth adjustment / Automatic clod relief / Automatic clod centering / 2 web separators / Additional web separator on the outside / Sieve channel width 1500 mm / 1st sieve band pitch 35 mm / 1st sieve band with locking connection / Pitch-independent friction drive for 1st sieve band with support roller / Speed of 1st sieve band - normal / V2A sheets in the oscillating frame / Oscillating beater in the 1st sieve band with speed adjustment from the terminal / 2nd sieve band pitch 32 mm / 2nd sieve band with locking connection / Pitch-independent friction drive for 2nd sieve band / Coarse debris band spacing 200 mm / 2 additional scrapers for coarse debris band / Band 1st separating unit pitch 40 mm / H-profile hedgehog roller for 1st separating unit / Scraper for 1st separating unit, smooth roller scraper / Inclination adjustment for 1st and 2nd separating unit from the terminal / Height adjustment of scraper rollers of 1st separating unit with Bowden cable / Slip monitoring for 1st separating unit and 2nd sieve band / 2nd separating unit: SB hedgehog band with plates / Scraper for 2nd separating unit, smooth roller / Spiral roller scraper / Speed adjustment for 2 brush/finger bands from the terminal / Speed adjustment for 1st and 2nd separating unit from the terminal / Height adjustment of the finger/brush band on the left from the terminal / Infeed chute mounted additionally on the right and left / Sorting table, wide (930 mm) with feed conveyor (280 mm) / Sorting belt with drive rollers / Feed conveyor adjustable, differential speed to the sorting table / Collector for stones / Stone hopper with discharge belt / Pre-elevator with ultrasonic sensor / 6.0 t hopper / Hopper belt with fabric / Hopper filling automation including automation for pre-elevator and filling optimization / Hopper top lowering / Air pressure brake / Automatic axle centering and inclination automation / Tires 710/45-26.5 / 7-inch monitor and multiplexer of the Grimme video system, up to 8 cameras possible / Camera as reversing camera, mounted, including lighting / Camera for 1st sieve band, mounted, including lighting / Camera for transition from 1st to 2nd separating unit, mounted, including lighting / Camera for sorting table, mounted, including lighting / Visual Protect: CAN bus-controlled monitoring system / Operator terminal VC 50 + joystick box instead of standard operator terminal / Multifunction lever instead of the joystick box on the right / Speedtronic / Drive medium, mineral oil / Load-sensing kit with control line to the tractor Nledpfx Abj Afkizo Roh

Condition: used, Year of construction: 2024, 1 Drawbar coupling, Ø 80 mm 1 Cardan shaft, 1 3/8" with 6 teeth 1 Drive with PTO speed of 540 rpm 1 3-speed gearbox 1 Row spacing 75 cm 1 Pick-up width: 620 mm with narrow crop intake roller 1 Half ridge drums: Ø 390 mm with collar 1 3-blade share, long 1 Separately adjustable middle share instead of middle disc shares 1 Ridge depth adjustment from the terminal 1 TerraControl 1 Automatic ridge centering 1 2 disc shares 1 Sieving channel width 1500 mm 1 1st separating belt, spacing 40 mm 1 1st separating belt with locking connection 1 Spacing-independent friction drive for 1st separating belt with support roller 1 Speed of 1st separating belt - normal 1 V2A sheets in the oscillating frame 1 Oscillating beaters in the 1st separating belt with speed adjustment from the terminal 1 2nd separating belt, spacing 32 mm 1 2nd separating belt with locking connection 1 Spacing-independent friction drive for 2nd separating belt 1 Coarse crop belt, distance 200 mm 1 Retaining spring at the front of the coarse crop belt, "standard" design 1 2 additional scrapers for the coarse crop belt 1 Belt of the 1st separating unit, spacing 40 mm 1 H-profile hedgehog web for the 1st separating unit 1 Scraper for the 1st separating unit, smooth roller scraper 1 Tilt adjustment for the 1st and 2nd separating units from the terminal 1 Height adjustment of scraper rollers for the 1st separating unit with Bowden cable 1 Slip monitoring for the 1st separating unit and 2nd separating belt 1 2nd separating unit: SB hedgehog web with plates 1 Scraper for the 2nd separating unit, smooth roller / spiral roller scraper 1 Speed adjustment for 2 brush or finger belts from the terminal 1 Speed adjustment for the 1st and 2nd separating units from the terminal 1 Height adjustment of the finger/brush belt by hand 1 Additional feed hoppers, mounted on the right and left 1 Sorting table, wide (930 mm), addition track (280 mm) 1 Sorting belt with entrainment elements 1 Roller pre-cleaning, 5 rollers, infinitely adjustable radially, without container 1 Roller spacing for roller pre-cleaning, 20 mm 1 Discharge belt from roller pre-cleaning to stone bunker 1 Potato turning device (two rollers in the sorting table) 1 Addition track, design with plates 1 Addition track adjustable, differential speed to the sorting table 1 Stone bunker with discharge belt 1 Pre-elevator with ultrasonic sensor 1 6.0 t bunker 1 Bunker belt with fabric 1 Bunker filling automatic system including automatic system for the pre-elevator and filling optimization 1 Bunker top lowering 1 Air brake Nsdpfx Ao Afimrsb Rjlh 1 Speed 40 km/h 1 Automatic axle centering and tilt automatic 1 Tires 800/45R30.5 Vredestein 1 7" monitor and multiplexer of the Grimme video system, up to 8 cameras possible 1 Camera as reversing camera, mounted, incl. lighting 1 Camera transition from the 1st to the 2nd separating unit, mounted, incl. lighting 1 Camera sorting table, mounted, incl. lighting 1 Camera bunker top, mounted, incl. lighting 1 Operator terminal VC 50 + joystick box instead of standard operator terminal 1 Mineral oil 1 Load-Sensing Kit with control line to the tractor 1 Ridge centering via sliding shoe 1 2nd support wheel, left

Condition: used, Year of construction: 2022, 1 Tow ball coupling, Ø 80 mm 1 Cardan shaft, 1 3/8" with 6 teeth 1 Drive with PTO speed of 540 rpm 1 Direct drive 1 Row spacing: 75 cm 1 Intake width: 600 mm 1 Ridging drums: Ø 390 mm 1 3-blade long coulter 1 Separately adjustable central coulter instead of the middle disc coulters 1 Stone protection for the share 1 Digging depth adjustment from the terminal 1 Automatic ridge unloading 1 Automatic ridge center finding 1 2 disc coulters 1 Additional disc coulter on the outside 1 Sieve belt width 1500 mm 1 1st sieve belt, spacing 35 mm 1 1st sieve belt with locking connection 1 Speed-independent friction drive, 1st sieve belt with support roller 1 Speed of 1st sieve belt - normal 1 V2A sheets in the oscillating frame 1 Oscillating beater in the 1st sieve belt with speed adjustment from the terminal 1 2nd sieve belt, spacing 32 mm 1 2nd sieve belt with locking connection 1 Speed-independent friction drive, 2nd sieve belt 1 Coarse soil band spacing 200 mm 1 Retaining spring at the front of the coarse soil band, design "strong" 1 Band 1st separator, spacing 40 mm 1 H-profile tine bar, 1st separator 1 Scraper for 1st separator, smooth roller scraper 1 Inclination adjustment for 1st and 2nd separators from the terminal 1 Height adjustment of scraper roller for 1st separator from the terminal 1 Slip monitoring for 1st separator and 2nd sieve belt 1 2nd separator: SB tine band with plates 1 Scraper for 2nd separator, smooth roller / spiral roller scraper 1 Speed adjustment for 2 brush or finger bands from the terminal 1 Inclination automation for 1st and 2nd separators 1 Speed adjustment for 1st and 2nd separators from the terminal 1 Height adjustment of the finger / brush band on the left from the terminal 1 Speedtronic-Sep: Automatic speed adjustment of the separators 1 Additional mounted feed hopper on the right and left 1 Sorting table, wide (930 mm), feed hopper (280 mm) 1 Sorting belt with lugs 1 Roller pre-cleaning, 5 rollers, stepless radial adjustment, without container 1 Rollers for roller pre-cleaning, spacing 20 mm 1 Conveyor belt from roller pre-cleaning to stone bunker 1 Feed hopper belt, design "rod band" 1 Feed hopper belt adjustable, differential speed to the sorting table 1 Stone bunker with discharge belt 1 Pre-elevator with ultrasonic sensor Nodpfxs Afigrs Ab Rolh 1 6.0 t bunker 1 Bunker belt with fabric 1 Bunker filling automation including automation for pre-elevator and filling optimization 1 Bunker top lowering 1 Potato outlet on the roll bottom bunker for crate filling / drop brake 1 Potato outlet for 1.20 m wide crates 1 Hydraulic folding device for potato outlet 1 Air brake 1 Permissible maximum speed 40 km/h 1 Automatic axle center finding and inclination automation 1 Tire size 710/50-30.5 1 ISOBUS 1 Drive medium: mineral oil 1 Load-Sensing Kit with control line to the tractor
