Universal Machining Centre

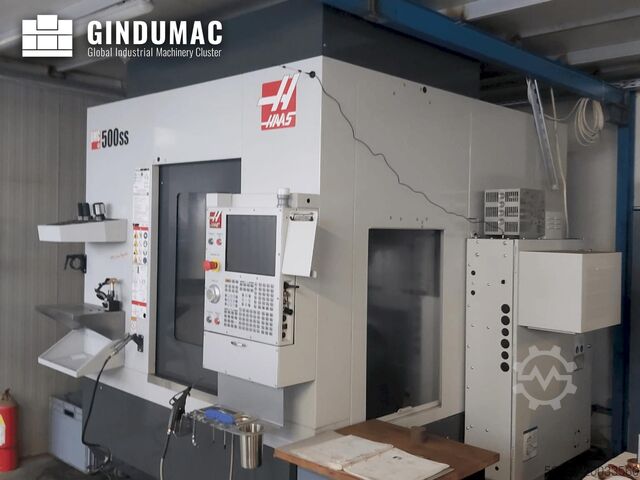

HAAS UMC-500SS

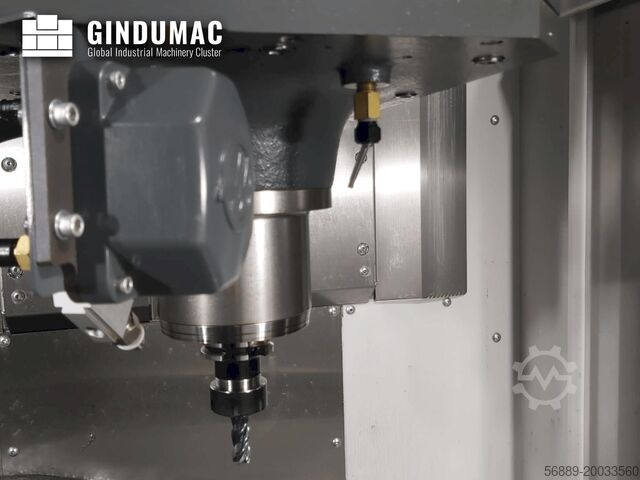

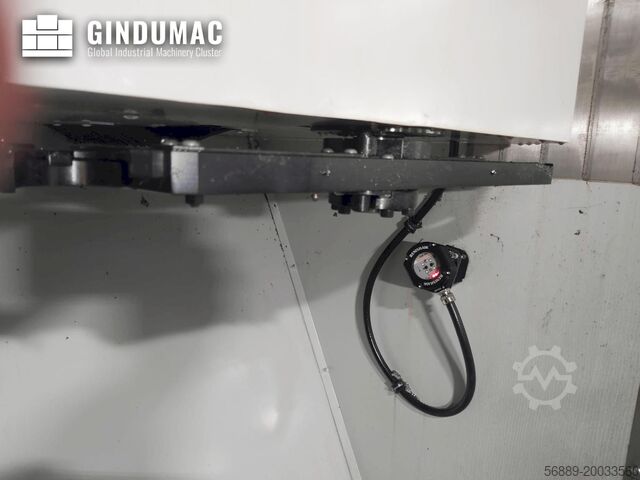

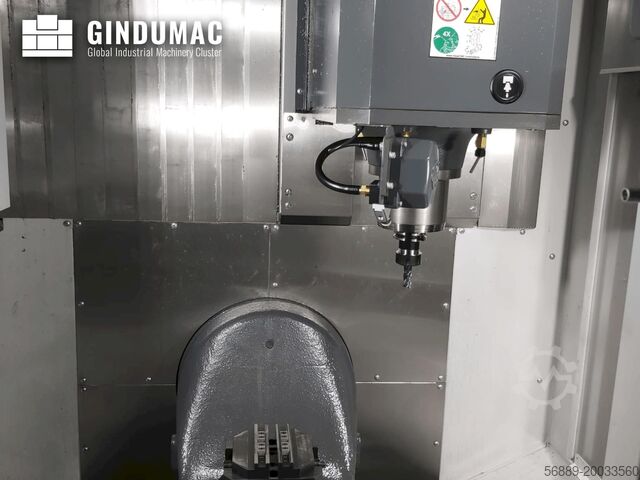

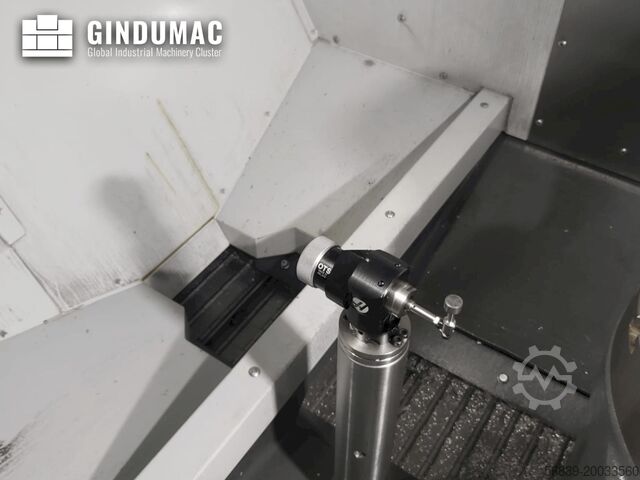

Condition: used, Year of construction: 2021, X Axis 24.0 in (610 mm) Y Axis 16.0 in (406 mm) Z Axis 16.0 in (406 mm) 10+1 pallet pool, UMC Max Speed 15,000 rpm Taper BT40 Magazine Capacity 50+1 Programmable coolant nozzle Air through spindle Coolant through spindle Renishaw probe WIFI camera Extra coolant filter B Axis – Tilt (S.A.E / Metric) Travel 120° to -35° Max Torque 1854 ft-lbf (2514 Nm) Brake Torque 900 ft-lbf (1220 Nm) C Axis – Rotation (S.A.E / Metric) Kdodpfx Adsxl D Ere Iew Travel 360° / 360° Max Torque 1854 ft-lbf (2514 Nm) Max Part Swing 18.0 in (457 mm) Brake Torque 900 ft-lbf (1220 Nm) Platter Diameter 15.70 in (400 mm) Max Weight on Platter 500 lb (226.8 kg) Max Weight on Platter w/Pallet Pool 200 lb (90.7 kg) T-Slot Width 0.626 in to 0.630 in (15.90 mm to 16.00 mm) Number of Std T-Slots 5 T-Slot Center Distance 2.48 in (63 mm) Max Tool Diameter (full) 2.5 in (64 mm) Max Tool Diameter (adjacent empty) 5.0 in (127 mm) Max Tool Length (from gauge line) 12 in (305 mm) Max Tool Weight 12 lb (5.4 kg) Coolant Capacity 55 gal (208 L)

Condition: like new (used), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, workpiece weight (max.): 200 kg, table width: 500 mm, spindle speed (min.): 10,000 rpm, Equipment: chip conveyor, For sale: HAAS UMC-500 5-Axis Universal Machining Center Condition: Absolutely brand new machine. Only one part was produced for test machining. The equipment has been unused and stored for 2 years. Main technical specifications Travel: X-axis: 610 mm Y-axis: 406 mm Z-axis: 406 mm Table: Diameter: 500 mm Maximum workpiece weight: 200 kg 5-axis rotary/trunnion table (trunnion type) Spindle: Inline direct-drive 10,000 rpm 30 HP (22.4 kW) CAT 40 taper (40T) Through-spindle coolant: 300 psi (21 bar) Tool changer: 30 tool positions Kdodpoxg Nd Nefx Ad Isw Side-mount, high speed Precision and compensation: Temperature compensation DWO/TCPC – Dynamic Work Offset and Tool Center Point Control Rigid Tapping Equipment and features: Haas NGC CNC control (FANUC compatible) 1 GB memory Ethernet connection, WiFi connectivity USB port, color 15” LCD display Early power-failure detection module Memory lock (keyswitch) Spindle coolant system Protective enclosure with doors Internal lighting Centralized lubrication system Top cover Measurement and calibration equipment: Renishaw WIPS wireless intuitive probing system (Haas Visual Programming System, macros, spindle orientation, coordinate rotation and scaling) Rotary-Axis calibration tool RJH remote jog handle with color display Chip and coolant systems: Coolant tank – 95 gallons (360 L) Initial fill with Blaser coolant emulsion Chip conveyor (belt type – CONVEYOR-H) High-pressure air system Documentation: Original machine documentation (in English) Application Haas UMC-500 is a compact yet powerful universal 5-axis machining center designed for the production of complex, multi-sided, and free-form surface parts. Suitable for simultaneous 5-axis machining as well as 3+2 machining, significantly reducing setup operations and ensuring high accuracy. If you have further questions, we are happy to assist.

Condition: like new (used), Year of construction: 2022, Controller HAAS (LCD screen, 1 Gb memory, touch screen, WIFI) Table size D400 mm Table load 227 kg No of T slots 5 X travel 610 mm Y travel 406 mm Z travel 406 mm B axis tilting +120 / - 35 degree C axis rotation 0 - 360 degree Distance between the spindle and table surface 102 - 508 mm Spindle speed 15000 rpm Spindle power 22,4 kW ATC magazin 50+1-fold Toolholder HSK-A63 Rapid speed X/Y/Z 30,5 m/min Feedrate 16,5 m/min Weight 5400 kgs Machine dimensionen LxWxH 2900 x 2280 x 2520 mm Features, accessories - CTS 69 bar - Coolant unit - Extra filter system on coolant unit - Dinamical zero point shift / toolpoint programming Kdedpfx Aelaxu Dod Iew - Intelligent over voltage protection - Ethernet interface - HAAS Connect, remote control - HAAS Drop (Wifi Data transfer) - High Speed machining - Media show during working by M130 - Rigid tapping - Protection from over voltage - Chip conveyor - Programmable coolant nozzles - Air through the spindle Two idencital machines are for sale. Ready to buy immediately.

Condition: ready for operation (used), Year of construction: 2021, Control Unit Brand HAAS Main Drive Spindle speed range 12000 rpm Spindle motor power 22.4 kW Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 508 mm Z-Axis Movement 508 mm Additional Equipment Coolant tank – 208 liters with mobile cart Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL) Safe Run – crash and overload detection system Control cabinet surge protection Voltage fault detection module (EPFDM) Second Home Position button Remote Jog Handle with 2m cable (RJH-XL) Memory lock key-switch Rotary axis scales Top cover This 5-axis HAAS UMC-750SS vertical machining centre was manufactured in 2021. It features a 22.4 kW vector drive spindle motor with a 12,000 rpm spindle speed, a 30+1 tool side-mount tool changer and comes equipped with a wireless intuitive probing system (WIPS). Consider the opportunity to buy this HAAS UMC-750SS vertical machining centre. For more information about this machine, please reach out to us. Application Types Milling Kedpswg Iaxsfx Ad Ijdw

Condition: ready for operation (used), Year of construction: 2021, Main Drive Spindle speed range 10000 Spindle motor power 22.4 kW Tool taper ISO40 Number of axis 5 Movement X-Axis Movement 610 mm Y-Axis Movement 406 mm Z-Axis Movement 406 mm Additional Equipment Set of tool holders Renishaw probe set Chip conveyor Kdodpfx Ajwvb Disd Ijw High speed machining TSC-ready Programmable cooling nozzle Additional air conditioning unit for cooling the electrical cabinet This 5-axis HAAS UMC 500 was manufactured in 2021, featuring a 610x406x406 mm working travel and a ø400 mm table that can handle up to 226 kg. It includes a B-axis tilting at -35°/+120° and a full 360° C-axis rotation. The spindle reaches speeds up to 10,000 rpm with a power of 22.4 kW. Extras include a Renishaw probe set, chip conveyor, and additional cooling unit. If you are looking to get high-quality milling capabilities consider the HAAS UMC 500 machine we have for sale. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2020, Main Drive Spindle speed range 15000 RPM Movement X-Axis Movement 1016 mm Y-Axis Movement 635 mm Z-Axis Movement 635 mm Kdsdpfx Aoxfwyped Iow Table Min distance between vertical spindle and table 102 mm Max distance between vertical spindle and table 737 mm Additional Equipment Chip Conveyor with Belt Drive Export Packaging 8-Station Pallet Pool for UMC UMC Spare Tool Storage (1 unit) Through-Tool Air Blast (TAB) Auxiliary Coolant Filter Chip Tray Filter Kit This 5-axis HAAS UMC-1000SS was manufactured in 2020. It features a large working envelope with X, Y, and Z axes measuring 1016 mm, 635 mm, and 635 mm respectively. Ideal for complex geometries and multi-sided machining. Consider the opportunity to buy this HAAS UMC-1000SS universal machining centre. Contact us for more information. Application Types Milling

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, (Please tell us your offer price) Sale only within Europe, incl. Turkey Price without packaging; delivery condition: FCA (machine location) ===== Technical data see handout. Kdjdpfev D H D Sjx Ad Isw All warranty rights are excluded. For the correctness of the technical data and year of construction, for the completeness of accessories and tool equipment, and for compliance with all safety and environmental protection requirements specified in the accident prevention regulations. No sale to private individuals. Sales only within Europe, incl. Turkey Price without packaging; Delivery condition: FCA (machine location) ===== Technical data please see handout in attachment. German text leading language. Without any guaranty and warranty, including completeness of tools & accessories as well as environmental and safety regulations. No private sales.
