2021 Haas UMC 500 SS

Haas UMC 500 SS

Condition: ready for operation (used), Year of construction: 2023, Control Unit Brand HAAS Main Drive Spindle speed range 15000 RPM Spindle motor power 22.4 kW Tool taper ISO40 taper Media Chip conveyor Yes Additional Equipment Chip Conveyor: Positioned above coolant tank with auto-reverse function This 5-axis HAAS UMC-500SS universal machining centre was manufactured in 2023. It offers advanced capabilities for complex and precise machining tasks. Consider the opportunity to buy this HAAS UMC-500SS universal machining centre. Contact us for more information. Application Types Dcsdpfx Asxdpa Ejcwjn Milling

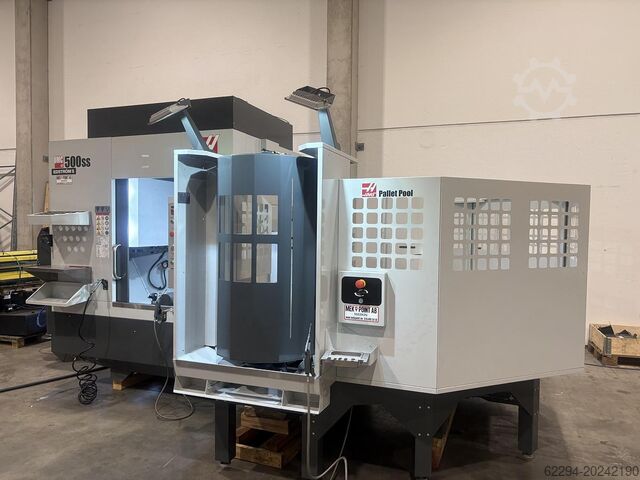

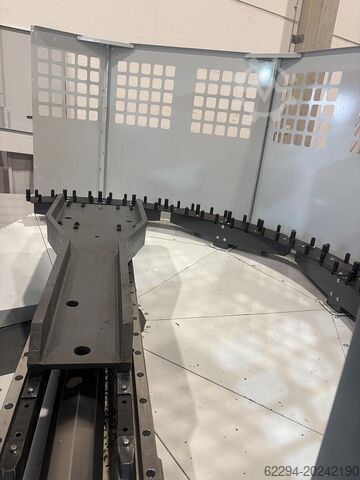

Condition: excellent (used), Year of construction: 2021, Used 5-axis machining center Haas UMC-500SS with Lang automation Year of manufacture 2021 Dodpfx Acsvcb R Dewjcn X-axis 610 mm Y-axis 406 mm Z-axis 406 mm Spindle nose to clamping surface (~ max.) 508 mm Spindle nose to clamping surface (~ min.) 102 mm Max. rated power 22.4 kW Max. speed 00 rpm Max. torque 122.0 Nm by 2000 rpm Drive system Inline Direct-Drive Cone CT40 Bearing lubrication Air / Oil Injection Cooling Liquid Cooled Table Clamping surface diameter 400 mm Max. load capacity on clamping surface 226.8 kg Width of T-slots 16.00 mm Number of T-slots in basic configuration 5 Center distance of T-slots 63 mm Tool changer 50+1 Tools IKZ 21 bar Hinge belt chip conveyor Programmable coolant nozzle Compressed air flow through the tool Additional coolant filter system Rotary feedthrough 4 channel Pneumatic Automation by Lang RoboTrex 96 automation system Complete robot automation including housing, interface for automatic gripper change, 2 carriage feed systems and 1 automation carriage excl. gripper Robo-Trex 96 change gripper with pneumatic interface for Clamping tower 64500 suitable for automatic. Gripper change including sensors for part recognition, clamp removal and clamp monitoring RoboTrex 52 automation trolley 30 storage locations max. part size x x 100 mm 4-trolley version for Robo-Trex 52 + 96 (including 2 additional trolley feeders, adapted housing) Extension of trolley allocation Robo-Trex Pneumatic support control (only pneumatic clamping towers) Robo-Trex 52 change gripper with pneumatic interface for clamping tower 66600 suitable for automatic. Gripper change including sensors for part recognition, clamp removal and clamp monitoring RoboTrex 52 automation trolley 30 storage locations max. part size x x 100 mm RoboTrex 96 automation clamping tower pneumatically operated Ø 246 x 80 mm, including hand interface and mounting bolt Ø 20 mm RoboTrex 52 automation clamping tower pneumatically operated, prepared for automatic change Ø 157 x 210 x 68 mm, including hand interface and mounting bolt Ø20 mm Quick-Point 96, round plate Ø 246 x 27 mm, for 63 mm slot spacing Makro-Grip 77 Night King length 130 mm, clamping range mm (PU = 2 x 5 pieces) pcs. Machine is still under power and can be inspected in the Villingen-Schwenningen area by arrangement. The buyer takes care of loading and transport. We can organize the removal and loading for you. Technical data, accessories and description of the machine are non-binding.

Condition: like new (used), Year of construction: 2022, Controller HAAS (LCD screen, 1 Gb memory, touch screen, WIFI) Table size D400 mm Table load 227 kg No of T slots 5 X travel 610 mm Y travel 406 mm Dcedjlaxu Dspfx Acwon Z travel 406 mm B axis tilting +120 / - 35 degree C axis rotation 0 - 360 degree Distance between the spindle and table surface 102 - 508 mm Spindle speed 15000 rpm Spindle power 22,4 kW ATC magazin 50+1-fold Toolholder HSK-A63 Rapid speed X/Y/Z 30,5 m/min Feedrate 16,5 m/min Weight 5400 kgs Machine dimensionen LxWxH 2900 x 2280 x 2520 mm Features, accessories - CTS 69 bar - Coolant unit - Extra filter system on coolant unit - Dinamical zero point shift / toolpoint programming - Intelligent over voltage protection - Ethernet interface - HAAS Connect, remote control - HAAS Drop (Wifi Data transfer) - High Speed machining - Media show during working by M130 - Rigid tapping - Protection from over voltage - Chip conveyor - Programmable coolant nozzles - Air through the spindle Two idencital machines are for sale. Ready to buy immediately.
