Vertical machining center

HAAS UMC-750

Condition: ready for operation (used), Year of construction: 2016, operating hours: 12,118 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, rotary table diameter: 500 mm, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS X-Axis Travel: 762 mm Y-Axis Travel: 508 mm Z-Axis Travel: 508 mm Table Load: 300 kg Rotary Table Diameter: 500 mm Fedpfxoypbhte Ag Tspd Spindle Speed (max.): 12,000 rpm Spindle Motor Power: 22 kW Spindle Taper: BT40 Number of Tool Magazine Slots: 40 MACHINE DETAILS CNC Control Manufacturer: HAAS Dimensions & Weight Dimensions (L x W x H): 4,014 x 3,046 x 3,048 mm Weight: 6,500 kg Operating Hours Power-On Hours: 16,142 h Machining Hours: 12,118 h EQUIPMENT Central spindle cooling system 20 bar Filtration Chip conveyor Workpiece probe Tool probe Robot interface Automatic (side) door Portable handwheel Cleaning gun High-speed machining

Condition: ready for operation (used), Year of construction: 2020, spindle speed (max.): 15,000 rpm, travel distance X-axis: 1,016 mm, travel distance Y-axis: 635 mm, travel distance Z-axis: 635 mm, This 5-axis HAAS UMC-1000SS was manufactured in 2020. It features a large working envelope with X, Y, and Z axes measuring 1016 mm, 635 mm, and 635 mm respectively. Ideal for complex geometries and multi-sided machining. Consider the opportunity to buy this HAAS UMC-1000SS universal machining centre. Contact us for more information. Additional equipment • Chip Conveyor with Belt Drive • Export Packaging • 8-Station Pallet Pool for UMC • UMC Spare Tool Storage (1 unit) • Through-Tool Air Blast (TAB) Fedpfx Agjyalh So Tepd • Auxiliary Coolant Filter • Chip Tray Filter Kit Machine Benefits Technical Machine Benefits • Standard program memory: 1 gb/ coolant tank capacity: 55 gallons/ cnc control cabinet cooler/ dynamic work offsets and tool center point control (dwo/tcpc)/ fast power-failure detection module/ ethernet interface/ haasconnect: remote monitoring/ haasdrop: wireless file transfer • Second home position/ high-speed machining (hsm)/ media display via m-code (m130)/ remote jog handle with touchscreen/ rotary encoders/ synchronized tapping/ safe run (safety restart feature)/ 1-year standard warranty • Enclosure with mist extraction preparation/ variable coolant pressure/ wi-fi connectivity to haas control/ wireless intuitive probing system (wips)/high-speed side-mount tool changer – 50+1 tools/ ct (sk) 40 spindle taper • Through-spindle coolant (tsc): 69 bar (1000 psi) Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2013, operating hours: 5,446 h, spindle speed (max.): 12,000 rpm, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, spindle motor power: 22,000 W, table load: 300 kg, number of slots in tool magazine: 41, number of axes: 5, This 5s HAAS UMC 750 was manufactured in 2013. It features a spindle speed of 12,000 rpm and a tool capacity of 41 tools, making it suitable for various machining tasks. The machine offers a maximum table load of 300 kg and includes advanced coolant systems for efficient operation. If you are looking to get high-quality machining capabilities, consider the HAAS UMC 750 universal machining center we have for sale. Contact us for further details. • Spindle type: Inline direct drive • Tool holder: SK40 • Tool changer: SMTC • Rotary technology: 2 axes with support bearing • B-axis range: −35° to +110° • C-axis range: 360° Fodpfx Ajyid Hveg Topd • Clamping surface: Ø 630 × 500 mm • Coolant system: standard coolant, P-Cool, through-spindle coolant (TSC) • Renishaw probing: WIPS system with workpiece probe and tool measurement • Control functions: 8M functions, rotate and scale • Memory: 16 MB • HSM: High Speed Milling • Rigid tapping: yes • Cycle time hours: 5,446 h • Power-on hours: 21,246 h Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2019, General Data Measurements width 2387 mm Measurements depth 3978 mm Measurements height 2565 mm Machine weight 8200 kg Control Unit Brand HAAS Main Drive Spindle speed range 12000 Tool taper ISO 40 Fpodpfx Aox I S Nteg Tjd Number of axis 5 Movement X-Axis Movement 762 mm Y-Axis Movement 508 mm Z-Axis Movement 508 mm Table Table load 300 kg This 5-axis HAAS UMC-750 was manufactured in 2019, featuring a robust universal machining center with a 500 mm table diameter and a maximum table load of 300 kg. It includes a high-speed spindle up to 12,000 rpm, ISO 40 taper, and a 40-position tool changer. Ideal for complex geometries and diverse machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: as good as new (ex-display), Year of construction: 2026, Ultrasonic cleaning system, ultrasonic washing system including automatic pneumatic goods lift; max. load capacity: 250kg Usable dimensions: Platform: 1,300 x 600 mm, usable height: 400 mm Ultrasonic immersion transducer mounted as bottom sonics Power: 5,000 watts effective / 10,000 watts peak – Frequency: 25 kHz Fsdpfoyiy Hhox Ag Topd Including surface rinsing/oil separator for bath maintenance External system dimensions approx.: L 2,130 x W 1,170 x H 1,780 mm Control: Siemens Logo Electrical connected load: 17 kW

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, controller manufacturer: HAAS, spindle speed (max.): 12,000 rpm, spindle motor power: 22,400 W, number of axes: 5, This 5-axis HAAS UMC-750SS vertical machining center was manufactured in 2021. Consider the opportunity to buy this HAAS UMC-750SS vertical machining center. Contact us for more information. Additional equipment • Coolant tank – 208 liters with mobile cart • Programmable coolant pump (M-code controlled) // Programmable Coolant Nozzle (P-COOL) • Safe Run – crash and overload detection system • Control cabinet surge protection • Voltage fault detection module (EPFDM) Fpodpfx Ajx U Tizjg Tsd • Second Home Position button • Remote Jog Handle with 2m cable (RJH-XL) • Memory lock key-switch • Rotary axis scales • Top cover Machine Benefits Technical Machine Benefits • 30+1 tool side-mount tool changer • Wireless intuitive probing system (wips) • Broken tool detection (btd) Extra Information Media display via M130 (images, videos, PDF on screen) Standard machine memory: 1 GB Control Unit 15" color LCD monitor with USB port Touchscreen control interface Ethernet interface HaasConnect remote monitoring HaasDrop wireless file transfer WiFi connectivity Controller High-speed machining (HSM) Rigid tapping Dynamic Work Offsets / Tool Center Point Control (DWO/TCPC) Macro programming, coordinate rotation & scaling

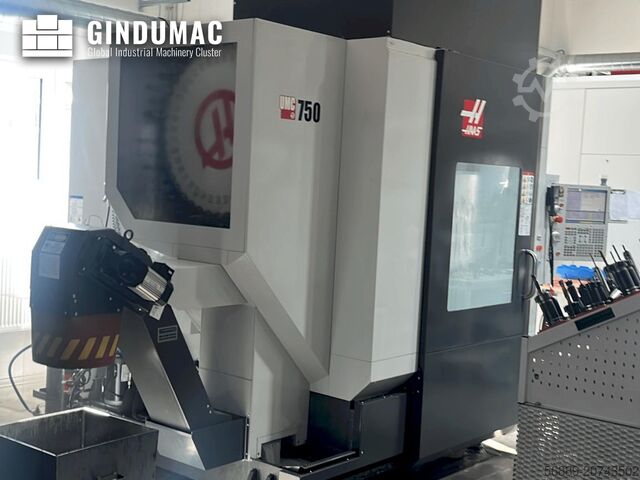

Condition: ready for operation (used), Year of construction: 2020, operating hours: 5,717 h, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, controller manufacturer: HAAS, total height: 2,565 mm, table load: 300 kg, overall weight: 8,200 kg, number of slots in tool magazine: 40, number of axes: 5, This 5-axis HAAS UMC-750 was manufactured in 2020, featuring a 762 mm X-axis, 508 mm Y-axis, and 508 mm Z-axis. It includes a spindle speed up to 12,000 rpm, ISO 40 taper, and a robust 40-position tool changer. The machine supports a maximum table load of 300 kg and offers advanced features like a wireless probing system, chip conveyor, and through-spindle coolant. Consider the opportunity to buy this HAAS UMC-750 universal machining centre. Contact us for more information. Additional equipment • Wireless Intuitive Probing System • Through-Spindle Coolant Machine Benefits Fodpfex Hbmrjx Ag Topd Technical Machine Benefits • B-axis travel: 120° to -35° • C-axis travel: 360° • Spindle nose to table (max/min): 610/102 mm • Table diameter: 500 mm • Tool changer capacity: 40 positions Extra Information Machine still under power Dimensions Machine Depth 3978 mm

Condition: ready for operation (used), Year of construction: 2014, Control Unit Brand HAAS Main Drive Fodex Imttjpfx Ag Topd Number of axis 5 Spindle Speed 12000 RPM This 5-axis HAAS UMC-750 was manufactured in 2014. It features a 12000 rpm spindle, a 40+1 tool changer, through-spindle coolant at 21 bar, and a conveyor. High-speed machining capabilities are enhanced with programmable coolant and Dynamic Work Offsets/Tool Center Point Control. It also includes Renishaw probes and a robot interface. If you are looking to get high-quality milling capabilities consider the HAAS UMC-750 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2014, operating hours: 60,000 h, Control Unit Brand HAAS Main Drive Number of axis 3 Spindle Speed 12000 RPM Tool taper BT 40 This 5-axis HAAS UMC-750 was manufactured in 2014. It features a vertical machining center with a 12000 rpm spindle, BT40 tooling, and a 70-tool holder capacity. Additional highlights include coolant through spindle, a probe, toolsetter, and high-speed machining capabilities. Consider the opportunity to buy this HAAS UMC-750 vertical machining center. Contact us for more information about this machine. Application Types Milling Fpodpfx Agjx Ixh Ne Tsd

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Table size D500 mm Table load 300 kg X travel 762 mm Y travel 508 mm Z travel 508 mm B swivel +120 - 35 degrees C rotation 0.001 - 360 degrees Distance between spindle end and table surface 102 - 610 mm Max. spindle speed 8100 rpm Max torque 122.0 Nm at 2000 rpm Fsdpfx Agoylw Tdj Tjpd Spindle power 22.4 kW Spindle drive system Inline Direct-Drive Tool holder SK40 ATC magazine 30+1 positions Max. tool diameter (adjacent) D64 mm Max. tool diameter (adjacent slots empty) D127 mm Max. tool length 305 mm Max. tool weight 5.4 kg Machine weight 6500 kg Machine dimensions LxWxH = 4420 x 2340 x 2540 mm

Condition: good (used), Year of construction: 2015, Traverses XYZ: 762 x 508 x 508mm, Fsdpfx Aekticxeg Tjpd 500mm Diameter table, max table weight 300kg, table tilt +120°, -35°, 22.4kW, 12000rpm, CT40, 40 station tool changer, coolant, Tool Setter, Programmable coolant, swarf conveyor,

Condition: excellent (used), Year of construction: 2013, Available end of July. Technology Inline direct drive Speed 12,000 rpm Power 22 kW Tool holder SK40 Tool changer SMTC, 41 positions Fpjdpfx Agjyimncj Tsd Technology 2 axes, with counter bearing B-axis -35° / +110° C-axis 360° Clamping surface ø630 x 500 mm Table load (max.) 300 kg Cooling Standard coolant including P-Cool and through-spindle cooling (TSC) Renishaw probe WIPS system with touch probe and tool measurement 8M functions Rotating and scaling 16MB memory storage HSM high speed milling Rigid tapping Machine cycle time: 5,446 h Machine power-on time: 21,246 h
