Used Haas Umc-750 for sale (14)

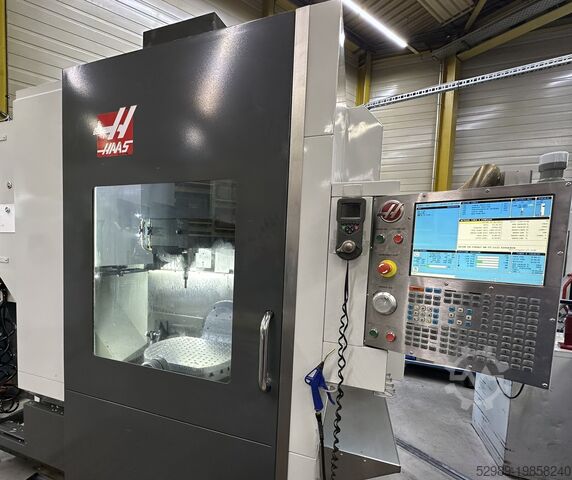

Condition: excellent (used), Year of construction: 2014, operating hours: 2,308 h, functionality: fully functional, table width: 500 mm, table length: 630 mm, spindle speed (max.): 12,000 rpm, spindle motor power: 22,400 W, number of spindles: 1, number of slots in tool magazine: 41, Equipment: chip conveyor, documentation/manual, CNC Milling Machine HAAS UMC-750 TECHNICAL SPECIFICATIONS: Dksdoz S H D Nepfx Aa Ejw • Date of manufacture: October 2013 • Power-on hours: 2 308 h • Number of axes: 5 (simultaneous machining) • X-axis travel: 762 mm • Y-axis travel: 508 mm • Z-axis travel: 508 mm • B-axis travel: +110° to -35° • C-axis rotation: 360° • CNC control: HAAS • Max. spindle speed: 12 000 obr/min • Table dimensions: 630 × 500 mm • Distance from spindle nose to table surface: 102–610 mm • Tool magazine capacity: 40 + 1 tools • Max. power: 22,4kW • Chip conveyor • Machine weight: approx. 9 000 kg Machine in very good technical condition, connected to power – it can be inspected and tested on site by prior appointment. Professional loading is included in the price. Accessories, tooling and clamping devices shown in the photos are part of the offer only if listed under equipment. Technical data is for reference only and may contain inaccuracies. Subject to prior sale. Vertikales Bearbeitungszentrum

Condition: excellent (used), Year of construction: 2020, operating hours: 7,800 h, functionality: fully functional, machine/vehicle number: 1172799, spindle speed (min.): 15,000 rpm, Equipment: chip conveyor, rotational speed infinitely variable, Haas UMC-750 5 Axis Vertical Machining Centre with Haas CNC Control, 630mm x 500mm Table, Travels X Axis 762mm, Y Axis 508mm, Z Axis 508mm, Dkjdsx Uznfjpfx Aa Esw Through spindle coolant, C Axis 360deg Rotation, B Axis -35deg to + 100deg, High speed machining enabled Spindle Speed 12,000rpm, 40 Tool ATC 2020 machine , BT40 Spindle Taper, Swarf Conveyor, Coolant System. S/No. 1172799 Wireless probing.

Condition: good (used), Year of construction: 2016, Description: Dksdpfxeztx Spj Aa Esw The machine is in good technical condition and can be tested upon prior agreement. It includes all equipment and, if applicable, accessories (holders, tools, etc.).

Condition: ready for operation (used), Year of construction: 2025, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, overall weight: 6,464 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 22,400 W, tool weight: 5,400 g, number of axes: 5, This 5-axis HAAS UMC-750 was manufactured in 2025. It features an impressive X-axis travel of 762 mm, Y-axis travel of 508 mm, and Z-axis travel of 508 mm. The machine is equipped with a maximum spindle speed of 12,000 rpm and a tool capacity of 30+1. If you are looking to get high-quality machining capabilities, consider the HAAS UMC-750 universal machining centre we have for sale. Contact us for further details. • Working Hours: 0 • Showroom Machine • Spindle Nose to Platter (~ max): 24.0 in / 610 mm • Spindle Nose to Platter (~ min): 4.0 in / 102 mm • Spindle Max Torque: 90.0 ft-lbf @ 2000 rpm / 122.0 Nm @ 2000 rpm • Spindle Drive System: Inline Direct-Drive • Spindle Taper: CT40 | BT40 | HSK-A63 • Spindle Bearing Lubrication: Air / Oil Injection • Spindle Cooling: Liquid Cooled • B Axis (Tilt) Travel: +120° to -35° • B Axis Max Speed: 170 °/sec • B Axis Continuous Torque: 2240 ft-lbf / 3037 Nm • B Axis Brake Torque: 2000 ft-lbf / 2712 Nm • C Axis (Rotation) Travel: 360° • C Axis Max Speed: 179 °/sec • C Axis Continuous Torque: 1854 ft-lbf / 2514 Nm • C Axis Brake Torque: 900 ft-lbf / 1220 Nm • Max Part Swing: 27.0 in / 686 mm • Platter Diameter: 19.70 in / 500 mm • Max Weight on Platter: 660 lb / 300.0 kg Dkjdpfx Asz Nmigoa Esw • Max Weight on Platter w/ Pallet Pool: 200 lb / 90.7 kg • T-Slot Width: 0.626 in to 0.630 in / 15.90 mm to 16.00 mm • Number of Std T-Slots: 7 • T-Slot Center Distance: 2.48 in / 63 mm • Max Cutting Feedrate: 833 ipm / 21.2 m/min • Rapid Feedrate (X, Y, Z): 1200 ipm / 30.5 m/min • Max Thrust X / Y: 3300 lbf / 14680 N • Max Thrust Z: 4050 lbf / 18015 N • Tool Changer Type: Side-Mount Tool Changer (SMTC) • Tool Capacity: 30+1 • Max Tool Diameter (full): 2.5 in / 64 mm • Max Tool Diameter (adjacent empty): 5.0 in / 127 mm • Max Tool Length: 12.00 in / 305 mm • Tool-to-Tool Time (avg): 1.80 s • Chip-to-Chip Time (avg): 2.40 s • Coolant Capacity: 55 gal / 208 L • Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar • Air Pressure Min: 80 psi / 5.5 bar • Electrical Input AC Voltage (3 Phase): 220 VAC (70 A) / 440 VAC (35 A) • Shipping Weight (Standard): 14250 lb / 6463.8 kg Technical Specification Taper Size BT 40

Condition: excellent (used), Year of construction: 2013, Available end of July. Technology Inline direct drive Speed 12,000 rpm Power 22 kW Tool holder SK40 Tool changer SMTC, 41 positions Dkjdpfx Aaeyimnco Ejw Technology 2 axes, with counter bearing B-axis -35° / +110° C-axis 360° Clamping surface ø630 x 500 mm Table load (max.) 300 kg Cooling Standard coolant including P-Cool and through-spindle cooling (TSC) Renishaw probe WIPS system with touch probe and tool measurement 8M functions Rotating and scaling 16MB memory storage HSM high speed milling Rigid tapping Machine cycle time: 5,446 h Machine power-on time: 21,246 h

Condition: ready for operation (used), Year of construction: 2013, operating hours: 5,446 h, spindle speed (max.): 12,000 rpm, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, spindle motor power: 22,000 W, table load: 300 kg, number of slots in tool magazine: 41, number of axes: 5, This 5s HAAS UMC 750 was manufactured in 2013. It features a spindle speed of 12,000 rpm and a tool capacity of 41 tools, making it suitable for various machining tasks. The machine offers a maximum table load of 300 kg and includes advanced coolant systems for efficient operation. If you are looking to get high-quality machining capabilities, consider the HAAS UMC 750 universal machining center we have for sale. Contact us for further details. • Spindle type: Inline direct drive • Tool holder: SK40 • Tool changer: SMTC • Rotary technology: 2 axes with support bearing • B-axis range: −35° to +110° • C-axis range: 360° • Clamping surface: Ø 630 × 500 mm • Coolant system: standard coolant, P-Cool, through-spindle coolant (TSC) • Renishaw probing: WIPS system with workpiece probe and tool measurement Dsdpfx Aoyid Hvoa Eskw • Control functions: 8M functions, rotate and scale • Memory: 16 MB • HSM: High Speed Milling • Rigid tapping: yes • Cycle time hours: 5,446 h • Power-on hours: 21,246 h Technical Specification Taper Size SK 40

Condition: good (used), Year of construction: 2015, Traverses XYZ: 762 x 508 x 508mm, 500mm Diameter table, max table weight 300kg, table tilt +120°, -35°, Djdpjkticxofx Aa Eokw 22.4kW, 12000rpm, CT40, 40 station tool changer, coolant, Tool Setter, Programmable coolant, swarf conveyor,

Condition: excellent (used), Year of construction: 2019, operating hours: 5,277 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, workpiece weight (max.): 300 kg, table width: 500 mm, table length: 630 mm, overall weight: 8,500 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 22,400 W, spindle nose: CT 40, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, CNC Machining Centre HAAS UMC 750 SS TECHNICAL CHARACTERISTICS: Year of manufacturing: 2019 Number of simultaneous axes: 5 Stroke X axis: 762 [mm] Stroke Y axis: 508 [mm] Stroke Z axis: 508 [mm] Angular C axis stroke: 360 [°] Table dimensions : Ø630 x 500 [mm] Max. load on table: 300 [Kg] B axis swivelling stroke: +110 [°] / 350 [°] Spindle type: CT 40 Max. spindle speed: 15000 [rpm] Spindle power: 22.4 [kW] Tool changer magazin number of stations: 40 Lubrication tank capacity: 284 [l] Number of running hours: 5277 [h] Weight: 8500 [Kg] Dkedo Afwinspfx Aa Eew EQUIPMENT INCLUDED: x1 spindle 15000 [rpm] x1 through-spindle coolant x1 high-pressure coolant pump 21 bar x1 auxiliary coolant filter x1 RENISHAW wireless workpiece probe x1 calibration sphere x1 RENISHAW tool probe x1 HAAS oil mist extractor x1 HAAS remote handwheel x1 HENNIG chip conveyor, type 101435 Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, as well as milling, drilling and tapping machines, and CNC grinding machines

Condition: ready for operation (used), Year of construction: 2014, controller manufacturer: HAAS, spindle speed (max.): 12,000 rpm, number of axes: 5, This 5-axis HAAS UMC-750 was manufactured in 2014. It features a 12000 rpm spindle, a 40+1 tool changer, through-spindle coolant at 21 bar, and a conveyor. High-speed machining capabilities are enhanced with programmable coolant and Dynamic Work Offsets/Tool Center Point Control. It also includes Renishaw probes and a robot interface. If you are looking to get high-quality milling capabilities consider the HAAS UMC-750 machine we have for sale. Contact us for more information about this machine. • Tool changer: 40+1 tools (CT as provided) • Through‑spindle coolant (TSC) 21 bar • Air through spindle • High‑Speed Machining • Programmable coolant nozzle (P‑Cool) • DWO/TCPC • Auto Door • Side window • Top roof/enclosed top Additional equipment Dodjx Imttjpfx Aa Eskw • Chip conveyor • Renishaw probes (probing system) • Robot interface

Condition: ready for operation (used), Year of construction: 2019, operating hours: 24,088 h, functionality: fully functional, machine/vehicle number: 1165821, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, rotational speed (max.): 15,000 rpm, number of slots in tool magazine: 40, TECHNICAL DETAILS X-axis travel: 762 mm Y-axis travel: 508 mm Z-axis travel: 508 mm Max. spindle speed: 15,000 rpm Number of tool magazine slots: 40 Dkedpfsxxxgqsx Aa Eew MACHINE DETAILS Tool taper: CT 40 Electrical data Voltage: 440 V Phase: 3 Frequency: 50/60 Hz EQUIPMENT Infinitely variable spindle speed Chip conveyor Internal coolant system

Condition: excellent (used), Year of construction: 2019, Traverses XYZ: 762 x 508 x 508mm, 500mm x 500mm table, max table weight 300kg, table tilt +110°, -35°, 22.4kW, 15000rpm, Dodjz Sqqmopfx Aa Eskw BT40, 40 station tool changer, Through spindle coolant, Tool Setter, Programmable coolant,

Condition: ready for operation (used), Year of construction: 2014, operating hours: 60,000 h, controller manufacturer: HAAS, spindle speed (max.): 12,000 rpm, number of axes: 3, This 5-axis HAAS UMC-750 was manufactured in 2014. It features a vertical machining center with a 12000 rpm spindle, BT40 tooling, and a 40 tool holder capacity. Additional highlights include coolant through spindle, a probe, toolsetter, and high-speed machining capabilities. Consider the opportunity to buy this HAAS UMC-750 vertical machining center. Contact us for more information about this machine. • Through-spindle coolant (water and air), 21 bar • High-speed machining option • ATC capacity: 40 tools • Workpiece probe Dkedjx Ixh Njpfx Aa Esw • Tool setter • Prepared for side automation (PP) Technical Specification Taper Size BT 40

Condition: excellent (used), Year of construction: 2016, With B + C axis Working travels 762 x 508 x 508 mm Table diameter 500 mm Spindle taper 40 Spindle speeds -12'000 rpm Tool changer 40 Pos. Control HAAS Coolant through spindle Misc.accessories Dkjdpfx Aaelhqyde Eew MARCELS MASCHINEN CH

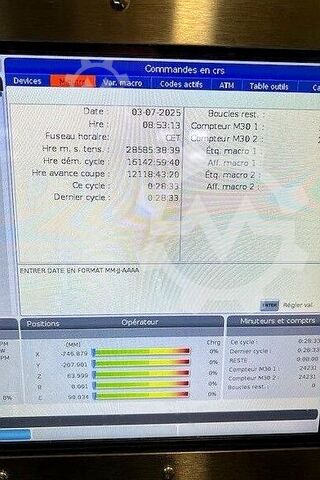

Condition: ready for operation (used), Year of construction: 2016, operating hours: 12,118 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, rotary table diameter: 500 mm, spindle speed (max.): 12,000 rpm, Machine already disassembled! TECHNICAL DETAILS X-axis travel: 762 mm Y-axis travel: 508 mm Z-axis travel: 508 mm Table load capacity: 300 kg Rotary table diameter: 500 mm Max. spindle speed: 12,000 rpm Spindle motor power: 22 kW Spindle taper: BT40 Number of tool magazine slots: 40 MACHINE DETAILS Control manufacturer: HAAS Dimensions & Weight Dkedpfx Aasypbhte Ejw Dimensions (L x W x H): 4,014 x 3,046 x 3,048 mm Weight: 6,500 kg Operating Hours Power-on hours: 16,142 h Cutting hours: 12,118 h EQUIPMENT Central spindle cooling system 20 bar Filtration Chip conveyor belt Workpiece probe Tool probe Robot interface Automatic (side) door Handheld control unit Cleaning pistol High-speed machining
