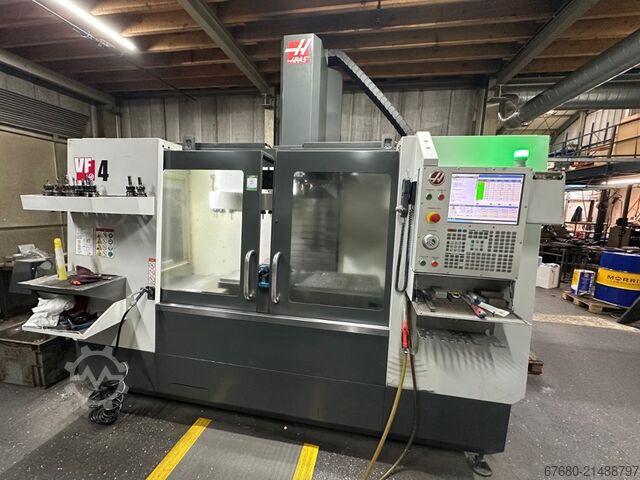

Vertical Machining Centre

HAAS VF-4

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 1087278, SPECIFICATION Table size 1321mm x 457mm Fgjdpfx Aszbhn Rsccec X axis traverse 1270mm Y axis traverse 508mm Z axis traverse 635mm Spindle BT40 Spindle speeds 0-12000rpm Spindle motor 22.4kW Rapid feed rate 35.6m/min Toolchanger capacity 40 + 1 tools Approx. weight 6033kgs MACHINE EQUIPPED WITH: - HRT 210 4th axis Through spindle coolant Swarf auger Lighting Guarding Manual

Condition: ready for operation (used), Year of construction: 2019, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, spindle speed (max.): 12,000 rpm, number of axes: 4, This 4-axis HAAS VF-4SS was manufactured in 2019. It features an X-axis travel of 1270 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine is equipped with a spindle speed of 12,000 rpm and includes a chip conveyor, coolant filtration system, and a 4th axis drive. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4SS vertical machining centre we have for sale. Contact us for further details. • Spindle nose to table (max): 742 mm • Distance spindle nose to table (min): 107 mm • Through-spindle coolant: Yes • Programmable coolant nozzle: Yes • Rigid tapping: Yes • Visual part programming system: Yes • Ethernet interface: Yes • Remote monitoring: HaasConnect + HaasDrop • Electronic handwheel with touchscreen: Included • Coolant filtration system: Included • 4th axis drive and wiring: Included • Air blast through spindle: Included • Coordinate rotation and scaling: Included • Tool presetting arm: Included • Working light: Included • Standard memory: 1 GB • Machine orientation: Vertical • Installation and basic training: Included • Warranty: 12 months Additional equipment • Chip conveyor: Auger type Fodpfx Asza A Enjccogc • HRT210 Rotary Table (CNC rotary table) • Servo drive: Sigma 5 • Manual tailstock: 6" • Compatibility noted: VF-4SS

Condition: ready for operation (used), Year of construction: 2018, operating hours: 2,547 h, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, spindle speed (max.): 10,000 rpm, number of axes: 3, This 3-axis HAAS VF-4 was manufactured in 2018. It features a maximum spindle speed of 10,000 RPM and impressive travels of 1270 mm in the X-axis, 508 mm in the Y-axis, and 635 mm in the Z-axis. The machine includes cooling through the spindle. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details. • Cooling through the spindle (CTS) included Fedpfx Aoy Txkzsccegc Additional equipment • Toolholders and workpiece clamps available separately (not included; can be purchased for an additional amount)

Condition: used, Year of construction: 2023, operating hours: 259 h, functionality: fully functional, machine/vehicle number: 1200002, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, Like-new Haas VF-4-EU CNC vertical machining center with only 259 operating hours. Fgsdpfx Acey Tp E Ajcec The machine is in excellent optical and technical condition. The VF-4 is factory-equipped and fully prepared for 4/5-axis operation – the comprehensive 5th-AXIS package is installed: - Axis cards for the 4th and 5th axes - Dynamic workpiece offset - Tool center point control - High-speed machining - Programmable coolant nozzle - Wireless Renishaw measuring probe and tool probe In addition, the machine is exceptionally well-equipped: - TSC – internal coolant supply with 21 bar - Spiral chip conveyor - Complete coolant maintenance package (automatic refilling, oil separator, mist collector) - Fast 30+1 tool changer - Spindle with 10,000 rpm The control system is the current Haas Next Generation Control with touchscreen, WLAN, Ethernet and HaasConnect remote monitoring. This makes the machine immediately ready for demanding machining tasks. The original shipping securing devices are available. An original Haas tool cart for SK40 is also included. Available from approximately week 32. Inspection and demonstration under power can be arranged at any time. Loading and transport can be organized. A suitable TRT-210 CNC rotary table is offered in a separate listing and can be included in the package upon request. The LANG baseplates are not included in the scope of supply. Technical data: - Travel ranges X / Y / Z: 1,270 × 508 × 635 mm - Spindle nose to table: 107 – 742 mm - Table: 1,321 × 457 mm, 5 T-slots (16 mm), max. table load 1,588 kg - Spindle: 10,000 min⁻¹, BT/CT 40, inline direct drive, liquid-cooled - Drive power: 22.4 kW - Max. torque: 122 Nm at 2,000 min⁻¹ - Rapid traverse X / Y / Z: 25.4 m/min - Feed rate max.: 16.5 m/min - Tool changer: Side SMTC, 30+1 positions - Tool max. diameter / length / weight: 64 mm / 330 mm / 5.4 kg - Tool change time (chip-to-chip): approx. 3.6 s - Connection voltage: 400 V / 50 Hz, 3-phase (internal transformer installed) - Compressed air: approx. 113 l/min at 6.9 bar - Coolant tank: 208 l - Weight: approx. 6,260 kg (with conveyor) Control system: - Haas Next Generation Control with touchscreen - 1 GB program memory, Ethernet + WLAN - HaasConnect (remote monitoring), HaasDrop (wireless file transfer) - M130 media display, Safe Run, synchronized thread drilling - Early detection module for power failure, surge protection - Equipment / options (all factory-installed) - 5-axis package VF-YT (4th + 5th axis drive-side prepared, DWO/TCPC, high-speed machining, programmable coolant nozzle) - Wireless Renishaw measuring probe system (intuitive) - TSC – internal coolant supply through the spindle, 21 bar - Spiral chip conveyor - Coolant maintenance package (automatic refilling, oil separator, mist collector) - Additional coolant filter (bag filter 25 µm) - Filter set for chip tray (200 µ) - Variable coolant flow (M-code controlled) - Blowing of the inside of the machine door - Lifting eyes, touchscreen, door lock

Condition: ready for operation (used), Year of construction: 2017, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, spindle speed (max.): 8,100 rpm, spindle motor power: 22,400 W, number of axes: 3, This 3-axis HAAS VF-4 was manufactured in 2017. It features an X-axis travel of 1270 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine is equipped with a maximum spindle speed of 8,100 RPM and a robust table size of 1321 mm x 495 mm, supporting a maximum weight of 794 kg. If you are looking to get high-quality machining capabilities, consider the HAAS VF-4 vertical machining centre we have for sale. Contact us for further details. • Spindle taper: CT 40 • Max torque: 122.0 Nm @ 2000 rpm • Table dimensions: 1321 x 495 mm • Max weight on table: 794 kg • Tool changer: 20 positions (umbrella type) • Rapid feedrate (X/Y/Z): 25.4 m/min • Table to spindle nose (min/max): 107 / 742 mm • T-slots: 5 slots, 16 mm width, 80 mm pitch • Power-on time: 18673:41:20 • Cycle start time: 3974:33:16 • Feed cutting time: 2117:17:34 • Included machine options/features: 15" color monitor, rigid tapping, USB port Additional equipment Fjdpfxsy Sg H Us Accjgc • Programmable coolant nozzle • Auger-type chip conveyor

Condition: used, Year of construction: 2015, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, controller manufacturer: Haas, workpiece weight (max.): 1,588 kg, total height: 3,023 mm, total length: 4,089 mm, total width: 3,353 mm, rotational speed (min.): 40 rpm, rotational speed (max.): 8,100 rpm, overall weight: 6,033 kg, Equipment: documentation/manual, CNC Vertical Machining Centre CNC Control Haas CNC Table size 1.321 x 457 mm Table load 1.588 kg Number of pallets: 1 x Fgodoy N A Ntspfx Accoc Movement X-axis 1.270 mm Movement Y-axis 508 mm Movement Z-axis 635 mm Spindle taper MAS BT40 Spindle speed 40 - 8.100 1/min Spindle motor 22,4kW Magazin capacity 24 + 1 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, spindle speed (max.): 12,000 rpm, spindle motor power: 22,400 W, number of axes: 3, This 3-axis HAAS VF-4SS vertical machining center was manufactured in 2008. It features a 1270 × 508 × 635 mm travel range, 22.4 kW spindle power, and a maximum spindle speed of 12,000 rpm. The machine includes a 40 + 1 position tool changer and a high-speed machining package. If you are looking to get high-quality milling capabilities, consider the HAAS VF-4SS machine we have for sale. Contact us for more information. • Distance spindle–table: 102 mm • Tool holder taper: CT40 (DIN 69871) • Max cutting feed: 20.5 m/min • Rapid feed (X/Y/Z): 35.6 m/min • Tool changer type: Random vertical • Tool magazine capacity: 40 + 1 positions • Data interface: USB • Options/Features: • Through-spindle coolant system (21 bar) • 4th axis drive and wiring (prepared for 4th axis) • Intuitive programming system • Dual spindle orientation • Coordinate rotation system • Macro variables and scaling functions • High-speed machining package Fgsdpfox D Irmsx Accjc Additional equipment • Screw-type chip conveyor • Auxiliary high-pressure filtration system

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : BT40 - Spindle power : 15 [kW] - Spindle speeds : 8100 [rpm] - Gearbox - Speed ranges : 2 - Number of spindle hours : 4000 [h] LINEAR AXES - Travels on X/Y/Z axes : 1270/508/635 [mm] - Rapid traverses rates (X/Y/Z) : 35.6/35.6/35.6 [m/min] - Cutting feed rates (X/Y/Z) : 21 [m/min] - Distance table / spindle nose (min./max.) : 742 [mm] TOOL CHANGER Fsdpfx Aceyn R Igocsgc - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : 1321/495 [mm] - Maximum weight upon table : 794 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 30 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3870/2510 [mm] - Machine height : 2690 [mm] - Machine weight : 6260 [kg] MACHINE HOURS - Number of hours under power : 16247 [h] - Number of working hours : 6025 [h] EQUIPMENT - CNC : HAAS - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming - Electronic handwheel - Rigid tapping - Prepared for a 4th-5th axis divider - Coolant tank : 208 [l] - Chips conveyor - Tool probe - Electric transformer

Condition: ready for operation (used), Year of construction: 2008, operating hours: 23,838 h, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, rotational speed (max.): 7,500 rpm, Submitting a bid obligates you to collect the item on time by 30.01.2026! TECHNICAL DETAILS Travel X-axis: 1,270 mm Travel Y-axis: 508 mm Travel Z-axis: 635 mm Spindle speed: 7,500 rpm Table size: 1,320 mm x 455 mm T-slots: 14 mm MACHINE DETAILS Operating hours: 23,838 h Tool changes: 300,000 EQUIPMENT SK 40 taper with 40-position automatic tool changer Note: The two vices are not included in the scope of sale and delivery. Fodpfxex Nvv Hj Accegc

Condition: used, Year of construction: 2007, operating hours: 7,675 h, functionality: fully functional, machine/vehicle number: 1059027, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, feed length X-axis: 1,270 mm, feed length Y-axis: 508 mm, feed length Z-axis: 635 mm, feed rate X-axis: 16 m/min, feed rate Y-axis: 16 m/min, feed rate Z-axis: 16 m/min, torque: 122 Nm, controller manufacturer: Haas Automation, controller model: Haas CNC control 32 bit, workpiece length (max.): 1,321 mm, workpiece width (max.): 457 mm, workpiece height (max.): 635 mm, workpiece weight (max.): 1,588 kg, total height: 2,570 mm, total length: 3,330 mm, total width: 2,340 mm, table width: 495 mm, table height: 107 mm, table length: 1,321 mm, table load: 1,588 kg, overall weight: 5,316 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 667 h, coolant supply: 6.9 bar, spindle motor power: 22 W, spindle nose: CT-40/BT-40, number of spindles: 1, number of slots in tool magazine: 20, mount diameter: 89 mm, tool diameter: 89 mm, tool weight: 5 g, input voltage: 440 V, type of input current: three-phase, For Sale – Haas VF-4 Vertical Machining Centre (2007 Model) Fedpfjxu E Dzex Accsgc We are selling our 2007 Haas VF-4 CNC Vertical Machining Centre, a reliable and versatile machine that has been well maintained and is ready for immediate use.
