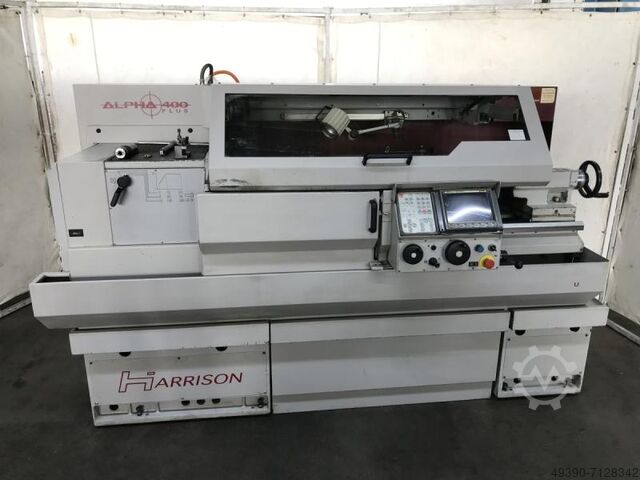

CNC Cycle Lathe

Harrison Alpha 400 Plus

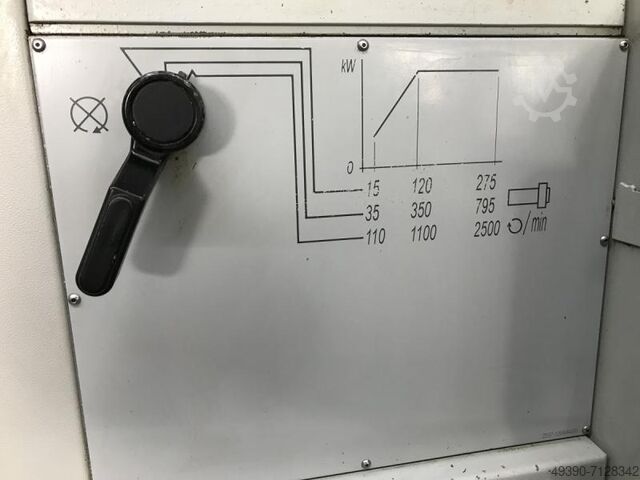

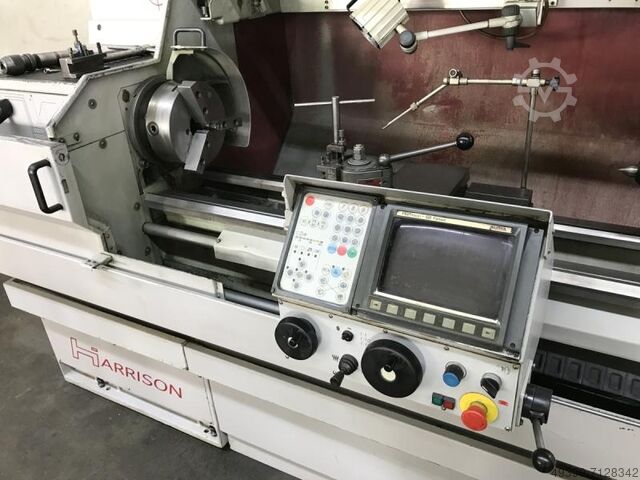

Condition: used, CNC cycle-controlled turning machine HARRISON, Type Alpha 400 Plus Machine No. P30180/150 Year of manufacture 1998 Center distance 1250 mm Turning diameter over bed 400 mm Center height 200 mm Turning diameter over cross slide 245 mm Diameter in the crotch 585 mm Bed width 313 mm Cross travel (X-axis) 250 mm Tailstock quill diameter 73 mm Tailstock quill stroke 140 mm Tailstock quill taper MK 5 Spindle bore 54 mm Spindle head size Camlock D1 Size 6 Spindle speed 20-2500 rpm Spindle speed range (Stage 1) 15-275 rpm Spindle speed range (Stage 2) 35-795 rpm Spindle speed range (Stage 3) 110-2500 rpm Feed rate X and Z 0.03 - 0.6 mm/rev Rapid traverse rate X-axis max. 2000 mm/min Rapid traverse rate Z-axis max. 4000 mm/min Threading function Metric / Inch / Diametral / Module Spindle drive power 7.5 KW Power connection 400 Volt, 50 Hz, 23.5 kVA - Cycle control Harrison Alpha / GE FANUC - Language in French (France) - Automatic gear range selection in 3 stages (15-275, 35-795, 110-2500 rpm) - Electronic handwheels with different gear ratios (1/10/100) - 3-jaw scroll chuck FORKARDT Ø 250 mm Type CSN, 1 set of soft jaws - Quick-change tool holder MULTIFIX Size B with 2 inserts - 1 live center - 1 quick-change drill chuck RÖHM, 3-16 mm - Folding chuck guard - Folding work area safety doors - Chip tray with coolant system under the machine bed Blsdpfx Aoh Hvk Aecfsi - Control cabinet fixed to the machine - RS 232 interface Space requirement L x W x H 2600 x 1450 x 1550 mm Weight 1950 kg Good condition
