HARRISON Alpha 400 Plus

CNC cycle controlled lathe HARRISON type Alpha 400 Plus
Cedoh Hvk Aspfx Abwehc

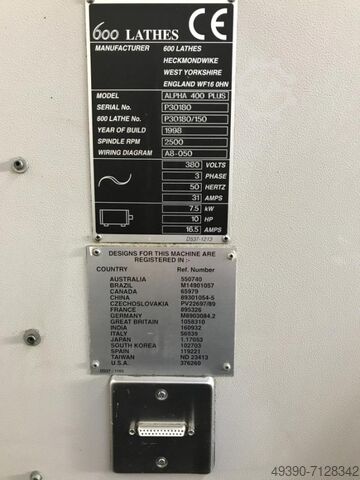

Machine No. P30180/150 Year of construction 1998
center distance 1250 mm
turning diameter over bed 400 mm
center height 200 mm
Swing diameter over cross slide 245 mm
Swing diameter in the bend 585 mm
bed width 313 mm
face travel (X-axis) 250 mm
Tailstock spindle diameter 73 mm
Tailstock quill stroke 140 mm
Tailstock quill mount MK 5
spindle bore 54 mm
spindle head size Camlock D1 size 6
Spindle speed 20-2500 rpm.
Spindle speed range (stage 1) 15-275 rpm.
Spindle speed range (stage 2) 35-795 rpm.
Spindle speed range (level 3) 110-2500 rpm.
Feed rate X and Z 0.03 - 0.6 mm/rev.
Rapid traverse speed X axis max. 2000 mm/min.
Rapid traverse speed Z-axis max. 4000 mm/min.
Threading function Metric / Inch / Diametral / Module
Spindle drive power 7.5 KW
Mains connection 400 Volt, 50 Hz, 23,5 kVA

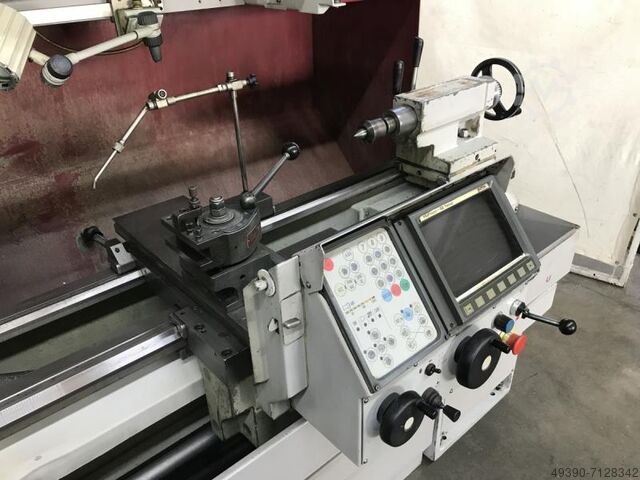

- cycle control Harrison Alpha / GE FANUC - language in French (France)
- automatic gear range shifting in 3 steps (15-275, 35-795, 110-2500 rpm.)
- electronic handwheels with different transmission ratios (1/10/100)

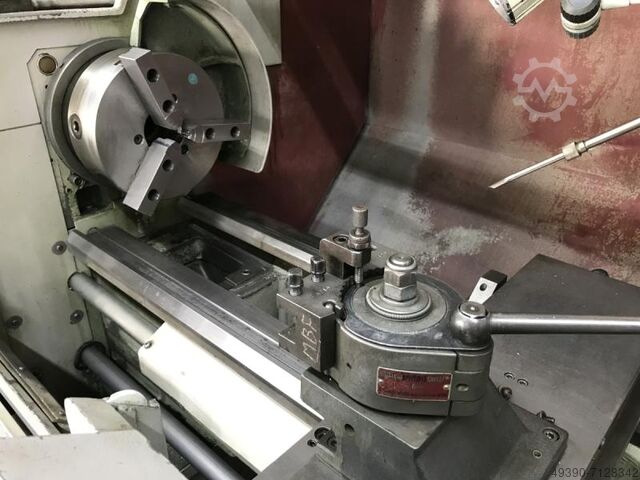

- 3-jaw face spiral lathe chuck FORKARDT Ø 250 mm type CSN, 1 set of soft top jaws
- quick-change tool holder MULTIFIX size B with 2 inserts
- 1 piece of centering point running with the tool
- 1 piece quick-action drill chuck RÖHM, 3-16 mm
- hinged lathe chuck guard
- hinged working area protection doors
- chip tray with coolant device under the machine bed
- Switch cabinet fixed to the machine
- Interface RS 232
Space requirement L x W x H 2600 x 1450 x 1550 mm
weight 1950 kg
good condition
