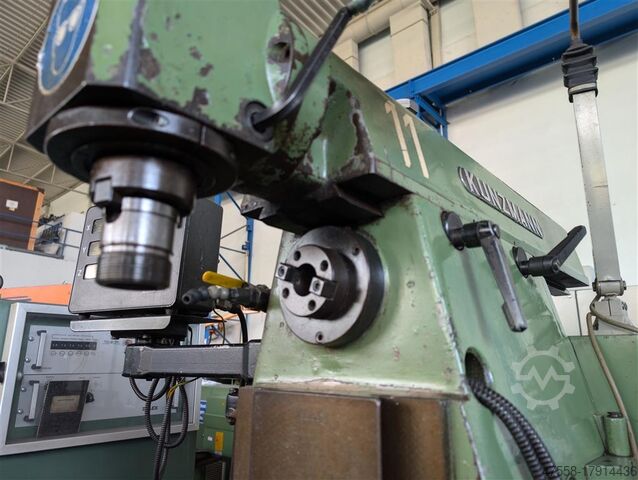

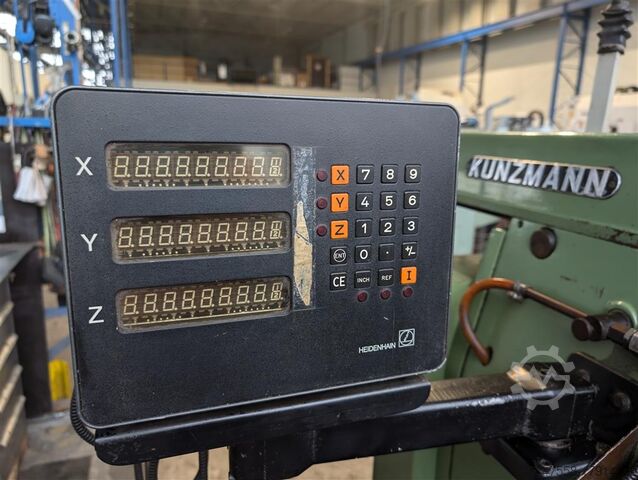

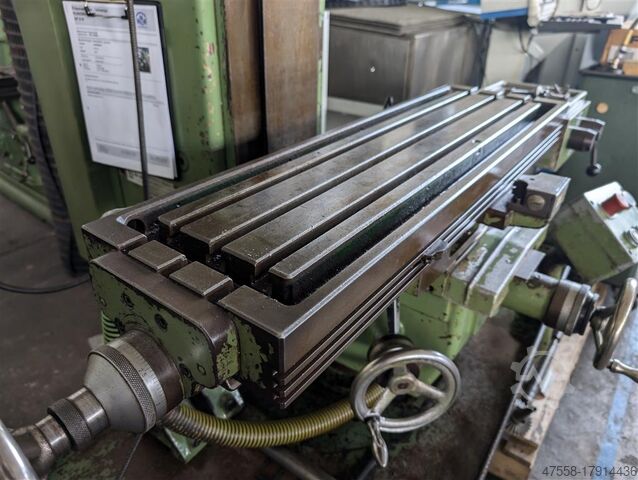

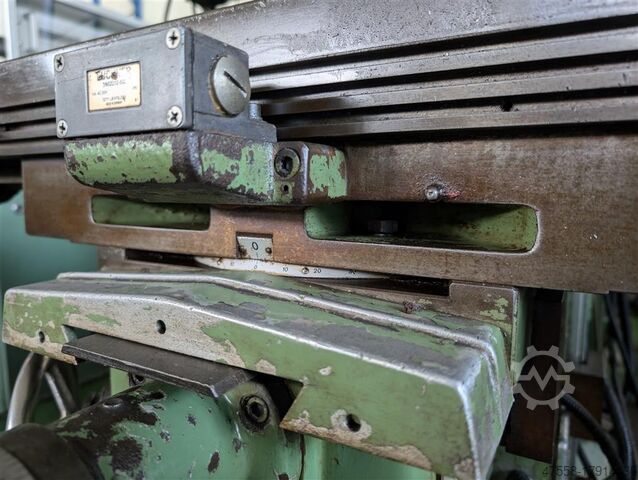

Universal Milling Machine

KUNZMANN UF 6 N

Condition: used, Year of construction: 1972, Milling machine used Make:Kunzmann Model: UF6N year of construction: 1972 Technical data: Table longitudinal travel automatic: 440 mm Table longitudinal travel by hand: 450 mm Transverse table travel 200 mm Table vertical travel horizontal/ vertical 465/500 mm Table size 860x240 mm Table swivels 45° on both sides Distance table/spindle 430 mm Spindle holder ISA 30 Quill stroke 60 mm Tiltability of the spindle head +/- 90 18 spindle speeds horizontal 32-1342 rpm 18 spindle speeds vertical 72-2888 rpm 6 automatic feeds lengthwise 13.12-164 mm/min 6 automatic cross feeds 26.24-328 mm/min. Spindle drive 1.8/2.6 kW with inclinable vertical milling head/clamping vice/ Counter holder/collet chuck with collets Isdpfxoudb N Dj Apcsia Weight approx. 850 kg Dimensions approx. 1400x1900x1800 mm

Condition: reconditioned (used), Year of construction: 1984, Universal Tool Milling Machine DECKEL FP 3 With 3-axis active digital display Heidenhain TNC 11 Year of manufacture: 1984 Travel: X 500 / Y 300 / Z 400 mm Speed range: 25 – 2500 rpm Including the following accessories: - Rigid angle table, 850 mm x 400 mm clamping surface - Swiveling rotary table Ø 450 mm with dividing disks - Slotting head - Movable vertical milling head - Extendable quill for drilling - Infinitely variable feed via potentiometer - Various milling arbors SK 40 / S22 x 2 - Chip tray - Automatic central lubrication pump for X, Y, Z axis - Machine lamp - Coolant system - 4 machine feet Iiedpfx Aexuh Rdspcoa - Operating manual

Condition: good (used), Year of construction: 1992, machine/vehicle number: 19636, Offer 24103 Technical data: - Working range of the axes - X / Y / Z 450 / 400 / 420 mm - Table size 850 x 250 mm - Max. distance spindle - table 400 mm - Working spindle speeds Horizontal 30 - 1275 rpm - Work spindle speeds Vertical 66 - 2840 rpm - Feed rates X - Y and Z - axis Iijdpfotwmcljx Apcsa - Rapid traverse - Drive 400 V / 3.2 kW - Space requirement approx. W 1400 x H 1800 x D 1400 mm - Weight approx. 1400 kg

Condition: excellent (used), Year of construction: 1983, x-travel 450 mm y-travel 200 mm Isdpfx Asxdnplepceia z-travel 465 mm total power requirement 2,6 kW weight of the machine ca. 1.2 t

Condition: used, Year of construction: 1985, x-travel 485 mm y-travel 385 mm z-travel 380 mm table surface area 800 x 460 mm spindle taper SK 40 control CONTOUR 1 spindle turning speed range 50 - 2500 U/min feeds 10 - 1000 mm/min Iiodpfxetqqlls Apcea rapid traverse 2 m/min table load capacity 600 kg quill stroke 80 mm total power requirement 7,5 kW weight of the machine ca. 2,0 t dimensions 2,4 x 1,7 x 1,98 m Acc.: vertical head with hydr. tool clamping and quill retraction, solid table, coolant - movement of X/Y/Z also possible via handwheels -

Condition: used, Universal tool milling machine Brand: OPTIMUM Model: MT 100 Year of manufacture: 2018 – workshop tested Machine no.: J33021808035 Geometric acceptance with test report Accessories: - 3-axis digital display DPA 2000 - Vertical milling head SK 40 with drawbar thread M 16 Iiedpsw Rlvqsfx Apcsa - Fixed table 1,120 x 260 mm (T-slot: 14 mm) - Machine lamp - Coolant system - Manual central lubrication - Operating manual Used as seen, without warranty The machine technically corresponds to the state of the art at the time of manufacture.

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min Iiodpfx Aevc Avhjpcsa spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Equipment: -cooling water pump with feed -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice *

Year of construction: 1981, condition: used, Make cover Type FP 4 Table: dimensions 1000 x 470 mm longitudinal movement X - axis 700 mm transversal movement Y - axis 400 mm vertical movement Z - axis 450 mm projection spindle 50 450 mm spindle mounting ISO 40 Number of spindle speeds 18 Spindle speed range 31,5 1600 rpm Number of revolutions horizontal spindle 18 pcs. Speed range horizontal spindle 31,5 1600 rpm Weight machine 2000 kg feeds X Y Z axis 18 pcs 10 500 mm/min Accessories milling head with quill Iiodpfx Aeihp U Djpcsa Table 1000 x 470 mm

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm Iisdpfx Apjvu Dv Tjcja • Vertical and horizontal milling spindle ISO 50 • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm • Feed and rapid traverse in all axes • Wide, stable guideways • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1977, Technical details: x-travel: 1050 mm y-travel: 500 mm z-travel: 500 mm spindle taper ISO: SK40 spindle head swivable left - right: 90 ° quill travel: 180 mm range of revolution per miute: 36 - / 18 step U/min feed:: X+Z: mm/min feed:: Y: - 900 mm/min. rapid traverse : X/Z: / Y: 900 mm/min table surface area: 1200 x 550 mm total power requirement: ca. 10 kW machine weight approx.: 4400 kg dimension machine xH: 3,1 x 2,5 x 2,2 m Console design with tilting, tilting and swiveling table, as well as adjustable vertical milling head. Machine with 3-axis digital readout (with resolution 0.01mm) with feed and individual drive of all three axes stepless feed X-axis: Support lengthwise = 700mm; univ. milling table lengthwise 350mm = total lengthwise: 1050mm Accessories: Comparable with the pictures Iiedpfxju Ndd Ro Apcja *
