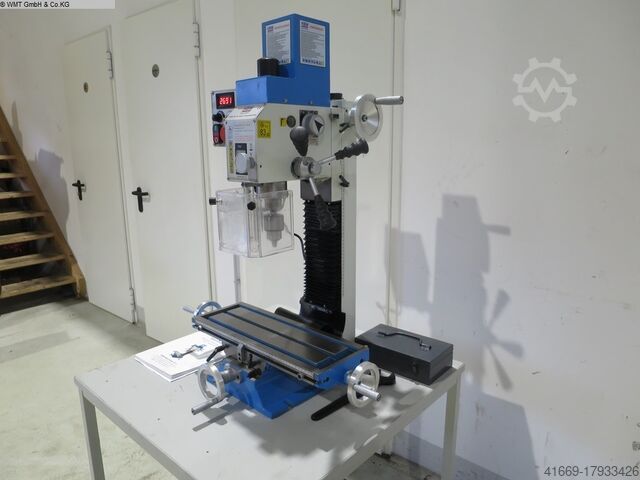

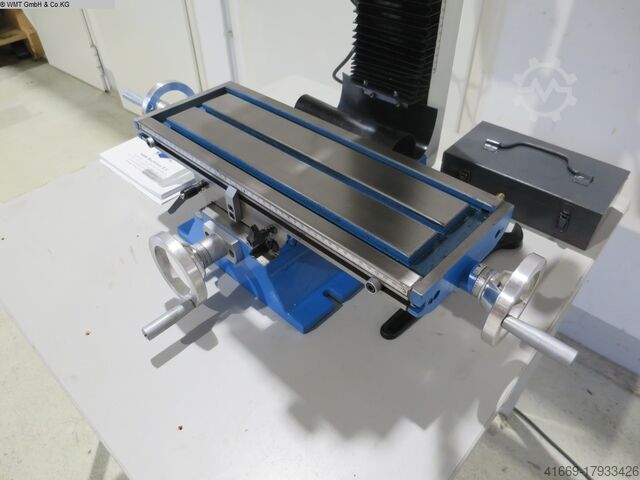

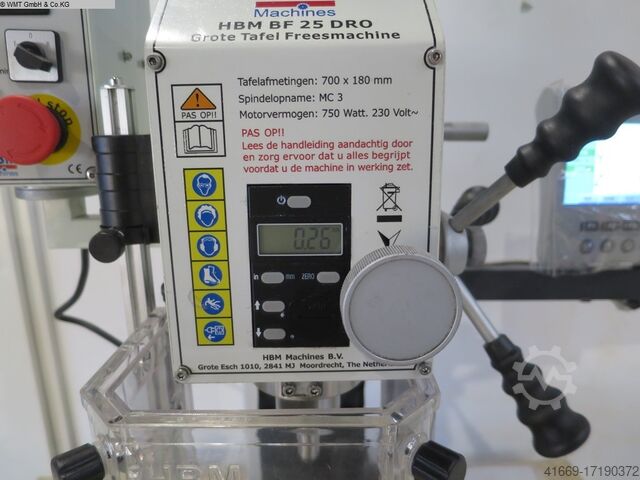

Drilling and Milling M/C

HBM BF 25

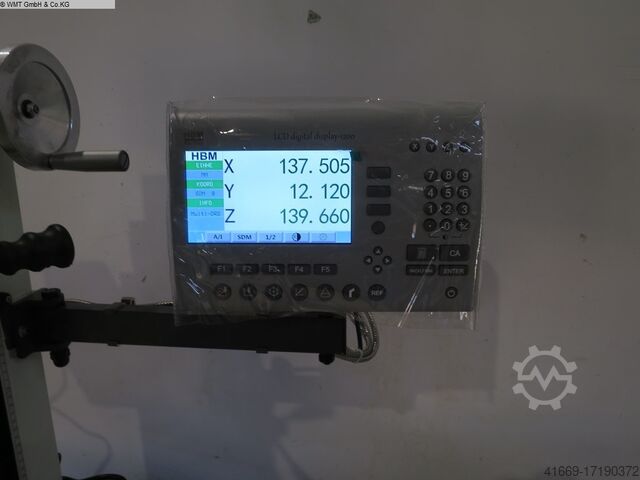

Condition: new, bore capacity in steel (diameter) 25 mm throat 175 mm Dwjdjupxtfjpfx Agdsd bore stroke 50 mm 16 mm spindle taper MK 3 spindle turning speed range 50 - 3000 U/min 380 mm 175 mm table surface area 700 x 180 mm connected load frequency 230 V max. distance between table and spindle-nose max. 320 mm total power requirement 0,75 kW weight of the machine ca. 150 Kg dimensions of the machine ca. 670 x 550 x 910 m Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right switch Pan head left/right 90° spindle protection. incl. tool box with various tools

Condition: new, ELMAG gearbox milling and drilling machine MFB 20 Vario MFB 20 / MFB 20-L / MFB 30 / MFB 30-L Vario With the compact MFB 20 Vario and MFB 20-L Vario milling and drilling machines, precise workpiece machining is a pleasure in any position thanks to a swiveling machine head. The MFB 20 Vario was specially developed for small milling and drilling jobs. With a drilling capacity in steel of 20 mm and a face milling capacity of 63 mm, you can cover a wide range of sizes commonly used in model making and mechanical engineering. Digital displays for speed and drilling depth and infinitely variable speed control provide optimum support. Standard equipment - Quick-action drill chuck B16, 1 - 16 mm - Tapered arbor MK 2 / B 16, thread M10 - Tightening spindle M10 - Tool set - Operating instructions / CE ADVANTAGES Face milling - End milling - Drilling Stepless speed adjustment Digital speed display Emergency stop button Clockwise and counter-clockwise rotation Speed controller Precision micro feed Digital drilling depth display Quill fixing Operating lever with fixation Milling spindle with precision bearing Pull-in spindle for high safety Smooth-running, precise cross table with T-slots and coolant channel Milling spindle protection cover Drilling depth scale Dsdpfx Agot Ed Erjdewd Zero-tension release Machine stand optionally available TECHNICAL DATA Drilling capacity in steel 20 mm Tapping capacity M14 Milling capacity face milling cutter 63 mm Milling capacity end mill 16 mm Spindle holder (turning spindle) MK 2 Speed range 1 50 - 1125 rpm Speed range 2 100 - 2250 rpm Infinitely variable speed steps Quill stroke 50 mm T-slots, width 12 mm Milling head stroke 375 mm Spindle projection 184 mm Milling head swivel range ± 90 ° Quill distance table 0 - 375 mm Milling table surface 500x180 mm Table travel X x Y 280 x 175 mm Motor power 600 W Mains connection 230/50 V/Hz Cubature 500x180x375 mm Length x width 745 x 570 mm Height 935 mm Weight 103 kg

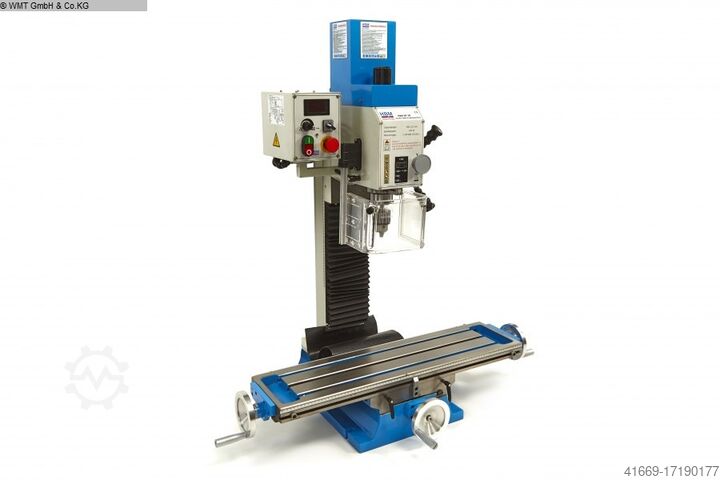

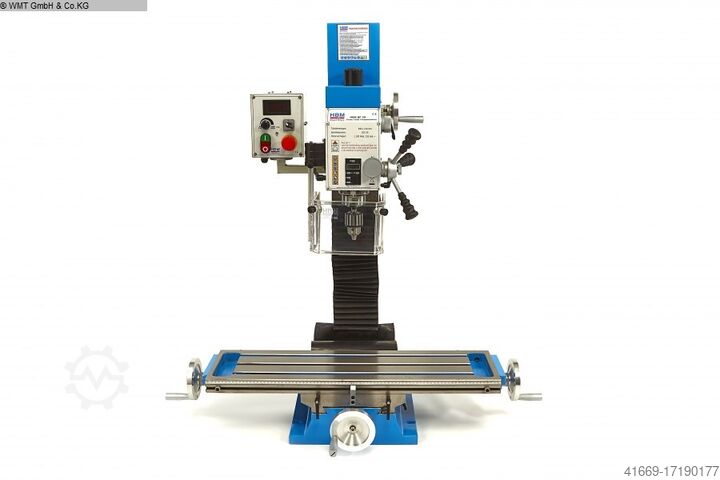

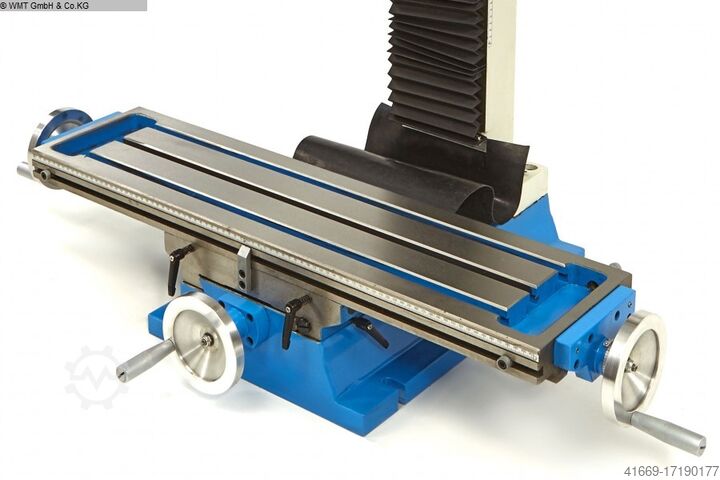

Condition: new, bore capacity in steel (diameter) 32 mm throat 200 mm bore stroke 70 mm 16 mm spindle taper MK3 spindle turning speed range 50 - 3000 U/min 220 mm 425 mm table surface area 700 x 210 mm connected load frequency V max. distance between table and spindle-nose 470 mm total power requirement 1,5 kW weight of the machine ca. 230 Kg dimensions of the machine ca. 0,75 x 1,05 x 1,2 m Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank Dwsdsupxlbjpfx Agdod - Tool case with content

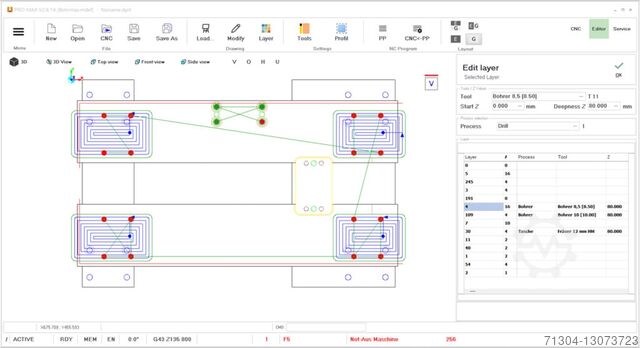

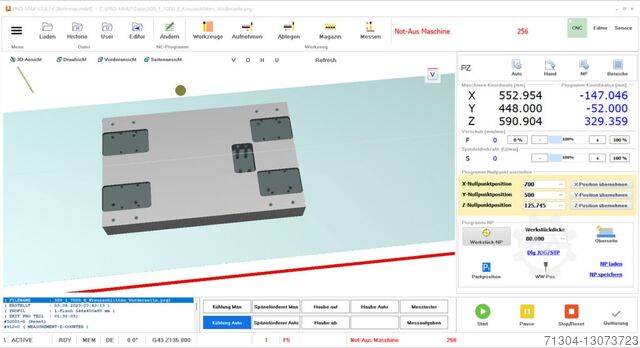

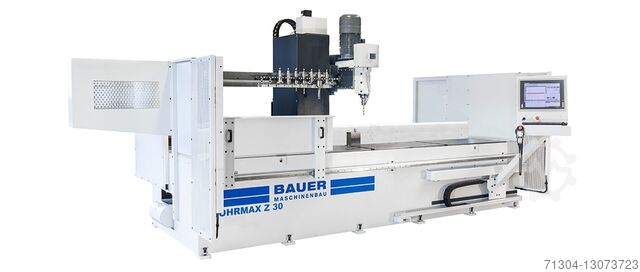

Condition: new, Year of construction: 2024, Drill head vertically above the table, in the x-axis (longitudinal) on x-axis with linear guides, servo motor and precision gear rack - Horizontally (Y) and vertically (Z), the drilling head is mounted on linear guides by means of ball screw and servo motor - Infinitely variable speed adjustment 160-3800 rpm - SK 40 tool holder - Drive motor 7.5 kW - Coolant system - Pneumatic tool clamping - 4 T-slots M12 lengthwise - Tool change for 10 tools - Automatic tool length measurement - Manual control unit for manual movement of the individual axes - Freely definable work areas with their own zero point and parking spaces 1 BOHRMAX Z 40 Travel distance: X = 4,050 mm Basic equipment for every BOHRMAX type: - Drilling head vertically above the table, in the x-axis (longitudinal) on x-axis with linear guides, servo motor and precision rack precision rack - Horizontally (Y) and vertically (Z), the drilling head is mounted on Dedpfx Aepr Ul Negdswd linear guides by means of ball screw and servo motor - Infinitely variable speed adjustment 160-3800 rpm - SK 40 tool holder - Drive motor 7.5 kW - Coolant system - Pneumatic tool clamping - 4 T-slots M12 lengthwise - Tool change for 10 tools - Automatic tool length measurement - Manual control unit for manual movement of the individual axes - One office license as an additional workstation - Freely definable work areas with their own zero point and parking spaces Control for every BOHRMAX type: - Operation via a simple and clear Mitsubishi CNC M80 control with 21.5" touch panel incl. external Windows-based PC - Remote maintenance - Network-compatible Tool change for 10 tools Automatic tool length measurement RCS01 manual tool presetter The machine can be delivered in week 38/2024

Condition: new, WMD25LV - 230V / 1F Drilling capacity steel ----- 25 mm Milling capacity steel ----- 20 mm Flute cutters ----- 63 mm Motor ----- Brushless 750W Spindle speed stepless 50 - 3000 rpm Spindle stroke ----- 50 mm Spindle mounting ----- MK3 Work table ----- 700 x 180 mm Cross travel ----- 150 mm Longitudinal displacement ----- 490 mm T-slots ----- 3x12 mm Unloading ----- 170 mm Distance spindle - table ----- 325 mm Weight ----- 160 KG STANDARD ACCESSORIES * Drill head incl. drill chuck * Digital depth stop * Digital spindle display * Fine adjustment Djdpfoga T Eijx Agdowd * Left / Right switch * Milling head left / right 90 degrees rotatable * Box with various tools OPTION * Support box € 249,00 ex vat

Condition: new, Year of construction: 2025, Heavy, solid cast iron design High running smoothness due to ground gear wheels running in an oil bath Right/left hand rotation Automatic quill feed with manual fine feed Motorized positioning of the Z-axis Motorized table feed of the X-axis Coolant device Machine lamp Gear head can be swivelled ± 60 Adjustable wedge bars Solid dovetail guide of the column, hand-scraped, for highest stability and greatest possible precision Height-adjustable, large-dimensioned protective disk with microswitch Drilling depth stop Digital position indicator DRO 5 Drilling / tapping function Massive and large dimensioned cross table, precisely surface machined with T-slots and adjustable taper bars Solid cast iron machine base with chip channel Single-stage quality industrial electric motor Wide speed range from 60 - 2,760 min-1 due to 2 infinitely variable speeds Dimensions and weights Length approx. 1600 mm Width/depth approx. 930 mm Dodjg U Uv Uepfx Agdjwd Height approx. 2110 mm weight approx. 495 kg Drilling/milling capacity cutter head size max. 63 mm shank cutter size max. 26 mm Drilling capacity steel (S235JR) 24 mm Continuous drilling capacity steel (S235JR) 20 mm Electrical data Supply voltage 230 V Mains frequency 50 Hz Electrical connection Total connected load 1.5 kW Horizontal milling table length 800 mm width 240 mm Distance vertical spindle - milling table max. 420 mm T-slots size 14 mm T-slots number 3 T-slots distance 80 mm Standards and approvals Standard DIN EN 55011 EMC class C2 Travel X-A
