Edge banding machine

HEBROCK AKV 3003 DK-F

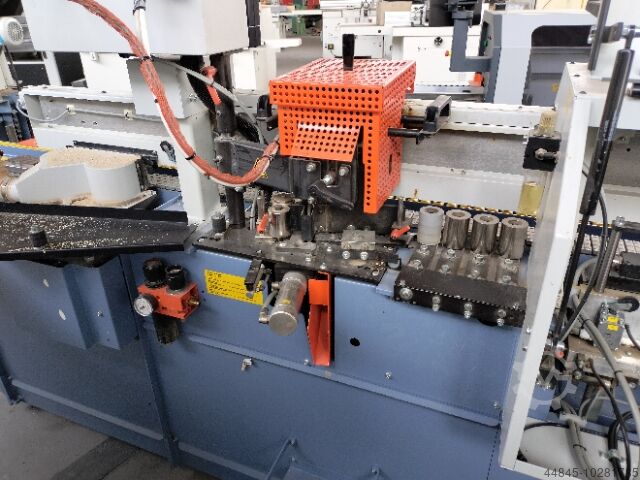

Condition: ready for operation (used), Year of construction: 2002, This HEBROCK AKV 3003 DK-F was manufactured in 2002. A robust edgebander with a total power of 10.5 kW, operating on 230/400 V and 50 Hz. Ideal for efficient edgebanding operations. Contact us for more information about this machine. Application Types Ltsdpfx Asx E Eayec Hea Edge Banding

Condition: excellent (used), Year of construction: 2012, operating hours: 730 h, Hebrock AKV3005DK-F Edge Banding Machine with pre-milling, corner copying, and two profile scrapers. Very well-maintained machine from a small business, in excellent condition. Touch-screen interface with PLC control for user-friendly operation; up to 12 operating programs can be saved. Ltodetpn Etjpfx Ac Hea Edge thickness (coil): approx. 0.4 – 3 mm Workpiece height: approx. 8 – 53 mm Feed speed: approx. 10 m/min Noise protection hood Extendable workpiece support, special feature extendable up to 950 mm Extraction ports: 80 + 140 mm Units/Equipment: - Quick-change glue pot with glue outlet; two glue pots included (one was used for EVA glue, one for PUR glue). The PUR glue pot is virtually as new, purchased for a single order only. - Manual overhead pressure adjustment with SIKO counter - Manual infeed fence adjustment with SIKO counter - Manual edge thickness adjustment with SIKO counter - Pre-milling unit with Leitz Whispercut diamond cutters, still sharp - Gluing section with automatic edge feed for coil material up to 3 mm - Pressure zone with 4 rollers - End trimming saw - Integrated edge trim collection bin - Multi-profile milling unit, R2, with pneumatic adjustment between thin and thick edge - Corner rounding unit R2, pneumatically adjustable between thin and thick edge; the molding router can also be used for shelf program, rounding only on straight edges, not corners - Radius scraper R2, pneumatically retractable - Glue joint scraper, pneumatically retractable - Hood lock - CE marking - Operating manual A video of the machine in operation can be provided upon request. All indexable inserts on the milling and scraper units have been replaced or rotated, saw blades have been sharpened. The machine is ready for immediate use. Only the diamond pre-milling cutters (Whispercut) have not been replaced but are still sharp. Paintwork has been touched up. The Hebrock AKV series is the predecessor model to the current K series. Machine has only approx. 730 operating hours (glue pot switched on), but the frequency converters have only been switched on for approx. 455 hours. Machine is in very good condition—see original photos. Machine dimensions: approx. 5000 x 1400 x 1550 mm (LxWxH) Weight: approx. 1550 kg The machine can be inspected by appointment at our premises. We only offer machines that are ready for demonstration in our warehouse—see “other offers from this seller.”

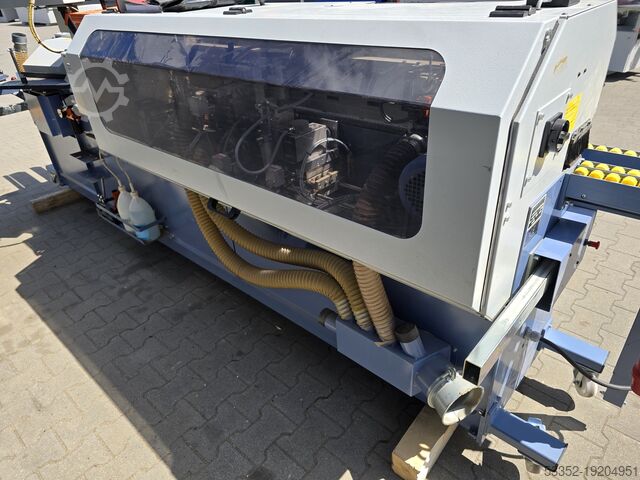

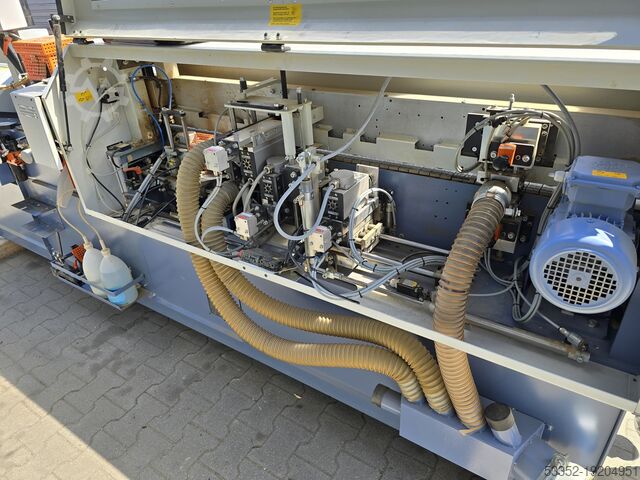

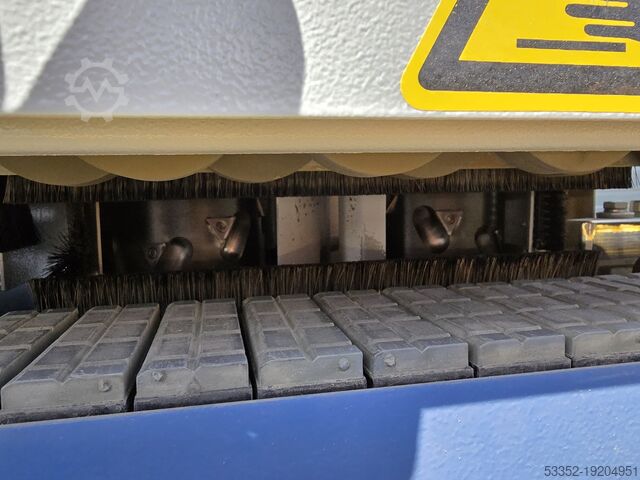

Condition: excellent (used), Hebrock 3003 Edge Bander Ltsdpowmc I Dsfx Ac Hea well equipped, can be tested before purchase Initial MILLING AirTronic zero joint glueless system - hot air glue application with a roller, pneumatic preliminary guillotine pressure rollers anti-adhesive fluids finished cutting saw top-bottom milling unit, R1 - R2 pneumatically adjustable corner milling unit pneumatically adjustable flat scraper max element height 50mm max veneer thickness in roll 3mm feed 10m/min power consumption 15.8KW very good condition, fully fulfills its functions

Condition: used, Year of construction: 2007, machine/vehicle number: Werksüberarbeitungsnummer: WÜA1363DK-F7560, Used Machine GM020.0068 AKV 3003 DK - F Year of manufacture: 2007 Specification: 3 mm 1st milling station: Combination Surface pull scraper with extraction Chassis Ledpfxow Nih Ie Ac Hsta Pneumatic milling adjustment Limit switch lever, 7.5° inclination

Condition: new, Year of construction: 2025, functionality: fully functional, A sliding table saw for working with high density boards, MDF boards, ABS and PVC panels, solid wood and other wood-based materials of similar structure and hardness. The saw is designed for small and medium carpentry work. Strong, professional sliding table saw with a movable table on bars and a separately powered scoring. Saw tilts in the 90–45 degrees range Solid, durable design ensures stability and work safety Controllable speed adjustment Technical data Table dimensions 970×550 mm Sliding table length 3200 mm Cutting width by the fence 1200 mm Transverse cutting by the transverse cutting guide 3100 mm Saw tilt 0°–45° Saw diameter Ø350 mm Saw hole diameter Ø30 mm Saw blade height 0–87 mm Ltsdpfx Acetz Smie Hoa Saw blade 350 max height 105 mm Saw blade height at 45° angle 0–60 mm Saw blade 350 max height at 45° angle 73 mm Main saw spindle speed 4000 / 6000 rpm Scoring saw diameter Ø125 mm Scoring saw hole diameter Ø20 mm Scoring speed 8000 rpm Main motor power 5.5 kW Scoring motor power 0.75 kW Intake connector under table diameter 100 mm Intake connector diameter in the saw guard 80 mm Machine weight 680 kg Available equipment Cutting saw Scoring Transverse cut fence Longitudinal fence Modern - ergonomic saw guard Worktop extension Fence for mitre cutting Saw blade tilt gauge indicator User manual EC declaration of conformity

Condition: excellent (used), Year of construction: 1998, operating hours: 3,075 h, functionality: fully functional, power: 18.5 kW (25.15 HP), overall weight: 2,150 kg, Very well-maintained machine in top condition with low operating hours Electronic soft start, idle shutdown Ltsdpfx Acewv Enfe Hea Mawera RZM 200 Motor power: 18.5 kW Rotor width: approx. 800 mm Rotor speed: 135 rpm Hydraulic pusher with PLC control Chipping capacity approx.: 500-850 kg/h Screen: 20 mm Extraction outlet left or right: 210 mm Original paint Weight: 2,050 kg The machine is installed under a joinery line and has only processed clean wood Last maintenance: 12/2024 Loading possible Comparable to Weima, Untha, Reinbold, Zeno,

Condition: used, Supply air unit type 3072 A 7300/3650 m³/h, max. heating capacity 83 kW, hot water 90/70 °C. Exhaust air unit type 72 7000/3500 m³/h. Storage location: Nattheim. Ledsw I A N Aepfx Ac Hota

Condition: excellent (used), Year of construction: 2003, total height: 2,950 mm, total width: 1,350 mm, total length: 3,300 mm, Complete clean air extraction system with briquette press and piping with sliders etc. Extraction system for woodworking companies with a briquette press underneath. Extraction system ALKO Type: MOBIL-JET 250 Year of manufacture 2003 Extraction diameter 250 mm Rated output 4900 m³/h Motor output 6.5 KW Dimensions approx. 330 x 135 x 2.95 cm With extraction control for automatic slider control. Briquette press WEIMA/ALKO Type: APC30S Ledpfxovr S Ncj Ac Hjta Year of manufacture 2007 Motor output 5.5 KW Pressing capacity 30 - 50 kg/h Briquette diameter approx. 50 mm Incl. complete piping with branches, bends, sliders. There is another item of suction pipes with fittings available that can be purchased cheaply. The system has been dismantled and packed ready for loading. See pictures for condition, or refer to the item description. Parts can also be picked up yourself. All dimensions are approximate. All information is provided to the best of our knowledge but without guarantee. Subject to prior sale. The items can be picked up yourself or shipping is at the buyer's expense. Shipping costs are a guideline and may vary depending on distance and unloading options. The stated sales price is the net final amount plus VAT. An invoice with VAT identification will be issued.

Condition: good (used), Year of construction: 2000, • Sanding width (mm): 1350 • Workpiece thickness (mm): 3 - 150 • Total sanding units: 2 • Longitudinal belt: 2 • Contact roller diameter = 200 mm: 1 /15 kW • Combination unit: with small roller • Cleaning brush: 1 x diameter = 120 mm • Vacuum table • Intermediate lacquer sanding • Constant table height • Carpet cleaning • Longitudinal unit, motor: 15 kW, 1.8 - 18 m/s • Feed rate: 3 - 12 m/min • Sanding belt length, longitudinal unit (mm): 2,100 x 1,400 • Pressure beam: CSD system, electromagnetic, wear-free Ljdpfx Aowwlm Dec Hota • Conveyor belt: new • Availability: inspected, in stock

Condition: reconditioned (used), Year of construction: 2003, functionality: fully functional, briquette diameter: 60 mm, Refurbished machine suitable for smaller, single-shift carpentry operations. It offers a robust construction while providing solid performance. Maximum briquette output: 70 kg/h. Year of manufacture: 2003. In very good and well-maintained condition. Original warranty and post-warranty service available directly from our company. Professional PRODECO hydraulic briquetting presses are ideal for small and medium-sized woodworking operations. They enable efficient processing of waste into environmentally clean, high-calorific fuel without the need for binders. These machines are characterized by compact space requirements, low energy consumption, and easy operation. Technical specifications: - Motor power: 5.5 kW - Briquette output: 35 to 70 kg/h (depending on material) Ljdpfx Asvva Rpsc Hjta - Briquette diameter: 60 mm - Briquette stroke length up to 60 mm (so-called endless briquette) - Hopper diameter: 1000 mm - Weight: 650 kg - Machine dimensions: 1170 x 1700 x 1510 mm Features: - Hydraulic unit with 7 pressing cycles/min - Dual manometer for improved pressure monitoring - Level sensor for the height of briquetted material - Oil level sensor - Inspection window - CE safety standard compliant - Moisture content of processed material must not exceed 18% The machine is refurbished, calibrated, and tested.
