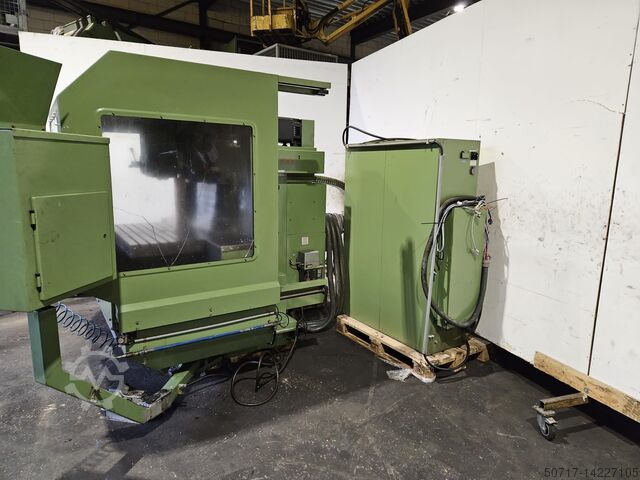

CNC Tool Milling Machine

Hermle UWF 1000

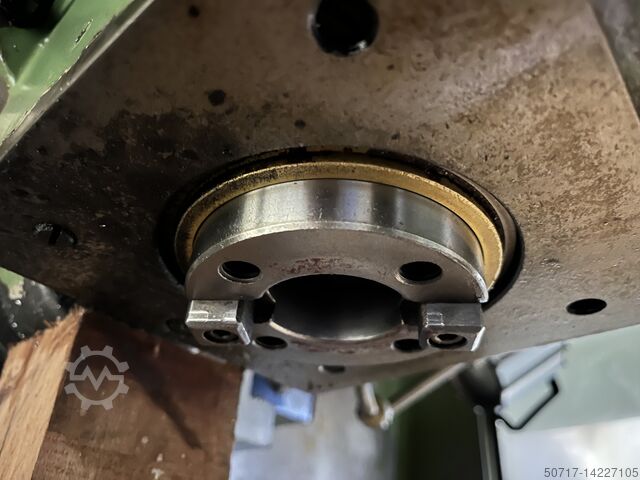

Condition: excellent (used), functionality: fully functional, For sale: used universal CNC milling machine Hermle UWF 1000 with Heidenhain TNC 155 control. The drive motor has undergone a complete overhaul and has been refitted. The hydraulic tensioning system has been refurbished. Hjdpfx Afeykmzuscoi The gearbox actuator has also been refurbished. Electronic handwheel. Spindle taper SK 40. Included: operating manual and drawbar.

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Equipment: -cooling water pump with feed Hedpevc Avhefx Afcei -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice *

Condition: used, x-travel 600 mm y-travel 400 mm z-travel 400 mm Hodjvx U Dcopfx Afcei Control Digitalanzeige Heidenhain turning speed range 45 - 2000 U/min feed range 0 - 3000 mm/min tool taper SK 40 weight of the machine ca. 2 t universal rotary tilting table diverse toolholders

Condition: used, Year of construction: 1988, Tool CNC Milling Machine HERMLE type UWF 1000 CNC Hedpfx Afjxxpw Tjcsi Year of construction: 1988 Travel X: 700 mm Travel Y: 550 mm Travel Z: 500 mm Numerical Command: HEIDENHAIN TNC 155 Spindle ISO 40 Spindle: Ø 70 mm Spindle speed: from 25 to 3150 RPM Table size: 1000 x 500 mm Vertical sleeve travel: 100 mm Swivel head Spindle motor: 6,9 kW Weight: 3,3 T

Condition: reconditioned (used), Year of construction: 1984, Universal Tool Milling Machine DECKEL FP 3 With 3-axis active digital display Heidenhain TNC 11 Year of manufacture: 1984 Travel: X 500 / Y 300 / Z 400 mm Speed range: 25 – 2500 rpm Hodpfx Asxuh Rdsfcei Including the following accessories: - Rigid angle table, 850 mm x 400 mm clamping surface - Swiveling rotary table Ø 450 mm with dividing disks - Slotting head - Movable vertical milling head - Extendable quill for drilling - Infinitely variable feed via potentiometer - Various milling arbors SK 40 / S22 x 2 - Chip tray - Automatic central lubrication pump for X, Y, Z axis - Machine lamp - Coolant system - 4 machine feet - Operating manual

Condition: good (used), BHG Hermle CNC milling machine Type: UWF 1000 Hjdpfjqwgzbjx Afcji Control: Heidenhain TNC 355 X-path: 700 mm Y-path: 550 mm Z-path: 500 mm Bed: 490 x 1000 mm Spindle: ISO 40 Speed: 3150 rpm Year of manufacture: 1988 Including documentation and parameters Dimensions: 230x200x220 cm LxWxH Weight: approx. 4000 KG

Condition: used, Universal tool milling machine Brand: OPTIMUM Model: MT 100 Year of manufacture: 2018 – workshop tested Machine no.: J33021808035 Geometric acceptance with test report Accessories: - 3-axis digital display DPA 2000 - Vertical milling head SK 40 with Hjdpew Rlvqjfx Afcji drawbar thread M 16 - Fixed table 1,120 x 260 mm (T-slot: 14 mm) - Machine lamp - Coolant system - Manual central lubrication - Operating manual Used as seen, without warranty The machine technically corresponds to the state of the art at the time of manufacture.

Condition: used, Year of construction: 1985, x-travel 485 mm y-travel 385 mm z-travel 380 mm table surface area 800 x 460 mm spindle taper SK 40 control CONTOUR 1 spindle turning speed range 50 - 2500 U/min feeds 10 - 1000 mm/min rapid traverse 2 m/min table load capacity 600 kg quill stroke 80 mm total power requirement 7,5 kW weight of the machine ca. 2,0 t dimensions 2,4 x 1,7 x 1,98 m Hodpfx Afetqqllecei Acc.: vertical head with hydr. tool clamping and quill retraction, solid table, coolant - movement of X/Y/Z also possible via handwheels -

Year of construction: 1981, condition: used, Make cover Type FP 4 Table: dimensions 1000 x 470 mm longitudinal movement X - axis 700 mm transversal movement Y - axis 400 mm vertical movement Z - axis 450 mm projection spindle 50 450 mm spindle mounting ISO 40 Hedpfoihp U Dox Afcsi Number of spindle speeds 18 Spindle speed range 31,5 1600 rpm Number of revolutions horizontal spindle 18 pcs. Speed range horizontal spindle 31,5 1600 rpm Weight machine 2000 kg feeds X Y Z axis 18 pcs 10 500 mm/min Accessories milling head with quill Table 1000 x 470 mm

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm • Vertical and horizontal milling spindle ISO 50 • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm Hjdovu Dv Tjpfx Afcei • Feed and rapid traverse in all axes • Wide, stable guideways • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel
