Carcase press

HESS EXPRESS

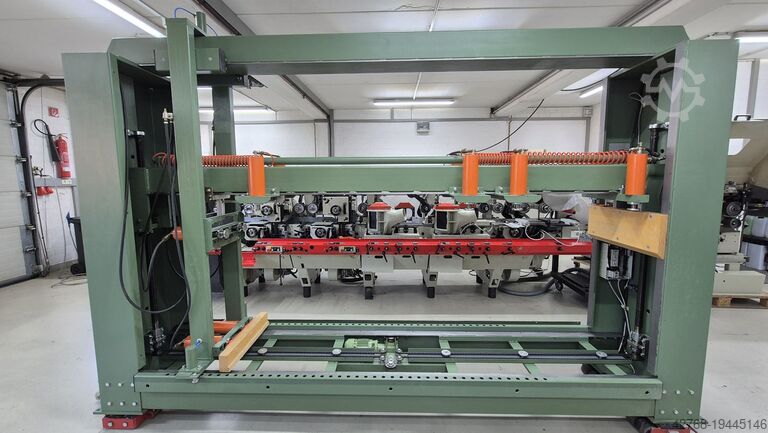

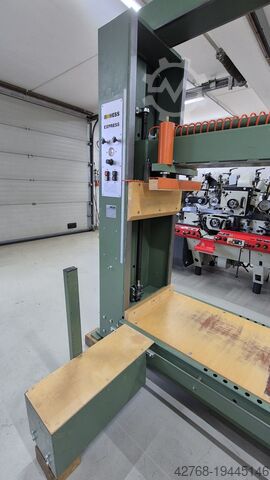

HESS EXPRESS Corpus Press, S/N 100954/32/1994, Year 1994 – Ref. No. 105123

Working Range:
Width min. 250 – max. 2500 mm
Height min. 250 – max. 1350 mm
Depth max. 600 mm

Installation Dimensions: Width 3580 mm x Height 2375 mm x Depth 790 mm

Fgjdpjwvqp Isfx Afpjh
- Central motorized height adjustment via push button
- Automatic locking via trapezoidal spindle
- Manual width adjustment via ball bearing slide carriage
- Slide carriage with pneumatic central locking (3-position lock)
- HESS hole grid system with 50 mm spacing
- Continuous support bed as complete counter bearing
- All pressing units with 2 pressure cylinders each
- Central height adjustment of all vertical pressing units via pressure beam
- Separate control of vertical and horizontal pressing units via one hand control valve each
- Pressure adjustment from 4–10 bar according to diagram
- Height adjustment using mm scale
- Width adjustment using 50 mm scale
- 4x vertical and 2x horizontal pressing units, each with 2 pressure cylinders, 1000 kp (approx. 10,000 N) pressing force per unit at 10 bar, 110 mm stroke, horizontal pressing units with quick couplers
- Electrical connection: 0.55 kW, 380 Volt, 3/N, 50 Hz
- Pneumatic connection: R 3/8", max. 10 bar

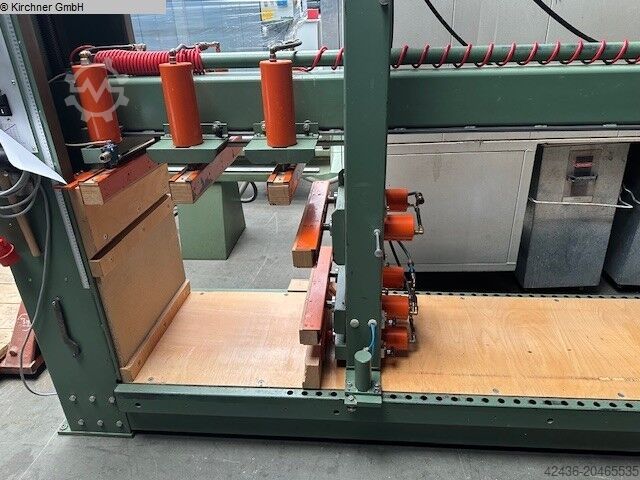

Pressing units combined into pressing corners, left pressing corner consists of pressing unit and counter bearing, mechanically guided during height adjustment and always in position; right pressing corner consists of vertical and horizontal pressing units, can be positioned differently on both axes within the combined corner using guide rails, lower horizontal pressing unit height-adjustable; all pressing components are interchangeable.

Condition: See attached photos, technically in excellent condition

Payment: Net cash before loading
Delivery time: Short-term, by arrangement
Delivery: EXW
Inspection: Possible at any time by prior appointment

Subject to prior sale and errors.
