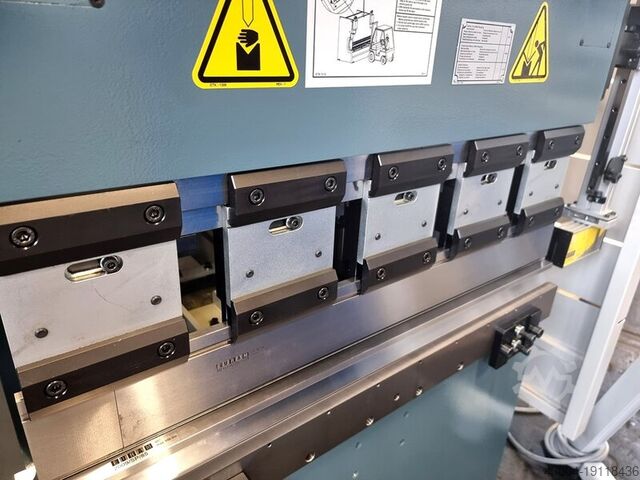

Hydr. pressbrake

HESSE by DURMA PBF 1030

Year of construction: 2014, condition: repair required (used), functionality: fully functional, The machine has been idle unused for a few years now, so it needs maintenance before commissioning, which should be the responsibility of the buyer. Knodpfxjtu U Ebo Akwsb

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000 Knjdsh T Dzqjpfx Akwjb

Condition: used, TECHNICAL DETAILS - Number of axes : 8 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 25.4 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3.7 [kW] - C axis indexing precision : 0.1 [°] - Number of guide bush holders : 2 Kjdpjuhaycofx Akwsnb GUIDE BUSH HOLDER 1 - Number of positions : 5 GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 4 - Live tools speed : 8000 [rpm] SECONDARY OPERATION - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 8000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kW] WEIGHT & DIMENSIONS - Machine floor space : 2270 x 1650 [mm] - Machine height : 2200 [mm] - Machine weight : 3500 [kg] MACHINE HOURS - Number of hours under power : 46571 [h] EQUIPMENT - CNC : Fanuc - Rotating tool motor on : S2 - Rotating guide bush - Parts catcher - Ejection of workpiece - Chips conveyor : KNOLL - Coolant tank * with high-pressure pump : 100 [bars] - Bar loader : TORNOS ROBOBAR SSF - Oil mist extractor : Elbaron - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: like new (used), Year of construction: 2016, overall weight: 8,200 kg, fuel type: electric, color: white, Type HX426 Blade diameter (mm) 650 Number of hammers (pcs) 30 Inlet size (mm) 1250 x 250 Screen mesh size (millimeter) 80 Length of chips (mm) 50 -80 Knedpfxoqmi Irs Akweb Capacity (t / h) 8- 10 Main power (kW) 132 Feeder motor (kw) 7.5 +5.5 Discharge motor (kw) 5.5 +5.5 Oil pump motor (kw) 1.5 Length of conveyor (mm) 4000 Conveyor length (mm) 10000 Weight (t) 8.2 Note: capacity depends on the physical characteristics of the raw material, feeding method, feeding speed and production volume.

Year of construction: 2010, condition: good (used), USED CNC BIESSE BREMA EKO 902 INSERTING MACHINE TECHNICAL DETAILS: 3-AXIS (X-Y-Z) CNC MACHINING CENTER - Complete protection of the machining head and the work area on the machine. - Numerical control system with BIESSE Works software on Windows. - Vertical positioning of the panels, with 2 panel clamping jaws. - Panel feed (in the direction of the X-axis, on the lower support with rubber wheels), movement (in the X-axis) of the panel/board clamping jaws. PANEL DIMENSIONS (WORKING DIMENSIONS): - Minimum length: 160 mm / Maximum length: 3200 mm - Minimum width: 35 mm / Maximum width: 900 mm Kedpfjhknbrsx Akwsnb - Minimum thickness: 8 mm / Maximum thickness: 80 mm WORKING GROUPS: - No. 1 Vertical spindle (electro-spindle) ER32 (4.5 kW) with inverter (up to 18000 RPM) - No. 1 Circular saw (for grooves) diameter 120 mm (X-axis fixed) - No. 13 Independent vertical spindles for drilling (6 on the X-axis + 7 on the Y-axis) - No. 8 Independent horizontal spindles for drilling (3+3 on the X-axis and 1+1 on the Y-axis) - No. 1 Head group for hinge drilling - Total installed power: 20 kW AUTOMATIC DOWEL INSERTING GROUP ON BOTH SIDES WITH A PRESSURE PUMP FOR APPLYING THE GLUE.

Condition: used, functionality: fully functional, operating hours: 3,443 h, CLARK FORKLIFT LOAD CAPACITY: 50 Q. DIESEL NEW FORKS LENGTH: 1.80 MT. ORIGINAL FORKS LENGTH: 1.20 MT. (ALWAYS SUPPLIED) NEW SEAT WITH ELBOW REST MAX. LIFTING HEIGHT: 4.80 MT. Kedswtffxjpfx Akwsnb WORKING HOURS: 3,443 SERVICE CARRIED OUT IN MAY 2025 READY FOR DELIVERY

Condition: used, Year of construction: 2019, pressure 100 t Knedpfxsv R Hvno Akwjb chamfer lenght 3050 mm distance between columns 3250 mm Control Delem DA 66T stroke y-axis 300 mm dayligth 590 mm ajustment speed 75 mm/sec Bending Speed 20 mm/sec. backward speed 75 mm/s total power requirement 11 kW weight of the machine ca. 6,5 t dimensions of the machine ca. 4,3x2,0x2,9 m Demonstration machine Y1 / Y2 servo electronic Hydraulic stamp clamping (WILA Premium) Hydraulic die clamping (WILA Premium) including motorized crowning Back gauge system "DENER" X-; R-; Z1-; Z2- axis FIESSLER AKAS LC II M Typ 4 (manual adjustment)with box bending Rolleri quick-change tools segmented: Punch TPR200.28.R1, die TMR100.12.30 total 3.050 mm length

Condition: not inspected (used), Year of construction: 1995, functionality: fully functional, Lisec sealing robot for second seal type VL-1/25-2, for maximum unit size 3500 x 2500 mm, running direction right to left, consisting of following: RTV-11/25VE, inlet conveyor with width measuring device for glass and frame thickness Kjdpfx Aerrvkbjkwsnb VL-1/25-2, sealing robot for double glazing units DOS-1TH, 2k metering station for Thiokol The machine will be completed and tested in simulation mode prior delivery

Condition: ready for operation (used), Year of construction: 2007, Brand: Holz Her Model: PRO-MASTER 7123K Serial no: 527/0-705 5010147 Year of manufacture: 2007 - 2 HSK cones included + various drills for drill box - Comes with a number of suction cups and some spare parts Tech. info: 4-axis (c-axis) 6 beams Motor-controlled adjustment of beams Number of vertical boring bits: 24 Number of vertical boring bits in X axis: 10 Number of vertical boring bits in Y axis: 8 Centres distance: 32 mm Horizontal double spindle in X axis: 2 Horizontal double spindle in Y axis: 1 Centres distance: 64 mm Working area: 3200x1260 mm Maximum travel path: X= 3866 mm Y= 1650 mm Z= 325 mm Workpeice pass height for tool change spindle with HSK 63F tool connection: 345 mm Max. machining thickness/ feed-in height (rear stop): 175 mm Max. workpiece size for vertical bores: X=3730R/ 3460L mm Y=1570 mm Max. workpiece size for horizontal bores X: X=3450R/ 3370L mm Y= 1315 mm Max. workpiece size for horizontal bores Y: X=4760R/ 3300L mm Y= 1385 mm Max. workpiece size for edge milling, less cutter radius (tool 25 mmdiameter x 125 mm, HSK): X=3510R/ 3525L mm Y=1445 mm Z=280 mm Max. workpiece size for grooving in X (dim. centre grooving tool approx. 120 mm): X=3300R/ 3760L mm Y=1585 mm Max. workpiece size for grooving in Y (dim. centre grooving tool approx. 120 mm): X=3200R/3860L mm Y=1485 mm Max. travel speed X axis: 100 m/min Max. travel speed Y axis: 100 m/min Max. travel speed Z axis: 25 m/min Max. travel speed C axis: 60 m/min Motor power of boring unit: 3 kW Motor power of saw: 1,5 kW Knjdpfx Aorz Irrekweb Motor power of electro spindle unit with clamping system: 6 kW Speed electro spindle 1000-18000rpm Power: 22 kW, 50 Hz, 400 V, 3-phase Compressed air: operating pressure 6,0 bar permissible limit pressure 8,0 bar Air requirement: 300 l/min Extraction capacity: approx. 5300 m3/h Dust nozzle diameter: 250 mm Size: Length with control cabinet: 6420 mm Overall width: 3760 mm Height with extractor hood: 2475 mm Weight: 4200 kg Program Campus NC-HOPS Operating system Microsoft Windows Graphic variants system with HOP and CAD/CAM properties For the creation of parts variants with macro technology Program operation Windows-conform surface configuration and operator guidance Macro / variant programming Indication and simulation modes Export and import facility to the various branch programs Interaction possibilities with a variety of branch programs Stock no: 2002061BXA with reservation for incorrectly presented technical data

Condition: excellent (used), ELOPAK SHIKOKU ASEPTIC FILLING LINE Model S-PS80HA YOM 2008 Working hours - 9,000 hours. Line capacity for 3 streams - 8100 pcs./h, for two 7100 pcs./h for one 6000 pcs./h Carton format: 500ml, 750ml, 1000ml The line includes: Knedpfexdbwijx Akwsb - Elopak filler S-PS80HA for Pure Pak classic packaging material - 3 units of PURE-PACK PLA-S30 cap applicators for Pure-Twist 2U cap - WA-Flex-30 packer - Conveyor system. - Conveyor lubrication station. - Spare parts a total of 4,000 dollars.
