Panel Saw

HOLZMA HPP 380

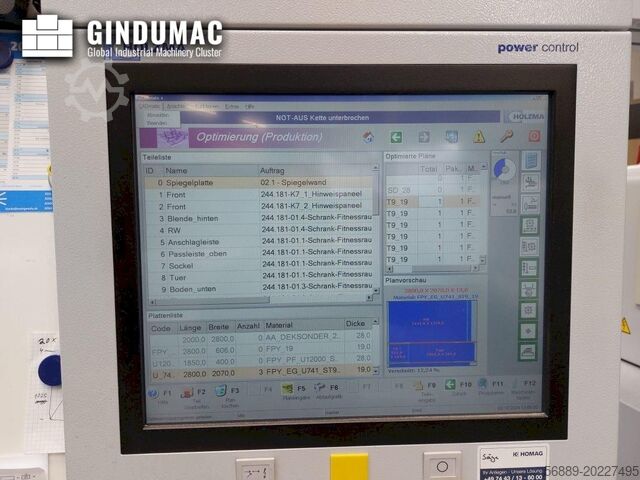

Condition: excellent (used), Year of construction: 2011, Machine Data Holzma HPP 380/43/43/R + Bargstedt TLF 210/10/05 Cutting length: 4300 mm Cutting width (program pusher travel): 4250 mm Roller rail (2-track element): 11 units Technical Specifications: Crodpfx Agoxivbasmsh Saw blade projection: 95 mm Main saw motor: 18 kW Scoring saw motor: 2.2 kW Operating voltage: 400 V (+10%/-5%) / 50 Hz Total connected load: 29 kW Power Control CADmatic 4.0 control with 17" flat display Grooving program, cut-out/and stress-relief cut program Labeling / labeling software / label printer PICA 108 Data interface for warehouse systems and optimization software Schnitt-Profit Professional Bargstedt Optimat TLF 210/10/05 Storage System Carrier length: 13.45 m Span approx. 12.5 m Rotary drive with 1* loading and 1* unloading station Maximum stack height in storage: 1700 mm Max. workpiece size: 4200 x 2070 mm Ex location - Immediately available - Inspection possible

Condition: excellent (used), operating hours: 565 h, functionality: fully functional, machine/vehicle number: 0-240-10-3388, incl. panel storage and loading system, Bargstedt, Type: OPTIMAT TLF210 /12 /12 Recorded operating hours: 565h Cutting length: 4300 mm Cutting width: 4250 mm (program pusher travel) Saw blade projection: 95 mm Crjdpfsw R Ur Uex Agmeh Main saw motor: 13.5 kW Scoring saw motor: 2.2 kW POWER CONCEPT ANGLE CUTTING PACKAGE GROOVE CUTTING PACKAGE AUTOMATIC EJECTION FENCE (pushes panel remnants from the rear machine table to the front over the cutting line) LABELING PACKAGE CONTROL: POWER CONTROL: CADmatic 4-Professional DATA CONNECTION TO STORAGE SYSTEMS

Condition: good (used), Year of construction: 2009, Used horizontal panel dividing saw Manufacturer: Holzma Model: Profi HPP 380/43/43/Plastic Year of manufacture: 2009 Plastic configuration Includes the following components: + Special gearbox for saw carriage (0.1–150 m/min) + Frequency control for 21.0 kW motor + Spray unit for main saw (minimum quantity lubrication) + Special 2-finger narrow part gripper + Optimized extraction in saw carriage and pressure beam + Cleaning bar in the chip channel + Adjustable light sensor for saw carriage with integrated air jet device + Pressure boost for air cushion table blower. Stepless adjustment via rotary control. Cutting length: 4300 mm Cutting width: 4300 mm Saw blade projection: 95 mm Saw carriage feed rate: 0.1–150 m/min Automatic pressure beam height control Automatic cutting height adjustment Adjustable pressure beam contact pressure Adjustable gripper (clamp) contact pressure Gripper (clamp) release Machine table (saw body) fully equipped with air nozzles Angle alignment device Main saw motor (frequency controlled): 21 kW Scoring saw motor: 2.2 kW Combi profile rail (double-track elements): 9 pcs Grippers (2-finger): 7 pcs Optional equipment Additional combi profile rails: 5 pcs Rollers, rubber-coated for sensitive materials 9 kerf closer bars (4300 mm) Narrow part grippers: 2 pcs Floating-mounted grippers: 8 pcs Credpfjxc E Txox Agmsh Labelling package includes Labeling with part graphics Labeling software Label printer Pica 108 Optimization software Material-dependent parameters Data transmission online & via USB port Synchronous cutting Multiple cutting Automatic pressure adjustment

Condition: used, machine/vehicle number: 005108, undefinedPosition 2: Horizontal Storage Systems HOLZMA-HPP 380/43/43 + TLF Crsdowuck Ispfx Agmsh

Condition: excellent (used), Year of construction: 2007, Panel Divider Saw Manufacturer: HOLZMA Type: PROFI HPP 380/43/43 Year of Manufacture: 2007 Dimensions: approx. 13,000 x 6,540 x 2,100 mm Features: - Total power: 20.0 kW - Can be combined with an automatic material feeder - Maximum cutting length: 4,300 mm - Maximum program slide travel: approx. 10,000 mm - Sawblade projection: 95 mm - Sawblade diameter: 380 mm - Main saw power: 13.5 kW - Automatic cutting height adjustment - Scoring unit or postforming unit - Scoring blade diameter: 180 mm - Scoring unit power: 2.2 kW - Saw carriage feed speed: 5 – 130 m/min - Saw carriage adjustment: Continuously adjustable - Program slide feed: 1-25 m/min - Angle clamping device - Number of collets: 7 - Collet opening width: 95 mm - Lifting device for raising the collets - Collet lifting height: 290 mm - Automatic labeling - Label printer - 90° turntable for max. 4,300 x 2,200 mm sheets - Schuler MDE software for user data acquisition and analysis - Pivoting control panel Cjdpsv N D E Rsfx Agmsrh The machine is still in operation and can be inspected. Available from the beginning of August 2025. Location: Sauerland

Condition: excellent (used), Year of construction: 2013, operating hours: 3,081 h, Cutting length 4300 mm Cutting width 4250 mm (program fence travel) Main saw motor 18 kW Scoring saw motor 2.2 kW THIN PANEL CUTTING PACKAGE Crodoxdt Hcepfx Agmoh LABELING PACKAGE POWER CONCEPT CONTROL: POWER CONTROL: CADmatic 4 – Professional DATA INTERFACE TO STORAGE SYSTEMS

Condition: good (used), Year of construction: 2008, Machine specifications Holzma HPP 380 + Bargstedt TLF 410 Cutting length: 4300 mm Cutting width (program slide travel): 4250 mm Roller rail (2-track element) 9 pieces Collets: 7 pieces, the first 3 pieces: 2-finger Air cushion table: 2160 x 650 mm: 3 pieces + 1* 2810 mm length Central fan: 1 piece with increased fan power 2 pieces additional alignment devices Technical specifications: Saw blade projection: 95 mm Saw carriage feed: forward 1-130 m/min, reverse constant 130 m/min Automatic cutting height adjustment; Angle clamping device, minimum clamping width: 0 mm; Max. pressure width over entire cutting length Main saw motor 18 kW Scoring saw motor 2.2 kW, VVSH unit - program-controlled vertically rising Operating voltage 400 V (+10%/-5%) / 50 Hz Electrical connected load for HS motor 18 kW: 24 kW Power Control CADmatic 4.0 control system with 17-inch flat screen display Grooving program, cut-out and stress relief program Labeling with part graphics / label program / PICA 104 label printer Laser alignment light Data connection for storage systems and optimization program Schnitt-Profit Professional Bargstedt Optimat TLF 410/10/05 area storage system Carriage beam length 24 m Csdpfjwktiaex Agmorh Span width 8 m 90° rotary drive with 1* loading and 1* unloading station Top of stack in storage: max. 2100 mm min. Workpiece size: 2000 x 800 mm Max. workpiece size: 4300 x 2200 mm Max. weight: 200 kg
