Used Holzma Panel Saw for sale (74)

Condition: used, Year of construction: 2005, Used machine Year of manufacture: 2005 Fence on the left side Cutting length: 4300 mm Cutting width: 4300 mm Saw blade overhang: 95 mm Motor: 13.5 kW Gksdpfoz Rrb Dex Afuoc Saw blade diameter, max.: 380 mm With scoring unit Feed rate, max.: 130 m/min With label printer With 7 clamping chucks With veneer trimming stops Control system: Holzma Cadmatic 4.0 professional Availability: approximately July 2027 Location: North Rhine-Westphalia

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, operating hours: 3,625 h, cutting width (max.): 4,300 mm, overall weight: 7,200 kg, cutting length (max.): 1,600 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. cutting length: 1,600 mm Gksdpfxoz Ni S Do Afusc Max. cutting width: 4,300 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 13,600 x 2,450 x 2,450 mm Weight: 7,200 kg Transport packages: 8 pcs. Operating hours: 3,625 h

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, cutting dimensions: 3800x3800mm cutting height: 95mm Gksdjzuk Swepfx Afusc beam feed rate with clamps: 90m/min cutting speed: up to 150m/min, steplessly adjustable main motor power: 13.5kW trimming motor power: 2.2kW blade diameter: 350mm 4 air tables extraction requirement: 3800m3/h external dimensions: 6500x7700mm 16255 hours

Year of construction: 2004, condition: used, Stacking platform for panel dividing saws Manufacturer: Holzma Gedpfxszu Am Tj Afuokc 2x Type: HAU A/B 25/8 2x Type: HAU A/B 25/12 Year of manufacture: 2004

Condition: excellent (used), Year of construction: 2011, HOLZMA PROFILINE HPP 380 Cutting Data Cutting length: 4,300 mm Cutting width (program pusher travel): 4,250 mm Saw blade projection: 95 mm Gkjdpfx Aex Nf E Rsfuec Combi and Clamping Jaw System Combi profile rail element, 2-track: 9 pieces Clamping jaws: 7 pieces Spacing: 75/275/475/1,050/1,850/2,650/3,450 mm Manual trimming stops on clamping jaws: 4 pieces (positions 75/475/1,050/2,650 mm) Air Cushion Tables and Extraction Air cushion table with roller element 2,160 x 650 mm: 4 pieces Central blower: 1 piece Air cushion table nozzle manifold: 70 x 70 mm Feed and Program Pusher Saw carriage feed forward: 1–130 m/min Saw carriage feed backward: constant 130 m/min Program pusher speed forward: 80 m/min Program pusher speed backward: 80 m/min

Condition: used, Year of construction: 2008, Panel dividing saw Manufacturer: Holzma Type: HPP 350/43/38 Year of manufacture: 2008 Technical data - Control system: CADmatic 4 - Optimization program: CAD-Plan 4 - Saw blade overhang: 80 mm - Saw carriage feed rate forward/backward: 1-150 m/min / 150 m/min - Feed rate of the program cut forward/backward: 90 m/min / 90 m/min - Main saw motor: 13.5 kW - Scoring saw motor: 2.2 kW - Working height: 920 mm - Main saw blade: 350 x 4.4 x 60 mm - Scoring saw blade: 180 x 4.4 - 5.4 x 45 mm - Cutting length: 4300 mm Gksdpfxezuy N Eo Afusc - Cutting width: 3700 mm - Label printer Pica 108 - Processing package for gypsum fiberboards - Annual maintenance and inspection by Homag - New PC in 2021 (Win10) and updated machine control software and CadLink Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2008, cutting width (max.): 2,200 mm, controller model: POWERCONTROL, cutting length (max.): 4,300 mm, Equipment: scorer, TECHNICAL DETAILS Maximum panel width: 2,200 mm Maximum panel length: 4,300 mm Maximum main saw blade overhang: 125 mm Maximum feed rate: 80 m/min Saw unit Maximum tool diameter, main saw: 450 mm Gkjdpfx Afoz Eklvsuoc Motor power, main saw: 13.5 kW Maximum tool diameter, scoring saw: 180 mm Motor power, scoring saw: 2.2 kW MACHINE DETAILS Control system: POWERCONTROL Lift table, number of levels: 4 Clamping system, clamping jaws: 10 EQUIPMENT Lift table Saw unit Scoring unit The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 5552

Condition: used, Year of construction: 2004, machine/vehicle number: 0-240-14-3077, functionality: fully functional, power: 18 kW (24.47 HP), input voltage: 400 V, input current: 52 A, input frequency: 50 Hz, type of input current: AC, cutting height (max.): 125 mm, cutting width (max.): 4,300 mm, saw blade diameter: 450 mm, height adjustment type: electric, saw blade bore: 60 mm, actuation type: electric, rotational speed (max.): 4,500 rpm, rotational speed (min.): 3,800 rpm, total length: 10,216 mm, total width: 7,470 mm, total height: 2,200 mm, overall weight: 15,000 kg, table height: 1,020 mm, Equipment: CE marking, saw blade guard, scorer, For sale is a professional, industrial panel dividing saw from the premium manufacturer HOLZMA, from the high-performance 510 series. The system is of German manufacture ("Made in Germany") and is specifically designed for tear-free and dimensionally accurate cutting of large quantities of panels in an industrial multi-shift operation. As an HPL version, this system features fully automatic material feeding from the rear via a heavy-duty lifting platform, which minimizes cycle times and maximizes operator ergonomics. Technical data according to specification (HPL 510/43/22/L/D/X) Manufacturer: HOLZMA Maschinenbau GmbH Exact model designation: HPL 510 / 43 / 22 / L / D / X Cutting length (code 43): max. 4,300 mm Table width (code 22): max. 2,200 mm Saw blade overhang: 125 mm Main saw blade diameter: max. 450 mm Working height (table height): approx. 1,020 mm (adjustable via leveling feet) Overall height: approx. 2,100 – 2,200 mm (depending on terminal configuration) Control & Clamping System Machine control: Equipped with the proven, IPC-based high-performance control system HOLZMA CADmatic 4. This offers intuitive operation via graphic displays, plain-text error diagnoses, and an optimized cutting sequence visualization. Material clamps: The program slider is equipped as standard with 9 robust, two-finger HOLZMA clamps for gentle and highly precise package fixing. Electrical connection values & energy Operating voltage: 400 V (three-phase / three-phase AC) Mains type: 3~ + N Frequency: 50 Hz Rated current: 52 A Required fuse rating: 63 A, slow-blow Control voltage: 24 V Equipment and functional features Automatic cutting height control: The saw carriage automatically adjusts the overhang of the main saw motor (13.5 kW) and the scoring unit (2.2 kW) to the measured package height. Intelligent pressure beam (pneumatic): Variable opening height for a significant reduction in idle times between cuts. Heavy-duty lifting table feeding ("L"): Robust 4-column feeding system at the rear, designed for smooth handling of heavy panel stacks. Equipment packages ("D" & "X"): Extended machine equipment for optimized material flow, precise package stop, and high-performance cutting cycles. Gjdjzilz Njpfx Afuskc Important logistics and sales information Condition & Packaging: The machine has already been professionally dismantled and is completely packed, ready for loading. The professional transport securing of all sensitive axes, linear guides, and control components has been carried out in accordance with the manufacturer's specifications. Cost assumption: The loading and transport costs are not included in the purchase price and must be borne entirely by the buyer. Recommendations for local crane and transport services can be requested from us. We will assist with the collection as much as possible.

Condition: used, Year of construction: 2011, Panel dividing saw Manufacturer: Holzma Type: HPL 380 Year of manufacture: 2011 Technical data Cutting length: 4,300 mm Cutting/lifting table width: 2,200 mm Max. panel size: approx. 4,300 - 2,200 mm Min. panel thickness: 9.5 mm Saw blade overhang: 95 mm Godpfsz Akcxjx Afuokc Max. saw blade diameter: 380 mm Main saw motor: 13.5 kW Scoring motor: 2.2 kW Scorer Saw carriage feed rate: 1,150 m/min Program slider: up to 90 m/min Clamping jaws: 7 pieces Lifting table payload: up to approx. 4,000 kg Control system: HOLZMA CADMATIC 4.0 Total connection: approx. 28.7 kW Working height: approx. 920 mm Lifting table: 4-column lifting table Loading: from the rear Air cushion tables: depending on the configuration CE Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: good (used), Year of construction: 2003, Maximum cutting Width : 4300 mm Maximum cutting Lenght : 4300 mm Maximum cutting hight : 95 mm Main engine : 13,5 Kw Scoring unit : 2,2 Kw Saw carridge feed rate : Variable 1 - 150 m/min Pusher feed rate : up to 90 m/min Control system : CADmatic 4.0 4 x air table in front of the machine Machine is dismantled and ready to load Gkodsz Hx Egjpfx Afuec

Condition: ready for operation (used), Year of construction: 2008, Holzma automatic panel saw Gkjdpoz Iliuofx Afujc PROFI HPP 510/56/56/P Year: 2008 Technical data Positioning accuracy +/- 0.1 mm 5 air cushion tables, 2,810 x 650 mm 1 fan, adjustable pressure Cutting length: 5,600 mm Cutting width (pusher travel): 5,600 mm 11 combination profile rails, dual-track 9 clamps, two-finger type Max. cutting height: 125 mm Saw carriage feed (forward): 0.1 – 150 m/min Saw carriage feed (return): constant 150 m/min Pusher feed (forward/return): max. 90 m/min 11 combination profile rails, dual-track Max. forward speed of 25 m/min is mandatory within the EU Automatic pressure beam height control Main saw motor (frequency-controlled): 21 kW Speed: 1,700 – 4,200 rpm Scoring saw motor: 2.2 kW Operating voltage: 400 V / 50 Hz (+10 / -5%) Connected load: 30 kW Working height: 1,020 mm Main saw blade: 450 x 4.8 x 60 mm Scoring saw blade: 180 x 4.8 – 5.8 x 45 mm Compressed air: 6 bar Air consumption: 210 NL/min (approx., at extraction port) 30 – 32 m/s Negative pressure: 1,200 Pa Extraction volume: 5,800 m³/h Chip duct connection: 1 x 200 mm Pressure beam connection: 2 x 150 mm Quality standards: CE tested, GS tested, FPH dust-tested. Stock no.: 2003040BX

Condition: used, Year of construction: 2000, - Cutting length: 3300 mm - Saw blade overhang: 125 mm - Main saw: 18 kW - Scoring saw: 2.2 kW Panel dividing saw Manufacturer: Holzma Type: HPL 23/X/33/22/30/L Year of manufacture: 2000 Technical specifications - Cutting length: 3300 mm Godpfx Afezuy A Soujkc - 3 air cushion tables - Lifting table: 3300 x 2200 mm - Saw blade overhang: 125 mm - Main saw: 18 kW - Scoring saw: 2.2 kW - CADMATIC control system - CADMATIC control system Note: The technical data and descriptions are copies of the original order confirmation. The information provided is for informational purposes only and is not binding.

Condition: excellent (used), HOLZMA HPP 530 PROFI LINE panel saw, in very good condition, with a cutting length of up to 3690. Gksdpjy Uk D Asfx Afuoc

Condition: excellent (used), Year of construction: 2003, machine/vehicle number: 0-241-06-5232, functionality: fully functional, operating hours: 12,608 h, cutting height (max.): 125 mm, cutting width (max.): 2,200 mm, cutting length (max.): 4,300 mm, Panel Saw Holzma HKL11/43/22 Max. cutting width: 4300 mm Gjdpoxfvp Asfx Afuekc Max. cutting length: 2200 mm Max. cutting height: 125 mm The saw is in continuous operation, so viewing during operation is possible. The machine will be available from 02/03/2026.

Condition: excellent (used), Year of construction: 2011, Used horizontal panel saw Manufacturer: Holzma Model: PROFI HPL 430/43/22 Year of manufacture: 2011 Cutting length: 4300 mm Cutting width (program pusher travel): 4250 mm Roller rail (double track): 9 pieces Clamps: 7 pieces, first 3 are 2-fingered Air cushion table, width 650 mm: 4 pieces, each 2160 mm long Central blower: 1 unit with increased air output - 3 angled lift clamps (2-fingered) Gjdjymx S Dopfx Afuskc - 1 angled lift clamp (1-fingered) - 1st air cushion table: 800 mm wide - Speed package: -> Saw carriage feed: 1 – 150 m/min Technical specifications: Blade projection: 95 mm Saw carriage feed: forwards 25 m/min, reverse constant 90 m/min Automatic cutting height adjustment Angle pressure device, min. pressure width 0 mm; max. pressure width full cutting length Main saw motor: 18 kW, frequency controlled Scorer saw motor: 2.2 kW Operating voltage: 400 V (+10%/-5%) / 50 Hz Electrical connection value with HS motor 18 kW: 28 kW Power Control CADmatic 4.0 control unit with 17" flat display Labeling with part graphics / label software / label printer PICA 104

Condition: used, Year of construction: 2011, Cross-cut and rip saw Manufacturer: HOLZMA Type: HQP 11/16/56/LX Year of manufacture: 2011 Technical data - Combined saw unit with cross-cut saw unit, cutting length 1,600 mm, and rip saw, cutting length 5,600 mm - additional pressure cylinder - postforming unit Gkjdpfx Aozuyzzjfuoc - waste flap 1600 mm - clamping device for cross-cut saw, 2-finger - automatic ejector guide - roller conveyor designed for 1,300 mm width - second drive in the roller conveyor - 1 m shaking chute 550 mm (driven) - mobile CADMATIC control panel - cooling unit for individual saw - with vacuum loading system and outfeed table Note: The technical data and descriptions are a copy of the original order confirmation. The data is for informational purposes only and is not binding.

Condition: good (used), Year of construction: 2001, Max. panel size: 5600 x 2700 mm Saw motor: 18 kW Installation dimensions: 8539 x 13190 mm Max. panel thickness: 40 mm Max. stroke thickness: 110 mm Gsdpfxjzzpg He Afuokc

Condition: excellent (used), Year of construction: 2003, I sell the panel beam saw HOLZMA HPL11/43/22. Year 2003. Cutting size 4300x2200mm + back loading table. Cutting height 125mm. Gsdpfx Aezkb T Djfuekc Total area covered W.7060mm x D.9490mm 7 pcs. gripper with pneumatic regulation Side alignment bottom pad with pneumatic stroke. CE conformity and optimising software included. Very good condition. Available immediately.

Condition: used, Year of construction: 2024, machine/vehicle number: 0-341-87-0182, operating hours: 1,354 h, total length: 6,080 mm, total width: 4,950 mm, total height: 1,940 mm, Used panel saw, available for inspection while in operation. ▪️Labeling software ▪️Manual label printer ▪️Stress-free cutting/ripping program (cutting cycles, stress elimination, reduced waste) ▪️tapio ready Gksdpfxjzu Nyts Afujc Transportation is the responsibility of the buyer.

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, cutting width (max.): 4,300 mm, section length (max.): 1,600 mm, TECHNICAL DETAILS Max. cutting length: 1,600 mm Min. cutting width: 4,300 mm MACHINE DETAILS Number of transport packages: 8 pcs. Gkodpfxoyuya Es Afujc Year of manufacture: 2016

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, operating hours: 11,900 h, Cutting dimensions: 4300x4300 mm Blade diameter: 350 mm Label printer Total power: 20.9 kW Maximum cutting speed – 130 m/min, steplessly adjustable Maximum pusher speed – 90 m/min Maximum cutting height – 80 mm Four air tables Automatic scorer adjustment Year of manufacture – 2014 Operating hours – 11,900 Godpszz N Nbofx Afuekc

Condition: excellent (used), Year of construction: 2021, Angular sawing plant Gjdpjx Aqdcsfx Afuekc Numerical Control PowerControl V2.1 - CADmatic 5 (Tapio ready) No. 1 Rollers table for pre-loading (useful mm 2200 x 4500 approx) Lifting table (mm) 4300 x 2200 1st Rear-pusher, with No. 4 clamps/grippers 1st Panel Saw - Max cutting width mm 4300 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 28) Adjustable speed of the saw carriage (m/min) 1 - 150 m/min 2nd Rear-pusher, with No. 8 clamps/grippers 2nd Panel Saw - Max cutting width mm 2200 Max blade projection (mm) 125 Scoring Unit (max. diameter saw / power) mm 180 (Kw 2,2) Main Sawing Unit (max. diameter saw / power) mm 450 (Kw 28) Adjustable speed of the saw carriage (m/min) 1 - 150 m/min No. 2 Front supporting tables with Air blowing system (2 x mm 800 x 2810) Total installed power A 102 OPTION: No. 1 Waste grinder

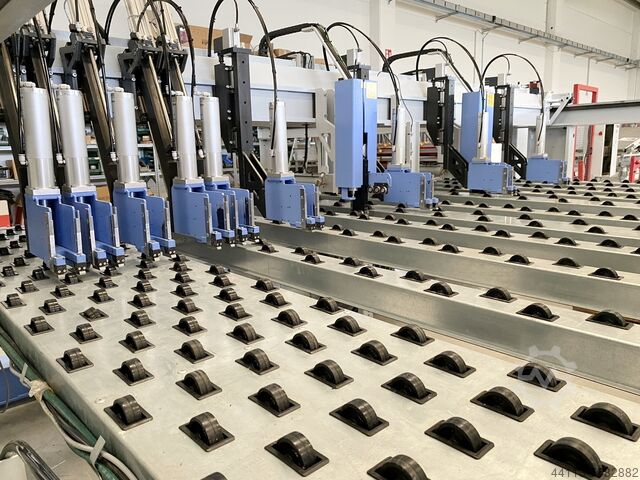

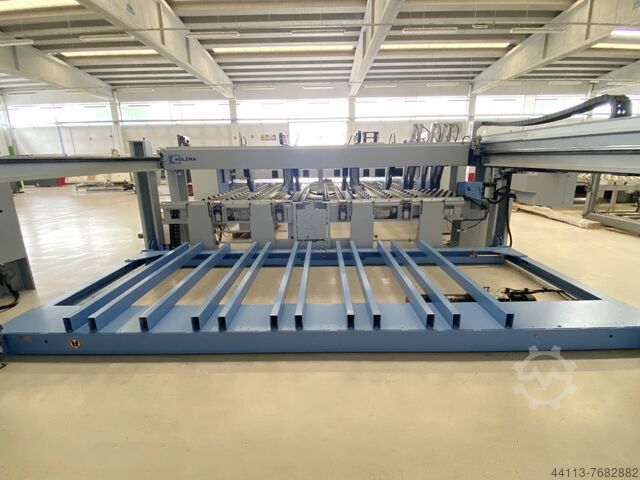

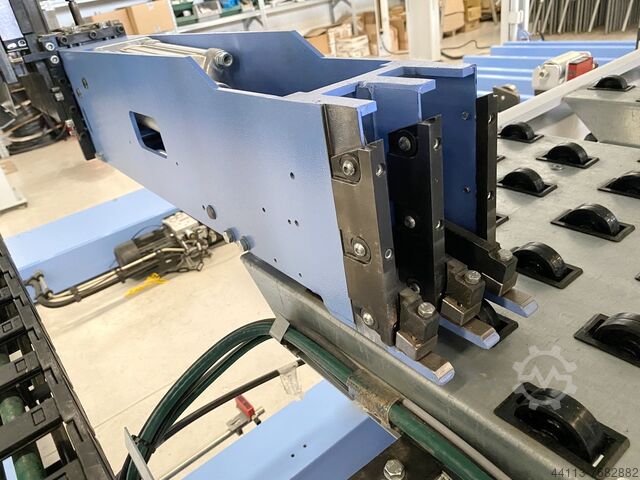

Condition: excellent (used), Panel Beam Saw - With rear lifting table Numerical Control POWER CONTROL V2.1 (Power TOUCH) Software CADmatic 5 (TAPIO READY) Gedpfoz Erw Hex Afujkc Lifting scissor table (mm) 3800 x 2200 Rear pushers (N.) 1 with clamps / grippers (7 + 2) Max. cutting width (mm) 3800 - Useful stroke of the pushing system (mm) 3800 Max blade projection (mm) 125 Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2 (ca.) Main Sawing Unit (max saw diameter / power) mm 450 / Kw 28 Adjustable speed of the saw carriage (m/min) 1 - 150 Front supporting tables with Air blowing system (N.) 3 (2 x 2160mm x 800mm + 1 x 2810mm x 800mm) Total power (Kw) 34

Condition: used, Year of construction: 1991, Strip cutting system Strip cutting system consisting of: Alphamatic vacuum loading system with 4 roller conveyors Feed system to the crosscut saw Crosscut saw with vacuum workpiece clamping Further transport to the ripsaw Ripsaw Manufacturer: Holzma Type: HPP81-3200 Year of manufacture: 1991 Technical data Gedpfjzuy Nrex Afuekc - Modified in 2019 Extraction conveyor belt Longitudinal roller conveyor with longitudinal measuring system Automatic labeling system REA JET Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2001, functionality: fully functional, power: 13.5 kW (18.35 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, cutting height (max.): 125 mm, cutting width (max.): 3,200 mm, saw blade diameter: 450 mm, Equipment: CE marking, scorer, We are offering this used Holzma HPP 11/32 panel saw, year of manufacture 2001. Manufacturer: Holzma Model: HPP 11/32 Year of manufacture: 2001 The machine is in perfect working condition. Complies with CE safety standards. Automatic panel saw for chip-free and precise cutting of coated and uncoated boards made from wood-based materials and those that can be processed like wood-based panels. Rear machine table equipped with the appropriate number of combi-profile rails with rollers for easy and gentle handling of panels. Machine table features extensive, abrasion-resistant table supports, which are recessed at the clamping jaw positions. This ensures lasting table stability and consistent cutting quality. Saw blade feed direction: from left to right against the square fence. Technical specifications: Main saw motor: 13.5 kW Scoring saw motor: 2.2 kW Max. clamping jaw opening: 130 mm Saw blade diameter: 450 mm Saw blade projection: 125 mm Saw carriage feed rate, forward: 5–100 m/min Godpfxeyxqigo Afuekc Return feed rate: constant 100 m/min Program carriage feed speed, forward/return: max. 80 m/min Compressed air: 6 bar Operating voltage: 400 V / 50 Hz Minimum extraction speed at extraction nozzle: approx. 28 m/sec Chip extraction connection: 1 x 200 mm Pressure beam extraction connection: 1 x 160 mm Minimum operating temperature: +5°C Maximum operating temperature: +35°C Cutting length: 3,200 mm Cutting width: 3,200 mm Dismantling and collection to be organized by buyer. Location for collection: A-8265 Kroisbach an der Feistritz If you have any questions or require further information, please feel free to send us a message or call us.
