Edge banding machine

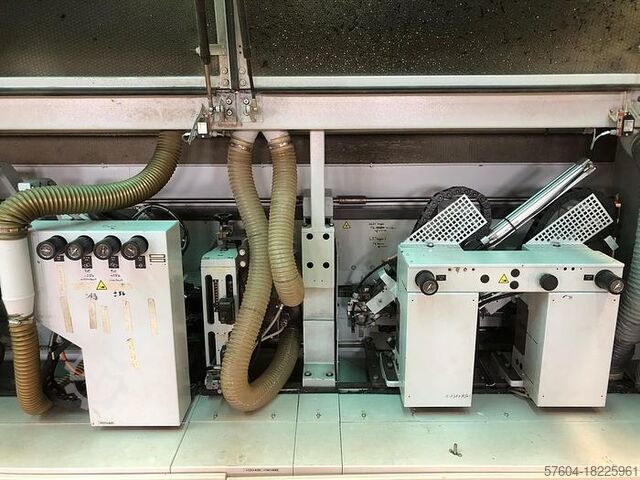

HOMAG KAL 310

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, feed rate X-axis: 25 m/min, edge thickness (max.): 3 mm, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Minimum edge thickness: 0.3 mm Maximum edge thickness: 3 mm Maximum feed rate: 25 m/min MACHINE DETAILS Edge Processing Unit 1 Unit: End Trimming Model: WK13 Number of motors: 2 Motor power: 0.4 kW Max. speed: 12,000 rpm Edge Processing Unit 2 Unit: Top Milling Number of motors: 2 Motor power: 0.55 kW Max. speed: 12,000 rpm Edge Processing Unit 3 Unit: Multifunction Model: FK13 Number of motors: 2 automatic tool change with NC positioning Motor power: 0.4 kW Max. speed: 12,000 rpm Edge Processing Unit 4 Unit: Top Router Model: UF11 Number of motors: 1 Motor power: 4 kW Max. speed: 9,000 rpm Edge Processing Unit 5 Unit: Edge Scraper Model: MN21 with NC positioning Edge Processing Unit 6 Unit: Glue Scraper Model: FA11 Edge Processing Unit 7 Unit: Brush Number of motors: 2 Motor power: 0.25 kW Edge Processing Unit 8 Unit: Brush Number of motors: 2 Motor power: 0.25 kW Total installed power: 35 kW Kjdpfx Agsxw T H Ne Iedw EQUIPMENT Spraying unit Machine programming software PowerControl PC22 CE marking

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, Single-sided edge banding machine Manufacturer: Brandt Model: KDF 660 Year of manufacture: 2005 Kjdpfx Asxl Ufveg Ijdw Max. edge thickness: approx. 12 mm Max. workpiece thickness: 60 mm Max. coil material thickness: 3 mm Equipped with: - Pre-milling unit - Coil magazine - Glue application unit - End trimming unit - Top/bottom flush and radius milling - Top/bottom radius milling with front/rear edge copying - Radius scraper - Buffing station Feed speed max. approx. 16 m/min. Connection: 400 V, 50 Hz, 3 Ph Total connected load: approx. 15 kW

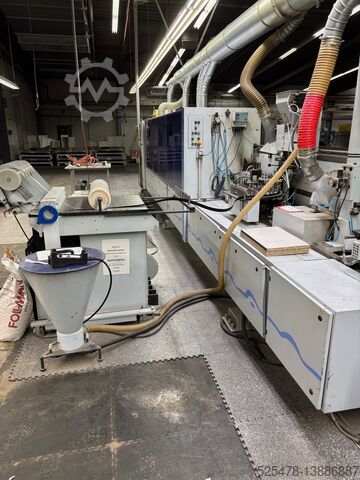

Condition: excellent (used), Year of construction: 2014, machine/vehicle number: 0-600-44-2301, HOMAG - Profi KAL310/7/A3 Comprising: - Feeding table Profi TBL100/20/06 (HOMAG, year 2014) Kjdpfxsqi Hqio Ag Iodw - Profile KAL310/7/A3 (HOMAG, year 2014) The KAL is suitable for processing coated wood-based materials: - With melamine edges 0.3-0.4 mm - With ABS and PP edges 1.0-2.0 mm (tools available: R 1.0, 1.5, 2.0) The machine is additionally equipped with a grooving unit for vertical and horizontal grooving and rebating. If interested, the complete order confirmation can be provided. The machine must be dismantled and loaded by the purchaser.

Condition: ready for operation (used), Year of construction: 2007, General Data Measurements depth 7755 mm Kodjxq Hutjpfx Ag Isdw This HOMAG Optimat KAL 310 was manufactured in 2007. It features a left-hand version edgebander with a maximum workpiece thickness of 60 mm and a feed speed of up to 24 m/min. Equipped with a PU edge gluing system and PowerControl PC 22 unit, it spans 7755 mm in length and handles edge thickness up to 3 mm. Consider the opportunity to buy this HOMAG Optimat KAL 310 edgebander. Contact us for more information. Application Types Edge Banding

Condition: used, Year of construction: 2008, total length: 7,500 mm, total height: 1,800 mm, total width: 970 mm, Weight: 5.500 kg - Year: 2008 - Documentation available: No - CE marking present: Yes - Serial number: - Number of units [pcs]: 8 - Voltage [V]: 400 - Current consumption [A]: 43 - Fuse [A]: 50 - Transport dimensions: 7500mm x 970mm x 1800mm (l x w x h) - Transport weight [kg]: 5500kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Ksdpfsxaklusx Ag Iedw Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2008, Used machine Year of manufacture: 2008 Condition: The machine was operated in Germany and regularly maintained (last service by Homag in 11/2024) Features and technical data: - Workpiece thickness min.: 12 mm - Workpiece thickness max.: 60 mm - Workpiece min. (L×W): 240 × 55 mm (at 22 mm thickness) / 100 mm (at 60 mm thickness) - Edge thickness min.: 0.3 mm (coil material) / 0.4 mm (strip material) - Edge thickness max.: 3 mm (coil material) / 20 mm (strip material) - Feed speed: steplessly adjustable 18–25 m/min (frequency-controlled) Ksdowx Aaqspfx Ag Isdw - Gluing system: EVA hot-melt adhesive - Glue application (tank / cartridge / nozzle): Melting unit with granulate hopper - Glue volume / cartridge size: Granulate hopper, melting capacity 18–35 kg/h, level-controlled - Heating time: approx. 8–10 min - Edge magazine (positions): 2 coils (automatic coil change) - Automatic edge change: yes (automatic via PC22, can be switched manually) - Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, pneumatically adjustable - Pressure section: 1 pre-press roller Ø 150 mm + 6 post-press rollers Ø 70 mm, automatic adjustment - End trimming: HL84 trimming unit, 2 × 0.8 kW, pneumatically adjustable (bevel / straight) - Flush milling: via pre-milling unit, pneumatically adjustable - Radius milling: FK13 profile milling unit, automatic 8-position tool changer (R = 2 mm) - Bevel / profile milling: yes, via FK13, pneumatically adjustable - Scraper: integrated in multi-finishing unit MN21 - Polishing: buffing unit in FA11 finishing unit - Jointing unit: KAL310/A20/S2 jointing milling unit, 2 × 3 kW - Workpiece pre-heating: available - Release agent spray device: top / bottom, type 2929 (F.01) - Extraction nozzles: multiple Ø 100 mm (individual extraction per unit) - Control system: power control PC22 (industrial PC, woodCommander running Win XP embedded) - Operating voltage: 400 V, 50 / 60 Hz - CE / standards: CE-compliant per EU directive 98/37/EC Dimensions / required floor space: approx. 8,000 × 1,400 × 1,600 mm Weight: approx. 3,000 kg Please note: The return conveyor shown in the pictures is not included in the scope of delivery! Availability: short-term Location: Lithuania

Condition: good (used), Year of construction: 2012, functionality: fully functional, Line of two Homag edgebanders KAL 310/09/A20 and 330/09/A20/WZ 90KW with return system. Machine in excellent condition. Can be inspected in department 14. Dismantling, loading, and transport at the buyer's expense. Kdjdpow A R R Esfx Ag Ijw

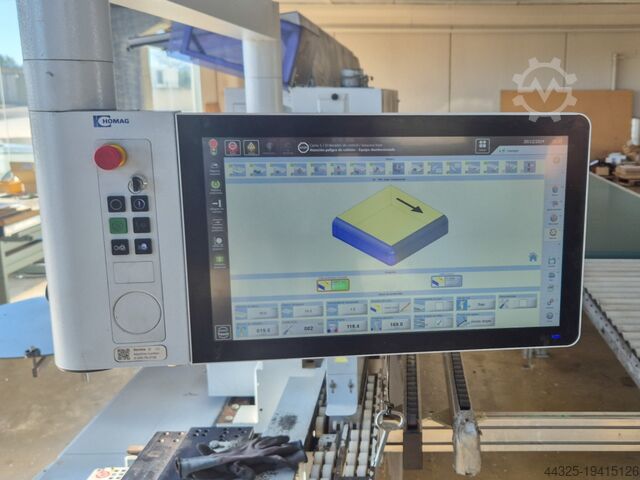

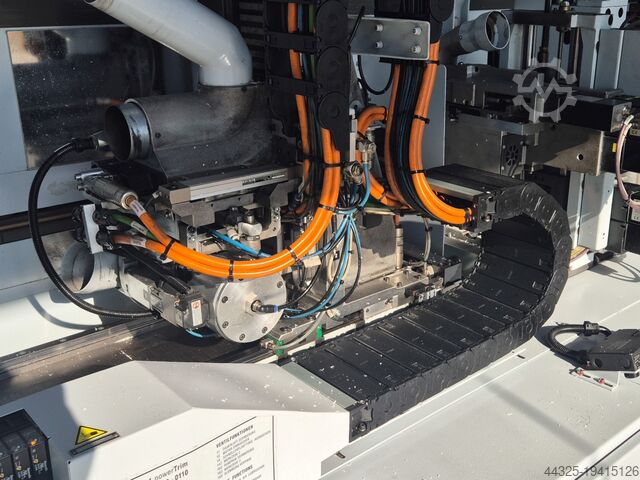

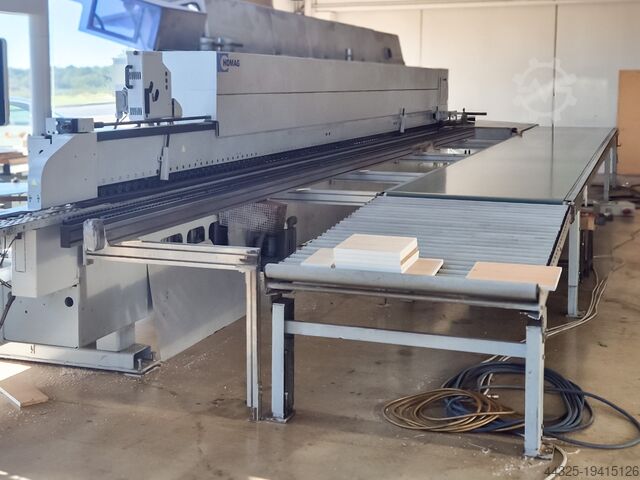

Condition: used, machine/vehicle number: 007227, Position 1: Single Edgebanders HOMAG + LIGMATECH-KAL 310 + ZHR 05 Kedpfx Agswuuc As Iedw Position 2: Panel Return Systems HOMAG + LIGMATECH-KAL 310 + ZHR 05

Condition: used, Power Control Pc 22 Panel height 60 mm Solid wood mm 20 Pvc / Abs mm 3 Feed speed up to mt / min 24 Working height electronically adjustable by C.N. Motorized rubber belt with higher pressure Panel support guide Side roller conveyor with idle wheels for panel support Rectifier group with two motors Lamps to heat the edge of the panel 2-position reel holder magazine with automatic edge change from C.N. Gluing unit for EVA hot melt glue with pre-melter and glue pot Edge pressure group on straight profiles with electronically adjustable pressure rollers by C.N. End trimming unit with 2 motors with automatic inclination adjustment Overlapping trimming unit with 2 motors Rounding unit FK 11 with 2 multifunction motors (gleaner + rounder) with control adjustment numeric automatically Edge scraper group Glue scraper group Brush group Ksdpfxevph Hls Ag Isdw

Condition: ready for operation (used), Year of construction: 2010, This HOMAG KAL 310/7/A3 was manufactured in 2010. A used single-sided edge banding machine featuring a 28-position ISAS edge magazine, PU gluing unit, and Boomerang return system. It includes a joint milling unit with two motors and a PU 34 gluing system with a capacity up to 6 kg/h. Ideal for precise edge banding applications. Contact us for more information about this machine. Application Types Kdjdpfx Asxn Uwqsg Isw Edge Banding

Condition: used, Power Control Pc 22 Panel height 60 mm Solid wood mm 20 Pvc / Abs mm 3 Feed speed up to mt / min 24 Working height electronically adjustable by C.N. Motorized rubber belt with higher pressure Panel support guide Side roller conveyor with idle wheels for panel support Kjdpfx Asgiyn Isg Iedw Grinding group Lamps to heat the edge of the panel 6-position reel holder magazine with automatic edge change from C.N. Gluing unit for EVA hot melt glue with pre-melter and glue pot Edge pressure group on straight profiles with electronically adjustable pressure rollers by C.N. End trimming unit with 2 motors with automatic inclination adjustment Overlapping trimming unit with 2 motors Gluing unit with 2 tilting motors electronically adjustable by C.N. Multifunction 4-motor rounding unit (gleaner + rounder) with numerical control adjustment in automatic Free space for the possible insertion of another work group Edge scraper group Oscillating brush group
