Machining center

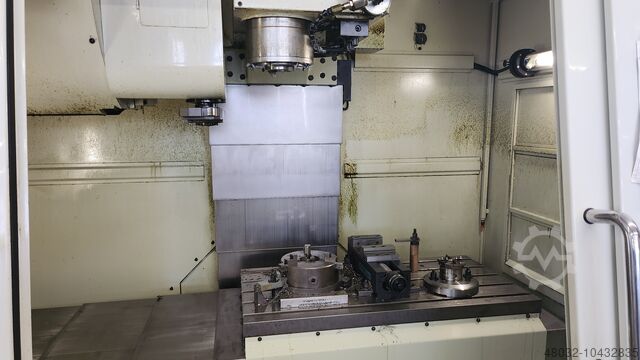

HURCO VMX 30

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, controller model: WinMax, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Kedpfx Aksz Ahx Dowsnb Travel range, X-axis: 762 mm Travel range, Y-axis: 508 mm Travel range, Z-axis: 610 mm Spindle speed: 12,000 rpm Table area: 1,020 × 510 mm Table load capacity: 1,500 kg MACHINE DETAILS Control system: WinMax EQUIPMENT Internal cooling system (ICS) Fourth axis

Condition: used, Swing Diameter Over Bed: 400 mm Swing Diameter Over Longitudinal Slide: 350 mm Distance Between Centers: 610 mm Travel Limit: 240 mm Suggested Workpiece Diameter: 200 mm Max Longitudinal Travel: 560 mm Machining Length: 550 mm Max Cross Travel: 40 mm + 120 mm Height of Spindle Axis from Floor: 1135 mm Kedpfjxg Nd Aox Akwonb Programmable Spindle Speed Range: 40 to 4000 rpm Spindle Bore Diameter: 52 mm Spindle Interior Cone: MK 6 Slide/Bed Slope: 45/45° Turret Positions: 12 Tools Main Motor: 15 kW Control: Fanuc 6T Equipped with: See photos

Condition: ready for operation (used), Year of construction: 2009, operating hours: 12,567 h, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, table load: 500 kg, overall weight: 4,500 kg, spindle speed (max.): 8,000 rpm, spindle motor power: 11,000 W, number of slots in tool magazine: 24, number of axes: 5, This 5-axis Hurco VMX 30T was manufactured in 2009. It features an X/Y/Z travel of 762 × 508 × 610 mm and a spindle power of 11 kW, with a maximum load capacity of 500 kg. The machine is equipped with a 24-tool magazine and operates at a spindle speed of 8000 rpm. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 30T vertical machining centre we have for sale. Contact us for further details. • Operating hours: 12,567 h Kedpjy Naacsfx Akwjnb • The machine is equipped with a 30-tool magazine, and it also includes a chip conveyor and tool cooling system. Technical Specification Taper Size SK 40

Condition: used, Year of construction: 2007, x-travel 760 mm y-travel 510 mm z-travel 610 mm 1.020 x 510 mm WINMAX 12.000 U/min 13,5 kW 24 St. SK 40 | | 20 bar 35/35/30 m/min 5,0 t used vertical machinig centre with 4th axis - 4th axis - Dual toolchanger Knodpfx Ajznnc Tokwjb - internal coolant with filter - spindle oil cooling - electric hand wheel

Condition: good (used), Year of construction: 2003, functionality: fully functional, input voltage: 400 V, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, workpiece weight (max.): 4,000 kg, number of slots in tool magazine: 120, controller manufacturer: Heidenhain, total height: 2,800 mm, total length: 6,000 mm, total width: 6,000 mm, overall weight: 12,000 kg, table length: 630 mm, table width: 500 mm, controller model: iTNC530, nominal power (apparent): 61 kVA, rapid traverse Z-axis: 50 m/min, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, spindle speed (max.): 18,000 rpm, spindle speed (min.): 20 rpm, table load: 4,000 kg, operating hours of spindle: 19,500 h, Equipment: chip conveyor, rotational speed infinitely variable, DMG DMC 60T RS3 with Heidenhain iTNC 530, no maintenance backlog, in good condition. Ideal machine for unmanned operation, geometrically within new-machine tolerance. The machine can be inspected and measured on site by arrangement. Machine Data: Machine description: Machining centre with pallet storage Manufacturer: DMG MORI Model: DMC 60T RS3 Year of manufacture: 2005 Condition: good Equipment: - Direct linear measurement in X/Y/Z (glass scales) - Chip conveyor - High-pressure coolant system 40 bar (IKZ) - Extraction unit - NC rotary table - Tool magazine, 120 positions - Heidenhain measuring probe - Rotating viewing window - High-pressure coolant 40 bar - Signal lamp - Chip flushing - Operating mode 4 Technical Data: Number of axes: 5-axis Control: Heidenhain iTNC 530 NC rotary table clamping surface: 500 mm x 630 mm Weight: approx. 9,000 kg Chip conveyor: Yes Coolant system: Yes Internal coolant supply: Yes Travels and axes: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm C-axis: 360° B-axis: -90°/+12° Feed rates and rapid traverse: X-axis: 50 m/min Y-axis: 50 m/min Z-axis: 50 m/min B-axis: - C-axis: 30 m/min Motor spindle: Max. speed: 18,000 rpm Spindle taper: HSK A63 Tool changer: Automatic tool changer: Yes Number of magazine positions: 120 Pallet changer: Kjderxrklopfx Akwsnb 5 pallets

Condition: excellent (used), Year of construction: 2011, Winmax control Travel paths X/Y/Z: 760 x 510 x 610 mm Table clamping surface: 1020 x 510 mm Spindle speed: 12,000 min-1 Tool magazine for 24 tools, SK 40 Kodozwhk Nepfx Akwenb Through-spindle coolant 20 bar

Year of construction: 2001, condition: ready for operation (used), A CNC 3-axis milling machine Hurco is available. Travel X/Y/Z: 760mm/510mm/610mm, table dimensions X/Y: 1020mm/510mm, max. table load: 1360kg, speed: 10000rpm, tool stations: 18, tool holder: SK40, rapid traverse: 30m/min. Machine dimensions X/Y/Z: approx. 2700mm/2200mm/2400mm, weight: approx. 4000kg, control: Hurco Ultimax, spindle hours: approx. 10500h. Documentation available. An on-site inspection is possible. Knjdpow Dfg Dsfx Akwsb

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Ksdpfx Akotk It Sswonb Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: good (used), Year of construction: 2004, operating hours: 16,651 h, functionality: fully functional, machine/vehicle number: M342-06204054DFA, travel distance X-axis: 760 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, feed length X-axis: 760 mm, feed length Y-axis: 510 mm, feed length Z-axis: 610 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 20 m/min, nominal power (apparent): 18 kVA, torque: 236 Nm, controller manufacturer: Hurco, controller model: Ultimax 4, workpiece length (max.): 1,020 mm, workpiece width (max.): 510 mm, workpiece height (max.): 610 mm, workpiece weight (max.): 750 kg, total height: 2,700 mm, total length: 280 mm, total width: 2,300 mm, table width: 510 mm, table height: 850 mm, table length: 1,020 mm, table load: 1,000 kg, rotational speed (min.): 10 rpm, rotational speed (max.): 10,000 rpm, overall weight: 4,500 kg, spindle speed (min.): 10 rpm, spindle speed (max.): 10,000 rpm, coolant supply: 6 bar, spindle nose: Steilkegel Gr. 40, number of spindles: 1, number of slots in tool magazine: 24, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, Excellent condition: Hurco VMX 30 with extremely low operating hours! For sale is a very well-maintained, vertical 3-axis machining center, a Hurco VMX 30, manufactured in 2004. The machine is in exceptionally good condition for its age. As can be easily seen from the operating hours, the machine has only been used very little by us. It was used exclusively for light-duty operation/toolmaking and was not subjected to heavy series production. The mechanical components (guideways, ball screws, and spindle) are correspondingly only slightly worn and offer high precision. The machine is equipped with the popular Ultimax 4 dual-screen control system, which is highly regarded worldwide for its extremely fast and easy dialog programming directly on the machine. Knedjzudd Tepfx Akweb

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE - Tool holder type : HSK63 - Spindle speeds : 18000 [rpm] - Spindle power : 25 [kW] LINEAR AXES - Travels on X/Y/Z axes : 760 / 510 / 520 [mm] - Rapid traverses rates (X/Y/Z) : 45 / 45 / 40 [mm/min] A ROTARY AXIS - Travel : -110 / +30 [°] - C ROTARY AXIS - Travel : 360 [°] - Rapid traverse rate : 25 [rpm] Knodpfx Akey Tzcteweb TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 40 TABLE - Table dimensions : Ø248 [mm] - Maximum weight upon table : 200 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 48 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3.940 x 4.060 [mm] - Machine height : 2.865 [mm] - Machine weight : 6000 [kg] EQUIPMENT - CNC : Hurco WinMax / MAX5 - Interactive programming - Electronic handwheel - Coolant tank * with high-pressure pump - Coolant through spindle - Chips conveyor - Spindle cooling unit

Condition: not inspected (used), Please see technical details on photo. Ksdjhvzxzepfx Akwenb

Condition: good (used), Year of construction: 2002, Hurco VMX 30, year of construction 2002, Ultimax 4 control unit, Travel X/Y/Z 760/510/610 mm, table size 1020 x 510 mm, Knedpfxetud Nco Akwjb 24-position tool changer, spindle speed up to 10,000 rpm, coolant system, electric handwheel, Pocket milling with islands, synchronous thread cutting, 3D contour software, DXF capable, chip conveyor,

Condition: excellent (used), Year of construction: 2015, operating hours: 3,900 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 3,900 h, We offer in very good condition Hurco VMX30 HSi with HSK-A63 spindle and 18k RPM. X-Axis travel: 762mm Y-Axis travel: 508mm Z-Axis travel: 610mm The machine has following options: Internal coolant 20 bar 40 Tool changer 18 k RPM Spindle hSK-A63 Linear Scales Touchprobe Renishaw OMP40 Toolprobe Renishaw TS27R Ultimotion software Tool change optimization software Knsdjx N E H Uopfx Akwob Please not vices are not with sale of machine

Condition: used, Year of construction: 2003, CNC machining center, universal Manufacturer: AXA Type: VPC 40 U Year of manufacture: 2003 CNC control: Heidenhain TNC 430 Travel ranges: X/Y/Z = 2,300 x 1,200 x 600 mm NC rotary table dimensions: 1,100 x 1,100 mm Fixed table dimensions: 1,100 x 1,100 mm Tool holder: SK40 Tool magazine: 60 positions Spindle speed: 10,000 rpm Weight: approx. 20 tons Kedpfx Aowwt Nmekwenb 21926

Condition: used, Year of construction: 2010, Milling machines Travel distance X: 760 mm Travel distance Y :510 mm Travel distance Z: 610 mm HSC-machines Number of axis: 3 milling machine / machining center Control: Hurco WinMax spindle chuck: SK - A40 spindle revolutions: 12000 rpm table size X: 1020 mm table size Y: 508 mm max. workpiece weight: 1350 kg tool changer: 24 - time input Power : 13,5 kW Torque: 214 Nm Rapid traverse: 35 m/min spindle cooling Kodpsv D U Apsfx Akwsnb chip conveyor
