Machining centre

Hurco VMX 42

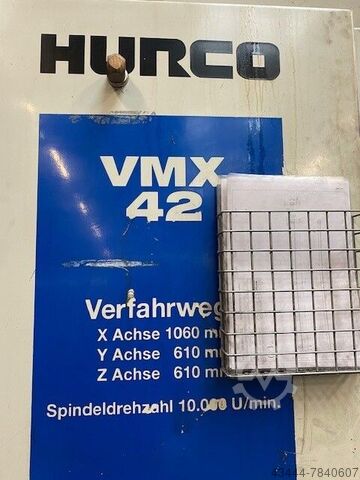

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 1,060 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, total height: 1,750 mm, total width: 4,600 mm, table load: 1,100 kg, overall weight: 6,500 kg, spindle speed (max.): 10,000 rpm, spindle motor power: 15,000 W, tool weight: 7,000 g, product length (max.): 3,800 mm, number of axes: 3, This 3-axis Hurco VMX 42 vertical machining centre was manufactured in 2004. It features a table clamping surface of 1270 x 610 mm and travels of 1060 mm in the X-axis and 610 mm in both Y and Z axes. The machine has a maximum table load of 1100 kg and a spindle speed range of 10 - 10,000 RPM. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42 machine we have for sale. Contact us for further details. • Table clamping surface: 1270 x 610 mm • Spindle power: 7.5 kW (100% ED), 15.0 kW (30% ED) Bsdpfx Adoy I Ad Is Ajlg • Spindle torque: 238 Nm at 625 rpm (30% ED) • Programmable feed rate: 3.0 – 7600 mm/min • Adjustable feed rate: 3.0 – 11,400 mm/min • Rapid traverse X/Y/Z: 30 / 30 / 20 m/min • Pull stud: DIN ISO 7388/11 Type B • Max tool diameter (full/adjacent empty): 80 mm / 160 mm • Max tool length: 300 mm • Tool change time (chip-to-chip): max 14 s • Tool changer: Automatic, 24 stations • Control: Ultimax 4 with dual screens (text and graphics) • Software: Conversational and ISO-code programming • Hardware: Pentium technology, 1.6 GB hard drive, 64 MB RAM • Electrical connection: 38 kVA, 400 V, 42 A • Compressed air: 6 bar / 0.3 ccm/min • Condition: Z-axis drive malfunction Additional equipment • Coolant system • Coolant wash gun • Chip flushing system • Chip enclosure • Chip conveyor • Signal light • Machine light • Machine feet Technical Specification Taper Size SK 40

Condition: ready for operation (used), Year of construction: 2013, operating hours: 5,446 h, spindle speed (max.): 12,000 rpm, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, spindle motor power: 22,000 W, table load: 300 kg, number of slots in tool magazine: 41, number of axes: 5, This 5s HAAS UMC 750 was manufactured in 2013. It features a spindle speed of 12,000 rpm and a tool capacity of 41 tools, making it suitable for various machining tasks. The machine offers a maximum table load of 300 kg and includes advanced coolant systems for efficient operation. If you are looking to get high-quality machining capabilities, consider the HAAS UMC 750 universal machining center we have for sale. Contact us for further details. • Spindle type: Inline direct drive • Tool holder: SK40 • Tool changer: SMTC • Rotary technology: 2 axes with support bearing • B-axis range: −35° to +110° • C-axis range: 360° • Clamping surface: Ø 630 × 500 mm • Coolant system: standard coolant, P-Cool, through-spindle coolant (TSC) • Renishaw probing: WIPS system with workpiece probe and tool measurement • Control functions: 8M functions, rotate and scale • Memory: 16 MB • HSM: High Speed Milling Bodpfsyid Hvex Ad Aolg • Rigid tapping: yes • Cycle time hours: 5,446 h • Power-on hours: 21,246 h Technical Specification Taper Size SK 40

Condition: excellent (used), Year of construction: 2014, Hurco VMX42i vertical machining center Year: 2014 WinMax control Table clamping surface 1270 x 610 mm Table load 1750 kg Travels X-axis 1067 mm Y-axis 610 mm Z-axis 610 mm Tool holder SK 40 Spindle speed max 12000 rpm Spindle power max 18 KW Tool changer 30 times Tool diameter max 80/76 Tool length 300 mm Machine weight 6850 kg Bledpfx Adsyuc Nvo Ajg Coolant tank 484 liter Accessories/options: - Through spindle coolant - Tool holders - Documentations - Remote control - Swarf conveyor Under power in our warehouse!

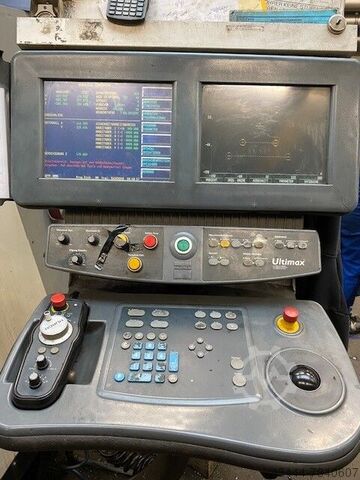

Condition: used, Year of construction: 2006, functionality: fully functional, travel distance X-axis: 1,060 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: Ultimax, total height: 2,800 mm, total length: 2,200 mm, total width: 2,400 mm, table width: 610 mm, table length: 1,270 mm, spindle motor power: 18,000 W, number of spindles: 1, number of slots in tool magazine: 24, Equipment: chip conveyor, documentation/manual, 3 axes Tool holder SK 40 Internal coolant 35 kVA Bsdpfx Adswtdzrs Aolg approx. 7550 kg Comprehensive tool package available separately

Condition: excellent (used), Year of construction: 2008, 5-axis simultaneous DMG DMC60U duoblock Very good condition! Operating hours: 78,000 h Spindle hours since replacement: 5,900 h (2022) 2023: XZ sliding plate replaced The machine can be inspected at any time by arrangement. Control: iTNC530 Heidenhain Travel: X-600 mm, Y-700 mm, Z-600 mm B-axis: -30 / -180° C-axis: 360 ° endless Bledpfowglnysx Ad Aog Spindle mount: SK40 Spindle speed: 20 - 12,000 rpm tool magazine: 60 seats Turntable diameter: 630 mm Pallet size: 630 mm x 630 mm Internal coolant supply (IKZ): 40 bar Belt filter system: Belt filter system equipment: Measuring probe, electric handwheel, documentation, two zero-point clamping systems; Belt filter system: Belt filter system

Condition: used, Year of construction: 2003, MACHINING CENTER HURCO VMX 42 YEAR: 2003 CNC: HURCO UltiMAX 4 Table: 1,270 x 610 mm Bljdsyup Urjpfx Ad Aeg Travels: X axis: 1,070 mm Y axis: 610 mm Z axis: 610 mm Spindle: ISO 40 DIN 69871 Speed: 10,000 rpm Power: 18 kW Tool magazine: 24 stations Complete with chip conveyor Assorted tool holders included

Condition: ready for operation (used), Year of construction: 2007, operating hours: 117,713 h, travel distance X-axis: 1,060 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, total height: 2,770 mm, table width: 3,750 mm, overall weight: 6,650 kg, product length (max.): 4,535 mm, This 3-axis Hurco VMX 42 was manufactured in 2007. It features an X-axis travel of 1,060 mm, Y-axis travel of 610 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1,270 × 610 mm and a maximum table load of 1,100 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42 vertical machining centre we have for sale. Contact us for further details. Bodpfxsynil Rj Ad Aelg • Spindle Nose to Table: 150 – 760 mm • Feed Rate Programmable: 3 – 7600 mm/min • Feed Rate via Console: 3 – 11400 mm/min • Rapid Traverse X/Y/Z: 35 / 35 / 30 m/min • Guideways: Linear guideways (X, Y, Z) • Positioning Accuracy: ±0.01 mm • Repeatability: ±0.005 mm • Table Size: 1270 × 610 mm • T-slots: 5 (DIN 650) T-slot • Width: 18 mm • Distance Between T-slots: 100 mm • Maximum Table Load: 1100 kg • Automatic Tool Changer Type: Drum magazine • Number of Tool Positions: 24 • Maximum Tool Diameter: 80 mm • Maximum Tool Weight: 7 kg • Maximum Tool Length: 300 mm • Tool Holder: SK 40 (DIN 69871) • Pull Stud: ISO 7388/II Type B • Coolant Tank Capacity: 340 liters • Machine-Specific Data • Spindle Drive Power (Continuous): 18.0 kW • Maximum Torque: 720 Nm • Torque at 1 min ED: 237 Nm • Spindle Speed Range: 10 – 12000 rpm • Mount Position (Assembly) • Measuring System: Photoelectric • Standard: Rotary motor encoder • Central Lubrication System: 1 pump (X, Y, Z) • Electrical Connection: 38 kVA / 55 A • Voltage: 400 V • Compressed Air Connection: 6 bar / 0.3 m³/min

Condition: good (used), Year of construction: 2003, functionality: fully functional, input voltage: 400 V, travel distance X-axis: 780 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, workpiece weight (max.): 4,000 kg, number of slots in tool magazine: 120, controller manufacturer: Heidenhain, total height: 2,800 mm, total length: 6,000 mm, total width: 6,000 mm, overall weight: 12,000 kg, table length: 630 mm, table width: 500 mm, controller model: iTNC530, nominal power (apparent): 61 kVA, rapid traverse Z-axis: 50 m/min, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, spindle speed (max.): 18,000 rpm, spindle speed (min.): 20 rpm, table load: 4,000 kg, operating hours of spindle: 19,500 h, Equipment: chip conveyor, rotational speed infinitely variable, DMG DMC 60T RS3 with Heidenhain iTNC 530, no maintenance backlog, in good condition. Ideal machine for unmanned operation, geometrically within new-machine tolerance. The machine can be inspected and measured on site by arrangement. Machine Data: Machine description: Machining centre with pallet storage Manufacturer: DMG MORI Model: DMC 60T RS3 Year of manufacture: 2005 Condition: good Equipment: - Direct linear measurement in X/Y/Z (glass scales) - Chip conveyor - High-pressure coolant system 40 bar (IKZ) - Extraction unit - NC rotary table - Tool magazine, 120 positions - Heidenhain measuring probe - Rotating viewing window - High-pressure coolant 40 bar - Signal lamp - Chip flushing - Operating mode 4 Technical Data: Number of axes: 5-axis Control: Heidenhain iTNC 530 NC rotary table clamping surface: 500 mm x 630 mm Bedpfxorxrkle Ad Ajlg Weight: approx. 9,000 kg Chip conveyor: Yes Coolant system: Yes Internal coolant supply: Yes Travels and axes: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm C-axis: 360° B-axis: -90°/+12° Feed rates and rapid traverse: X-axis: 50 m/min Y-axis: 50 m/min Z-axis: 50 m/min B-axis: - C-axis: 30 m/min Motor spindle: Max. speed: 18,000 rpm Spindle taper: HSK A63 Tool changer: Automatic tool changer: Yes Number of magazine positions: 120 Pallet changer: 5 pallets

Condition: ready for operation (used), Year of construction: 2006, operating hours: 63,442 h, controller manufacturer: HURCO, controller model: UltiMax, number of axes: 3, This 3-axis Hurco VMX 42 was manufactured in 2006. It features a tool tray with 24 positions, a chip conveyor, and a coolant tank with pump. Operating hours total 22,612.4, with spindle hours at 6,344.2. Consider the opportunity to buy this Hurco VMX 42 vertical machining centre. Contact us for more information. • Tool tray with 24 tool positions • Operating hours: 22,612.4 h • Spindle hours: 6,344.2 h Additional equipment • Chip conveyor Blsdpfxjyb Ryio Ad Ajg • Coolant tank with pump

Condition: ready for operation (used), Year of construction: 2019, Make: HURCO Type of machine: VMX42i Year of manufacture: 2019 Control system: Hurco WinMax Tool holder: SK40 x-travel: 1.067 mm y-travel: 610 mm z-travel: 610 mm Speed range: 12.000 U/min Bedpfx Aoyc Sn Rjd Aelg max. Table load: 1.000 kg Table dimensions: 1.270 × 610 mm Number of tools in the magazine: 24

Condition: used, Year of construction: 1997, x-travel 660 mm y-travel 500 mm z-travel 600 mm table surface area 630 x 500 mm spindle taper SK 40 spindle turning speed range 20 - 6.300 U/min feeds 30 m/min control PHILIPS CNC 532 internal coolant system feed 40 bar Blodpfxjyg N Sns Ad Asg total power requirement 50 kW weight of the machine ca. 13,3 t with rotary pallet changer and hydr. swivelling head (horiz./vert.) Accessories: chip conveyor, coolant

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: VMX42, travel distance X-axis: 1,060 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed length X-axis: 1,050 mm, feed length Y-axis: 600 mm, feed length Z-axis: 600 mm, feed rate X-axis: 11 m/min, feed rate Y-axis: 11 m/min, feed rate Z-axis: 11 m/min, controller model: HURCO SingleMAX, HURCO VMX42 CNC Milling Machine with MAX Control System Manufacturer: HURCO Model: VMX42 Year of manufacture: 2006 Original price: €88,000.00 net (€104,720.00 gross) Working Area Travel X-axis: 1060 mm Travel Y-axis: 610 mm Travel Z-axis: 610 mm Distance spindle nose to clamping table: 150 - 760 mm Table clamping surface: 1270 x 610 mm Table load, evenly distributed: 680 kg T-slots in table (DIN 650): 5 T-slot width: 18 mm (H8) Slot spacing: 100 mm Drives Main drive-spindle Drive type: Three-phase motor Power (1 min duty cycle): 21.0 kW Max. torque at: 1450 rpm Torque at 1 min duty cycle: 142 Nm Feed drives Drive type: Three-phase motor Feed rates Programmable: 3 - 7600 mm/min *contour-dependent Adjustable via console: 3 - 11,400 mm/min *contour-dependent Rapid traverse X, Y, Z axes: 30 m/min / 30 m/min / 20 m/min Spindle Head Tool holder: SK 40 DIN 69871 Drawbar: DIN ISO 7388/II Type B Speed range: 10 - 10,000 rpm Design Features Machine bed material: Cast iron Type of linear guides: X, Y, Z Central lubrication: 1 pump (X, Y, Z) Automatic Tool Changer Tool magazine type: Drum magazine Tool positions: 24 Tool diameter with full loading: 80 mm Max. tool weight: 7 kg Max. tool length: 300 mm Bjdeylbd Hepfx Ad Aslg Max. total weight: 82 kg Measuring Systems Type of measuring system: Photoelectric Standard: Rotary Mounting: Motor side Measuring method: Transmitted light Resolution Internal control: 0.0005 mm Measuring system: 0.001 mm Accuracy according to VDI/DGQ 3441 Positional accuracy over travel: +/- 0.01 mm Repeatability over travel: +/- 0.005 mm Cooling Coolant tank capacity: 340 liters Installation Data Length x width x height: 4650 x 3400 x 2770 mm Weight: 6,800 kg Electrical connection: 38 kVA / 55 A / 400 V Compressed air connection: 6 bar / 0.3 cbm/min Control HURCO SingleMAX 1 monochrome screen, 2 software units (1 x plain text dialog programming at the machine + 1 x for ISO code programming via external programming device or CAD/CAM system via RS-232 C or V 24 interface) Pentium technology, 1.6 GB hard drive, 8 MB RAM, parallel and serial data interfaces, DOS-compatible 3.5" 1.44 MB drive. System self-diagnosis, DOS directory structure Includes 1 x color screen Pocket milling with islands Synchronous tapping (thread cutting without compensating chuck) Detachable electronic handwheel DXF software: import of geometric data from DXF file and entry of technological data (tool number, radius correction, safety distance, machining depth and plunge feed) Accessories High-pressure cooling system for coolant supply through the spindle (coolant type: emulsion / coolant pressure 20 bar / integrated hydraulic tool clamping system). Cooling air switchable via coolant nozzles Chip splash guard cabin Machine lamp Machine manual on CD

Condition: ready for operation (used), Year of construction: 2006, Travel X/Y/Z: 1060mm/610mm/610mm, table dimensions X/Y: approx. 1270mm/610mm, max. table load: 1100kg, spindle power: 18kW, feed rate: 7600mm/min, rapid traverse: 30m/min, tool positions: 24, tool holder: SK40, speed: 12000rpm, positioning accuracy: +/-0.01mm, repeatability: +/-0.005mm. Machine dimensions X/Y/Z: approx. 450mm/3750mm/2800mm, weight: approx. 6700kg, control: Hurco Ultimax 4. Documentation available. On site inspection is possible. Bodpfxeyh Nvmj Ad Ajlg

Condition: used, Year of construction: 2002, Technical details: x-travel: 1060 mm y-travel: 610 mm z-travel: 610 mm Bledpou Iddnjfx Ad Aog control: Ultimax 4 spindle speed:: 10 - 10.000 U/min tool taper: SK40 tool changer with: Trommelmagazin mit 24 Plätze places feed speed: XYZ: 3 - 7.000 mm/min rapid traverse:: XY: 30 m/min rapid traverse: Z: 20 m/min table-size: 1220 x 510 mm table load: 1,1 t air-pressure connection: für 6 bar bar Total power requirement: 30 kVA Weight approx.: 6,28 (ohne Anbauteile) t dimension machine xH: 2,82 x 3,2 x 2,7 m dimension swarf conveyor LxWxH: 3,0 x 0,65 x 1,5 The machine is currently in the technical department. delimited working area by chip splash guard cabin incl. cooling device with feeding (30bar internal coolant system) (size 1200x500x150mm) capacity for 340Liter spindle with internal coolant system Scraper belt chip conveyor control panel with two screens Attention! Tool gripper arm for tool change is missing on the machine! Is on sale with this limitation! i.D. *
