Machining center

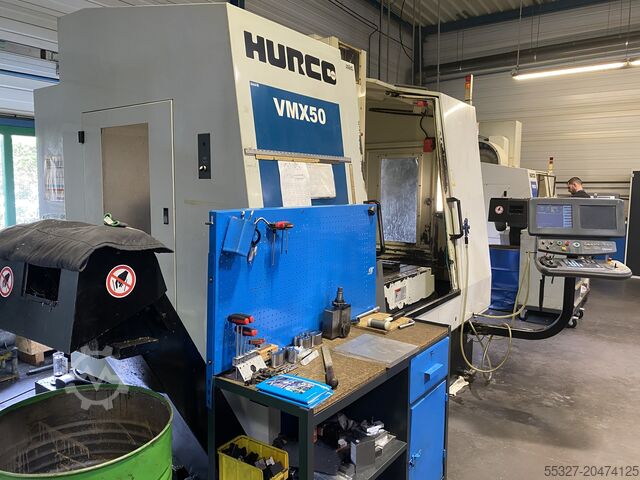

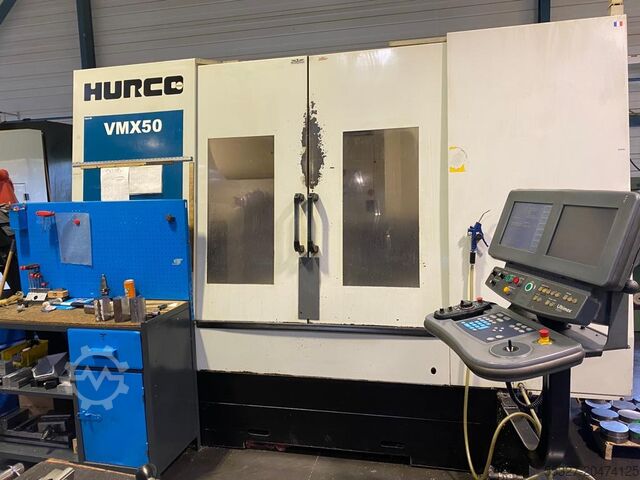

Hurco VMX 50

Condition: ready for operation (used), Year of construction: 2021, operating hours: 2,500 h, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, controller manufacturer: HURCO, controller model: WINMAX, total height: 3,240 mm, table load: 2,000 kg, overall weight: 7,950 kg, spindle speed (max.): 12,000 rpm, tool weight: 7,000 g, number of axes: 3, This 3-axis Hurco VMX50i was manufactured in 2021. It features a robust SK40 spindle, capable of reaching speeds up to 12,000 rpm, and a large table surface of 1500 x 660 mm supporting up to 2000 kg. With X/Y/Z travels of 1270/660/610 mm and rapid traverse rates of 32/32/24 m/min, it's ideal for dynamic machining tasks. Includes a 30/40 position automatic tool changer. Contact us for more information about this machine. • Spindle face to table: 101–711 mm • Table working surface (W x D): 1500 x 660 mm • Table T-slots (DIN 650): 6 x 18 x 100 • Automatic tool changer (ATC) positions: 30/40 Gedjx D E Acopfx Aacein • Machine status: Powered and in operation • Total machine hours: 6700 Additional equipment • Chip conveyor • Mist collector • External emulsion tank with filtration for internal tool cooling • Including workpiece and tool probes • Programming extensions dwg-dxf Dimensions Machine Depth 5059 mm

Year of construction: 2006, condition: ready for operation (used), Travel X/Y/Z: 1270mm/660mm/610mm, speed: 10000rpm, max. table load: 3000kg, spindle mount: CAT40, tool positions: 40, machine dimensions X/Y/Z: approx. 3300mm/2800mm/3000mm, weight: approx. 9000kg, control: Ultimax. Documentation available. On-site inspection is possible. Gjdpfx Aasuzyafscsin

Condition: ready for operation (used), Year of construction: 2007, operating hours: 620 h, Travel path X/Y/Z: 1630mm/860mm/760mm, speed: 8000rpm, torque: 142Nm, power: 15kW, tool positions: 40, max. tool diameter: 75mm/127mm, max. tool length: 300mm, max. tool weight: 10kg, table dimensions X/Y: 1680mm/890mm, max. table load: 2700kg. Machine dimensions X/Y/Z: approx. 6400mm/4400mm/3300mm, weight: approx. 14500kg, control: Hurco Ultimax 4, operating hours: approx. 621h. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026. Gsdpfjw Dfhzsx Aacjin

Condition: not inspected (used), Year of construction: 2003, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 640 mm, Ultimax control Gjdpfx Aexu Ikqjacoin BT 40 spindle, new in 2020 speed 10,000 rpm travels 1270X660X640 mm 24-tool changer chip conveyor

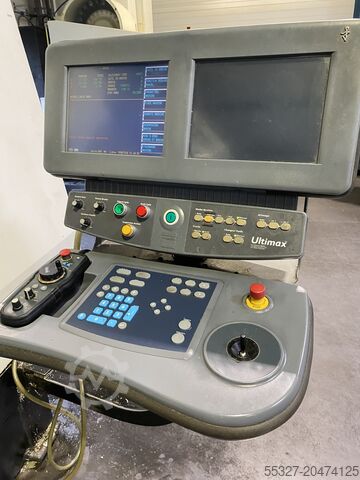

Condition: good (used), Year of construction: 2001, functionality: fully functional, Hurco VMX50i – CNC Machining Center in Excellent Condition For sale is a Hurco VMX50i, a powerful vertical CNC machining center, ideal for demanding mold making, mechanical engineering, and single-part to small-batch production. Technical Specifications: - Model: Hurco VMX50i - Year of manufacture: 2001 - Control: Hurco Ultimax - Travel axes (X/Y/Z): 1270 / 660 / 610 mm - Spindle: 10,000 rpm, SK40, with spindle cooling - Tool changer: 24 positions - Table size: 1,320 x 610 mm - Max. table load: 1,500 kg - Connected load: approx. 20 kVA Equipment: - Spindle cooling - High-pressure coolant system - Chip conveyor - USB/network interfaces - 3D visualization - Conversational and NC programming - Includes hand wheel and documentation Giodpfx Aoyhap Toacen Condition: The machine is in good condition and is currently no longer in production. An inspection under power can be arranged by appointment. Location: Velbert

Condition: ready for operation (used), Year of construction: 2014, total height: 3,240 mm, overall weight: 8,880 kg, This 3-axis Hurco VMX 50i was manufactured in 2014, featuring a robust table size of 59 x 26 inches and a maximum spindle speed of 12,000 rpm. It supports a tool capacity of 40 with a rapid tool-to-tool ATC time of 2 seconds. Ideal for precise, heavy-duty machining with a maximum table load of 4,410 lb. If you are looking to get high-quality milling capabilities consider the Hurco VMX 50i machine we have for sale. Contact us for more information. • Table Size: 1500 x 660 mm • T-Slots: 6 x 18 mm • Maximum Weight on Table: 2000 kg • Spindle Nose to Table: 101 mm • Maximum Spindle Speed: 12000 rpm • Spindle Power (15 min/Continuous): 15 kW / 11 kW @ 720 rpm • Spindle Torque (15 min/Continuous): 198.9 Nm / 116.7 Nm @ 720 rpm • Tool Type: CAT 40 / Big Plus® • Tool Capacity: 40 • Maximum Tool Diameter: 76 mm • Maximum Tool Length: 300 mm • Maximum Tool Weight: 7 kg • Tool-to-Tool ATC Time: 2 sec Dimensions Machine Depth 5055 mm Gsdox D E Eqjpfx Aacoin

Condition: used, Year of construction: 2000, functionality: not functional, Hurco VMX 50 machining center with Ultimax control IKZ chip conveyor Gijdpfst H I Ugex Aacsn

Condition: used, Year of construction: 2002, functionality: fully functional, The machining center has been inspected by a Hurco technician and found to be fully operational without any faults. Technical Data - Travel ranges: X 1,270 mm, Y 600 mm, Z 610 mm - Drive power: 30 kW - Spindle speed: 15,000 rpm - Spindle taper: SK 40 Type B - Feed rate: up to 23 m/min Work Table: - Dimensions: 1,500 mm x 660 mm - Max. workpiece weight: 1,300 kg Gisdpsx Iikbofx Aacon Control: - Hurco Ultimax 4, incl. software for milling simulation - electronic hand control unit - Interfaces: RS 232C / V24 - 2 monitors for text and graphics processing - 2 software units for plain text and ISO programming Machine Construction: - High rigidity, suitable for roughing operations Tool Changer: - Double-arm changer with 24 stations Equipment: - Cooling unit for milling spindle - Rinsing system for chip removal - Splash guard cabin - Coolant system with filtration - Internal coolant supply ICS 20 bar - Chip conveyor Machine Data: - Required space (without service areas!) LxWxH approx. 4,750 mm x 3,120 mm x 2,950 mm - Weight approx. 9,000 kg - Connected load 50 kVA, 400V, 50/60 Hz An inspection of the machine is possible by appointment. All tools and operating materials visible in the photos are not included in the scope of delivery. Technical changes and errors excepted.

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, table load: 950 kg, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel X-axis: 1,270 mm Travel Y-axis: 660 mm Travel Z-axis: 610 mm Table size: 1,500 x 660 mm Giedpfxjxxld Ae Aacjn Max. table load: 950 kg Spindle speed: 10,000 rpm Spindle taper: CAT 40 Rapid traverse X-axis: 30 m/min Rapid traverse Y-axis: 30 m/min Rapid traverse Z-axis: 20 m/min Positioning accuracy: ± 0.005 mm Repeatability: ± 0.0025 mm MACHINE DETAILS Weight: 9 t EQUIPMENT 24-position automatic tool changer (ATC) Standard cooling Various tools

Condition: good (used), Year of construction: 2003, x-Weg 1270 mm y-Weg 660 mm z-Weg 610 mm Steuerung Ultimax 4 Tischbelastung 1300 kg Drehzahl 10.000 U/min Werkzeugwechseleinrichtung 24-fach Werkzeugaufnahme SK 40 Antrieb 15 kW Tischgröße 1500x660 mm Gesamtleistungsbedarf kW Maschinengewicht ca. 9 t Gisdpfx Aoiv R Hlsacsn Raumbedarf ca. 4,8x4,5x2,95 m
