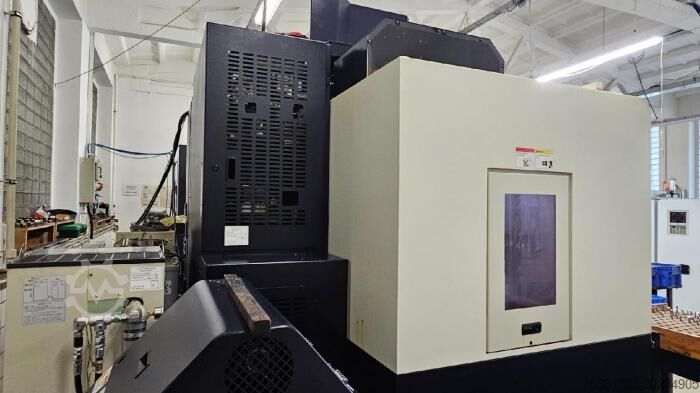

Vertical machining center

HWACHEON Hwacheon Vista 1000 12K,30177

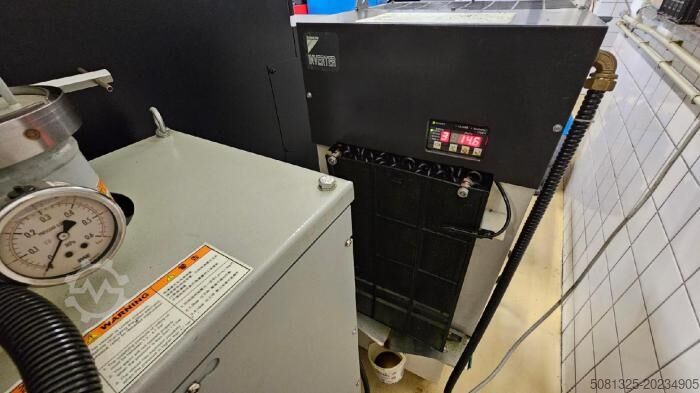

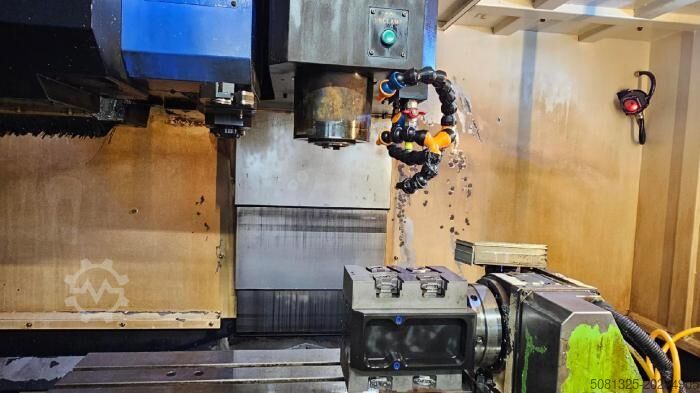

The machine is in good technical condition, after prior agreement it is possible to test it. including 4-axis TSUDAKOMA, workpiece probe + tool probe. Travels Travels of axes (X/Y/Z) mm 1,000 / 550 / 500 Distance table surface - spindle face mm 130 - 630 Axis guidance - linear rolling LM Table Working area mm 1,100 x 502 Load capacity kg 700 Table surface configuration mm 5x T-slot (width 18, spacing 80) Spindle Maximum speed rpm 12,000 Spindle power (10 min / continuous) kW 18.5 / 11 Feeds Rapid traverse (X/Y/Z) m/min 36 / 36 / 30 Working feed (X/Y/Z) mm/min 1 – 24,000 Feed motor (X/Z) kW 1.8 / 1.8 / 3.0 Automatic tool change Tool taper - BT40 Clamping pin - MAS P40T-1 (45??) Number of tool positions pcs 24 Max. tool diameter mm Ø 80 / Ø 150 (without auxiliary tool)Max. tool length / weight mm / kg 300 / 8 Tool-to-tool change time sec 2.5 Chip-to-chip change time sec 4.3 Magazine and change design - disc with rotating arm Power supply Power input kVA 30 Tank capacity For lubrication / spindle cooling l 6 / 20 For emulsion cooling l 380. Machine dimensions Height mm 2,670 Floor area (length x width) mm 3,335 x 2,200 Weight kg 6,500 Control system - Fanuc 0i-MD Spindle air blowing Machine adjustment elements Machine protective cover Screw conveyor in the working area Cooling system Protective door Interface for Ethernet
