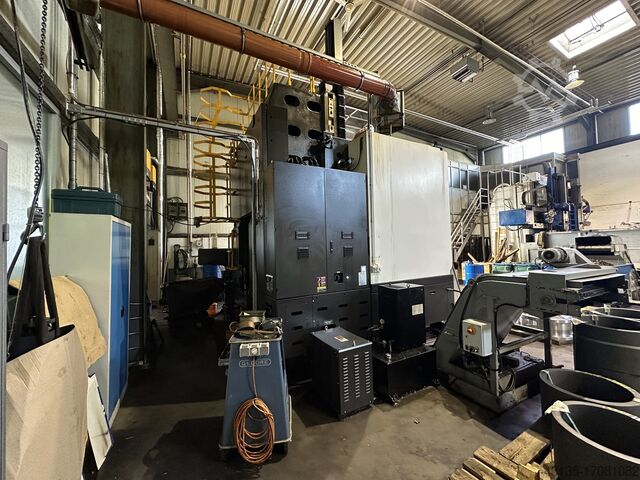

Vertical lathe

Hyundai LV2000/MM

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill Redpfx Afopumdcscop tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Ram-Type Floor Type and Milling Machine with SCHARMANN rotary sliding table Brand: SKODA / Type: W200 Basic body constructed in 1986 / 1999 Overhaul / Retrofit on CNC by SKODA. The machine can be inspected by appointment. Technical specifications: Travels: X-axis: 8.000 mm Y axis: 4.150 mm W-axis: 2.000 mm Z-axis: 1.600 mm Spindle: - Spindle diameter: 200 mm - Tool taper to DIN 2080 AD, ISO 60 - Spindle speed: 0,0 to 930 rpm - Drive power spindle: 77 kW Rotary table: - Manufacturer: SCHARMANN - Table surface area: 6.000 x 4.000 mm - V-axis: 2.000 mm Redpewxyxqjfx Afcep - Table load max.: 80 tons - B-axis: 360 ° A, graduation: 0.001 A ° Equipment: - CNC-Control: SIEMENS Sinumerik 840 CE - Chip conveyor - ... There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale. Detailed technical data sheet and information on equipment available on request.

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Redpjgyy I Asfx Afcjp Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: 06651, travel distance X-axis: 6,800 mm, travel distance Y-axis: 3,700 mm, travel distance Z-axis: 1,500 mm, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 10 m/min, total length: 15,000 mm, total width: 7,500 mm, spindle speed (max.): 4,000 rpm, total height: 7,000 mm, table height: 1,100 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 10 m/min, distance between stands: 3,300 mm, type of input current: three-phase, table load: 50,000 kg, rotational speed (max.): 4,000 rpm, distance table center to spindle nose: 2,110 mm, overall weight: 110,000 kg, spindle motor power: 50,000 W, control cabinet length: 7,000 mm, control cabinet height: 2,000 mm, control cabinet width: 600 mm, Equipment: rotational speed infinitely variable, MODEL: Portal Type AGE: 1992 S/N #: 06651 CATEGORY: Mills, Planer Type, CNC CAPACITY: X-Axis Travel: 6800 mm Y-Axis Head Travel: 3700 mm Z-Axis Ram Stroke: 1500 mm, fixed crossrail Ram Cross Section: 500 mm x 500 mm Rjdpfx Afjyahv Sjcep Distance Between Columns: 3300 mm Distance Table To Ram Face: 2110 mm, vertical passage 2000 mm Table Size: 6000 x 2500 mm Spindle (Quill) Diameter: 250 mm Spindle Taper: ISO #50 Spindle Speeds: 0-4000 RPM Spindle Motor: 50 KW EQUIPPED WITH: FIDIA System C20 CNC Control, new in 2002 CNC biaxial continous milling head Universal Milling Head with Auto Indexing Right Angle Head with Auto Indexing Straight Milling Head Wagons for Head Change and Tool Pick-up Change Hydrostatic Bearings Coolant System Full Length Chip Conveyors both side Way Covers Rapid movements: Z-10.000 mm/min, X and Y-15.000 mm/min Table load: max 50.000 kg Weight of the machine: 110.000 kg Outside dimensions: 15.000 x 7.500 x 7050 mm Machine has been tested before dismantling and is fully operational, all mechanical components in excellent condition, electrics new in 2018. Machine available from stock. The price is now SPECIAL FROM STOCK. Once we will reassemble the machine, price will grow significantly. We can assist you to assemble and run up the machine.

Condition: good (used), Year of construction: 2004, Table diameter: 1220 mm Max. turning diameter: 1500 mm Table speed range: 4.5 to 100 rpm Feed range: 0.127 mm to 6.35 mm per revolution Maximum height under crossrail: 900/1200 mm Slide travel (X-axis): 1000 mm Main drive motor: 41 kW Tool changer: 30 positions Accessories: - 8 clamping jaws - 30 tool holders with full enclosure Rsdpjxg Nmkjfx Afcsp - Oil mist extraction

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Rsdjuwv H Hjpfx Afcjp Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Fanuc 18i - MB TRAVELS: X axis: mm 850 Y axis: mm 700 Z axis: mm 750 Rsdpfxsvw Uyus Afcsp Distance from spindle center to pallet top: mm 50 - 750 Distance from spindle nose to table center: mm 150 - 900 TABLE: Pallet size: mm 500 x 500 Pallet loading capacity: kg 500 Pallet surface: 24 – M16 x P 2.0 Pallet index degree: deg 1 SPINDLE: Max spindle speed: Rpm 14.000 Spindle taper: ISO 40 Max spindle torque (25% ED): Nm 220,5 FEEDRATE: Rapid traverse rate (X, Y, Z): m/min 60 Cutting feedrate: mm/min 30.000 AUTOMATIC TOOL CHANGER: Type of tool shank: MAS403 BT40 Tool storage capacity: 120 Max tool length: mm 400 Max tool weight: kg 10 Method of tool selection: Fixed address Tool change time (tool-to-tool): sec 1 Tool change time (chip-to-chip): sec 3,5 AUTOMATIC PALLET CHANGER: Number of pallet: 7 Type: Rotary shuttle Pallet change time: sec 7,5 Pallet rotation in loading station: deg 90 MOTOR: Spindle motor (30 min): kW 18,5 / 22 Feed motor (X, Y, Z, B): kW 7,0/7,0/7,0/2,7 MACHINE SIZE: Machine height: mm 3.000 Machine dimension: mm 5.600 x 2.700 Machine weight: kg 15.000 Machine equipped with: • High pressure through the spindle 35 bar • Chip conveyor • Instruction manuals and CE declaration

Condition: good (used), Year of construction: 2009, Traverses XYZ 850 x 700 x 750 mm, Pallet size 500 x 500mm, Redpfx Afewq Iwxjcep pallet load 500 kgs, 60 ATC, BT40 spindle taper, Fanuc 31i- control. Spindle power 22Kw, B axis 0.001 Degrees, 14000 rpm spindle, swarf conveyor, Through Spindle Coolant.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Sale only within Europe, including Turkey. ----- For technical data, see handout. Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations. Rsdpfxoth Sc Ho Afcjp

Condition: good (used), Year of construction: 1971, functionality: fully functional, machine/vehicle number: 12.02-37-31, grinding wheel width: 250 mm, grinding wheel diameter: 500 mm, grinding diameter: 125 mm, grinding length: 200 mm, type of input current: three-phase, overall weight: 5,000 kg, workpiece diameter (max.): 125 mm, nominal power: 28 kW (38.07 HP), The machine was used exclusively for grinding piston rods with a diameter of 10 mm. Rsdpfx Afow E D Eujcsp
