Felling grapple GRA-B 35, ICM - 1 unit
ICM

Fixed price plus VAT

€13,070

Condition

New

Location

Titisee-Neustadt Germany

Felling grapple GRA-B 35, ICM - 1 unit ICM

Basic data

Machine type:: Felling grapple GRA-B 35, ICM - 1 unit

Manufacturer:: ICM

Condition:: new

Price & Location

Fixed price plus VAT

€13,070

Seller location:: Feldbergstraße 37, 79822 Titisee-Neustadt, Germany

Call

Details about the offer

Listing ID:: A231-72656

Reference number:: GRA-B35

Update:: 21.10.2026

Description

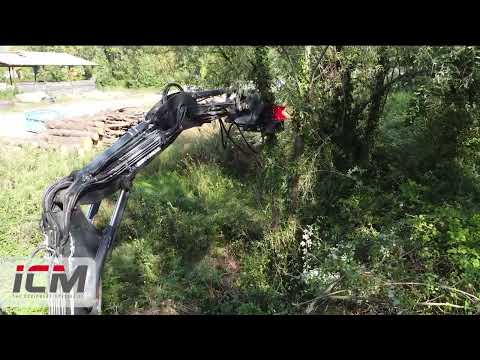

The GRA-B 35 felling grapple from ICM is a robust and powerful grapple for the safe and controlled felling of trees. The fixed installation, combined with closed fingers, ensures a stable grip on the trunk, while the movable blade enables a precise and powerful cutting action.
The compact and efficient slewing ring swivel unit provides high maneuverability and optimal positioning, even under difficult operating conditions. The well-designed felling system minimizes the risk of uncontrolled toppling of the trunk, thereby increasing work safety. The cutting blade made of wear-resistant Hardox® 450 offers excellent cutting performance and a long service life in continuous operation.

Felling grapple with movable blade
- Closed fingers | Fixed installation
- Compact and powerful slewing ring swivel unit
- Efficient felling system that prevents uncontrolled toppling of the trunk
- Cutting blade made of wear-resistant Hardox® 450

Working area m²: 0.22
A mm: 1394
Max. pressure bar: 120
Max. cutting diameter mm: Ø 384
Max. lifting capacity kg: 2500
H2: 688
Lrsdpfx Amj Adgvuszou
H1: 1345
C mm: 1040
Max. cutting force daN: 20300
Gripping force daN: 1275
B mm: 1201
D mm: 617
Max. operating pressure bar: 250
Max. flow rate l/min: 12

The listing was translated automatically. Translation errors are possible.
