Thermoforming machine

Illig RD 53

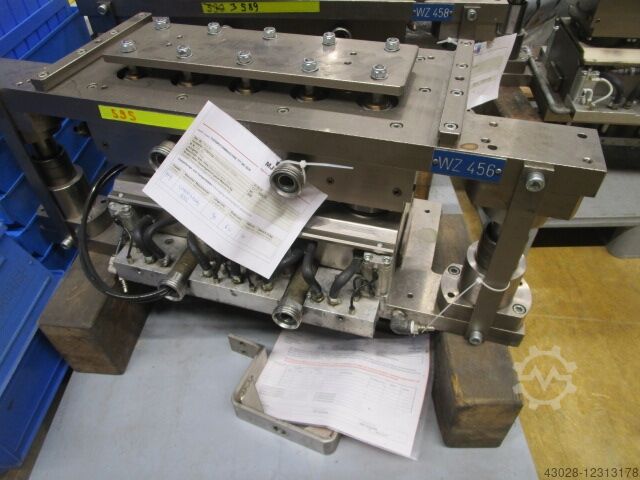

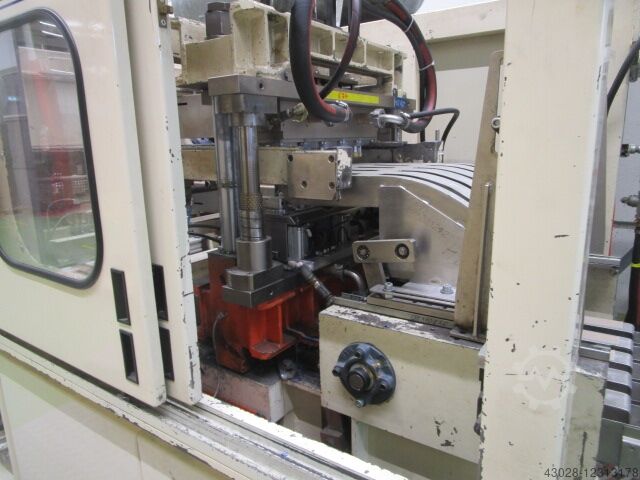

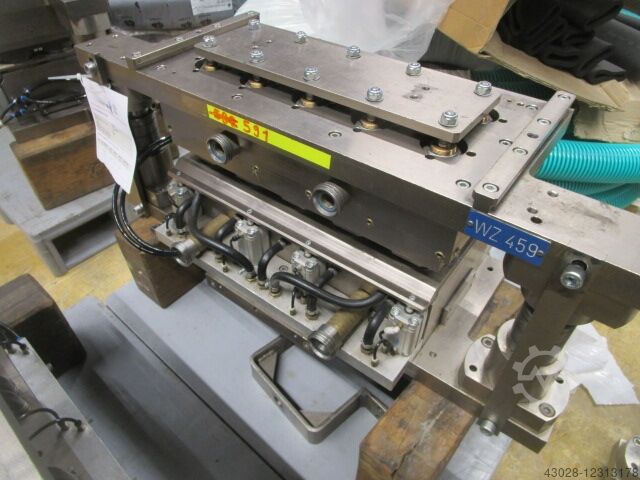

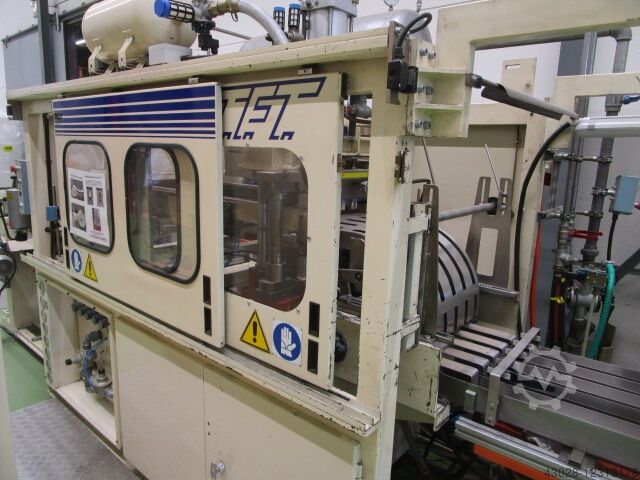

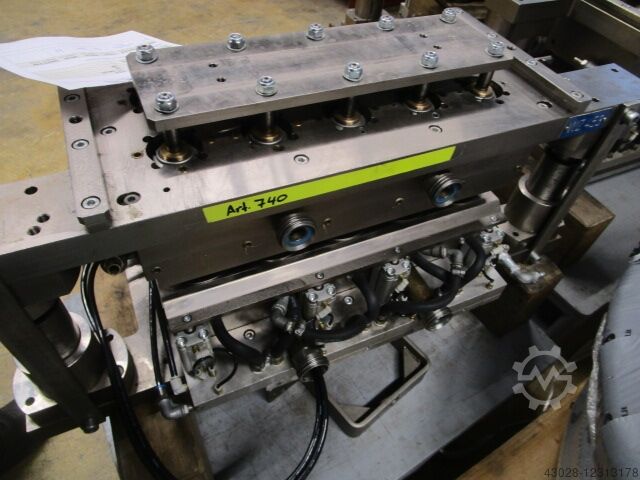

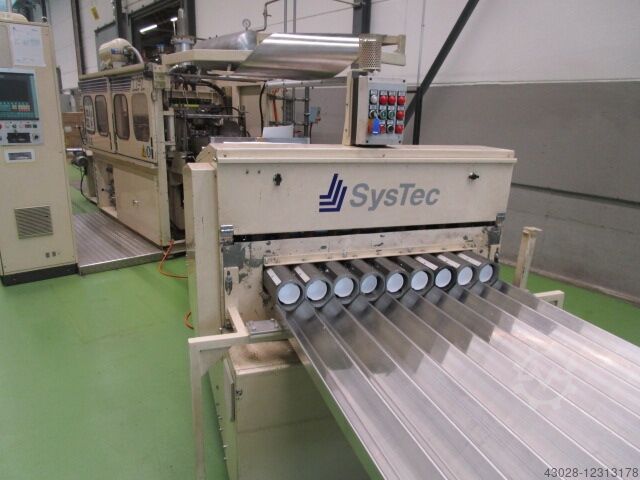

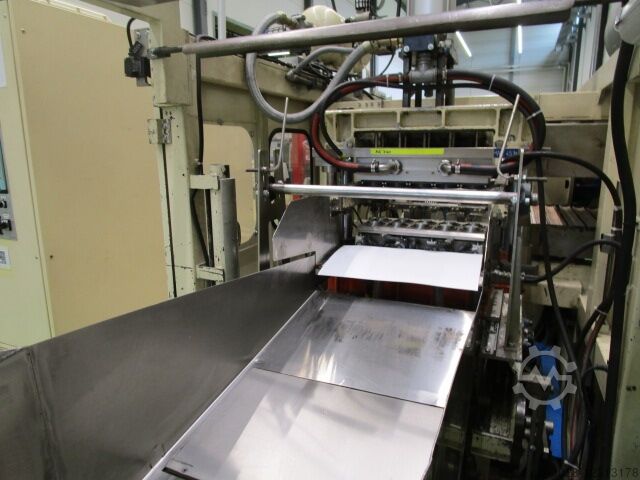

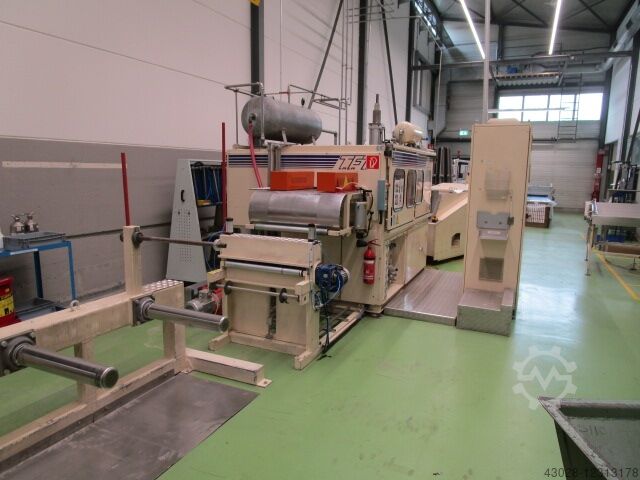

Condition: excellent (used), Year of construction: 2000, machine/vehicle number: 403, THERMO FORMING MACHINE TFT IMC 5030 (WITH TOOLS) Equipment / Additional information: unwinding: Roll recording: easy Max roll diameter: mm 1000 Settlement: automatically Thermoforming machine: Maximum tool dimensions: mm 520x330 Pos. Molding height max .: 15 mm Neg. Molding height max .: 120 mm Sheet width: mm 150/760 Movement Step: mm 50/330 Max HIPS film thickness: 1.8 mm Hub of the sub-table: 150 mm Clamping force: 7500 Kg Inst power top heater: 18.8 Kw Inst power under heater: 14.1 Kw Idle clock speed: per minute 40th power main drive motor: 2.2 Kw Engine power. Film feed: 0.75 Kw Itjdpfx Adsn D Ew Is Dop Air operating pressure: Kg / cm2 7 Water consumption at 12 °: 1t / 1` approx.30 Air consump. at 7 kg / cm2: 1t / cycle 125 Installed power: Kw 50 9xTool: Article no. // Tool no. // Cavities // Description / Product: 3599 // 457 // 10 // Vending machine cup capacity/capacity/contenance=223ml 593 // 460 // 8 // Coffee-to-go / thermo mug / thermo cup Filling capacity / Capacity / Contenance=300ml / 12 oz 509 // 452 // 6 // Ice cream cup: filled to the brim=140ml / Filling capacity with headspace 6mm: 120 ml 591 // 459 // 10 // Thermo mug ⌀ 81/180ml 740 // - // - // Standard cup with sealing edge ⌀ 75-120ml 3589 // 458 // 12 // Coffee-to-go / thermo mug / thermo cup: Filling capacity / Capacity / Contenance=80ml 595 // 456 // 10 // Vending cup / Gobelet pour automate: Filling capacity / Capacity / Contenance=150ml 210 // - // - // Baking case / technical part / plate or tray 8000 // 455 // - // Granule cup 180 ml / technical part with flat sealing edge

Condition: new, Year of construction: 2017, operating hours: 25 h, functionality: fully functional, saw band length: 520 mm, saw band width: 580 mm, total height: 1,500 mm, total length: 5,200 mm, total width: 2,350 mm, type of input current: three-phase, overall weight: 2,500 kg, input voltage: 380 V, New machine. Iedpfx Adjunia He Djtp

Condition: reconditioned (used), functionality: fully functional, Plate size: 2000 x 1000 mm Itjdpfxjwf Ebwj Ad Dop Forming area: 1960 x 960 mm Drawing depth: 600 mm If you would like further details or a quote, please contact us.

Condition: excellent (used), Year of construction: 2006, Manufacturer Gabler Model M92 L Year 2006 Condition Very Good Stock Number 00006 Max forming area 750 x 436 mm Depth of draw 150 mm Max material width 835 mm Max cycles / min 44 Max mould closing force 350 kN Max top heater output 81.90 kW Max bottom heater output 54.60 kW Operating air pressure 8 bar Power Supply 230V 50Hz Total Connected Load 138.66 kW Approx Dimensions 7,925 x 5,320 x 3900mm (LxWxH) Approx Weight 10,400 kg Iedpfow Rpzqjx Ad Djtp Notes All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale.

Condition: ready for operation (used), Year of construction: 1975, An Illig thermoforming machine is available. Form dimensions X/Y: 500mm/380mm, max. film width: 540mm, draw depth range: -120mm/+120mm, max. feed length: 360mm, cycle rate: 30 cycles/min, punching area X/Y: 500mm/390mm, punching force: 50000daN, machine dimensions X/Y/Z: approx. 4500mm/2200mm/2200mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible. Itodpfxswixyne Ad Dop

Condition: good (used), Year of construction: 2001, Greiner Thermorunner 4 for polypropylene (PP) and polystyrene (PS). Including heating station, forming station and cooling system. * Punching force: 180000N * Production speed: max. 45 cycl/min * Sheet width min: 150 mm * Sheet width max: 560 mm * Sheet thickness min: 0.3 mm * Sheet thickness max: 2.5 mm Itsden Utzfopfx Ad Dsp This Thermoforming Line is already disassembled and secured for transport (Location: Waalwijk, The Netherlands)
