CNC lathe

Index ABC

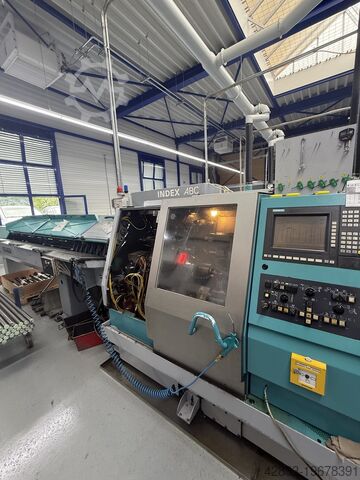

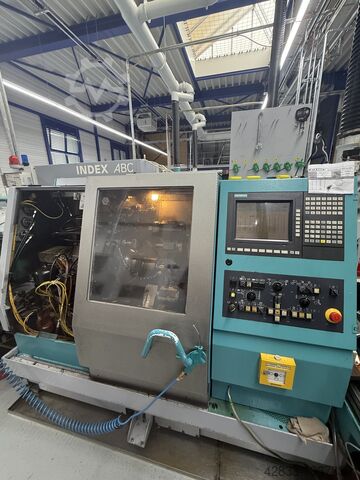

Year of construction: 2001, condition: ready for operation (used), General Data Machine weight 2500 Control Unit Brand INDEX Model C 200-4 Main Drive Spindle speed range 6000 Number of axis 2 Movement X-Axis Movement 90 mm Z-Axis Movement 280 mm This Index ABC was manufactured in 2001. A reliable horizontal turning machine, it offers consistent performance for precision tasks. Consider the opportunity to buy this Index ABC horizontal turning machine. Contact us for more information. Application Types Turning Ibjdjxlu Uwjpfx Afpec

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Iodpfx Afsvk E Nmepsbc Accessories bar feeder Index LM 3200 Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: good (used), Year of construction: 2004, spindle passage 60 mm turning length 280 mm control 840 D Siemens turning speed range - drive spindle 6300 U/min drive capacity - spindle motor 3,3 kW turret 1 Scheibenrevolver no. of tools in turret 1 8 worktool system DIN 69 880 / 25mm x-travel 90 mm z-travel 280 mm feed power 5500 N rapid traverse 24 m/min power capacity - milling spindle 5000 kW turret Schwalbenschwanz no. of tools in turret 2 6 x-travel 81 mm z-travel 80 mm feed power 5500 N rapid traverse X-axis 16 m/min rapid traverse Z-axis 24 m/min weight of the machine ca. 2,5 t dimensions of the machine ca. 6,0 x 2,0 x 2,0 m TThe INDEX ABC machine is a compact lathe for short turned parts made from bar stock. It has an inclined bed design with two independent turrets. The top turret is primarily intended for internal machining and machining, while the lower turret is used for external machining. The turret arrangement enables collision-safe working and simple programming programming with high tool availability. The large free space in the working area enables a favourable chip fall The work area consists of two turrets: ‘Turret 1’ - Disc turret with 7 radially arranged tool holders Ø 25 mm DIN 69880 and a holder for the reinforced synchronised spindle on the turret station 8. tools with 1’ holders can also be used with an equalising holder can also be used. The turret is prepared for the V-ledge system. - Synchronised spindle for rear end machining, simultaneous parallel machining with main spindle. Ø42 collet chuck or 3-jaw gripper chuck for internal and external clamping and external clamping. Jaw stroke 0.6 mm. Clamping diameter (external) 75 mm. - Back-boring device. Starting from the centre of the working spindle in clockwise direction, 3 stationary back-boring tools are back boring tools are arranged. These are located in the pitch circle of the synchronised spindle. The back machining is carried out simultaneously with the machining on the the working spindle. Two additional tools can also be used, can be equipped with a tool feed drive. ‘Revolver 2’ - Turret with 6 symmetrical dovetail holders and each station with 2 locating holes for cylindrical shank per station. The following tool systems can be used. - stationary tools that can be moved in the Z direction - Driven tools with cylindrical shank Ø25 (can be used in two positions per station) can be used) - including bar loader LM 3200 - + various accessories (various Ø guide half-shells/tool holders) Technical data: - Material bar diameter: (Ø 25 / Ø 36 / Ø 52)- --> round Ø 8 - 25.4 / 8 - 36 / 8 - 52 mm --> square SW Ø 6 - 14 / 6 - 20 / 6 - 20 mm --> hexagon SW Ø 7 - 22 / 7 - 30 / 7 - 41 mm --> octagonal SW Ø 7 - 22 / 7 - 32 / 7 - 40 mm Iodpfx Aowbvhajfpjbc --> bar length max. 3200 mm --> from bars Ø 25 mm, min. 2,500 mm --> up to rods Ø 25 mm, min. 1,500 mm --> bar support = approx. 300 = 6 bars Ø 52 mm Mass (bar loader) = 700 kg

Condition: good (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 401182, Used machine in good condition, all the time maintained by machine producer. Still used for production, could be inspected anytime. Control system: INDEX C 200-4 Ibodpfx Afjvrh Unepec Additional equipment: Bar Feeder - Schmid LM3200 Dimensions: 3750 x 1400 x 1750 mm (main unit) Technical specification: Number of spindles: 2 Spindle motor power: 29 kW Spindle bore: 52 (60) mm Turning length: 280 mm Maximum spindle speed: 5000 rpm Number of tool heads: 2 Tool head #1: o Number of slots: 8 o X axis: 90 mm o Z axis: 280 mm o Rapid traverse X/Z axis: 24/24 m/min o Feed force X/Z axis: 5500/5500 Nm Tool head #2: o Number of slots: 6 o X axis: 81 mm o Z axis: 80 mm o Rapid traverse X/Z axis: 16/24 m/min o Feed force X/Z axis: 8300/5500 Nm SALE IN EU / SWITZERLAND / UK ONLY.

Condition: excellent (used), Year of construction: 2000, INDEX ABC CNC Lathe. Mfd. 2000 Control: Siemens 840C Capacity 65mm Ran oil Still in production, running nylon With 12-ft Bar Feed (pictured) Chip Conveyor Comes the a good amount of tooling Control Type: Siemens SINUMERIK 840C Spindle Speed (max.): 6,000 RPM Power Requirements (V/Hz/PH): 400/60/3 Main Spindle Speed (max.): 6,000 RPM Bar Capacity: 65 mm Power: 20 kW (at 100%) Power: 27 kW (at 40%) Ibjdpfew Td U Rox Afpoc Synchronous Spindle Speed (max.): 4,500 RPM Power (max.): 4.2 kW Capacity Tool Carrier 1: 8 (7 + synchronous spindle) Tool Carrier 2: 6 Dimensions Bar Feeder: L 150" x W 27" x H 52" Turning Center: L 80" x W 48" x H 65" Power Enclosure: L 52" x W 18" x H 70" Chip Conveyor: L 88" x W 48" x H 35"

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 6 - Number of turrets : 3 MAIN SPINDLE - Spindle power : 29 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 4.2 [kW] - Spindle speeds : 4500 [rpm] - C axis indexing precision : 0.001 [°] - Travel : 280 [mm] UPPER LEFT TURRET - Number of positions : 5 - Tool type : VDI25 UPPER RIGHT TURRET - Number of positions : 8 - Number of motorized positions : 8 - X/Z stroke : 90/280 [mm] - Tool type : VDI25 - Live tools speed : 4500 [rpm] - Live tools power : 4.2 [kW] LOWER LEFT TURRET - Number of positions : 6 - X/Z stroke : 81/80 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 35 [kW] EQUIPMENT - CNC : INDEX C200-4 - Coolant tank * with high-pressure pump - Chips conveyor - Parts catcher - Parts conveying strip - Collet chuck Iodsuhac Dspfx Afpsbc

Condition: good (used), Year of construction: 2014, spindle bore: 65 mm, Description – A copy of the invoice can be sent by e-mail. These are 3 machines with almost identical equipment specifications. The machines can be purchased as a package or individually. Ibedpsw Nrggsfx Afpjc

Condition: excellent (used), Year of construction: 1998, operating hours: 50,000 h, functionality: fully functional, turning diameter over cross slide: 42 mm, turning length: 150 mm, turning diameter: 42 mm, bar passage: 42 mm, Available: three Index ABC turning centers (years 1998, 2000, 2002). All units are currently operating in production — live production tests can be arranged by appointment. Condition: Operational in production. Coolant: Currently using oil‑based cutting fluid; convertible to water‑based emulsion. Accessories: Numerous tooling holders and live tools included, bar feeder, swarf coveyour, C axis, spare parts. Documentation: All books and manuals supplied. Please provide or request: model/control type, spindle specs, run hours, tooling inventory, asking price (per unit or lot), and location/availability for inspection. Price for package price of 3 machines can be negotiated. Ibjdpow Smf Aofx Afpsc

Condition: good (used), Year of construction: 1997, Index ABC Ibsdpfx Aehd U Hfjfpsc Year of manufacture 1997 Machine number 400621 Spindles: 1 Max diameter: 50 mm turrets: 2 Positions: 8 on turret 1 / 6 on turret 2 C axis is programmable 1 synchronous spindle in the machine + 2 for regeneration High pressure pump: yes, 30 bar

Condition: good (used), Year of construction: 2007, INDEX ABC65 CNC Lathe Year of manufacture: 2007 Ibodswi Ur Hepfx Afpoc Control: Siemens 840D On-time hours: approx. 62,000 h Spindle hours: approx. 49,000 h Main spindle: 65 mm Turret: 2 Tool holder: VDI25 Back boring stations: 5 Bar loader: Index MBL Chip conveyor: Knoll high-pressure system Coolant system with belt filter Contact us for more photos
