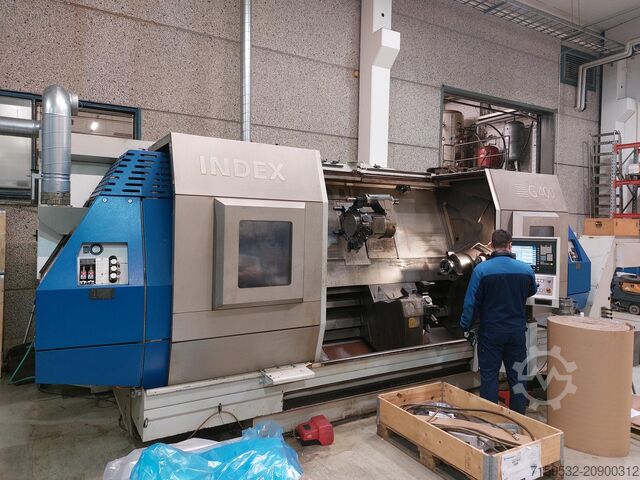

CNC Turning- and Milling Center

Index G 400

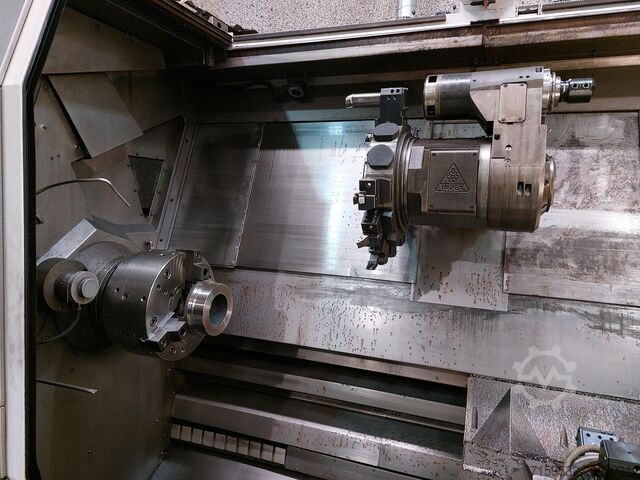

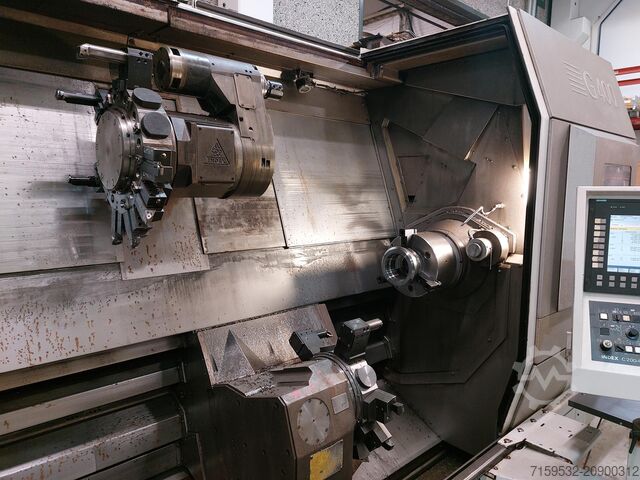

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of axes : 8 - Number of turrets : 2 MAIN SPINDLE - Spindle power : 53 / 68 [kW] - Spindle speeds : 3000 [rpm] - Max. bar diameter : 102 [mm] - 1 - Saisie libre : 2000 [mm] - Max. chuck diameter : 420 [mm] - Rapid traverse rate : 30 [m/min] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle power : 50 / 70.5 [kW] - Spindle speeds : 3000 [rpm] - Max. bar diameter : 102 [mm] - Rapid traverse rate : 30 [m/min] - C axis indexing precision : 0,001 [°] Njdpeuhbpfefx Agmjdd UPPER LEFT TURRET - Number of positions : 12 - Number of motorized positions : 12 - Tool holder type : VDI 40 - X/Z stroke : 320 x 2.000 [mm] - Y stroke : 210 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 17 [kW] LOWER RIGHT TURRET - Number of positions : 10 - Number of motorized positions : 10 - Tool holder type : VDI 40 - X/Z stroke : 210 x 2.000 [mm] - Live tools speed : 6000 [rpm] - Live tools power : 11.3 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 137 [kW] WEIGHT & DIMENSIONS - Machine floor space : 9.000 x 3.500 [mm] - Machine height : 3.000 [mm] - Machine weight : 21.000 [kg] MACHINE HOURS - Number of working hours : 34274 [h] EQUIPMENT - CNC : INDEX C200-4D (Siemens 840D) - Coolant tank : KNOLL * with high-pressure pump : 80 [bars] * with paper filtering unit - Automatic doors - Chips conveyor : Droite

Condition: used, Year of construction: 2006, travel distance X-axis: 980 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, table width: 1,250 mm, table length: 750 mm, rotary table diameter: 700 mm, DMG DECKEL MAHO DMU80 monoBLOCK HEIDENHAIN iTNC530 Rotary T: dia700mm T:1,250x750mm 18,000rpm HSK-A63 ATC32 Touch probe TS640 Blum Laser Chip Conveyor Nedpfx Ajvxngdogmsdd

Condition: used, Year of construction: 2002, turning diameter max. 420 mm turning length 1250 mm control INDEX, C 200-4 D swing diameter 630 mm travel x1 320 mm travel z1 1250 mm travel x2 170 mm travel z2 1250 mm travel x3 320 mm travel z3 1250 mm main spindle speed max. 3000 U/min main spindle drive 53 kW spindle passage 102 mm spindle head DIN 55026 Gr. 11 max. torque on the spindle 675 Nm sub spindle - spindle speed range max. 3000 U/min sub spindle drive 53 kW sub spindle - spindle passage 102 sub spindle - spindle head DIN 55026 Gr. 11 sub spindle - spindle torque 675 Nm travel sub spindle 1250 mm feed power X1 14000/Z1 14000 N rapid traverse X1 20/Z1 40 m/min feed power X2 8600/Z2 14000 N rapid traverse X2 20/Z2 40 m/min feed power X3 14000/Z3 14000 N rapid traverse X3 20/Z3 40 m/min numbers of turret head positions Rev. 1 = 12 numbers of turret head positions Rev. 2 = 10 numbers of turret head positions Rev. 3 = 12 number of driven tool stations 12 / 10 / 12 speed of driven tools max. 6000 U/min max. torque 36 / 21 / 36 Nm tool taper DIN 69880 tool taper ø 40 x 63 mm total power requirement 120 kW Nedpet U R Hzjfx Agmsdd weight of the machine ca. 19 t dimensions of machine L x W x H 5,77 x 2,47 x 2,62 m Accessories: segment bushing chuck HAINBUCH on main spindle, collet chuck HAINBUCH, SPANNTOP SP on sub spindle, various tool holders (also for driven tools), chip conveyor, coolant - all 3 turrets are prepared for coolant through spindle, but the highpressure coolant pump and tank are not with the machine -

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight Njdpewl Uvksfx Agmodd X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Automation Interfaces: Standard interfaces for loaders and peripherals Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

Condition: used, TECHNICAL DETAILS - Number of axes : 7 Ndjdpfx Asuhampogmsd - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Bar puller

Condition: used, CNC cylindrical grinding machine STUDER S31 CNC LeanPro Ndodpfowim U Hjx Agmsd with "Pictogramming" Distance between centers: 1000mm Center heigh 175mm Grinding Wheel head rotation (B) 360° (1°) 2 ext Grinding Wheels 1 int Grinding Wheel Ext Grinding wheel 400 mm x 40 mm x 127 mm overhauled spindle > see photos Workhead CM 4 0-1000 RPM CNC Fanuc Programming: Pictogramming Heidenhain linear encoders This machine can be inspected under power in our warehouse in Gussago BS Italy

Condition: excellent (used), Year of construction: 2000, The machine can be inspected and tested in our warehouse after prior appointment. Nsdpfswl Uq Iex Agmedd

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Controller MITSUBISHI MELDAS M70 Table size 910 x 400 mm Max. table load 960 kg X travel 760 mm Y travel 445 mm Z travel 520 mm Spindle speed 12000 rpm Tool holder type MAS BT40 Spindle power 22 kW Ndedov H D E Sepfx Agmed ATC Magazin 22-fold Weight 4400 kg Dimensions LxWxH = 2200 x 2200 x 2700 mm Features, accessories - Coolant unit - Chip conveyor - Manuals

Condition: used, machine/vehicle number: 109369/109370, Technical data Manufacturer: ZEISS Serial No. 109369/109370 Plate is divided in the middle Ndedpfjdbi Nljx Agmed Measuring plate Length = 6000 mm width = 3000 mm Height = 350 mm The machine can be upgraded with new software according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices and subject to prior sale)

Year of construction: 2003, condition: excellent (used), Technical data Manufacturer: ZEISS Type: Pro Year of manufacture: 2003 Double pedestal CMG Measuring plate Ndodpfx Aogmpgxsgmed X = 6000 mm Y = 3000 mm The machine can be modernized with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is directed exclusively at specialist customers. (Changes and errors in the technical data, information and prices as well as and prices as well as subject to prior sale).
