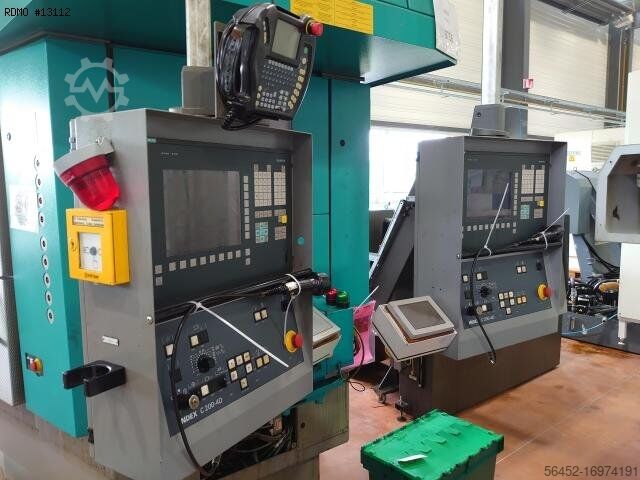

Cnc multispindle lathe

INDEX MS40C

Condition: used, TECHNICAL DETAILS - Quantity of spindles : 6 - Bar clearance : 40 [mm] - Rotation speed : 7 000 [rpm] - Spindle power : 13 / 24 [kW] NUMERICAL AXES : 27 - Slides unit 1.1 : axes X and Z CNC-controlled - Slides unit 1.2 : axes X and Z CNC-controlled - Slides unit 2.1 : axes X and Z CNC-controlled - Slides unit 2.2 : axes X and Z CNC-controlled - Slides unit 3.1 : axes X and Z CNC-controlled - Slides unit 3.2 : axis Z CNC-controlled - Slides unit 4.1 : axes X and Z CNC-controlled - Slides unit 4.2 : axis Z CNC-controlled - Slides unit 5.1 : axes X and Z CNC-controlled - Slides unit 5.2 : axis Z CNC-controlled - Slides unit 6.1 : axis Z CNC-controlled + SCARA axis - Slides unit 6.2 : axes X and Z CNC-controlled - Slides unit 6.3 : axis X CNC-controlled ELECTRICAL INPUT - Voltage : 400 [V] - Frequency : 50 [Hz] - Installed power : 65 [kW] DIMENSIONS OF THE MACHINE - Floor space : 3329 x 2032 [mm] - Height : 2654 [mm] - Weight: 7100 [kg] HOURS - Hours under power : 45965 - Production hours : 19065 EQUIPMENT - CNC Siemens 840D (PL) double NCU - 2 control panels CN - 6 collet receivers TOPLUS with built-in stop - 1 counter-spindle in position 6.1 - Clamping device in counter-spindle : chuck Röhm KFD-HS 110/3 - Coolant through counter-spindle center - Cn options counter-spindle/ polygonal milling - Rear machining device on slide 6.2 : 3x fix - Preparation 2 additional controls with electronic shaft in position 1.2.3 - Preparation 2 additional controls with electronic shaft in position 4.5.6 - STAUBLI robot type TX60 (6 axes) - Robot collet double clamping external type PZN50 - Swiveling plate (4 positions) - Coolant tank KNOLL with hinged chip conveyor, 2 HP pumps 40 [bars] Bodpfx Afjuhantjcjcw - Oil mist aspiration device Büschel - Cooling unit RIEDEL - Preparation ARTIS

Condition: excellent (used), Year of construction: 2023, X/Y/Z: 360/120/750 mm Bar capacity: 82 mm 12-station driven tool turret C-axis Y-axis VDI 40 NC tailstock MK 5 with foot switch Foot switch for clamping on main spindle Air curtain Signal light Coolant device Chip conveyor Hydraulic holding brake ShopTurn Transmit function (cylindrical machining on outer and face surfaces) iXpanel (control system operation and organization extension) Gripper tray Bedpfxjw Nxyaj Afcjcw Small tool package

Condition: used, Year of construction: 2014, INDEX C200 CNC Lathe 3 Turrets 2 spindles Fanuc Control: 31i-Model B Axial Motorized Switches: 6 pcs Radial Motorized Switches: 13 pcs Tool Holders: 11 pcs Boring Bar Holders: 21 pcs Pin: 1 pcs Loader Bushings + Sleeves: Ø51/Ø46/Ø41 New MBL loader bushings: 2 sets 2 optical scales overhauled by HEIDENHAIN 1 Balluff Socket Gantry Arms Box with various sensors and proximity switches and cables Motorized Belts: 6 pcs Set of anti-vibration bushings for MBL loaders Start-up time: On time: 37946 Hydraulic hours: 37,500 Production time: 26,500 With MBL Bar Feed Bodpfx Aoxxm Hfefcscw

Condition: used, Year of construction: 2023, Technical details: turning diameter: 770 mm turning diameter over slide: 650 mm Bcodpexhd Ufsfx Afcow turning length: 750 mm max. diameter of work permitted:: 82 mm y-axis: +/- 60 mm turret (x-stations): 12 VDI 40 turning speeds: 4.000 1/min tail stock: ja total power requirement: 47 kVA weight of the machine ca.: 7,8 t dimensions of the machine ca.: 3,3 x 1,9 x 2,3 m Accerories main spindle power 16 / 24 kW CNC lathe, NC-tailstock, C-axis with brake, live tooling (10,5 kW, 5.400 rpm), 3-jaw chuck SCHUNK ROTA THW 260-81, chip conveyor, prepared for oilmist suction, parts catcher and belt (right side), coolant device 300l, 8/20bar, accessories (8pcs. live-toolholder...) approx. 3.000 working hours *

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, number of spindles: 6, bar diameter (max.): 40 mm, Equipment: rotational speed infinitely variable, High pressure 80 bar Y-axis in position 5.1 Polygon turning device Part removal possible with external unit Bcedpfxjxuikrs Afcjw Index MBL 40-6 – bar feeder

Condition: used, Cnc multispindle lathe INDEX MS32C Bcodpfx Asxt U Hpsfcjw

Condition: used, Cnc multispindle lathe INDEX MS32C Bodpfx Aexma Npjfcscw

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 - Number of turrets : 3 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 22/29 [kW] - Spindle speeds : 7.000 [rpm] - Max. bar diameter : 42 [mm] - Max. chuck diameter : 110 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 16,5/19 [kW] - Spindle speeds : 7.000 [rpm] - Max. bar diameter : 42 [mm] * Max. chuck diameter : 110 [mm] - C axis indexing precision : 0,001 [°] - Travel : 500 [mm] - Rapid traverse rate : 60 [m/min] - Spindle / counter-spindle distance : 515 [mm] UPPER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 Bjdpfxoyfw I Ue Afcocw - X/Z stroke : 70 / 250 [mm] - Y stroke : 70 [mm] - Tool type : VDI 25 - Live tools speed : 8.000 [rpm] - Live tools power : 4,2 [kW] UPPER RIGHT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X stroke : 125 [mm] - Tool type : VDI 25 - Live tools speed : 8.000 [rpm] - Live tools power : 4,2 [kW] LOWER LEFT TURRET - Number of positions : 10 - Number of motorized positions : 10 - X/Z stroke : 70 / 400 [mm] - Y stroke : 70 [mm] - Tool type : VDI 25 - Live tools speed : 8.000 [rpm] - Live tools power : 4,2 [kW] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 37 [kW] WEIGHT & DIMENSIONS - Machine floor space : 5990 x 1710 [mm] - Machine height : 2140 [mm] - Machine weight : 5.500 [kg] MACHINE HOURS - Number of working hours : 16759 [h] EQUIPMENT - CNC : Fanuc Series 31i-B - 3 colors status lamp - Coolant tank * with high-pressure pump : 25 [bars] * with paper filtering unit - Coolant through spindle - Chips conveyor : DROITE - Cooling unit : KLH - Parts catcher - Parts conveying strip - Bar loader : IEMCA BOSS 552 HD

Condition: ready for operation (used), Year of construction: 2000, spindle motor power: 22,000 W, total height: 2,050 mm, overall weight: 4,000 kg, controller manufacturer: INDEX, controller model: C200-4 / C200-8, This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Additional equipment • Synchronous device for counter spindle machining • Tool carrier 3 for synchronous spindle (rear end machining) • Additional milling spindle • Thread milling and polygon turning device • Gripperless tool changer (6 tools, HKS-50 B, KM40) • Workpiece handling WHU100 • with c-axis • no driven tools Machine Benefits Technical Machine Benefits • Space requirement (without material guide): 3580 x 3108 mm • Control unit: resolution: 0. 001 mm (input/output/correction) • Comprehensive movement range with multiple axes configuration • High precision with 0. 001 mm resolution in numerical control • Versatile expansion stages and additional equipment for enhanced functionality Extra Information Bedpfx Afsyailzecjcw Movement Cross slide 1 (top) - XYZB axes: X-axis: Slide path 155 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Y-axis: Slide travel 120 mm, feed force 10000 N, rapid traverse 7.5 m/min, resolution 0.0005 mm Z-axis: Slide path 590 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm B-axis (rotating): 360° swivel range, angular steps 5° (with locking), resolution 0.001° (with clamping), switching time for 180°: 1 s Cross slide 2 (bottom) - XZ axes: X-axis: Slide travel 105 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Z-axis: Slide path 307 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm Turret Turret right: X-axis: Slide path 120 mm Z-axis: Slide travel 400 mm Tail Stock Center distance: 400 mm Pressure force (max): 5500 N Drive: Hydraulic or electric Media Power supply: 400 V, 50/60 Hz Connected load: 20-45 kVA Current consumption: 35-80 A Hydraulic system: Delivery rate: 18 l/min System pressure: 90 bar Filling capacity: 70 liters Cooling lubricant system: Pump capacity (switchable): 20 l/min at 18 bar / 50 l/min at 3 bar / 60 l/min at 5-7 bar Filling quantity: Approx. 230 liters Chip conveyor: Hinged belt or scraper Workpiece holder: Main spindle: DB5 internal mount / D140 external mount, optional short taper Counter spindle: D140 external mount (only tensile clamping permitted for collet and chuck clamping) 1st spindle data (main/counter spindle): Spindle clearance (collet clamping): Variants: 30 mm / 42 mm / 60 mm / 65 mm Spindle Ø in front bearing: 75 mm (with 30 mm clearance) / 85 mm (42 mm) / 100 mm (60+65 mm) Speed (max): 7500 rpm (30 mm) / 6300 rpm (42 mm) / 5000 rpm (60 mm) Spindle nose: ISO 702/1 (size 4 or 5) Chip diameter (workpiece Ø): 110-130 mm (30 mm) / 140-160 mm (42 mm) / 165 mm (60 mm) Torque (Md max 100%): 33-62 Nm (30 mm) / 35-95 Nm (42 mm) Power (P max 100%): 7-13 kW (30 mm) / 7.5-20 kW (42 mm) Dimensions Machine Depth 3580 mm

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 3,000 rpm, travel distance X-axis: 640 mm, travel distance Y-axis: 210 mm, travel distance Z-axis: 2,000 mm, spindle motor power: 67,000 W, total height: 2,591 mm, total width: 2,199 mm, overall weight: 21,000 kg, product length (max.): 6,300 mm, tool weight: 5,000 g, swivel angle B-axis (max.): 360 °, swivel angle C-axis (max.): 360 °, number of axes: 4, This 4-axis Index G 400 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of 630 mm, a length capacity of 2000 mm, and supports a workpiece weight up to 300 kg. Equipped with a high-speed milling spindle at 6000 rpm and a main spindle speed of 3000 rpm, it offers robust machining capabilities. Consider the opportunity to buy this Index G 400 horizontal turning machine. Contact us for more information. Bcedpfx Ajx D D Ecefcsw Main spindle 0102 direct driveMaximum material throughput: 102 mmMaximum speed: 3000 rpmFront bearing diameter: 170 mmVariable hollow shaft motorPower at main spindle D102:Power at 100/40% duty cycle: 53 kW/68 kWTorque: 675 Nm/900 NmWork spindle alignment and switching device D1022.5° increments via indexing discHydraulicly actuated hollow clamping cylinder D102 with analog clamping stroke monitoringMaterial clearance: 102 mmStroke: 48 mmMaximum clamping force (tension/compression): 10,900 dNMulti-clamping pressure deviceClamping pressure adjustable from 8 to 80 bar via a multi-stage parts catalog for the main spindle clamping cylinder. Chuck release movement required for transitioning to a lower clamping l carrier 1 (standard equipment)Cross slide X, Z, turning length 2000 h internal coolant supply and shut-off valve, ball screws D=40 mmin the X-axis, D=50 mm in the Z-axis. Axis drives protected by overload clutches, counterweight in the s X ZWorking travel mm: 320 2000Rapid traverse speed m/min: 20 40Feed force N: 14000 14000X-axis measuring system: Glass scale (absolute)Z-axis: ROQ encoder (absolute)X-Y-Z-B housing (WT1)Turret with AC motor, positioned by spur gears, hydraulically lockedY-axis quill, hydrostatically mounted, lockable via spur gearsBall screw, D=40 mmOverload clutchTravel: 220 mmRapid traverse speed: 12 m/minFeed force: 24,000 NROQ encoder (abs)B-axis drive with AC motorSwivel angle: 360°Tool drive unitwith two clutches:Maximum speed: 6,000 rpmPower (25%) at n= 6,000: 17 kWMaximum torque (25%): 37 NmDisc turret with 12 stations on cross slide 1Tool holder system DIN 69880-40x63Increased repeatability during tool changes due to additional W-slotsMultifunction unit on cross slide 1Maximum speed: 6,000/1,500 rpmGearbox: i=4Torque: 36/144 NmTools: SK50Front bearing diameter: 75 mmInternal coolant feedthrough, disc spring clampingTool carrier 2, right - X, ZTurning length 2000 mm, preferably oncounter spindle machine with internal coolant supply and shut-off valve, turret control via AG motor, ball screws D= 50 mm for Z-axis, D= 40 mm for X-axis. Axis drives protected by overload clutches, counterweight system in ret head oriented to the right towards the counter s X ZTravel mm 210 2000Rapid traverse speed m/min 20 40Feed force N 8600 14000X-axis measuring system: glass scale (abs)Z-axis: ROD encoder (abs)Disc turret with 10 on cross slide 2Tool holder system DIN 69880-40x63Increased repeatability during tool changes thanks to additional W-slotsPositioned by face gearing, hydraulically lockedCounter spindle D102, size 11-DIN 55026/55021 and ISO 702/1Turning length 2000 mmZ-axis slide driven by AC motor and 50 mm diameter ball screwAxis drive protected by overload clutchIn the working position, the slide is held against the stop by the AC motor.
