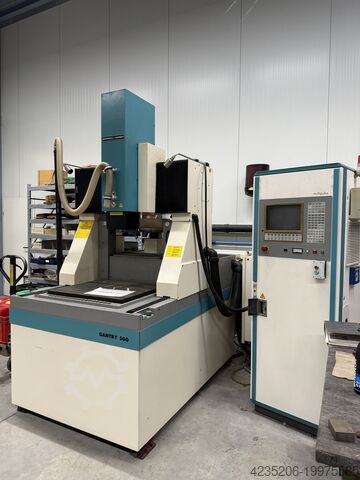

INGERSOLL Gantry 500

Condition: used, Year of construction: 2007, x-travel 550 mm y-travel 400 mm z-travel 400 mm Control INGERSOLL ANDRONIC Chjdexiy A Uopfx Abwec

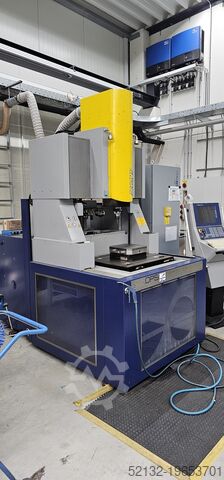

Condition: used, Year of construction: 2011, Sinks (see attached images) Gantry Eagle 500 Year of manufacture: 2011 Travel paths: x/y/z = 525x400x450 Tool changer: 24 positions Weight: 5000 kg Chsdsw D Hcgepfx Abwoc

Year of construction: 2017, condition: ready for operation (used), General Data Machine weight 5000 kg Control Unit Brand EAGLE Model POWERTEC Main Drive Number of axis 4 Movement X-Axis Movement 525 mm Y-Axis Movement 400 mm Y-Axis Feed Force 5000 mm/min Z-Axis Movement 450 mm Z-Axis Feed Force 18000 mm/min X-Axis Feed Force 5000 mm/min Workpiece Workpiece weight 1000 kg Additional Equipment Csdpfx Aoxcb Nisbwohc Electrode magazine: Number of positions: 20 Max electrode weight (automatic change): 15 kg Max total electrode weight in magazine: 60 kg This 4-axis OPS INGERSOLL Gantry Eagle 500 was manufactured in 2017. It features a robust die-sinking EDM capability with X, Y, Z travels of 525 mm, 400 mm, and 450 mm respectively. It supports a maximum workpiece weight of 1,000 kg and includes a 20-position electrode magazine. If you are looking to get high-quality die-sinking capabilities, consider the OPS INGERSOLL Gantry Eagle 500 machine we have for sale. Contact us for more information about this machine. Application Types EDM

Condition: repair required (used), Year of construction: 2002, Year of manufacture 2002 20-fold changer C02 extinguishing system Please note: Dielectric cables leaking, axle module defective. Chedou St A Iopfx Abwec Loading free. ex warehouse 95643 Tirschenreuth Shipping possible, transportation costs borne by the buyer

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 525 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, table width: 750 mm, table length: 650 mm, TECHNICAL DETAILS Version: Lifting Tank Internal dimensions (W x D x H): 770 x 670 x 440 mm Programmable/automatic dielectric fluid height: max. 395 mm Work Table Support surface (W x D): 750 x 650 mm Load capacity: 1,000 kg Travel Paths X / Y / Z (within working tank): 525 x 400 x 450 mm Y (for electrode change and loading position): 675 mm Control System PC-NC dialogue: 2 x 32 bit Drive type: digital AC servo motors Max. traverse speed X, Y, Z: 5,000 mm/min High speed jump max.: 18,000 mm/min Min. distance between electrode clamping system and work table: 135 mm Max. distance between electrode clamping system and work table: 585 mm C-Axis Adjustable rotation speed: 1-20 rpm Measuring resolution: 0.001 degrees Load capacity for manual electrode change: 50 kg Load capacity for automatic electrode change: 15 kg Holding torque/clamping: Yes Max. electrode moment of inertia: 0.4 kgm² MACHINE DETAILS Dimensions (W x H x D) with generator: 2600 x 2680 x 2290 mm Codpfx Absw T Tg Nswjhc Space requirement with generator: 7.3 m² Machine weight: 4,360 kg Generator weight: 640 kg Connected load: 16 kVA Fuse protection: 32 A Supply voltage/frequency: 400 V / 50 Hz Operating hours: 2,001 h

Condition: used, Year of construction: 2012, An OPS-Ingersoll die-sinking EDM machine is available. Travel X/Y/Z: 525mm/400mm/450mm, C-axis: 360°, table dimensions X/Y: 750mm/650mm, max. workpiece weight: 1000kg, container dimensions X/Y/Z: 770mm/670mm/440mm, generator power (Eagle Powertec): 60A, electrode changer: 20-fold, high-speed jump: 18m/min, fine finishing generator: PT60, weight: approx. 5000kg, control: Eagle Powertec PC/NC 3060. 5000kg, control: Eagle Powertec PC/NC 3060, including compressor recooling unit, CO2 fire extinguishing system and pressure rinsing. Documentation available. On-site inspection is possible. Chjdpswtrc Dsfx Abwoc

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 525 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 450 mm, Control : PC-NC Dialog Technical data : Travel X/Y/Z: 525/400/450 mm working tank W/D/H 770/670/440 mm C-axis 30-fold electrode changer supporting surface working table 750x650 mm Cjdpfxsp N Nbgj Abwehc Load capacity 1000 kg Weight 4360 kg

Year of construction: 2004, condition: ready for operation (used), Control Unit Brand MITSUBISHI Model 64 bit CNC Movement X-Axis Movement 525 Y-Axis Movement 400 Z-Axis Movement 450 Chjdpfx Abjxbihqswjc Workpiece Workpiece weight 1000 kg Table Outer length 730 mm Outer width 630 mm This 3-axis die-sinking EDM machine manufactured in 2004 features a Mitsubishi 64-bit CNC control system and a powerful 70 Ampere generator. It has a travel range of 525 x 400 x 450 mm and includes a 20-fold electrode changer. The work table measures 730 x 630 mm with a load capacity of 1000 kg. Consider the opportunity to buy this OPS INGERSOLL Gantry 500. Contact us for more information about this machine. Application Types EDM
