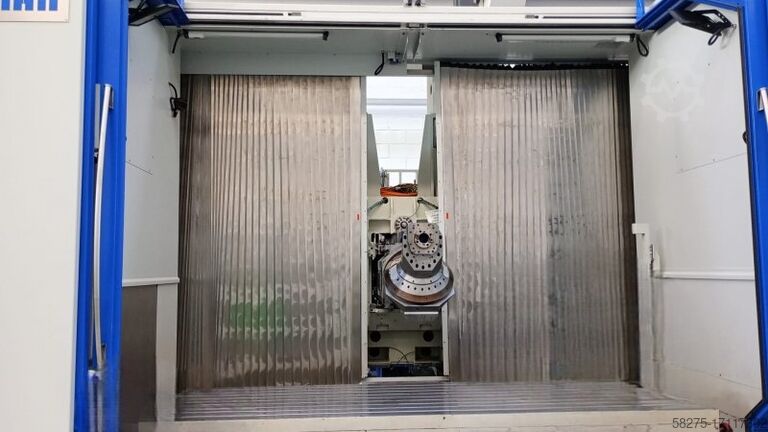

Condition: excellent (used), Year of construction: 2014, x-travel 2500 mm y-travel 3000 mm z-travel 1250 mm Control HEIDENHAIN iTNC530 spindle turning speed - stepless 22000 U/min c-axis +-300° milling-head swivable +/- +-110° tool taper HSK 63 A tool change unit 50 Pos. total power requirement 130 kW weight of the machine ca. 53,5 t dimensions of the machine ca. 7,6 x 7,3 x 5,7 m This ZIMMERMANN FZ33c is available immediately and in good condition. - NEW spindle received 6 months ago Description: Technical specifications of the machine and working ranges X-axis 2500 mm Y-axis 3000 mm Fgodpfxezak Hgs Akhjf Z-axis 1250 mm A-axis ± 110 ° C-axis ± 300 ° Includes vibration sensor Includes bearing temperature sensor Includes rotary joint for internal tool magazine feed (IKZ) 5-axis path control: Heidenhain iTNC 530/handwheel HR520, 15” TFT colour display Extraction system LTA Industrial Air Cleaning Machine room canopy 50-position tool changer, chain magazine, behind the machine Chip conveyor, ejection 60° to the left, front-facing No probe available!!! Blum Laser tool measurement ‘Control NT-Micro’ Clamping table Length x width x height 2500 x 3250 x 400 mm Table load 8000 kg/m² (max. 16000 kg) T-slots, arranged longitudinally 18H12 T-slot spacing 250 mm Dimensions, weights Footprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mm Total weight approx. 53500 kg Electrical connection data Voltage (three-phase) 400 V Frequency 50 Hz Compressed air connection (to be provided by customer) Required air pressure 6 bar Average air consumption approx. 15 m³/h (depending on machine configuration) Linear axis drives Feed rate X, Y, Z axes 60 m/min Axis acceleration X, Y, Z axes up to 5 m/s² Rotary axis drives – VH30 Feed rate A- and C-axis 360 °/s Axis acceleration A- and C-axis 700 °/s² Resolution A- and C-axis 0.0001 Accuracies of linear axes – in accordance with VDI / DGQ 3441 Positioning accuracy X-axis P= 0.026 mm Y-axis P= 0.028 mm Z-axis P= 0.020 mm Repeatability X-axis Ps= 0.015 mm Y-axis Ps= 0.016 mm Z-axis Ps= 0.010 mm Resolution of measuring systems (interpol) A-, C-axis 0.0001° Accuracy of rotary axes – VH30 Positioning accuracy A- and C-axis P= 12" = 0.0033° Repeatability A- and C-axis Ps= 8" = 0.0022° VH30 milling head 2-axis milling head: VH30, Siemens Weiss milling spindle Spindle power S1 (100% duty cycle) 60 kW, Spindle speed 22,000 rpm, 95 Nm, HSK-A63 External dimensions of fork head L x W approx. 500 x 600 mm Nominal torque of rotary axes Control loop A: min. 1,200 Nm C: min. 1,047 Nm Clamped A and C axes: 3,000 Nm (Continuous grease lubrication with automatic relubrication system) Swivel axis – spindle nose 326 mm Tool holder HSK 63 A Tool clamping Spring clamp Tool unclamping Hydraulic Permissible tool weight 4.5 kg (manufacturer’s specification) Coolant supply External and internal Coolant/lubricant supply (emulsion) at the front of the milling spindle with belt filter system Volume 1500 l Pump 1: 40 l/min at 20 bar Pump 2: 20 l/min at 40 bar, Air blow at the front of the milling spindle

Condition: excellent (used), Year of construction: 2020, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 35,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total width: 5,800 mm, total height: 4,500 mm, total length: 13,500 mm, table length: 10,000 mm, table width: 1,250 mm, Travelling Column High performance, precision and machining power Linear guiding of RAM combined with Hydrostatic Guiding HDS ACD2 Milling head with 5000 Rpm and 1400 Nm torq Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg Filtration with IKZ 15 Bar Chip conveyor BLUM 3D Measuring probe Wide bed linear guided in X-Travel W=930 mm Rotary table driver prepared in E-Cabinet X-Axis: 8000mm Fedpsyr Dmdofx Akhjgf Y-Axis: 1300mm Z-Axis: 2500mm Table Length: 10000mm Table Width: 1250mm Power on spindle: 40kW Spindle speeds: 5000Rpm Spindle Taper: 40ISO/Bt/Mk Feed rate X-Axis: 35000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Millinghead auto-index:0.001 x 0.001 Gr° Working hours: 3800H Length: 13500mm Width: 5800mm Height: 4500mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Fedpexlctbefx Akhsgf Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Dust extraction: L-CUT Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Initial commissioning on site Training

Condition: like new (used), Year of construction: 2018, operating hours: 5,498 h, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 3,500 mm, feed rate X-axis: 40 m/min, feed rate Y-axis: 40 m/min, feed rate Z-axis: 40 m/min, table length: 2,500 mm, table width: 3,500 mm, spindle speed (max.): 12,000 rpm, table height: 300 mm, table load: 130,000 kg, workpiece weight (max.): 130,000 kg, spindle nose: HSK A100, MOVING GANTRY MILLING MACHINE FPT MOD. DINOX 350 IAT 5 axes Numerical control: Heidenhain TNC 640 X axis: 2,500 mm Z axis (Vertical): 1,300 mm Y axis: 3,500 mm Rapid traverse: 40,000 mm/min Universal head with continuous positioning HSK A100 electrospindle interface Maximum speed: 12,000 rpm A axis: + / - 185° C axis: + / - 270° Table: 3,500 x 2,500 mm, height 300 mm Load capacity: 15t/m^2 Tool changer: 64 positions Total power: 85.13 kW Weight: 51,370 kg Complete with: - Laser probe and software for tool integrity check and tool length and radius measurement Fgjdpfxewzv Tce Akhjf - Workpiece probing and alignment sensor - External/internal tool coolant with 1,500 l tank, p=40 bar - Workpiece washing gun with tool coolant, dedicated pump - Internal tool cooling with compressed air, High Speed - Chip conveyor USED MACHINE YEAR 2018

Condition: used, Year of construction: 2013, Technical details: faceplate diameter: 800 mm power requirement: 110 kW weight of the machine ca.: 37.000 / total 52.000 t transport measurements machine: 5,07 x 2,98 x 3,90 m clamping diameter: 800 mm : Ø 800 x 720 mm Tool bore: Capto C6 tools in tool magazin: 2 x 80 With C-Axis Fsdpfeuyp Enjx Akhogf *

Condition: used, Year of construction: 2013, functionality: fully functional, travel distance X-axis: 17,000 mm, travel distance Y-axis: 4,800 mm, travel distance Z-axis: 1,500 mm, table length: 16,000 mm, table width: 3,000 mm, spindle speed (max.): 3,000 rpm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 8 m/min, rapid traverse Z-axis: 8 m/min, distance between stands: 3,800 mm, type of input current: three-phase, position of the milling head: vertikal / Winkelkopf, rotational speed (max.): 3,000 rpm, distance table to spindle center: 2,300 mm, overall weight: 90,000 kg, spindle nose: ISO 60 / ISO 50 Adapter, spindle motor power: 60,000 W, Equipment: rotational speed infinitely variable, ➡️ WALDRICH COBURG CNC GANTRY MILLING MACHINE ⬅️ Fedpfxsy Rrb Ie Akhogf Heavy Duty Machining | Siemens 840D Retrofit | Ready for Production High-quality CNC gantry milling machine manufactured by Waldrich Coburg available for sale in very good condition. ✔ Machine under power ✔ Inspection & test run possible ✔ Siemens 840D retrofit (2013) ✔ New electrical system & cabinets ✔ New motors & drives ✔ Heidenhain glass scales on all axes ✔ Ideal for large part machining & heavy-duty applications Technical Data X travel: 17,000 mm Y travel: 4,800 mm Z travel: 1,500 mm Floor plates: 16,000 x 3,000 mm Distance between columns: 3,800 mm Distance table to spindle face: 2,300 mm Spindle power: 60 kW Spindle speed: 0.4 – 3,000 rpm Tool taper: ISO 60 / ISO 50 adapter Machine weight: approx. 90,000 kg Equipment Siemens 840D CNC control 2-step gearbox Right angle head WFU 250 with automatic indexing Right angle head WFU 500 with automatic indexing Rapid tapping Tool trolley with tool holders Steel way covers on X/Y axes 2 chip conveyors Perfect for: Heavy machining Machine building Energy industry Shipbuilding Steel & rolling mill industry Subcontract manufacturing 📍 Location: USA 🌍 Worldwide shipping can be arranged 📞 Please contact us for more information, videos, or inspection appointments.

Condition: used, Year of construction: 2018, travel distance X-axis: 2,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, table length: 2,300 mm, table width: 1,600 mm, spindle speed (max.): 10,000 rpm, spindle nose: SK 50, Used CNC portal milling machine KRAFT VM-2018B with Heidenhain TNC 620 Year of manufacture: 2018 Storage location: Germany Delivery time: short term Payment: 100% before loading Warranty: none Machine description The KRAFT VM-2018B is a precise and powerful CNC portal milling machine with HEIDENHAIN TNC 620 control, ideal for heavy-duty and high-precision machining processes. Thanks to its robust design and high-quality components, it is ideal for demanding milling tasks in tool and mold making as well as in series production. Highlights & features Monoblock cast iron bed and cross beam for maximum rigidity and precision FEM-optimized machine design BF gearbox with 26 kW motor for high torque (662 Nm) Feed roller linear guides P-class (very low coefficient of friction 0.003-0.006) C3 ball screws with double nut - high load capacity & accuracy Fodpfxjwkg T Se Akhjgf Spindle: SK50, 10. 000 rpm, direct drive Heidenhain TNC 620 control Spindle cooling & IKZ 20 bar Coolant system, oil separator, air conditioning for control cabinet Full enclosure, TÜV-approved, CE-compliant Technical data Travel (X/Y/Z): 2,300 / 2,000 / 1,000 mm Table size: 2,300 × 1,600 mm T-slots: 8 × 22 × 180 mm Max. Table load: 8 t Distance spindle nose - table: 180-1,180 mm Rapid traverse X/Y: 20,000 mm/min Rapid traverse Z: 15,000 mm/min Feed range: 1-10,000 mm/min Positioning accuracy (VDI/DGQ3441): 0.020

Condition: good (used), travel distance X-axis: 12,000 mm, travel distance Y-axis: 7,300 mm, travel distance Z-axis: 3,000 mm, total length: 30,000 mm, table length: 12,000 mm, table width: 4,730 mm, total width: 12,000 mm, total height: 10,475 mm, table load: 250,000 kg, overall weight: 400,000 kg, Make : Waldrich - Siegen - Typ : PF-F-150(1)-530/400 - No. : 11.093/0 - Age : Overhault 2004 ( Euro 2.2 Mil) X Travel : 12.000 - Y Travel : 7.300 - Z Travel : 3.000 - W Travel : 4.000 - Between column : 5.000 - Table width : 4.730 - Table length : 12.000 - Table load : 19 t / mtr. Ca. 250 ton - Table feed : 10.000 mm/min. - W axis : 3.000 mm/min. - T axis : 6.000 mm/min. - Cross adj. milling head : - Vert. adj. cross rail : - Horizontal hydrostatic spindle ram - Milling spindle Ø : 560 - Milling tool taper : iso 60 - C axis feed : 5.000 mm/min. - Milling motor : 90 kW - Spindle speed : 2.500 R/pm - Z axis stroke : 3.000 - Z axis feed : 2.000 mm/min. - Milling Küma Angle head WF2 90 kw- 450 - Milling Küma Uni. UB1D 60 kw - 2400 - Milling Küma Fixed GB1D 90 kw- 2400 - Milling Küma Angle head WF1? - Electric requirement : 3 x 400 V / 50 Hz - Power requirement : 600 kVA / 630 Amp - Capacity 4.000 L coolant true spindle 20/40 Bar Machine is rebuild in 2004 by Schiess Bed – Table assembly group: * Renewal of sliding lining * Grinding of guideway * Renewal of table drive * Direct linear measuring syst. * Hydrostatic Portal and cross rail: * Modification of adjusting spindle trape Zoidal spindle was recplaced with ball screw * Direct linear measuring syst. * New drive motors for relization of higer speed on feed axes of milling support. * New milling support with hydrostatic guideways Electric system: * Complet elctric cabinet switchgear * Complet new wire * Siemens Sinumrik 840 D in 6 axis !! Equipment / parts : * Complet new raumag janich covers * Complet new double chip conveyor * Complet with big tooling packet * Complet with big mounting equipment - Under power in Europe - Free directly - Controlled axis X / Y / Z / W / C / B axis Fjdpoytrxkefx Akhegf - Over all height : 10.475 mm - Over all width : 11.934 mm - Over all length : 30.000 mm - Total weight : ca. 400.000 Kg Rebuild in 2004 for EUR 2.200.000 !This CNC Waldrich Portal milling machines was used in the Energie Field for steam turbien case machining. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Technical details: turning diameter over bed: 3800 mm turning diameter over slide rest: 3200 mm turning length: 12000 mm faceplate turning speed range -stepless-: 2 - 200 U/min max. workpiece weight: 90.000 kg bed width: 4000 mm Fgsdpfex Ngzyex Akhef 2 steadies *

Year of construction: 2014, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH ROTARY AND SHIFTING TABLE LONGITUDINAL TRAVEL: 4000 mm TRANSVERSAL TRAVEL: 1600 mm VERTICAL TRAVEL: 3000 mm RAPID FEEDS L-T-V: 30 m/min TRANSVERSAL TRAVEL OF THE TABLE: 1500 mm PALLET: 2000 x 2500 mm; 1200 rpm; 8000 Nm MAX ADMITTED LOAD: 30000 Kg HEAD: A/B AXIS AUTOMATIC ; MILLESIMAL POSITIONING ; ISO 50 ; 6000 rpm; 38 kW Fodpfx Aewl R Amskhegf TOOL MAGAZINE: CHAIN-TYPE ; 80 POS CONTROL UNIT: HEIDENHAIN iTNC 530 HIGH PRESSURE COOLANT: 20 Bar ACCESSORIES: SWARF CONVEYOR ; TOOL SETTER
