Machining Center - Universal
JUARISTI TS-3 - MG 12

Name: JUARISTI TS-3 - MG 12
Brand: JUARISTI
Availability: InStock

Year of construction

2009

Condition

Used

Location

Lauchheim

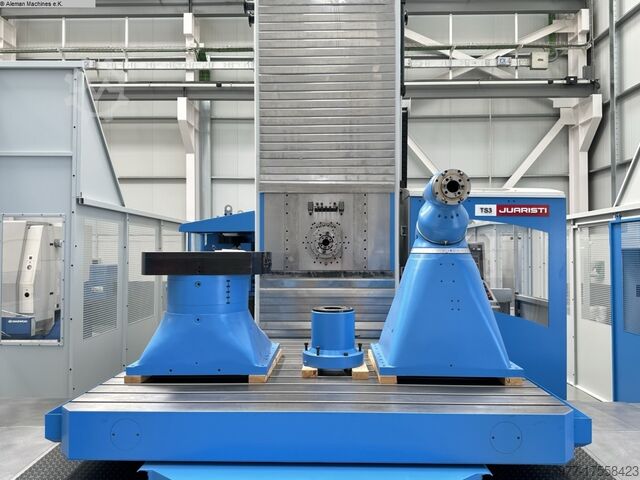

Machining Center - Universal JUARISTI TS-3 - MG 12

Show map

Machine data

Machine type:: Machining Center - Universal

Manufacturer:: JUARISTI

Model:: TS-3 - MG 12

Year of construction:: 2009

Condition:: used

Price & Location

Seller location:: Am Mühlweg 1, 73466 Lauchheim, Germany

Call

Details about the offer

Listing ID:: A175-58423

Reference number:: 1120-699

Update:: 11.03.2025

Description

x-travel 3.000 mm
y-travel 2.500 mm
z-travel 2.475 mm
w-axis 800 mm
rotary table Juaristi MG-12
Rotary table surface 2.000 x 2.500 mm
T-slots 11
T-slot - width 170 mm
table weight 8.000 Kg
table rotation B- Achse – 0,001 °
Control HEIDENHAIN i TNC-530
diameter of quill 130 mm
speed 3.000 U/min
tool taper ISO 50 DIN 69871/1-B
swivelling +/- 2,5/2,5 Grad
spindle drive 30 kW
transmission ratio 2
speeds: 0-2.500 U/min
boring spindle D`ANDREA UT5-800-S mm/min
diameter 800 mm
cross travel 250 mm
Tools changer 30 pos.
Internal cooling system 20 bar
Chip coveyor Inkl.
handwheel HEIDENHAIN HR-420
weight of the machine ca. 45 t
dimensions of the machine ca. 9.800 x 7.320 x 5.500 m
-TS-3 head, TS-5 column and
longitudinal bed
INCLUDED:
Iodpfeu D I R Dsx Afpoih
- Part touch probe RENISHAW RMP-60
- External coolant
- 20 bar Internal coolan

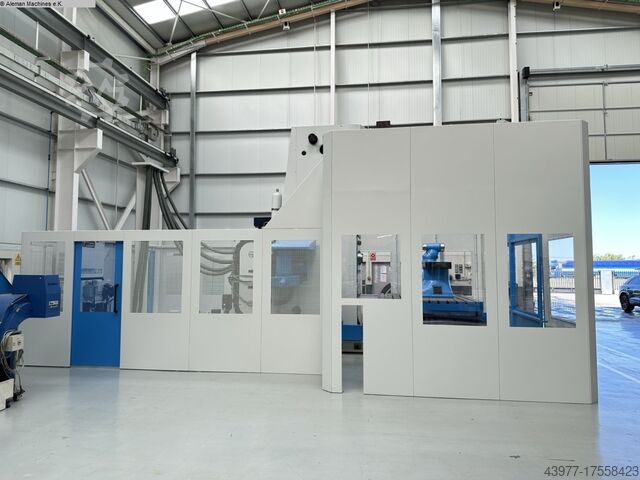

- protecting guards
- mobile operator platform for control
panel
- Chip Conveyor
- Handwheel HEIDENHAIN HR-420
