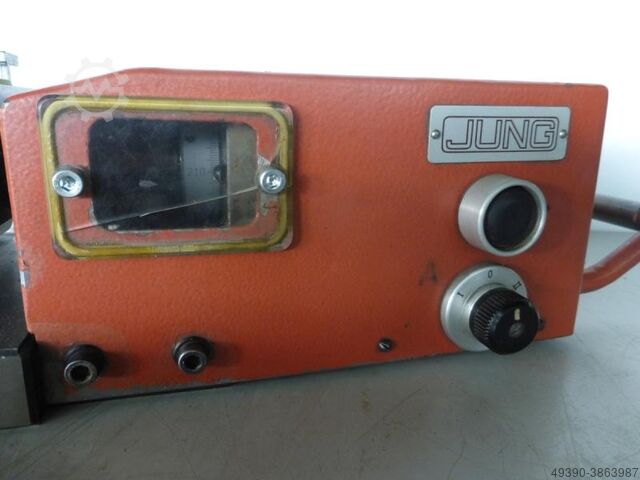

Back sharpening device with permanent magnetic clamping plate, back sharpening unit with permanent m

JUNG HA 20

Condition: good (used), Magnetic plate, magnetic table, sine table, sine plate, relief grinding device, grinding machine accessories -Design: Cutting tool mold making for conically ground cutting plates or mold inserts -Angle head for surface grinding machine or measuring machine -Magnetic plate -Angle: adjustable Bedpfx Aheb A Iqdofoww -Wooden box -Total weight with box: 35 kg

Condition: used, Year of construction: 2013, Brand : GEMINIS Model : GT5 G2 1200x1000 Bjdjzn Axispfx Ahfeww Manufacture year : 2013 Cnc : SIEMENS 840D-SL Center height: 615 mm Swing over cross slide: 850 mm Swing over bed : 1200 mm Main spindle bore diameter: 104 mm Main spindle nose: DIN 55026-11 mm Spindle diameter on front bearing:150 mm Turning Speeds : 0-1400 rpm Spindle Ranges: 4 Headstock power: (S1/S6-60%) 30/37kw – (37/46kw Optional) Headstock torque: (S1/S6-60%) 4000/4850 Nm (4800/5950Nm) Guide width: 655 mm Height up to the plane guide: 800 mm

Condition: used, Year of construction: 2001, overall weight: 10,000 kg, total length: 3,000 mm, total width: 2,300 mm, total height: 2,500 mm, REISHAUER RZ 362 A – CNC Gear Grinding Machine Year of Manufacture: 2001 Serial No.: 75523 Max. Workpiece Diameter: approx. 360 mm Max. Module: 7 Max. Gear Width: approx. 175 mm Max. Workpiece Weight: depending on configuration, approx. 60 kg Grinding Worm Diameter: approx. 270–350 mm Helix Angle: up to approx. ±45° CNC Control: Reishauer Connected Load according to Nameplate: 26 kVA Weight approx.: 10,000 kg Dimensions (LxWxH) approx.: 3000 x 2300 x 2500 mm Year of construction: 2,001 Condition: in working order Bedjzy Tkmepfx Ahfsww Terms of payment: 100% prepayment before pick-up Terms of delivery: Loaded on truck under power: No

Condition: defective spare-parts repository (used), Table size: 1300 x 950 mm Bwjdpfx Ahsicnk Ejfow The device is not functional! Chassis for sale.

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Bsdjrtrzdspfx Ahfeww Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: used, Daewoo Puma 12S-3A CNC Turning Centre Year: 1996 Fanuc Series O-T CNC Control C-Axis Spindle Live Tooling 12 Station Servo Turret Hydraulic Chuck Swing Over Bed: 570 mm Maximum Turning Diameter: 430 mm Maximum Turning Length: 770 mm Serial Number 3P100044 90 mm Bar Capacity 91 mm Spindle Bore Bwodpjzrt Dwefx Ahfsw A2-8 Spindle Nose Spindle Speeds: 25–3,000 rpm 18.5/22 kW AC Spindle Motor X Axis Travel: 260 mm Z Axis Travel: 800 mm Rapid Traverse: X 20 m/min, Z 24 m/min Automatic Lubrication Coolant System Swarf Conveyor Fully Enclosed Splash Guarding

Condition: used, Year of construction: 2024, overall weight: 17,000 kg, workpiece length (max.): 500 mm, workpiece height (max.): 1,200 mm, workpiece diameter (max.): 800 mm, MAXIMUM Ø800 PROFILE GRINDING. OPERATIONAL CONDITION. Bedpfxszrzwfj Ahfoww

Condition: used, Technical details: Bwodpfxju Nwc Ho Ahfew capacity at 100% ED: 400 A capacity: 60% ED = 500 A welding current: Gleichstrom V weight of the machine approx.: 230 kg capacity: 21 kVA Welding rectifier MIG / MAG Cooling type F Protection class IP 23 insulation class F incl. wire feed device, feed rate 0,5 - 20 m/min Ground cable/pliers Hose package 4 meters new *

Condition: used, Year of construction: 2008, Maximum workpiece outer diameter 3420 mm workpiece diameter nominal 2400 mm max. module 30 mm control Siemens Sinumerik 840 D Minimal workpiece - internal diameter 630 mm Maximum workpiece outer diameter 3420 mm Maximum workpiece tooth width 600 mm max. rim strength 500 mm Maximum permissible head circle diameter 440 mm Hob/disc cutters – Maximum length 90 mm Milling arbour diameter 80 mm milling head -swivable +15/-15 Grad Bodpfxeztz Rue Ahfeww workpiece table outer diameter 1870 mm Workpiece table bore 600 mm Workpiece table – Maximum permissible load 300 kN rapid traverse X-axis 3000 mm/min rapid travel z-axis 4000 mm/min Workpiece table speed 0-6 U/min Tools speed 18-180 U/min weight of the machine ca. 38 t dimensions of the machine ca. 8,41 x 9,05 x 5,19 m total connected load 100 kVA Equipment/accessories: - IFK2 internal milling head - Milling arbor with spacer discs - Chip conveyor - Oil mist extraction - Dry machining only - Technical documentation

Condition: new, functionality: fully functional, machine/vehicle number: 314567.00, number of clamping sleeves: 1, mount diameter: 30 mm, clamping range: 30 mm, Collet chucks / collet chuck covers / support sleeves – collet chuck assembly new – unused Our asking prices are net, ex works, plus packaging costs, starting from €390. 5 collet chuck covers for collet chucks, size Ø30, item no. 314567.00, €390 per piece. Bodpfjwccp Hex Ahfjww 4 collet chucks, size Ø30.0, €580 per piece. 1 support sleeve for collet chucks, size Ø30, €420. – e.g. for Reishauer grinding machines RZ 301 / RZ 362 from our stock. All technical specifications are subject to printing errors and changes. We only sell to countries within the European Community.
