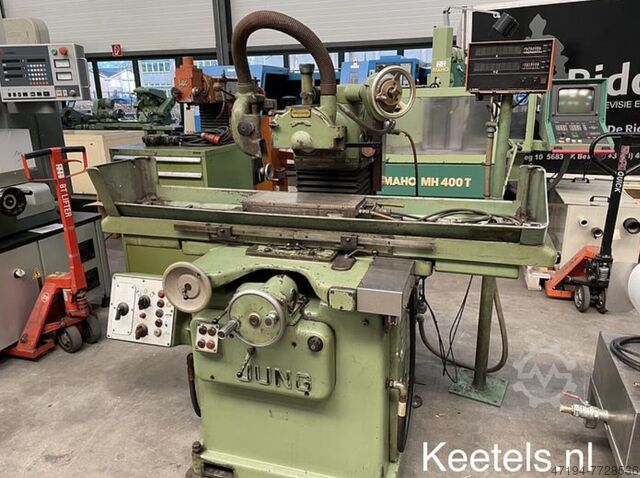

FLAT GRINDING MACHINE

Jung HF-50

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 6190, grinding wheel diameter: 150 mm, table length: 720 mm, table width: 200 mm, overall weight: 2,000 kg, No reserve price – guaranteed sale to the highest bidder! The machine is being auctioned due to business closure. Placing a bid obligates you to collect the machine on schedule between 26.01.2026 and 29.01.2026! TECHNICAL DETAILS Table dimensions: 720 x 200 mm Grinding wheel diameter: 150 mm MACHINE DETAILS Electrical data Operating voltage: 380 V Frequency: 50 Hz Rated current: 15 A Control voltage: 220 V Dimensions & Weight Dimensions (L x W x H): 3,500 x 2,000 x 1,700 mm Weight: 2,000 kg EQUIPMENT Nsdpfxsxqg E Sj Ac Helk Magnetic chuck (450 x 200 mm) RSF three-axis digital readout BRAILLON magnetizing and demagnetizing station JUNG adjustable magnetic chuck (120 x 90 mm)

Condition: good (used), 1x electromagnet with coolant connection, 500 x 200 x height 125 mm, and 1x electromagnet without coolant connection. Items are sold individually. Nlsdsx Igcuspfx Ac Hjk

Condition: used, total height: 1,700 mm, total length: 2,300 mm, total width: 1,500 mm, Empty weight: 2.000 kg - Documentation available: No - CE certificate present: No - Serial number: OF50-158 - Drive system: Conventional - Power [kW]: 2.6 - X-axis travel [mm]: 500 - Y-axis travel [mm]: 200 - Z-axis travel [mm]: 400 - Table width [mm]: 720 - Table depth [mm]: 200 - Magnet width [mm]: 400 - Magnet depth [mm]: 140 - Min. spindle speed [rpm]: 1000 - Max. spindle speed [rpm]: 4000 - Options: Digital readout - └ Type of digital readout: VisoData - Control: Conventional - Motor power: 2.0kW - Transport dimensions: 2300mm x 1500mm x 1700mm (l x w x h) - Transport weight [kg]: 2000kg Nlsdpfx Acjwninge Hok Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, grinding length: 500 mm, grinding width: 200 mm, The machine is currently being reconditioned, delivery by arrangement. Please contact us for further details. Grinding area: 500 x 200 x 400 mm (400 mm clearance between grinding spindle centre and table) New electrics and control system: Njdpfob A D Nlox Ac Hjlk - Complete new electrical system, rewiring and conversion to 24V control voltage - 5.5 kW Siemens grinding spindle motor, eliminating the need for a generator cabinet, stepless speed control - Sensor-controlled switching points for X and Z axes - Cross-table control via Siemens frequency inverter and PLC - 2-axis digital measuring system - Programmable end stop for vertical/Y-axis - Cross-table control repositioned to eye level - Machine controls at the usual position, with individual shut-off function Machine condition: - Geometrically overhauled - Grinding spindle run-out within 3 µm - Completely new VDE-compliant electrics - 5.5 kW grinding spindle drive with new control system, no more control cabinet - Professionally repainted in RAL 7035 / 7012 - CE declaration of conformity Equipment: - Magnetic chuck - 24V magnetic control with holding force adjustment and demagnetization - Side dresser - Grinding wheel flange with wheel

Condition: ready for operation (used), Manufacturer: Jung Type: HF 50 Magnet table: 450x175mm Nlodonr E Dxjpfx Ac Hsk

Condition: good (used), 1 used surface grinding machine Manufacturer: Jung Model: HF 50 Technical specifications: - Z-axis travel: 400mm - X-axis travel: 500mm - Y-axis travel: 200mm - Table length: 720mm - Maximum spindle speed: 4000rpm Nlodexgbb Tspfx Ac Hsk - Table width: 200mm - Minimum spindle speed: 1000rpm - Transport dimensions: 2300mm x 1500mm x 1700mm (L x W x H) - Transport weight: 2000kg Equipped with: - Digital readout - Diaform device

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 6471, grinding wheel diameter: 200 mm, overall weight: 1,000 kg, No reserve price – guaranteed sale to the highest bidder! Nsdsxqf E Rspfx Ac Helk The machine is being auctioned due to business closure. Placing a bid obligates timely collection between 26/01/2026 and 29/01/2026! TECHNICAL DETAILS Magnet dimensions: 450 x 220 mm Grinding wheel diameter: 200 mm MACHINE DETAILS Electrical data Operating voltage: 380 V Frequency: 50 Hz Rated current: 15 A Dimensions & weight Dimensions (L x W x H): 3,000 x 1,500 x 1,700 mm Weight: 1,000 kg EQUIPMENT DIAFORM dressing device

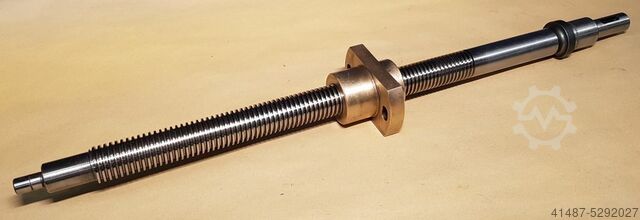

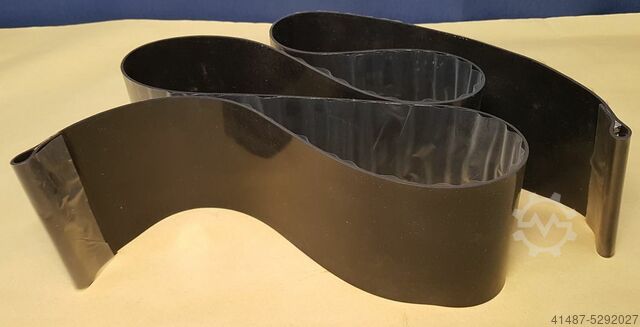

Condition: new, We can deliver all spare parts for JUNG JF- und HF-series. z.B. grinding flanges, switches, bellows, refurbished grinding and transvers spindles, hydraulic pistons etc. Also equipment like magnetic chucks (new oder refurbished), dressers, filtrtion units, lubrication pumps etc. Also used parts which are discontinued by the manufacturer. Nodpfogbt U Nsx Ac Holk Please inquire wih the exact part name.

Condition: refurbished (used), Year of construction: 2025, grinding length: 600 mm, grinding width: 250 mm, grinding wheel diameter: 225 mm, JUNG HF50 mechanicaly, geometricaly und elektricaly rebuilt according JUNG acceptance protocoll for new machines 12 month warranty Nlodpfx Acjbwl Ubs Hok in stock max. grinding range: 600 x 250 mm

Year of construction: 2023, condition: refurbished (used), JUNG HF50 SPM mechanically and geometrically overhauled according to JUNG new machine protocol Electrical overhaul approx. 2010 / function tested and wear parts replaced (in new control cabinet) new painted - stepper motor infeed - 3 axis digital display - dressing mass compensation - adhesive force control - used magnetic clamping plate - paper band filter optional 12 months warranty on mechanics and geometry and 6 weeks parts warranty on electrical components max. magnet size: 600 x 200 mm (standard 500 x 200 mm) Nsdpfx Ashcw U Ujc Hslk max. grinding area: 600 x 250 mm delivery time: by arrangement / subject to prior sale We will gladly take your used JUNG grinding machine in payment
