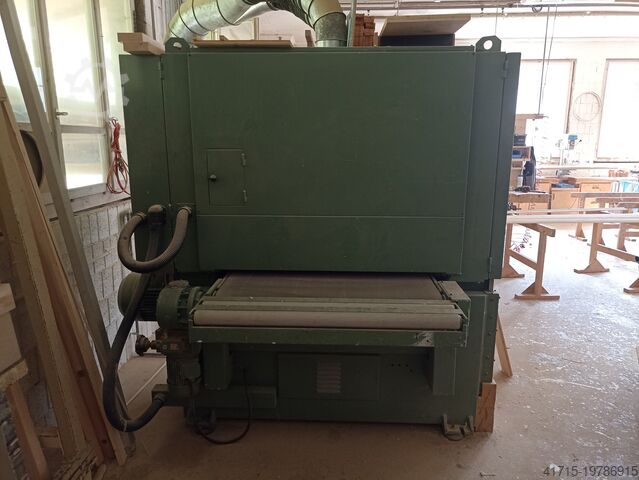

Wide-belt sander

Kündig Titan 1100

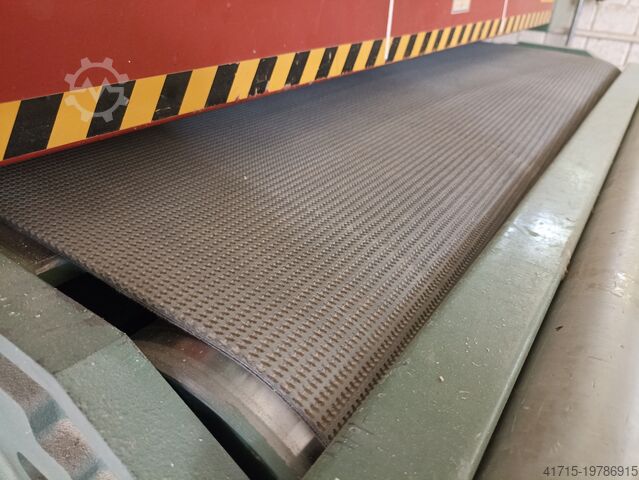

Condition: excellent (used), Calibration and fine sanding machine with 1 sanding unit 1 motor, processing from above Working width 1000 mm Sanding belt dimensions 2200 x 1030 mm Workpiece dimensions 3 - 170 mm Table height adjustment motor 0.18 kW, 400 V, 50 Hz Main motor 7.5 kW, 400 V, 50 Hz 2 feed speeds 5.5 & 11 m/min 1st unit: Combination unit, sanding drum, rubberized, 90 Sh / pneumatic sanding pad Sanding pad NEW 2nd unit: Cleaning brush Compressed air requirement approx. 6 bar Suction diameter 200 mm Dimensions approx. L x W x H = 1385 x 1980 x 1900 mm Weight approx. 1800 kg Automatic workpiece thickness adjustment with digital display Oscillation of the sanding belt Sanding belt emergency stop with disk brakes Table extension with 3 rollers in the outfeed Emergency stop button Main switch TRANSPORT CARPET LIKE NEW - was replaced by us approx. 3 years ago MORE THAN 30 WIDE BELT SANDERS Note used machines: Kjdsudxchopfx Ahujll - Subject to errors in technical specifications and prior sale. - Prices quoted are ex location - free loading! - The machines have been cleaned and functionally tested. - All machines are purchased as seen without any warranty. The buyer is free to inspect the machines on site. - Special agreements are only possible in written form. (Inquiries will only be answered with your address and telephone number).

Condition: reconditioned (used), Year of construction: 1993, functionality: fully functional, Weight approx. 1140 kg Connected load 380V 7.5kW Scoring unit 0.75 kW manually adjustable via pneumatic connection, can be raised and lowered Trimming length 2800 mm speeds 600/5000/4000/3000 rpm via V-belt Electric tilt with digital display Electric height adjustment with digital display Cutting width 1000 mm rear support table 950 x 400 mm wide angle fence 2500 mm with extension 2840 mm with 2 stops suction connection 120 mm + 80 mm for PSV Parallelogram protection device with narrow and wide hood Trimming fence Air requirement for scorer 6bar connection Klodpfxoq Au Huo Ahujl

Year of construction: 1988, condition: used, rolls: 4 speed: 2 - 30 m/min number of speeds: 2 Getriebe, 2 Motor, 2 Zahnrad-wechsel (8) Ksdpsw Dd Rhofx Ahuell

Condition: used, Year of construction: 1983, Used machine Year of manufacture: 1983 Condition: fully checked and serviced, including a new feed belt Features and technical specifications: - Including combination unit with contact roller and sanding shoe - With height-adjustable contact roller for calibration - With workpiece-controlled air cushion pressure shoe - 4-way adjustable grit compensation Ksdpswka T Sofx Ahujll - With pneumatic belt tensioning device - With a rotating cleaning brush at the outfeed side of the machine - Sanding width: 1350 mm - Sanding belt length: 1900 mm - Pass-through height: 150 mm - Main motor: 15 kW - Continuously adjustable feed speed, 2.5 - 12.5 m/min - With roller table at the infeed - With digital display for the electrically driven workpiece thickness adjustment - Extraction ports: 2 x 200 mm Dimensions: approx. 2300 x 2000 x 2300 mm Weight: approx. 2300 kg Images show the machine in unrefurbished condition! Availability: approx. end of January 2026 Location: Röllbach

Condition: excellent (used), Year of construction: 1994, Langzauner Edge Sanding Machine EK 3/4 - School Machine - Table width: 350 mm Table length: 1,000 mm Maximum sanding belt width: 150 mm Sanding belt length: 3,000 mm Belt speed: 22 m/s Main motor: 2.2 kW Round sanding support Oscillation Height adjustment: table, manual Sanding belt tiltable: Yes Conformity marking: CE mark Total connected load: 4.6 kW Space requirements: Length: 1.7 m Width: 0.85 m Height: 0.9 m Klodsx Nrfwopfx Ahuel Location: ex stock 54634 Bitburg - Immediately available -
