High speed press

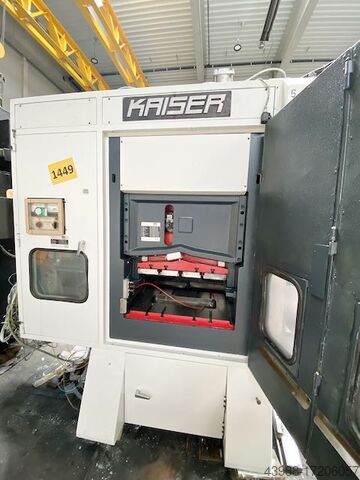

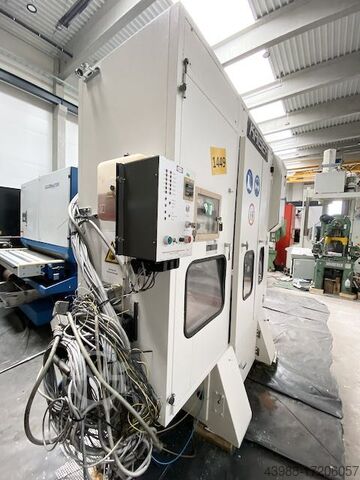

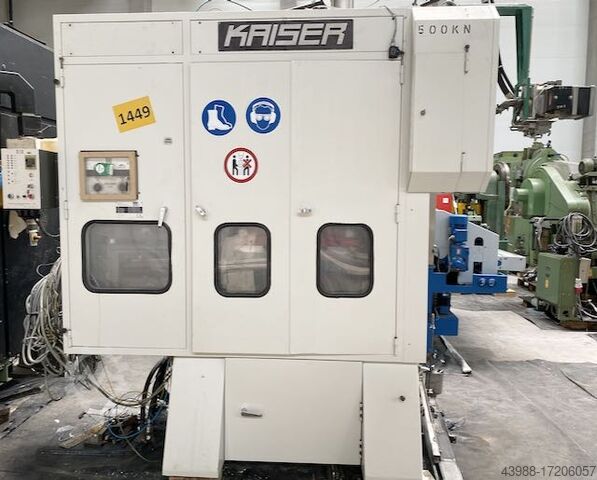

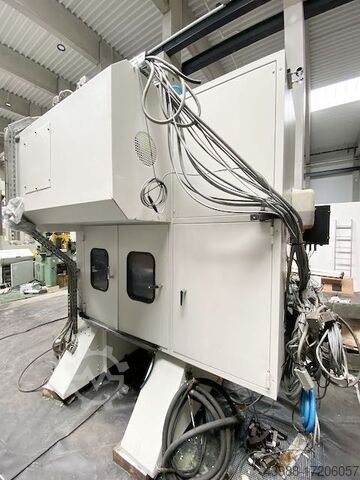

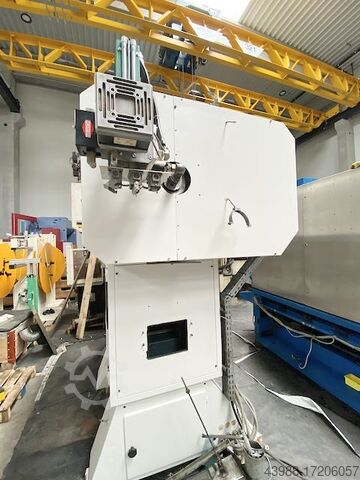

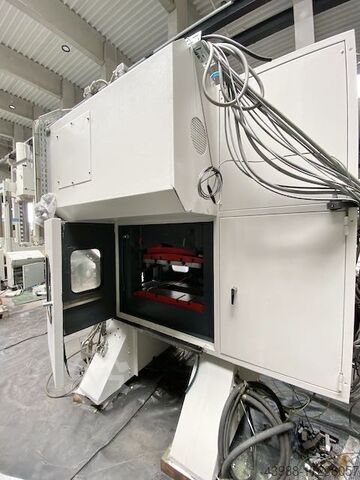

KAISER V 50 W

Year of construction: 2008, condition: used, pressure 315 t stroke 40-200 mm no. of strokes 20-100 Hub/min ram - range of adjustment 120 mm ram surface 2000x1100 mm table surface area 2000x1200 mm Bljdpfx Ajrdi Dlef Hor hole in the table 1700x250 mm 500 mm column travel -side 820x650 mm total power requirement 45 kW weight of the machine ca. 44 t

Year of construction: 1995, condition: used, pressure 125 t Blodpfxjlp U Nqj Af Her stroke 10-80 mm no. of strokes 240 Hub/min ram - range of adjustment 80 mm table surface area 850x600 mm ram surface 760x550 mm hole in the table 850x130 verstellbar mm table height 1100 mm tool hole in ram Ø 50 mm total power requirement kW weight of the machine ca. 13 t dimensions of the machine ca. BxTxH: 3000x2000x3300 mm

Year of construction: 1981, condition: used, pressure 63 t stroke 6-60 mm no. of strokes 90-550 Hub/min 300 mm table surface area 780x600 mm ram surface 807x460 mm tool hole in ram Ø 40 mm Blsdpfx Afjlp U R Ij Hor ram - range of adjustment 80 mm total power requirement 15 kW weight of the machine ca. 8 t dimensions of the machine ca. BxTxH 2900x2000x3000 m

Condition: used, Year of construction: 1996, pressure 63 t distance between columns 965 mm stroke 4 - 60 mm no. of strokes 30 - 800 Hub/min dayligth (stroke and adjustment up) 380 mm column travel -side 355 mm table surface area 960 x 640 mm hole in the table 850 x 140 mm table height over floor 1150 mm ram surface 960 x 460 mm power requirement 32,5 kW weight of the machine ca. 13,00 t required space 3,3 x 1,7 x 2,9 m Bodpfevut Rgsx Af Helr ram adjustment 80 mm permitted for automatic mode according to the CE Regulations with infinitely variable drive, pneumatic clutch, semi-automatic stroke adjustment, motoric ram adjustment, mechanical pincer feed type GF 160 can be offered without or with putting into operation in given condition

Condition: used, Year of construction: 1981, machine/vehicle number: 104680, Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Bledpfouqcwdex Af Hor Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Weight of machine approx.: 6,2 ton

Condition: used, Year of construction: 1985, Technical details: Punching capacity: 40 kN air pressure - required: 8 bar ram stroke - adjustable min/max: 6 - 50 mm ram adjustment: 50 mm no. of strokes: 70 - 400 Hub/min Table dimensions: LxB: 480 x 445 mm hole in table: LxB: 250 x 112 mm slowing-down time: 80 ms bei 450 U/min. clamping surface ram: LxB: 420 x 345 mm ram hole: Ø 40 x 230 mm voltage: 380 V control voltage: 220 V frequency: 50 Hz total power requirement: ca. 19 kVA (ca. 7,5 KW) weight of switch cabinet: 0,3 t machine weight ab.: 4000 kg 40t punching press without roll feed/conveyor belt system Operation via control panel / two-hand operation Bodpfx Afou Icwgs Hjlr Operation: manual / automatic *
