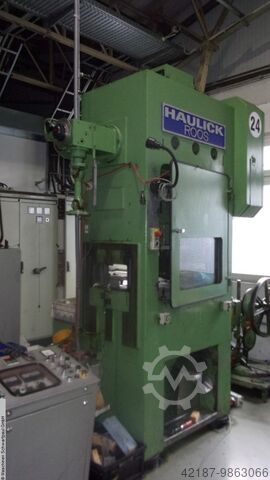

Double-sided high speed press

HAULICK & ROOS RVD 63-800

Year of construction: 1995, condition: used, pressure 125 t stroke 10-80 mm no. of strokes 240 Hub/min ram - range of adjustment 80 mm Bedpfxelp U Nqe Ambsdd table surface area 850x600 mm ram surface 760x550 mm hole in the table 850x130 verstellbar mm table height 1100 mm tool hole in ram Ø 50 mm total power requirement kW weight of the machine ca. 13 t dimensions of the machine ca. BxTxH: 3000x2000x3300 mm

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 32,000 m/min, controller manufacturer: FANUC, controller model: Series 0i-MC, spindle speed (max.): 12,000 rpm, spindle motor power: 18 W, BRAND: DOOSAN-DAEWOO MODEL: MYNX NM-510 CATEGORY: VERTICAL MACHINING CENTERS YEAR OF MANUFACTURE: 2006 CNC CONTROL: FANUC Series 0i-MC MACHINE WEIGHT: 7,500 kg MACHINE DIMENSIONS: - Length: 4,165 mm - Width: 2,600 mm - Height: 3,043 mm Spindle Spindle taper: ISO 40 Spindle speed: 12,000 rpm Spindle motor power (cont./30 min): 15 / 18.5 kW Working Capacity X axis: 1,020 mm Y axis: 510 mm Z axis: 625 mm Distance spindle nose – table surface: 150 – 775 mm Distance spindle center – column: 557 mm Table Table dimensions: 1,200 x 500 mm Table load capacity: 800 kg Feed Rates Rapid traverse (X/Y/Z axes): 36,000 / 36,000 / 32,000 mm/min Cutting feed rate (X/Y/Z axes, linear interpolation, max): 8,000 mm/min Tool Changer Tool holder taper: DIN 69871-A40 Shank: DIN 69872-A40 Tool magazine capacity: 30 stations Maximum tool diameter (adjacent tools full/empty): Ø 90 / Ø 150 mm Maximum tool length: 300 mm Maximum tool weight: 8 kg Bdodpjxxlmwsfx Ambjd Accessories Coolant tray + high pressure pump (15 bar) with through-spindle coolant Chip conveyor Spindle line air conditioner + transformer Manuals, electrical diagrams, and CE Declaration

Condition: excellent (used), Year of construction: 2011, ATLAS COPCO GA37 SCREW COMPRESSOR, 37 kW, 2011! ATLAS COPCO GA37 screw compressor – machine after service. Bdsdpfx Aei E Hncjmbsd Technical data: capacity: 6.30 m3/min; engine power: 37 kW; maximum pressure: 8 bar; year: 2011; operating hours: 6924 h!!! Compressor is fully functional, ready for operation, with warranty. We provide service support.

Condition: excellent (used), Year of construction: 2011, ATLAS COPCO GA37 SCREW COMPRESSOR, 37Kw, 2011! ATLAS COPCO GA37 screw compressor, serviced machine. Technical data: Bsdji D Ef Hopfx Ambodd capacity: 6.30 m3/min; engine power: 37 KW; maximum pressure: 8 bar; year: 2011; operating hours: 3431h!!! The compressor is fully functional, ready for operation, and comes with a warranty. We provide service support.

Condition: used, Year of construction: 1985, Technical details: Punching capacity: 40 kN air pressure - required: 8 bar ram stroke - adjustable min/max: 6 - 50 mm ram adjustment: 50 mm no. of strokes: 70 - 400 Hub/min Table dimensions: LxB: 480 x 445 mm Bjdpsu Icwgofx Ambedd hole in table: LxB: 250 x 112 mm slowing-down time: 80 ms bei 450 U/min. clamping surface ram: LxB: 420 x 345 mm ram hole: Ø 40 x 230 mm voltage: 380 V control voltage: 220 V frequency: 50 Hz total power requirement: ca. 19 kVA (ca. 7,5 KW) weight of switch cabinet: 0,3 t machine weight ab.: 4000 kg 40t punching press without roll feed/conveyor belt system Operation via control panel / two-hand operation Operation: manual / automatic *

Condition: used, Year of construction: 1981, machine/vehicle number: 104680, Press capacity: 45 ton Ram stroke adjustable: 10 - 40 mm Slide adjustment: 50 mm Shut height (stroke down, adjustment up): 220 - 300 mm Free frontal opening L-R: 560 mm Table surface area : 550 x 450 mm Slide area: 550 x 360 mm Hole in table: 450 x 100 mm Number of strokes: 100 - 500 s.p.m. Required power: 7,5 kW Bsdpfx Ajuqcwdjmbjdd Weight of machine approx.: 6,2 ton

Condition: used, Year of construction: 1980, machine/vehicle number: 130861, Press capacity: 50 ton Ram stroke: 54 mm Slide adjustment: 80 mm Shut height (stroke down, adjustment up): 303 mm Table surface area : 810 x 550 mm Number of strokes: 65 - 400 s.p.m. Weight of machine approx.: 7,5 ton Main Motor: 11 kW Extended machine accessories IMCO Press force measurement Bdjdpfxjuqc Hlj Ambjd Automation Grip Feeder, Type ZR18ZT1Max. Sheet width 180 mmFeeding length 150 mm

Year of construction: 1969, condition: used, rated capacity 2000 KG ram hammer stroke 1080 mm throat 1100 mm impact capacity 10000 kgm no. of strokes 125 Hub/min ram hammer weight 2300 kg work height max. 620 mm total power requirement . kW Steam drive No.3064 The tech. Data are manufacturer or operator information and therefore non- Bdedpfxsyqualo Ambed binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
