Cylindrical grinder

KELLENBERGER 1000 U

Condition: excellent (used), Kellenberger 1000U cylindrical grinding machine, available at a competitive price with many accessories included. There are a total of 3 machines for sale. All machines are in very good condition and fully operational. One machine was purchased as a fully overhauled unit in 2019. Prices are negotiable. Price for all 3 machines including many accessories (grinding wheels, etc.). Price significantly reduced! Iodpswkt Euofx Ahusht

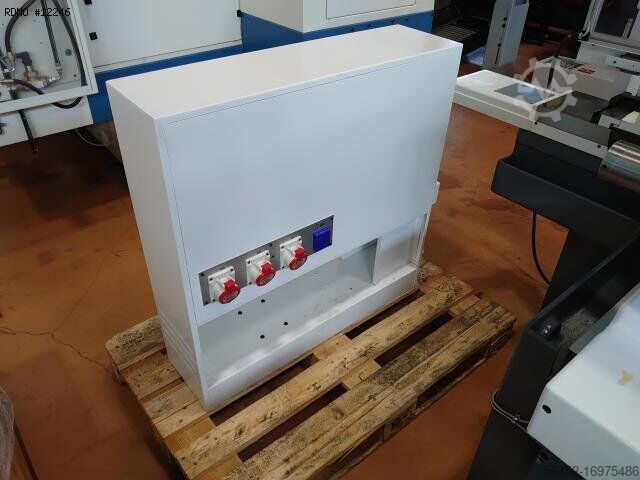

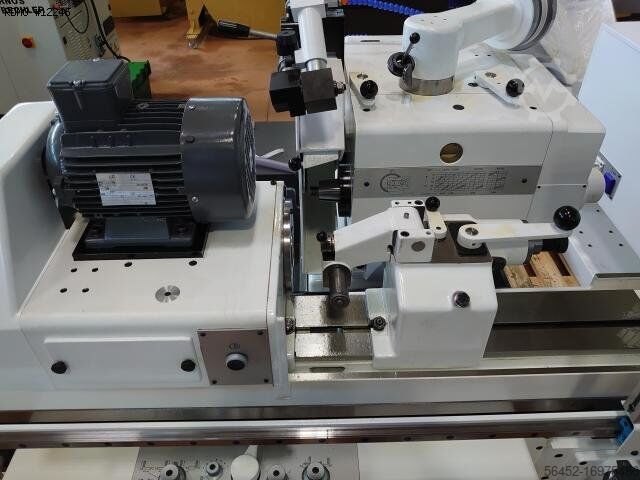

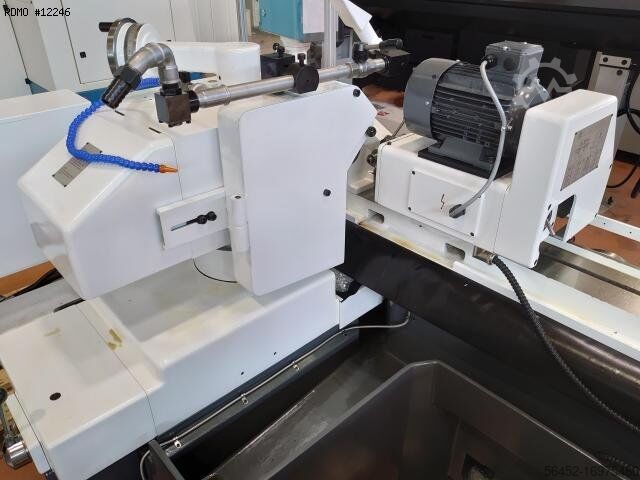

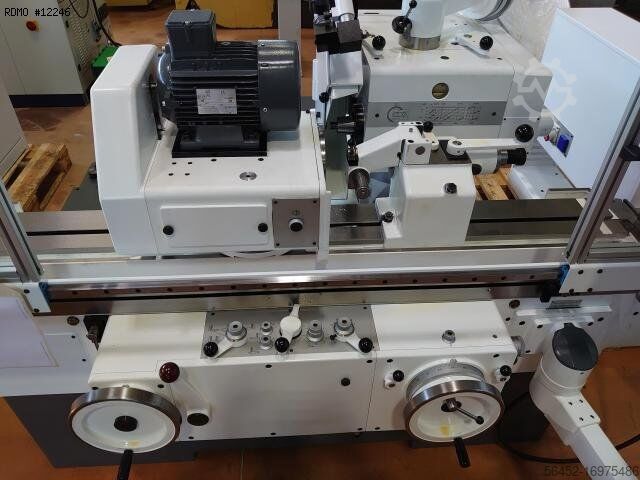

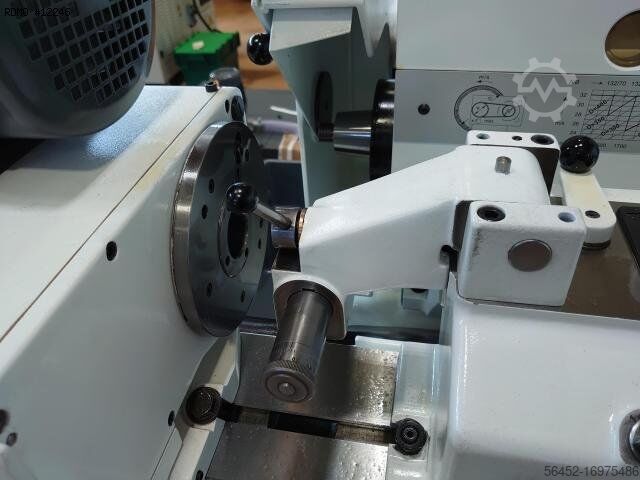

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 1315/451, Completely overhauled: Mechanics, geometry, hydraulics, and electrical parts (checked and/or replaced) Ijdpfx Ahsw U Ry Nsusht Wheelhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, bearings replaced, belts replaced, spindle disassembled, seals and O-rings replaced, adjustments made. Newly painted. Workhead: Disassembled, parts cleaned, worn or defective components replaced, motor overhauled, belts replaced. New spindle bearings. Newly painted. Tailstock: Disassembled, inspected, overhauled. Hydraulics: Disassembled, motor checked, hoses replaced, defective and worn parts replaced. Hydraulic block checked. X-axis: Disassembled, all worn parts such as O-rings, seals, segments, etc. replaced, hydraulic piston overhauled, table ground. Z-axis: Disassembled, table ground, worn or defective parts replaced, hydraulic piston overhauled, newly painted. Electrical cabinet: Completely checked, various relays replaced. Paintwork: Colors: White RAL 9003 and Grey RAL 7011 Geometry according to manufacturer's protocol. Various accessories checked and cleaned. Origin: CH Voltage: 380 / 50 / 3 Net weight: approx. 2,200 kg Customs tariff number: 8460.2920 TECHNICAL SPECIFICATIONS Nominal distance between centers: 600 mm Max. distance between centers (with extended headstock): 750 mm Center height, standard: 125 mm Center height with interchangeable pads for heads: 175–250 mm Max. workpiece diameter (125 mm center height): 250 mm Max. workpiece diameter with interchangeable pads: 350–500 mm Swiveling range of table in each direction: 10° Max. grinding length for flat surfaces (max. width = 200 mm): 900 mm Continuously variable hydraulic table speed: up to approx. 6 m/min Table reversal delay: 0–5 sec Grinding wheel for external grinding, diameter - width - bore: 400x50x127 mm Grinding wheel for flat surface grinding: 250x13x76 mm Wheelhead spindle speed: 1,500/1,700/2,200/3,600 rpm Wheelhead swiveling range: 270°, with indexing every 90° Vertical travel of wheelhead, center height: 125–350 mm Transverse travel of wheelhead: 285 mm Hydraulic rapid traverse stroke: 40 mm Intermittent infeed of wheel by table reversal: 0.001–0.03 mm/dia Continuous infeed for plunge grinding: 0–0.9 mm/dia Micrometric infeed stop, by division: 0.001 mm/dia Workhead swiveling range: 360° Workhead spindle speed, stepless: normal/special: 20–400 / 10–400 rpm Internal taper of workhead/tailstock: Morse 5/3 Wheelhead motor: approx. 4 HP All technical specifications are given without obligation and subject to errors or omissions.

Condition: good (used), functionality: fully functional, Used Kellenberger cylindrical grinding machine for sale in very good condition. Price significantly reduced !!!!! Ihsdpjw Dzbdefx Ahuet

Condition: good (used), grinding length: 1,000 mm, grinding diameter: 350 mm, We are selling our cylindrical grinding machine Kellenberger 1000U Grinding diameter: 350 mm Grinding length: 1000 mm This machine features a reinforced headstock and can be elevated. Remarks: - The price does NOT include any accessories! - Collection by the buyer, ex works. - The collection date will be arranged in consultation with the seller. - No warranty - Advance payment (invoice) or cash payment upon collection. Ihsdexzqivepfx Ahuet

Condition: reconditioned (used), functionality: fully functional, Machine characteristics : Centre height : 125 mm ( 175 mm with the heights ) Distance between centres : 600 mm Grinding wheel: Diameter 400 mm Width 50 mm Bore 127.0 mm Angular displacement : 270 ° Work piece spindle head: from 20 rpm up to 400 rpm Spindle taper: 5 MT Taper in tailstock: 3 MT Table angular displacement : 10 ° Table speed: stepless up to 6.0 m/min External Grinding wheel motor : 4.0 Kw Workhead spindle motor : 2.2 Kw Machine's weight about : 2700 kg Overall dimensions machine: Length : 2580 mm Width : 1680 mm Height : 1670 mm The machine is fully retrofitted and it includes: - New electric cabinet and new electric diagram - New motor and frequency variator for the workhead - 2 axis DRO - Cooling tank - Geometry made according to the Kellenberger protocol - Lot of accessories Ihedpfxsxyw Ehs Ahust

Condition: excellent (used), Year of construction: 1999, grinding length: 1,000 mm, Internal / External spindel Collet device Schaublin with inserts Steady rest 5 - 80 mm Steady rest 3 - 120 mm Coolant system Filtration system Speeds head 1500 / 1700 / 2200  Centre height: 175mm Isdpfx Aexy I Tvshusht Grinding Ø: 350mm Grinding length: 1000mm Grinding stone dimensions:400 x 50 x 127mm Grinding stone speeds: 1500 / 1700 / 2200Rpm Table inclasement: 9° Tailstock: 4Mk Cooling system: Yes Filtration: Yes Length: 2860mm Width: 1680mm Height: 1670mm Weight: 2500kg

Condition: refurbished (used), TECHNICAL DETAILS - distance between centers : 1000 [mm] - centers height : 175 [mm] - max grinding diamater: 350 [mm] - table orientation : -/+ 8 [°] - universal wheelhead - grinding wheels dimensions : 400 x 50 x 127 [mm] - motor power : 3 [kW] - spindle speed : 1500 / 1700 / 2200 - boring for internal spindle : 90 [mm] Ijdpfx Aswu Afrehusht - orientation of part holder headstock : 180 [°] - spindle speed : 20 - 400 [Rpm] - spindle internal cone : Morse 5 - motor power : 0,9 [kW] - inner cone tailstock : Morse 4 - tailstock sleeve travel: 30 [mm] - dimensions : 2860 x 1680 x 1670 [mm] - weight : 2 500 [kg] Accessories/options: - automatic cycle works - tailstock - lubricating tank with pump - 1 internal grinding spindle - external grinding wheels - wheel dresser - documentations The machine is partly overhauled, included: - new geometry - new electrical cabinet - bearings replaced - new painting - etc....

Condition: used, functionality: fully functional, Kellenberger cylindrical grinding machine in very good condition. Available at a favorable price. Price significantly reduced !!!!! Iedpfx Aew Dy Rqshueht

Condition: refurbished (used), Machine totaly reconditioned With DRO Center height 175 mm Distance between centers 1000 mm Grinding wheel 400 x 50 x 127 mm + 225 x 20 x 76.2 mm Grinding wheel speeds 1'500-2'200 rpm Iedpfx Ahowhk Uuoueht With internal grinding attachement Misc. accessories MARCELS MASCHINEN AG

Condition: reconditioned (used), functionality: fully functional, center height: 175 mm, center width: 1,000 mm, grinding diameter: 350 mm, tailstock quill stroke: 30 mm, Equipment: documentation/manual, The machine has been partially overhauled and features, among other things, new geometry and a new control cabinet. The bearing has been replaced. TECHNICAL DETAILS Working Area - Centre distance: 1,000 mm - Centre height: 175 mm - Max. grinding diameter: 350 mm - Table swivel: -/+ 8° Grinding Head - Universal grinding head: available - Grinding wheel dimensions: 400 x 50 x 127 mm - Spindle speed: 1,500 / 1,700 / 2,200 rpm - Bore for internal spindle: 90 mm Spindle - Spindle speed: 20 - 400 rpm Iedpfx Ahexgq U Aousht - Spindle taper: Morse 5 Tailstock - Tailstock head rotation: 180 ° - Internal tailstock taper: Morse 4 - Tailstock quill stroke: 30 mm MACHINE DETAILS Drives - Grinding head motor power: 3 kW - Tailstock motor power: 0.9 kW Machine Data - Dimensions: 2,860 x 1,680 x 1,670 mm - Weight: 2,500 kg EQUIPMENT - Automatic work cycle - Tailstock - Coolant tank with pump - 1 internal grinding spindle - External grinding wheels - Dressing device - Documentation Note: A digital display can be purchased optionally for €2,500.

Condition: excellent (used), Year of construction: 1978, Machine can be inspected under power Iodswz Emlepfx Ahujht

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your sion R: Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock. Beispielfoto einer von uns überholten 600U -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Ihjdpfod Ih D Hjx Ahuot Overhauled with geometric KELLENBERGER protocoll. Standard with: -2-axis DRO -Paper filtration Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t Ihedpfxsuxftxs Ahujt dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your o von Kürzlich gelieferten Maschinen mit zusätzlichen Optionen wie: -Spritzschutztüren -Kabine x-Achse -Schwenkwinkelanzeige Schleifspindelstock Geometrisch überholt und neu lackiert mit original Elektrik. Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock serienmäßig. -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, STUDER S 40-2 is a Cylindrical grinder designed for precision, high accuracy and reliability. Working capacities: centre height 175 mm, distance between centres 650 mm, max longitudinal travel 700 mm; wheels Ø400 mm (width 80/40 mm) bore 127 mm; workpiece max 130 kg; hydraulic cross travel 300 mm; wheelhead swivel 180°; table angle 12°. Main specs: wheel speeds 6 steps 1500–2400 t/min (35 m/s); work spindle stepless 60–600 t/min, rotatable 0–90°; wheel motor 3 kW, work spindle motor 1 kW; 3×400 V 50 Hz; total 13 kVA; weight ≈3100 kg; dims 2150×2000×1800 mm. Accessories: 2‑axis DRO, internal grinding attachment, magnetic chuck Ø150 mm, paper filtration, flanges, lamp, balancing arbor, safety device. Achieves tight tolerances; suited to automotive, aerospace, tooling and medical sectors Iedpsx S N D Asfx Ahuoht

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m Ready for delivery, with 12 month warranty in germany and neighbouring countries! Geometrically overhauled and repainted with new electrics. In KELLENBERGER quality!!! -Digital display in 2 axes. Resolution x-axis 0.5my -Modern workpiece headstock with cone MK5 Ihodpfx Asv I Eq Sehuet -Modern tailstock with cone MK3 -Modern hydraulic unit -Paper belt filter Further accessories on request
