Universal - cylindrical grinding machine

KELLENBERGER 1000 U

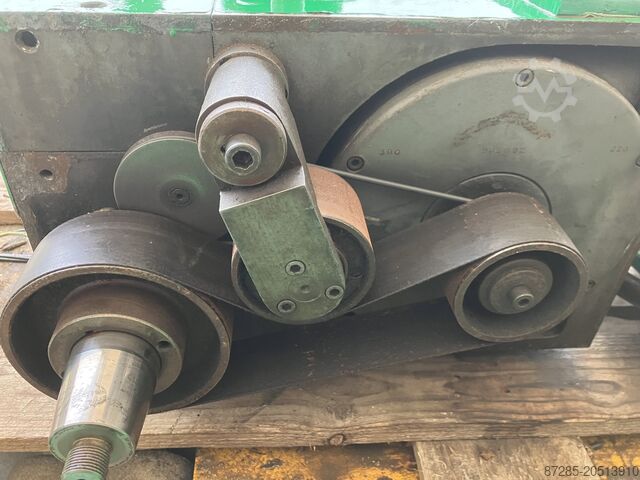

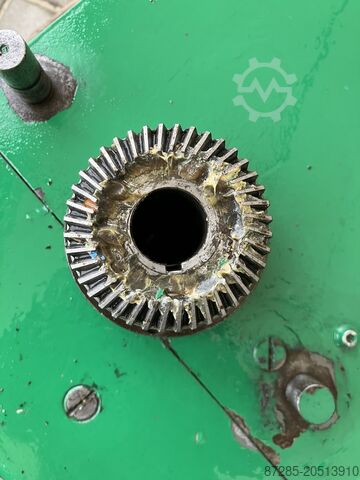

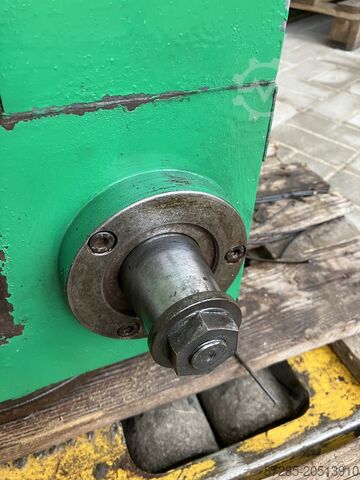

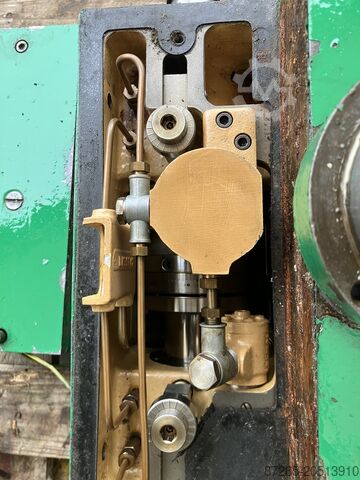

Condition: ready for operation (used), Kellenberger cylindrical grinding machine spindle, used, in good condition! Kjdpfexwbd Aox Aaaedw

Condition: refurbished (used), Machine totaly reconditioned With DRO Center height 175 mm Distance between centers 1000 mm Grinding wheel 400 x 50 x 127 mm + 225 x 20 x 76.2 mm Kodowhk Uuepfx Aaajdw Grinding wheel speeds 1'500-2'200 rpm With internal grinding attachement Misc. accessories MARCELS MASCHINEN AG

Condition: used, . 5 pcs. flanges and various accessories for / from Kellenberger 600 U Kdedpfxexm Sxpj Aaaew and Kellenberger 1000 U . .....

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your sion R: Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock. Beispielfoto einer von uns überholten 600U -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm Kdjdpfed Ih D Hjx Aaasw mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Overhauled with geometric KELLENBERGER protocoll. Standard with: -2-axis DRO -Paper filtration Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, TECHNICAL DETAILS - distance between centers : 1000 [mm] - centers height : 125 [mm] - table orientation : -/+ 8 [°] - universal wheelhead - grinding wheels dimensions : 400 x 50 x 127 [mm] - motor power : 3 [kW] - spindle speed : 1500 / 1700 / 2200 - orientation of grinding wheel holder headstock : 270 [°] (3 x 90°) - boring for internal spindle : 90 [mm] - orientation of part holder headstock : 180 [°] - spindle speed : 20 - 400 [Rpm] - spindle internal cone : Morse 5 - motor power : 0,9 [kW] - inner cone tailstock : Morse 4 - tailstock sleeve travel: 30 [mm] - dimensions : 2860 x 1680 x 1670 [mm] - weight : 2 500 [kg] EQUIPMENT - automatic cycle work (rough part, finishing and reverse) - tail stock - sinus ruler for part holder headstock - head UR : 2 external and 1 internal grinding wheel - lubricating tank with pump Kdjdpjuhbx Tofx Aaasw - 1 internal grinding spindle SFJ UJ70 : 14.000 [rpm] - 1 fixed diamond grinding device holder on tail stock - 1 chuck 4 jaws - 1 magnetic chuck - 1 set of driving tocs - 2 rests 2 points - spacer to increase centre height to 175 mm - various grinding wheel holders - various grinding wheels

Condition: refurbished (used), Kellenberger internal & external universal cylindrical grinding machine Kdjdewqlykjpfx Aaaew Kellenberger 1000 U - 175 (including internal grinding device) Distance between centers: 1000 mm - Center height: 175 mm Kellenberger 1500 U - 175 (including internal grinding device) Distance between centers: 1500 mm - Center height: 175 mm Both available with various accessories. Availability: by arrangement (both machines in overhaul process)

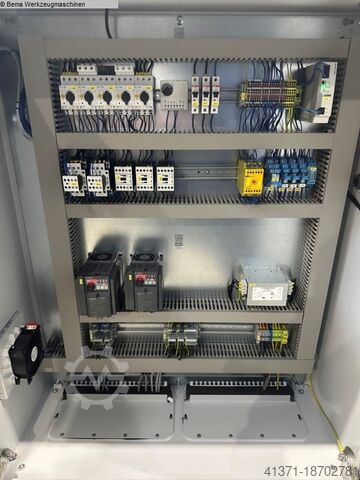

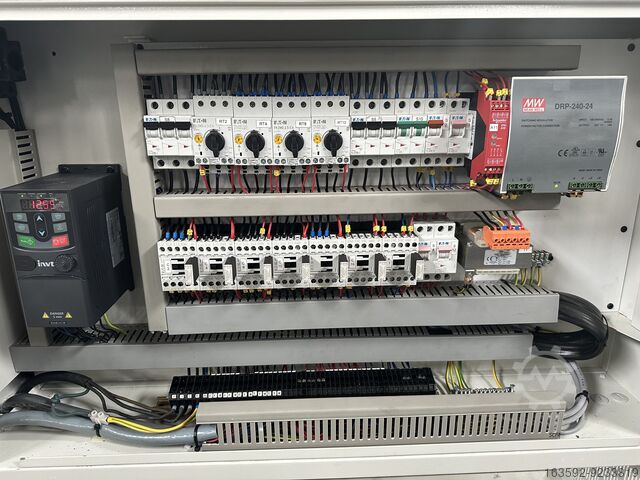

Year of construction: 1979, condition: refurbished (used), functionality: fully functional, TECHNICAL DETAILS Height of centers: 125 mm + heights of 50 mm distance between centers: 1.000 mm Grinding wheel ' diameter: 400 mm ' width: 50 mm ' Bore: 127.0 mm angular displacement: 270 ° workpiece spindle head: 20 - 400 rpm taper of the spindle: 5 MT Taper in the tailstock: 3 MT table angular displacement: 8 ° Table speed: infinitely variable up to 6.0 m/min Internal grinding spindle with 60 000 rpm External grinding wheel motor: 4,0 kW Workpiece spindle motor: 1,5 kW Weight machine: 3.100 kg Overall machine dimensions: 2,860 × 1,680 × 1,670 mm (L × W × H) EQUIPMENT & SCOPE OF DELIVERY Kdodpfek H Hp Nox Aaajw - Machine was completely retrofitted - New control cabinet & new wiring diagram - New motor & frequency converter for the working head - 2 axes DRO - Cooling tank with paper filtering - Geometry made according to the Kellenberger protocol - Internal grinding spindle - Many accessories Please refer to the attachment below for a test report on the machine.

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg Kedpfxouxftxs Aaajdw 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your o von Kürzlich gelieferten Maschinen mit zusätzlichen Optionen wie: -Spritzschutztüren -Kabine x-Achse -Schwenkwinkelanzeige Schleifspindelstock Geometrisch überholt und neu lackiert mit original Elektrik. Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock serienmäßig. -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

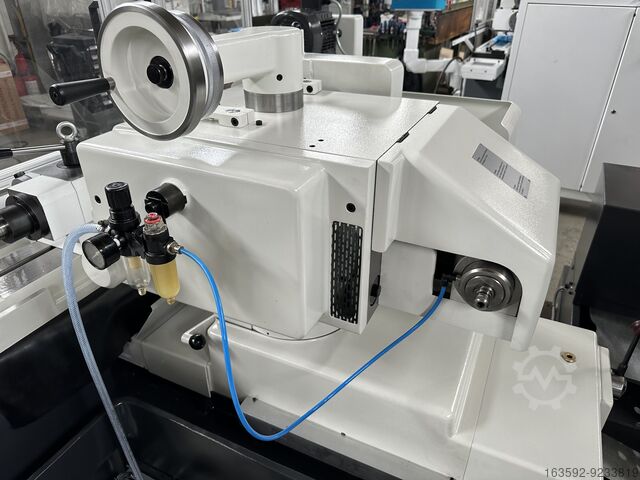

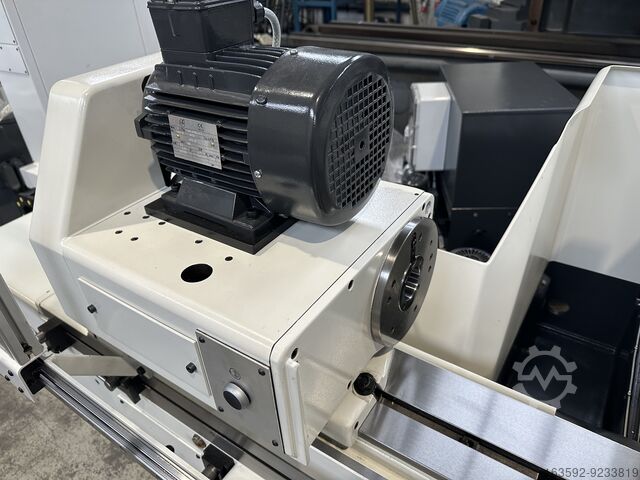

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm Kedpfx Ajv I Eq Seaaodw total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m Ready for delivery, with 12 month warranty in germany and neighbouring countries! Geometrically overhauled and repainted with new electrics. In KELLENBERGER quality!!! -Digital display in 2 axes. Resolution x-axis 0.5my -Modern workpiece headstock with cone MK5 -Modern tailstock with cone MK3 -Modern hydraulic unit -Paper belt filter Further accessories on request

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machines. Geometrically overhauled with new paint and original electrics. Foto of a 600U which we already have delivered. -Digital display in 2 axes. Resolution of x-Achse 0,5my Options: -Encoder with digital display in workpiece spindle head -Encoder with digital display in grinding spindle head (Height adjustment with spindle not possible) -New stable internal grinding diameter 80mm oder 100mm with height-adjustment. Ksdot Ii Nujpfx Aaasdw -Increase the center heigh to max. 225mm -Speed control of the grinding spindle Including:: -Adjustment tool -Draw tube for chucks other accessories on reqeust Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.
