Cylindrical Grinding Machine - Universal

KELLENBERGER KEL-VARIA UR175-1000

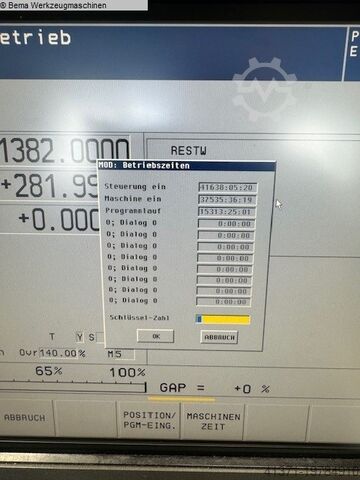

Condition: used, _____ Description: Year of manuf. : 1999 Control : Heidenhain 1830 M - KELCO 110/120 Grinding length : 1000 mm Centre width : 1000 mm Workpiece headstock: Swivel range:-10°/+100° Speed:800 rpm Center height:175 mm Internal mounting cone:MK5 Short taper external:DIN 55026 Workpiece weight max.:150 kg Cedpfx Aewz T Azebwjhc Grinding headstock: Design:Tandem grinding headstock B-axis:-210°/+30° Internal grinding device:Internal grinding spindle Grinding table (X-Axis): X-axis:320 mm Max. speed:7.5 m/min Resolution:0.1 μm Lower table (Z-axis): Center distance:1,000 mm Z-axis:1,150 mm Max. speed:15 m/min Resolution:0.1 μm Equipment: Coolant supply:Coolant system with filter Emulsion mist separator:Mechanical Tailstock:MK4, stroke 50 mm Workpiece measurement I:Movomatic TMP 91 Workpiece measurement II:Movomatic TNU 91 Tool measurement:Marpos A 90 Set-up mode:Electronic handwheel Accessories:Various flanges, tips and chucks

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs Chodouwv H Tspfx Abwjc -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Cedpfxsw T Tb Hs Abwohc Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Year of construction: 1997, condition: ready for operation (used), Main Drive Number of axis 4 Additional Equipment Belt filter system This 4-axis KELLENBERGER Kel-Varia UR 175/1000 was manufactured in 1997. It features an internal grinding device with a tiltable B-axis and a C-axis for out-of-round grinding, complemented by a belt filter system. Consider the opportunity to buy this KELLENBERGER Kel-Varia UR 175/1000 cylindrical grinding machine. Contact us for more information. Application Types Chsdpfsw Spr Eex Abwec Grinding

Condition: used, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your is: Kellenberger Kel-Varia Baureihe mit Kelco 90 Steuerung. Mechanische Überholung: -komplette Maschine nach Kellenberger Messprotokoll überholt -Neue servicefreundliche Kabine -Neulackierung Elektrische Überholung: -Neue moderne CNC-RUNDSCHLEIFMASCHINEN-Steuerung -Neu aufgebauter Schaltschrank -Neue Antriebstechnik -Austausch sämtlicher elektrischer Leitungen Berus Druckschalter etc. -Neue Absolut-Glasmaßstäbe in x- und z -Neuer Absolut Drehgeber (Bei-B-Achse) Standardausstattung: -WSS mit Konus MK5, optional mit Adapter MK5/Kurzkegel -RST mit MK4 Konus. Optional mit Feinverstellung -Schleifspindelstock T1/T2/T3 Codpfx Aeuwv H Hobwjhc -T1 Schleifscheibendurchmesser 400mm -T2 Schleifscheibendurchmesser 300mm -T3 Innenschleifeinrichtung riemengetrieben. -Schleifspindelmotor 4,4kW -B-Achse hochauflösend -Marposs Messsystem zur Schleifscheibenvermessung. -Längspositionierung Marposs -GAP Control (Sensor am Schleifspindelstock) Optionen gegen Aufpreis: -HF Innenschleifspindel -Hochgenauer, höchst kippsteifer Werkstückspindelstock -Messteuerung Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Cedpfx Abouxfucowjhc Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, center height: 175 mm, workpiece weight (max.): 180 kg, grinding length: 1,000 mm, grinding wheel diameter: 400 mm, total length: 1,150 mm, grinding diameter: 349 mm, The machine is in working and usable condition in our workplace. There are 2 outer diameter and 2 inner grinding machines, it has a C axis. Chodpfxev Uxrio Abwec
