Cylindrical grinding machine

KELLENBERGER Kelvaria UR175/1000

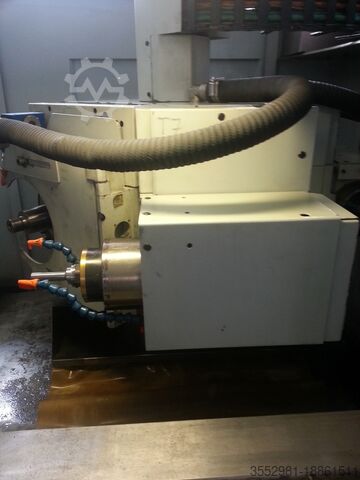

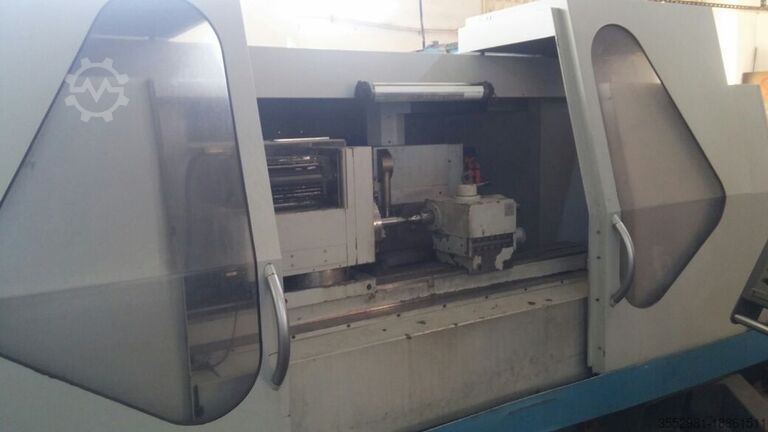

Condition: used, _____ Description: Year of manuf. : 1999 Control : Heidenhain 1830 M - KELCO 110/120 Grinding length : 1000 mm Centre width : 1000 mm Workpiece headstock: Swivel range:-10°/+100° Speed:800 rpm Center height:175 mm Internal mounting cone:MK5 Short taper external:DIN 55026 Ksdpewz T Azsfx Ad Iedw Workpiece weight max.:150 kg Grinding headstock: Design:Tandem grinding headstock B-axis:-210°/+30° Internal grinding device:Internal grinding spindle Grinding table (X-Axis): X-axis:320 mm Max. speed:7.5 m/min Resolution:0.1 μm Lower table (Z-axis): Center distance:1,000 mm Z-axis:1,150 mm Max. speed:15 m/min Resolution:0.1 μm Equipment: Coolant supply:Coolant system with filter Emulsion mist separator:Mechanical Tailstock:MK4, stroke 50 mm Workpiece measurement I:Movomatic TMP 91 Workpiece measurement II:Movomatic TNU 91 Tool measurement:Marpos A 90 Set-up mode:Electronic handwheel Accessories:Various flanges, tips and chucks

Condition: excellent (used), Year of construction: 2016, operating hours: 26,678 h, functionality: fully functional, This machine is available exclusively through Montrasio GmbH and is being sold on behalf of the authorized parties. DMG DMU 100P duoBLOCK – 5-Axis CNC Machining Centre (2016) Year of manufacture: 2016 Control: SIEMENS CELOS Travel / Capacities X-axis: 1,000 mm Y-axis: 1,250 mm Z-axis: 1,000 mm Workpiece diameter: 1,100 mm Workpiece height: 1,600 mm Workpiece weight: up to 2,200 kg Table / Axes Table size: 1,100 × 900 mm Table rotation speed: 35 rpm Max. table load: 2,223 kg Kdedpfx Aoxl Arksd Iow B-axis universal milling head swiveling range: −30° to +180° Spindle / Tool Spindle speed: 0 – 12,000 rpm Spindle motor power: approx. 69 HP (≈ 51.5 kW) Spindle taper: HSK-A100 Tool magazine: 63 positions Machine Dimensions Footprint: approx. 24 m² Machine height: approx. 3,606 mm Machine weight: approx. 24,540 kg Accessories / Equipment CNC-controlled universal milling head (B-axis) Workpiece probe Tool measurement system 3D Quickset Chip conveyor

Condition: good (used), Year of construction: 1999, operating hours: 16,000 h, functionality: fully functional, machine/vehicle number: 650341, Year 1999 with Fanuc 18 TB – 3 axes XZB Marposs E30/E20 Country of manufacture: Switzerland Voltage: 400V/50Hz/3ph Dimensions: 410 x 220 x 190 cm Net machine weight: 5,000 kg TECHNICAL SPECIFICATIONS CNC control: Fanuc 18TB Intermediate Section Fixed intermediate section: grinding head R Swiveling section with manual indexing 2.5°: R / RS / UR / URS -210° to +30° Kjdpfxow T Tb Ho Ad Iodw Swiveling section with automatic indexing 2.5°: R / RS / UR / URS -210° to +30° B axis, resolution 0.1'': R / RS / UR / URS -210° to +30° Standard workhead Swivel range: -10° to (+100°) Spindle speed (continuous): 6 – 600 rpm Internal taper: MT5 Reducing sleeve: MT5/MT4 Short external taper fitting: DIN 55026 / Size 5 Permissible torque: 160 Nm Guaranteed roundness for chuck work Standard: 0.5 µm Option: 0.2 µm Workpiece weight between centers: 150 kg Tailstock Taper fitting: MT4 Quill stroke: 50 mm / 2° Option: fine adjustment with correction (Ø +/- 150 µm) Grinding wheel data (max. speed) Diameter 300: 27 m/s Diameter 400: 35 m/s Diameter 500: 45 m/s UR Grinding Head Power: 9.2 kW / 12.5 HP Wheel mounting, left max.: Ø 500 x 80 mm Right, additional max.: Ø 400 x 63 mm Internal grinding device: spindle HJN 828 Lower table (Z axis) Distance between centers: 1000 mm Max. travel: 1150 mm Max. speed: 15 m/min Max. resolution: 0.1 µm Upper table Distance between centers: 1000 mm / swivel 0° to 9° Grinding carriage (X axis) Max. travel: 320 mm Max. speed: 7.5 m/min Max. resolution: 0.1 µm Pneumatics Min. connection: 6 bar Air consumption: approx. 0.6 m³/h Coolant Max. connection pressure: 3 bar Required space (version 1000): 3600 x 2000 mm Unless otherwise stated, technical data is provided without engagement and may be subject to errors or omissions.

Year of construction: 1997, condition: ready for operation (used), Main Drive Number of axis 4 Additional Equipment Belt filter system Kjdow Spr Ejpfx Ad Iodw This 4-axis KELLENBERGER Kel-Varia UR 175/1000 was manufactured in 1997. It features an internal grinding device with a tiltable B-axis and a C-axis for out-of-round grinding, complemented by a belt filter system. Consider the opportunity to buy this KELLENBERGER Kel-Varia UR 175/1000 cylindrical grinding machine. Contact us for more information. Application Types Grinding

Condition: not inspected (used), Year of construction: 1998, machine/vehicle number: 2183, travel distance X-axis: 500 mm, travel distance Y-axis: 300 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 300 kg, total height: 3,250 mm, feed rate X-axis: 2,000 m/min, feed rate Y-axis: 2,000 m/min, table width: 380 mm, table length: 600 mm, table load: 300 kg, overall weight: 4,500 kg, travel distance W-axis: 450 mm, Equipment: documentation/manual, THIS MACHINE IS SOLD EXCLUSIVELY WITHIN THE EU – THANK YOU FOR YOUR UNDERSTANDING! Item type: CNC Coordinate Grinding Machine Manufacturer: HAUSER Model: S35-400 Year of manufacture: 1998 Machine number: 2183 Condition: According to the previous owner and a Hauser specialist, the machine is in good condition. Terms of delivery: Free loaded onto truck Availability: Immediately (subject to prior agreement) Location: Magdeburg Kdodpfx Aowakqyod Iow Technical data: • Control: GE Fanuc Series 16-M • Tool holder: Collets EX 19 or grinding arbors E19 • Travel X / Y / W axes: 500 / 300 / 450 mm • Feed rate X & Y axes: 0 – 2000 mm/min • Feed rate W axis approx.: 900 mm/min • Table dimensions: 600 x 380 mm • Max. table load: 300 kg • Grinding spindle speed stepless: 9,000 – 60,000 rpm • Z-axis stroke speed stepless: 0.5 – 14,000 mm/min • Fire extinguishing system • Further technical data – see pictures Scope of delivery: • Grinding motor 60S (9,000 – 60,000 rpm) – see separate pictures • Extraction system • Coolant system • Dressing turbine • Available manuals • The clamping equipment visible in the pictures as well as the currently mounted grinding motor are NOT included in the scope of delivery! Dimensions & weights: • Installation dimensions (L x W x H) approx.: 4,250 x 4,000 x 3,250 mm • Weight approx.: 4,500 kg If you have any questions or would like to arrange a viewing, please feel free to contact us. Additional notes: The tool changer is not operational – according to the previous owner, it was never needed anyway! • On request, we can arrange transport to the destination. • The offer price is net plus VAT. • The goods are sold under exclusion of any warranty! • The sale is exclusively to business customers! • Technical data subject to change and without guarantee. • Subject to prior sale.

Condition: used, Year of construction: 2006, travel distance X-axis: 980 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, table width: 1,250 mm, table length: 750 mm, rotary table diameter: 700 mm, DMG DECKEL MAHO DMU80 monoBLOCK HEIDENHAIN iTNC530 Rotary T: dia700mm T:1,250x750mm 18,000rpm HSK-A63 ATC32 Touch probe TS640 Blum Laser Chip Conveyor Kdjdpfx Asvxngdsd Iow

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Kdsdpfxouxfuce Ad Iew Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...

Condition: used, grinding diameter 450 mm grinding length 1000 mm centre height 225 mm As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machine will be delivered overhauled. Mechanical overhaul: • Overhaul of the entire machine according to Kellenberger measuring protocol • A new service-friendly cabin Kodpfxjuwv Hye Ad Iodw • Repainting Electrical overhaul: • New, modern CNC cylindrical grinding machine control system • New built up control cabinet • New drive technology • Exchange of all electric lines, Berus pressure switch, etc. • New absolute glas scales in X- and Z- axis • New absolute rotary encoder (for B-axis) Please remark that the pictures show an already delivered machine with other options. Wheelhead variant UR/RS: • Grinding wheel arrangement for external and angular plunge grinding in a row • Thus, in each case 400mm grinding wheel diameter • Thus, substantially lower risk of collision • Easier programming • Grinding wheel equipment in each case 400x63x127mm • HF-Spindle for internal grinding • B-axis CNC-controlled for external-, surface and internal grinding at one setting. • Swivel range +10°/-270° • C-axis for polygon grinding • Tight lower part • Grinding head motor 10,0 kW • Tailstock • Marposs measuring system for grinding wheel alignment • Marposs lateral positioning system

Condition: used, Year of construction: 2008, tip circle diameter 650/800 mm Kdedpjw Rrbyefx Ad Ijw workpiece length - max. 1100 mm max. module 20 (25) mm min. module 0,5 mm control Siemens Sinumerik 840 D total connected load 62 kVA helical angle -45 / + 120 ° weight of the machine ca. 10 t

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 15 [kW] - Spindle speeds : 5500 [rpm] - Max. bar diameter : 42 [mm] - C axis indexing precision : 0.001 [°] - Travel : 330 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 410/400 [mm] - Y stroke : 200 [mm] - B Axis stroke : -25/+115 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK40 - Spindle speeds : 30000 [rpm] - Spindle power : 8 [kW] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 60 - Tool exchange time : 1.2 [sec] - Number of positions : 60 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 3300 x 2900 [mm] - Machine height : 2100 [mm] - Machine weight : 5000 [kg] MACHINE HOURS - Number of working hours : 11659 [h] EQUIPMENT - CNC : Fanuc 31i model A5 - Linear scales - Coolant tank * with high-pressure pump : 70 [bars] * Coolant through spindle - Oil mist extractor : ELBARON RON/A 100 DV - Spindle cooling unit - Workpiece probe : Renishaw OMP40-2 - Parts catcher - 1 NAKANISHI HTS1501S spindle : 150.000 [rpm] - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. Kdsdpfxeuhamps Ad Iew - Bar puller
